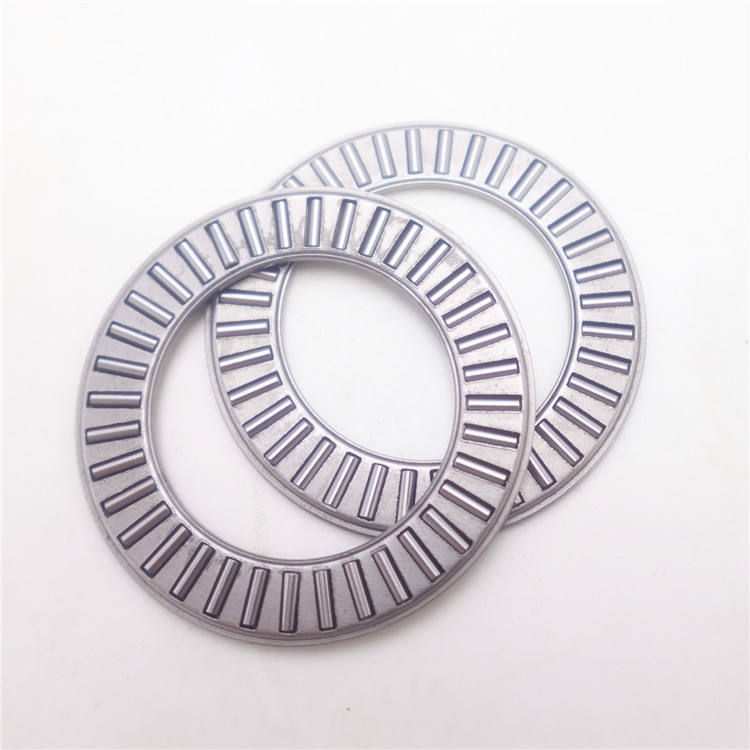

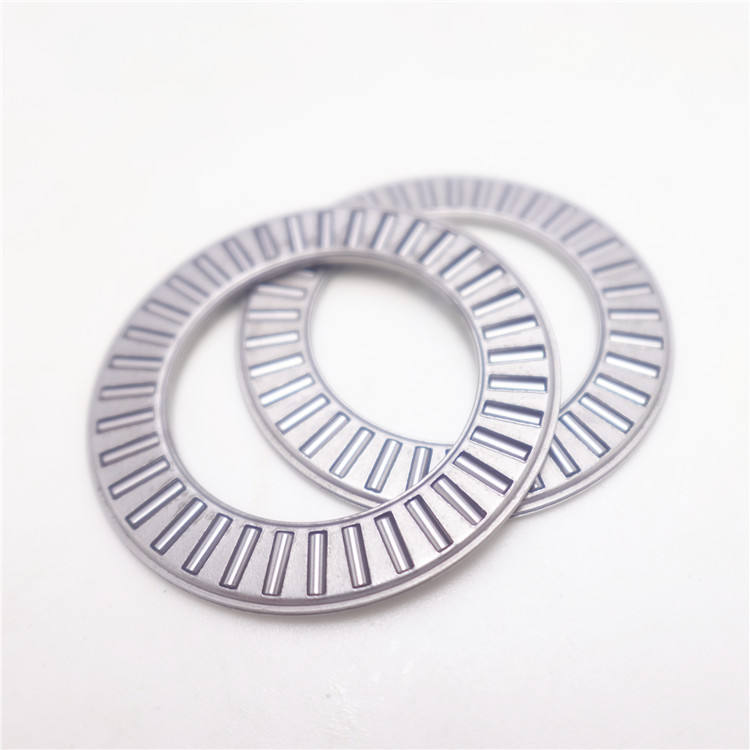

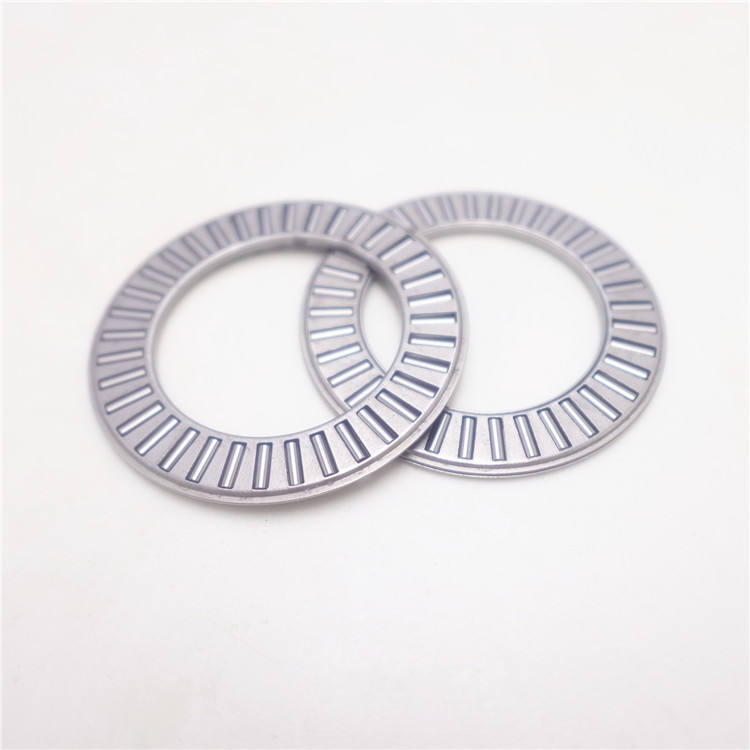

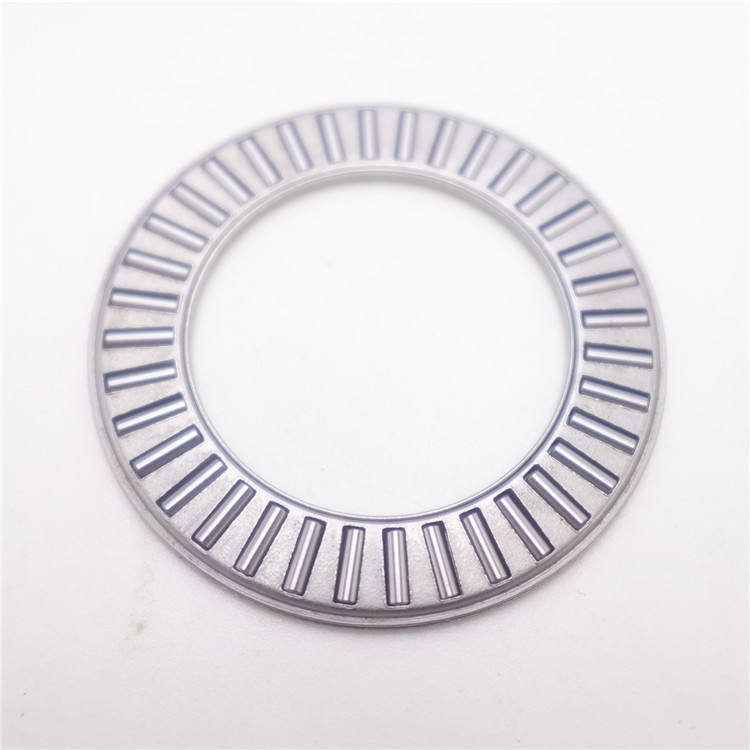

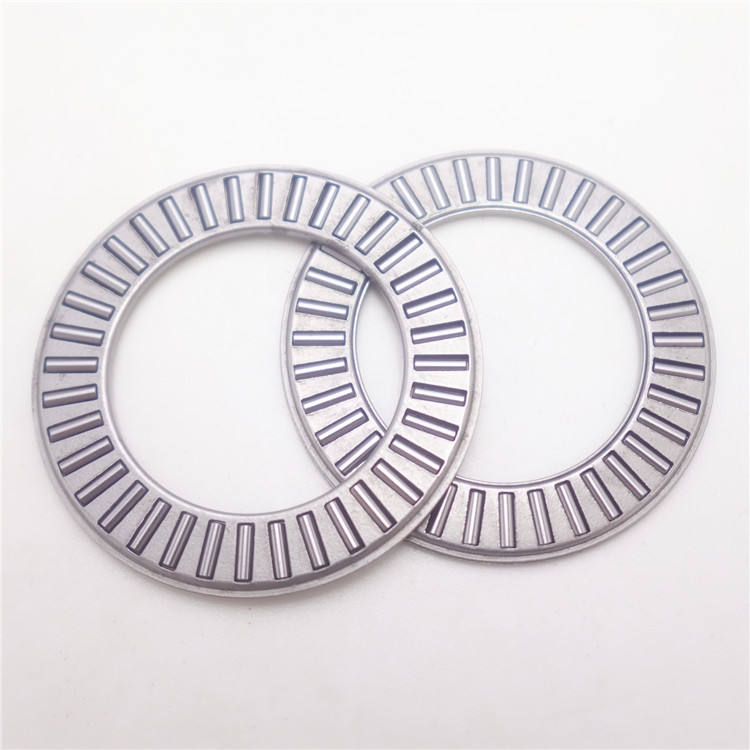

NTA 1625 Bearing NTA1625 Inch Size Thrust Needle Roller Bearing Cage
The NTA 1625 bearing is a caged thrust needle roller bearing designed for use with thrust washers, particularly suitable for applications where adjacent components cannot be used as raceways. This bearing is constructed of chrome steel and pre-lubricated with light oil to ensure it is ready to use upon delivery.
The NTA 1625 bearing is widely used in machine tools, drive shafts, automotive steering gears and clutches, rotary tables, outboard motor propellers, textile machinery, printing equipment, and other space-constrained applications.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize ?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price ?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of micro bearing?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing.
 |
| If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace |
|
Shaft Diameter |
Bearing Designation |
Mass(g) |
Boundary Dimentions |
Washers Thickness |
Basic Load Rating |
Limiting Speed |
||||||||
|
Cr Dynamic |
Cor Static |
|||||||||||||
| Dc1 | Dc | Dw | TRA | TRB | TRC | TRD | TRE | TRF | Cr(N) | Cor(N) | Greasc | |||
| 6.35 | NTA411 | 6.35 | 17.45 | 1.984 | 0.80 | 1.60 | 2.40 | 4114 | 9163 | 28000 | ||||
| 7.92 | NTA512 | 7.92 | 19.50 | 1.984 | 0.80 | 1.60 | 4670 | 11164 | 25000 | |||||
| 9.52 | NTA613 | 9.52 | 20.62 | 1.984 | 0.80 | 1.60 | 2.40 | 4848 | 12188 | 23000 | ||||
| 12.70 | NTA815 | 12.70 | 23.80 | 1.984 | 0.80 | 1.60 | 2.40 | 5738 | 16280 | 19000 | ||||
| 14.27 | NTA916 | 14.27 | 25.40 | 1.984 | 0.80 | 2.40 | 6183 | 18281 | 18000 | |||||
| 15.88 | NTA1018 | 15.88 | 28.58 | 1.984 | 0.80 | 1.60 | 2.40 | 3.20 | 4.00 | 7072 | 22551 | 16000 | ||
| 19.05 | NTA1220 | 19.05 | 31.75 | 1.984 | 0.80 | 1.60 | 2.40 | 3.20 | 4.00 | 7873 | 27088 | 14000 | ||
| 22.22 | NTA1423 | 22.22 | 36.50 | 1.984 | 0.80 | 1.60 | 2.40 | 3.20 | 10453 | 40966 | 12000 | |||
| 22.22 | NTA1427 | 22.22 | 42.85 | 1.984 | 1.60 | 2.40 | 3.20 | 15257 | 68944 | 10000 | ||||

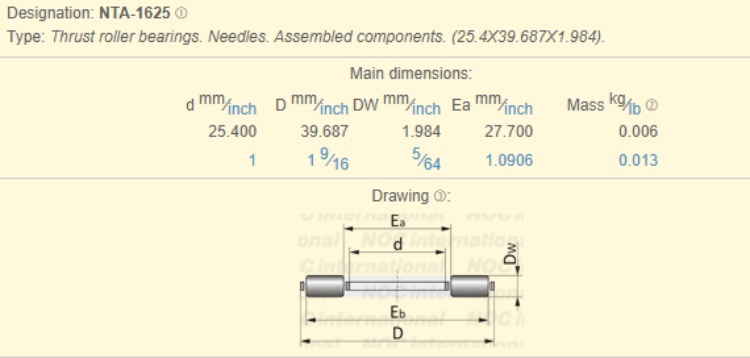

| 25.40 | NTA1625 | 25.40 | 39.67 | 1.984 | 0.80 | 1.60 | 2.40 | 3.20 | 4.00 | 10764 | 43902 | 11000 | ||
| 28.58 | NTA1828 | 25.58 | 44.45 | 1.984 | 0.80 | 1.60 | 2.40 | 3.20 | 13522 | 60938 | 9800 | |||
| 31.75 | NTA2031 | 31.75 | 49.21 | 1.984 | 0.80 | 1.60 | 2.40 | 3.20 | 4.00 | 4.80 | 16431 | 80954 | 8800 | |
| 34.92 | NTA2233 | 34.92 | 52.37 | 1.984 | 0.80 | 1.60 | 2.40 | 3.20 | 4.00 | 4.80 | 17392 | 89405 | 8200 | |
| 38.10 | NTA2435 | 38.10 | 55.50 | 1.984 | 0.80 | 1.60 | 2.40 | 3.20 | 4.00 | 4.80 | 18904 | 102304 | 7700 | |
| 44.45 | NTA2840 | 44.45 | 63.50 | 1.984 | 0.80 | 1.60 | 2.40 | 3.20 | 4.00 | 4.80 | 20639 | 119651.2 | 6900 | |
| 50.80 | NTA3244 | 50.80 | 69.85 | 1.984 | 0.80 | 1.60 | 2.40 | 3.20 | 4.00 | 4.80 | 19571 | 115203.2 | 6200 | |
| 53.98 | NTA3446 | 53.98 | 73.02 | 1.984 | 0.80 | 1.60 | 2.40 | 3.20 | 19883 | 119651.2 | 5900 | |||
| 57.15 | NTA3648 | 57.15 | 76.20 | 1.984 | 0.80 | 1.60 | 2.40 | 3.20 | 4.00 | 4.80 | 20194 | 123654.4 | 5700 | |
| 57.15 | NTA3650 | 57.15 | 79.38 | 3.125 | 32915 | 168134.4 | 5300 | |||||||
| 63.50 | NTA4052 | 63.50 | 82.55 | 1.984 | 0.80 | 1.60 | 2.40 | 3.20 | 20772 | 132105.6 | 5200 | |||
| 69.85 | NTA4458 | 69.85 | 92.08 | 3.175 | 0.80 | 1.60 | 2.40 | 3.20 | 4.00 | 4.80 | 41722 | 242416 | 4600 | |
| 76.20 | NTA4860 | 76.20 | 95.25 | 1.984 | 0.80 | 1.60 | 3.20 | 21973 | 149452.8 | 4500 | ||||
| 82.55 | NTA5266 | 82.55 | 104.78 | 3.175 | 0.80 | 3.20 | 44925 | 279779.2 | 4000 | |||||
| 95.25 | NTA6074 | 95.25 | 117.48 | 3.175 | 0.80 | 1.60 | 2.40 | 3.20 | 48928 | 326483.2 | 3500 | |||
| 104.78 | NTA6681 | 104.78 | 128.59 | 3.175 | 0.80 | 2.40 | 3.20 | 4.80 | 55600 | 395427.2 | 3200 | |||
