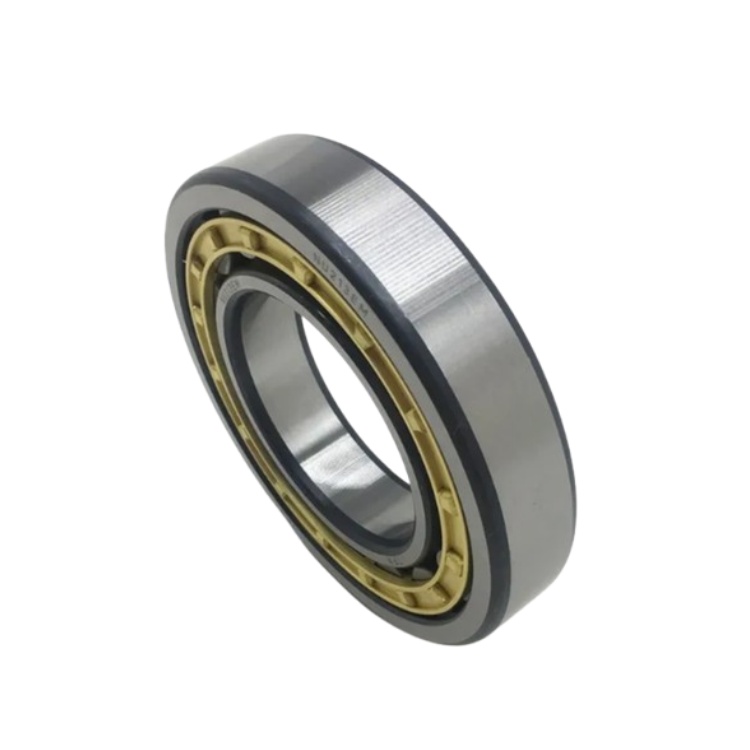

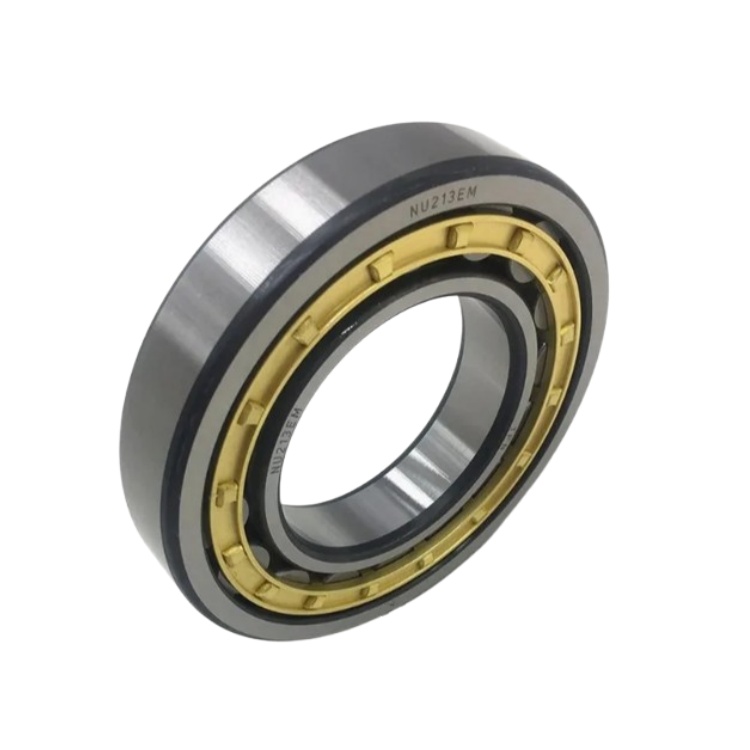

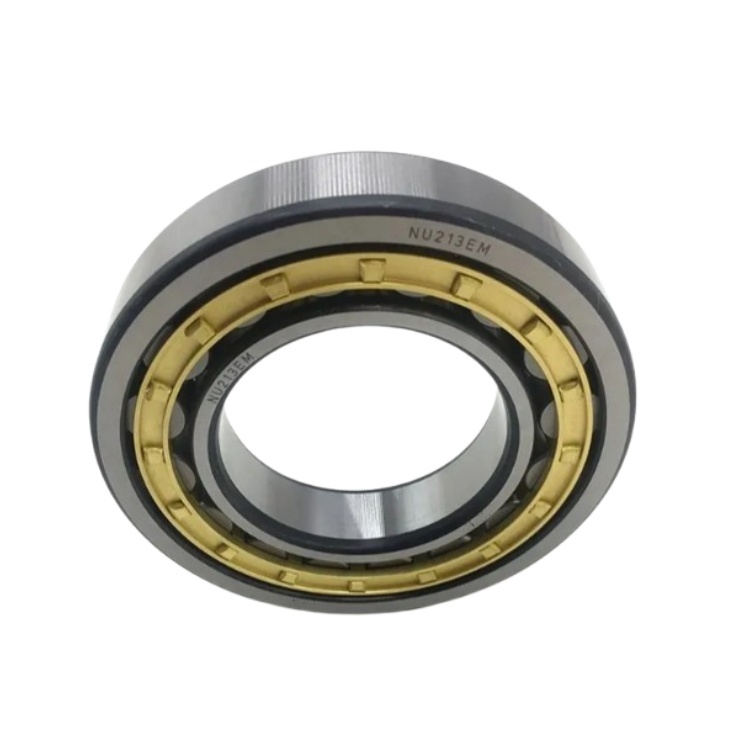

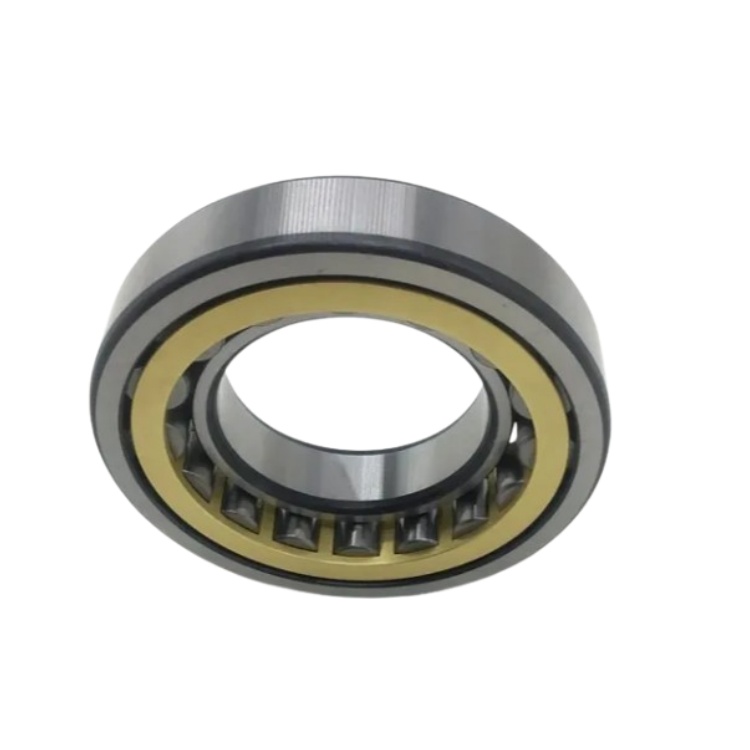

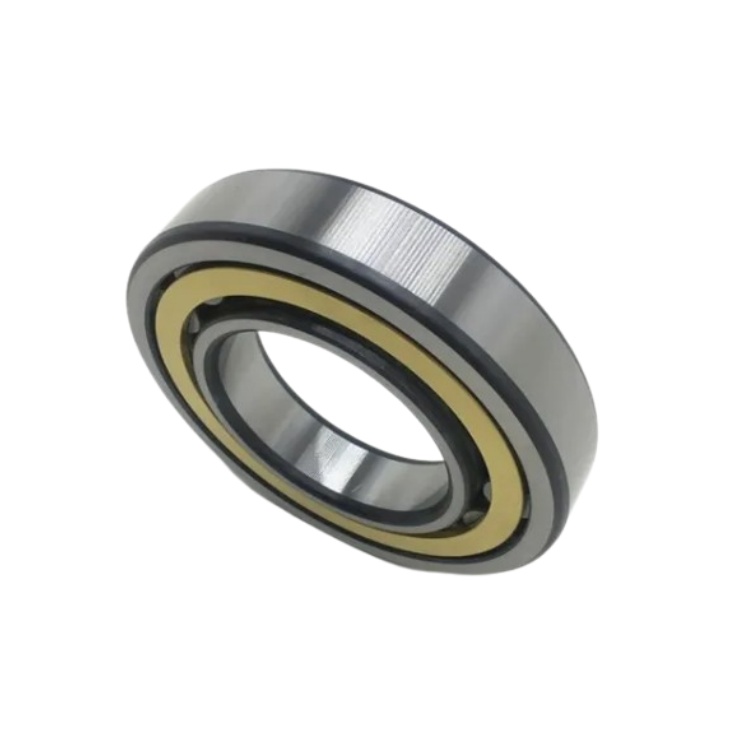

NU213 Single row cylindrical roller bearing with brass cage NU213M NU213EM NU213ECM size 65x120x23mm
The NU213 is a caged single-row cylindrical roller bearing. This bearing consists of a solid inner ring and an outer ring, with cylindrical rollers housed within the outer ring and secured by a cage. The cage prevents the cylindrical rollers from contacting each other, allowing this type of bearing to withstand higher speeds than full roll cylindrical roller bearings. Furthermore, caged single-row cylindrical roller bearings are extremely rigid and can withstand large radial forces. Installation is very convenient due to the easy disassembly of the inner and outer rings. Applications of single-row cylindrical roller bearings include gearboxes, agricultural machinery, pumps, compressors, and electric motors.
The NU213 is a single-row cylindrical roller bearing employing the NU design. This bearing has two rigid flanges on the outer ring, while the inner ring does not. Therefore, NU bearings can only withstand radial forces. This type of bearing is commonly used as a floating bearing. Floating bearings allow axial displacement of the shaft relative to the bearing housing in both directions. This is necessary in applications where the shaft material contracts or expands due to temperature changes (thermal expansion). NU bearings can also be used in combination with HJ angle rings (sold separately) as support bearings. Support bearings can withstand radial forces and unidirectional axial forces.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize ?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price ?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of micro bearing?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing.
 |
| If you need any brand bearings or any models of bearings, please contact me!Contact: Grace Email: ntn@llhbearing.com Skype:+8618668903871 MP/Whatsapp: +8618668903871 Wechat:GraceXu1234 |
| d – Internal diameter | 65 mm |
| D – External diameter | 120 mm |
| B – Bearing/Inner ring width | 23 mm |
| Bearing number | d | D | B | C | C0 |
| NUP203 ECP | 17 | 40 | 12 | 17,2 | 14,3 |
| NUP2203 ECP | 17 | 40 | 16 | 23,8 | 21,6 |
| NUP204 ECML | 20 | 47 | 14 | 28,5 | 22 |
| NUP204 ECPHA | 20 | 47 | 14 | 28,5 | 22 |
| NUP204 ECP | 20 | 47 | 14 | 28,5 | 22 |
| NUP304 ECP | 20 | 52 | 15 | 35,5 | 26 |
| NUP2304 ECP | 20 | 52 | 21 | 47,5 | 38 |
| NUP205 ECP | 25 | 52 | 15 | 32,5 | 27 |
| NUP205 ECML | 25 | 52 | 15 | 32,5 | 27 |
| NUP2205 ECP | 25 | 52 | 18 | 39 | 34 |
| NUP305 ECML | 25 | 62 | 17 | 46,5 | 36,5 |
| NUP305 ECJ | 25 | 62 | 17 | 46,5 | 36,5 |
| NUP305 ECP | 25 | 62 | 17 | 46,5 | 36,5 |
| NUP2305 ECP | 25 | 62 | 24 | 64 | 55 |
| NUP2305 ECML | 25 | 62 | 24 | 64 | 55 |
| NUP206 ECML | 30 | 62 | 16 | 44 | 36,5 |
| NUP206 ECP | 30 | 62 | 16 | 44 | 36,5 |
| NUP2206 ECP | 30 | 62 | 20 | 55 | 49 |
| NUP306 ECP | 30 | 72 | 19 | 58,5 | 48 |
| NUP306 ECJ | 30 | 72 | 19 | 58,5 | 48 |
| NUP306 ECM | 30 | 72 | 19 | 58,5 | 48 |
| NUP306 ECML | 30 | 72 | 19 | 58,5 | 48 |
| NUP2306 ECML | 30 | 72 | 27 | 83 | 75 |
| NUP2306 ECP | 30 | 72 | 27 | 83 | 75 |
| NUP207 ECJ | 35 | 72 | 17 | 56 | 48 |
| NUP207 ECML | 35 | 72 | 17 | 56 | 48 |
| NUP207 ECP | 35 | 72 | 17 | 56 | 48 |
| NUP207 ECM | 35 | 72 | 17 | 56 | 48 |
| NUP2207 ECP | 35 | 72 | 23 | 69,5 | 63 |
| NUP307 ECP | 35 | 80 | 21 | 75 | 63 |
| NUP307 ECJ | 35 | 80 | 21 | 75 | 63 |
| NUP307 ECM | 35 | 80 | 21 | 75 | 63 |
| NUP307 ECML | 35 | 80 | 21 | 75 | 63 |
| NUP2307 ECP | 35 | 80 | 31 | 106 | 98 |
| NUP208 ECJ | 40 | 80 | 18 | 62 | 53 |
| NUP208 ECML | 40 | 80 | 18 | 62 | 53 |
| NUP208 ECM | 40 | 80 | 18 | 62 | 53 |
| NUP208 ECP | 40 | 80 | 18 | 62 | 53 |
| NUP2208 ECP | 40 | 80 | 23 | 81,5 | 75 |
| NUP2208 ECJ | 40 | 80 | 23 | 81,5 | 75 |
| NUP308 ECM | 40 | 90 | 23 | 93 | 78 |
| NUP308 ECP | 40 | 90 | 23 | 93 | 78 |
| NUP308 ECML | 40 | 90 | 23 | 93 | 78 |
| NUP2308 ECML | 40 | 90 | 33 | 129 | 120 |
| NUP2308 ECM | 40 | 90 | 33 | 129 | 120 |
| NUP2308 ECP | 40 | 90 | 33 | 129 | 120 |
| NUP209 ECJ | 45 | 85 | 19 | 69,5 | 64 |
