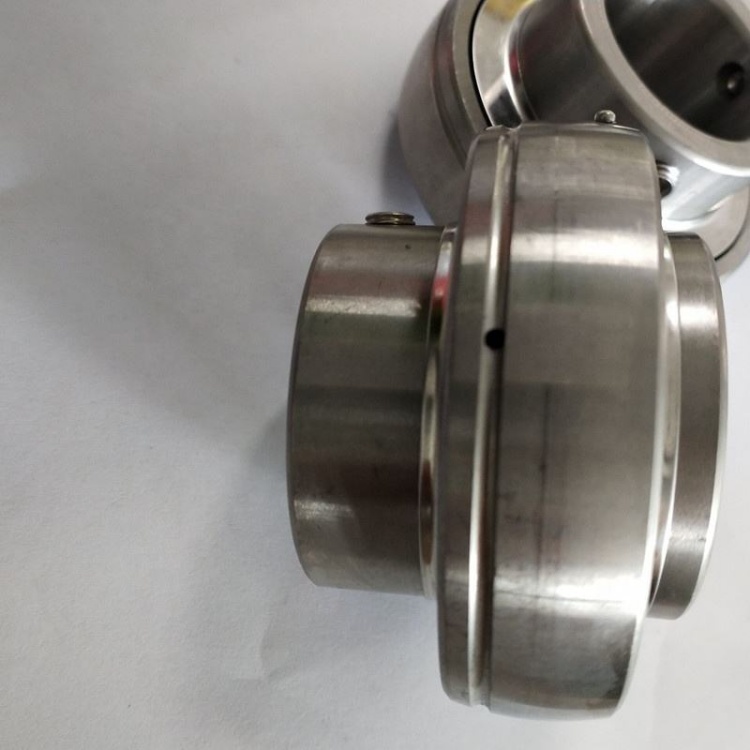

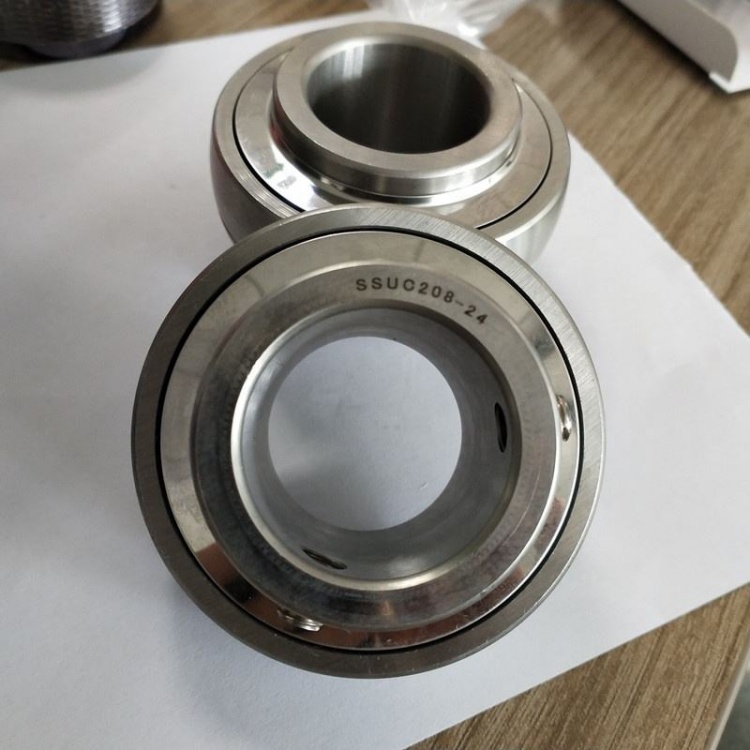

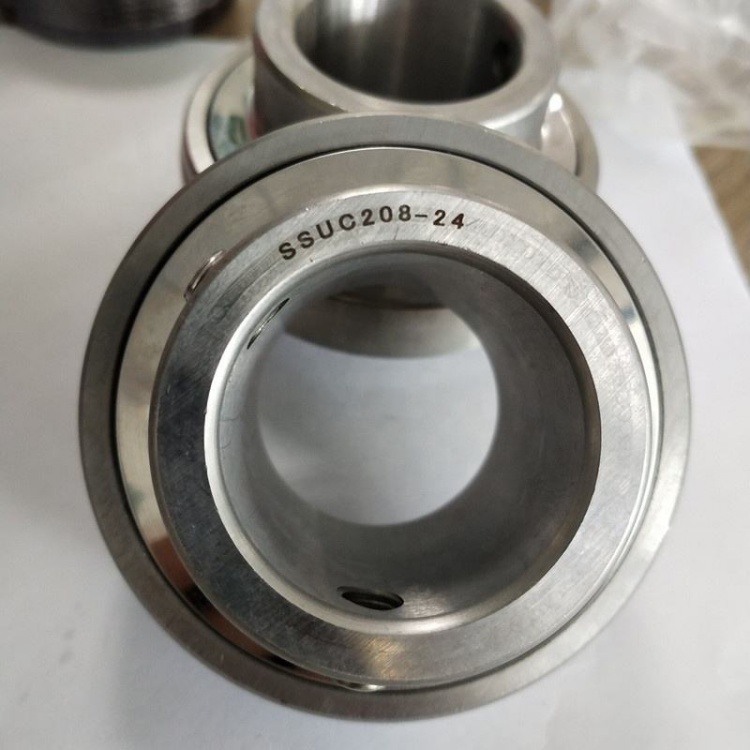

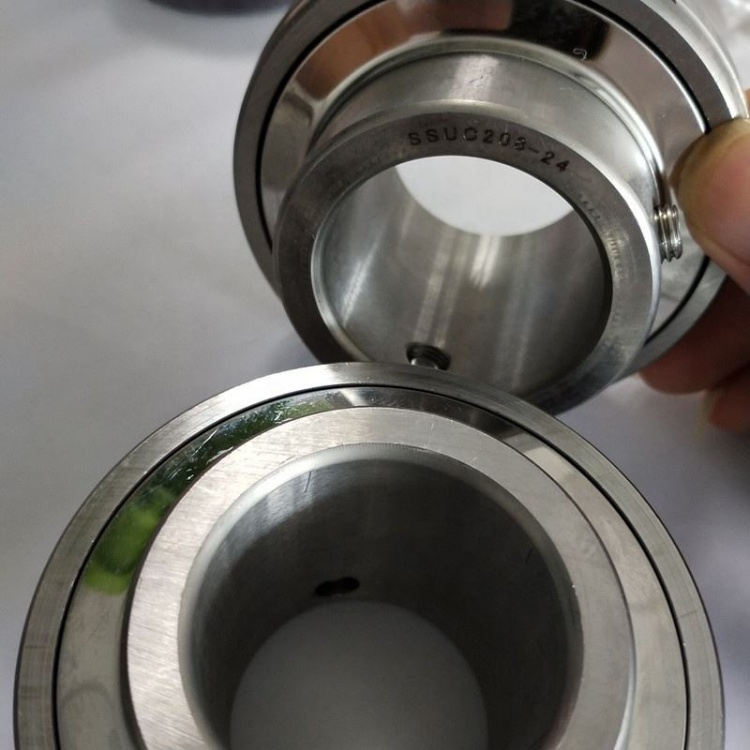

UC208 24 SUC208-24 Stainless Steel Insert Ball Bearing UC208-24
UC208 24 is a Complete Stainless Steel Set Screw Insert Ball Bearing with Lubricating Groove Access and is pre-lubricated with Grease allowing for use upon delivery. Our SUC208-24 Stainless-Steel Insert Ball Bearings have low noise and vibrations, lower friction torque and a high precision rotation. This bearing also features two set screws found on the extended inner ring which can be tightened onto a shaft. The SUC200 Series Stainless-Steel Insert Ball Bearings have a wide range of applications that involve functions in low and high temperature environments and functions in corrosive environments involving maritime climate, sea water, river water, distilled water, and in sparse nitric acid.
UC208 24 Insert Ball Bearings are used in a range of applications from Agricultural Machinery, Conveying Equipment, Packaging, Shaft Supports, Food Processing, Grinding and Mixing Equipment, Mining, Textile Machinery, Material Handling, ATV, UTV, Off Roading, and in the Printing Industry.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize ?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price ?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of micro bearing?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing.
 |
| If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace |
| Dimensions (inches) | |||||||
|---|---|---|---|---|---|---|---|
| D | Bi | Be | r | n | m | G | ds (Unf-Thread) |
| 35/32″ | 1-15/16″ | 53/64″ | 5/64″ | 3/4″ | 1-3/16″ | 5/16″ | 5/16-24×5/16″ |
|
Model
|
Shaft
in
mm
|
Dimension
in
mm
|
||||||
|
D
|
Bi
|
Be
|
n
|
m
|
||||
| SSUC201-8 SSUC201 SSUC202-9 SSUC202-10 SSUC202 SSUC203-11 SSUC203 |
12.7
12 14.2875 15.875 15 17.4625 17 |
1.8504 |
1.2205 |
0.6299 |
0.5000 |
0.7205 |
||
| SSUC204-12 SSUC204 |
19.05
20 |
47
|
1.2205
31 |
0.6693
17 |
0.5000
12.7 |
0.7205
18.3 |
||
| SSUC205-13 SSUC205-14 SSUC205-15 SSUC205-16 SSUC205 |
20.6375
22.225 23.8125 25.4 25 |
2.0472
52 |
1.3425
34.1 |
0.6693
17 |
0.5630
14.3 |
0.7795
19.8 |
||
| SSUC206-17 SSUC206-18 SSUC206-19 SSUC206-20 SSUC206 |
26.9875
28.575 30.1625 31.75 30 |
2.4409
62 |
1.5000
38.1 |
0.7480
19 |
0.6260
15.9 |
0.8740
22.2 |
||
| SSUC207-20 SSUC207-21 SSUC207-22 SSUC207-23 SSUC207 |
31.75
33.3375 34.925 36.5125 35 |
2.8346 72 |
1.6890 42.9 |
0.7874 20 |
0.6890 17.5 |
1.0000 25.4 |
||
| SSUC208-24 SSUC208-25 SSUC208 |
38.1
39.6875 40 |
3.1496
80 |
1.9370
49.2 |
0.8661
22 |
0.7480
19 |
1.1890
30.2 |
||
| SSUC209-26 SSUC209-27 SSUC209-28 SSUC209 |
41.275
42.8625 44.45 45 |
3.3465
85 |
1.9370
49.2 |
0.8661
22 |
0.7480
19 |
1.1890
30.2 |
||
| SSUC210-29 SSUC210-30 SSUC210-31 SSUC210-32 SSUC210 |
46.0375
47.625 49.2125 50.8 50 |
3.5433
90 |
2.0315
51.6 |
0.9449
24 |
0.7480
19 |
1.2835
32.6 |
||
| SSUC211-32 SSUC211-33 SSUC211-34 SSUC211-35 SSUC211 |
50.8
52.3875 53.975 55.5625 55 |
3.9370 |
2.1900 |
0.9843 |
0.8740 |
1.3150 |
||
| SSUC212-36 SSUC212-37 SSUC212-38 SSUC212-39 SSUC212 |
57.15
58.7375 60.325 61.9125 60 |
4.3307
110 |
2.5630
65.1 |
1.0630
27 |
1.0000
25.4 |
1.5630
39.7 |
||
