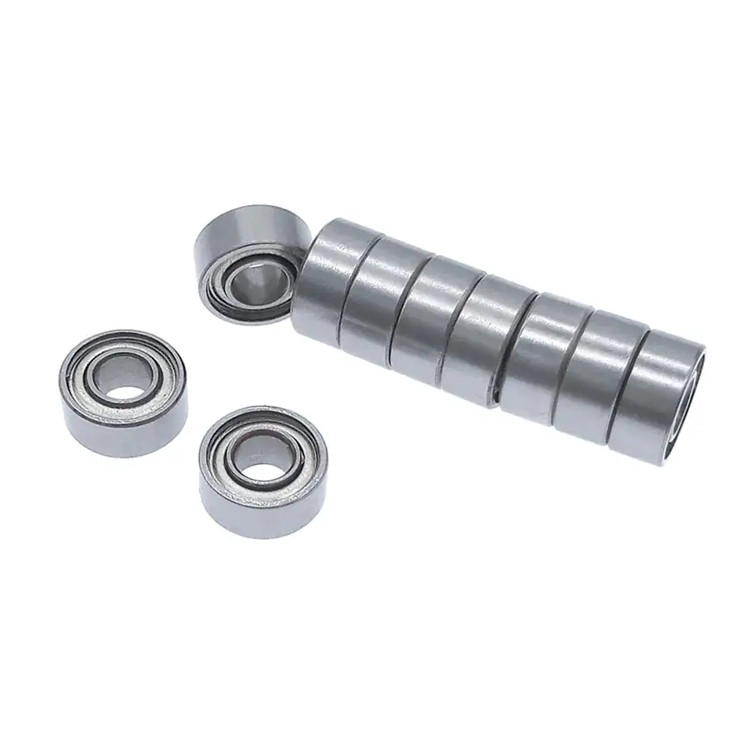

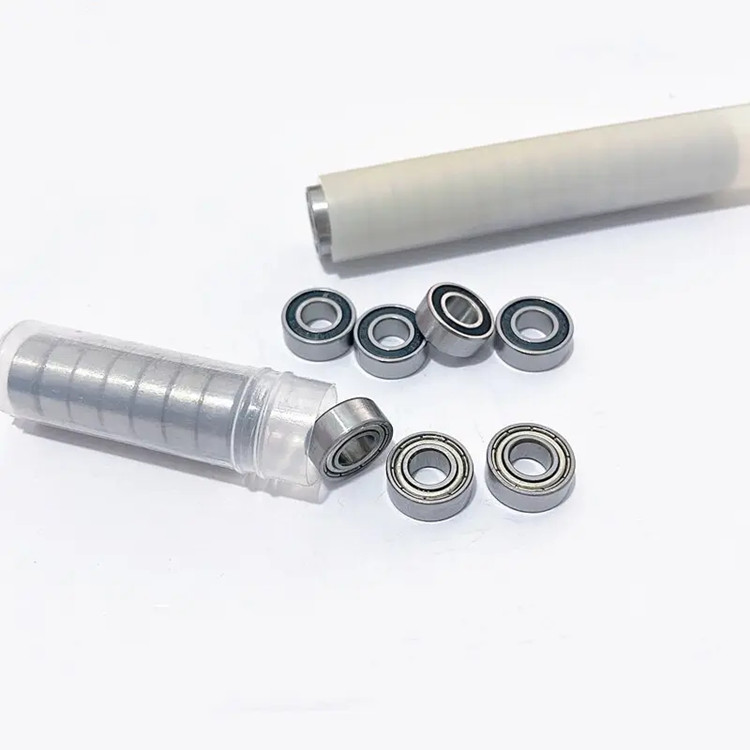

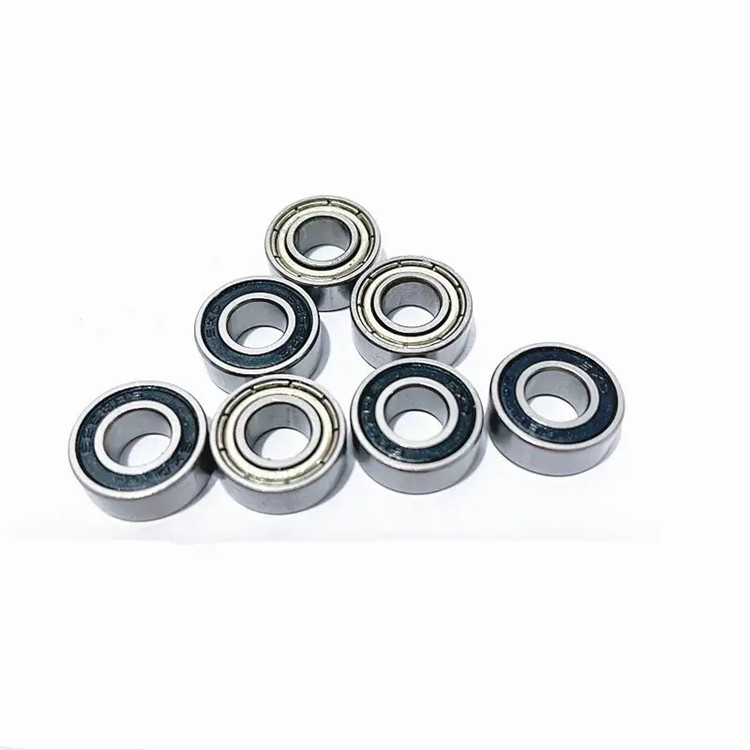

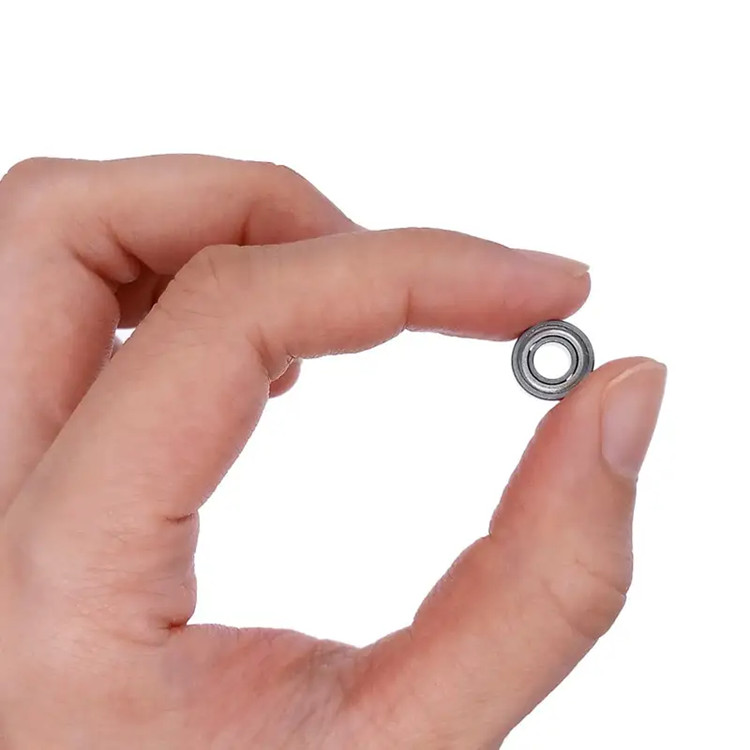

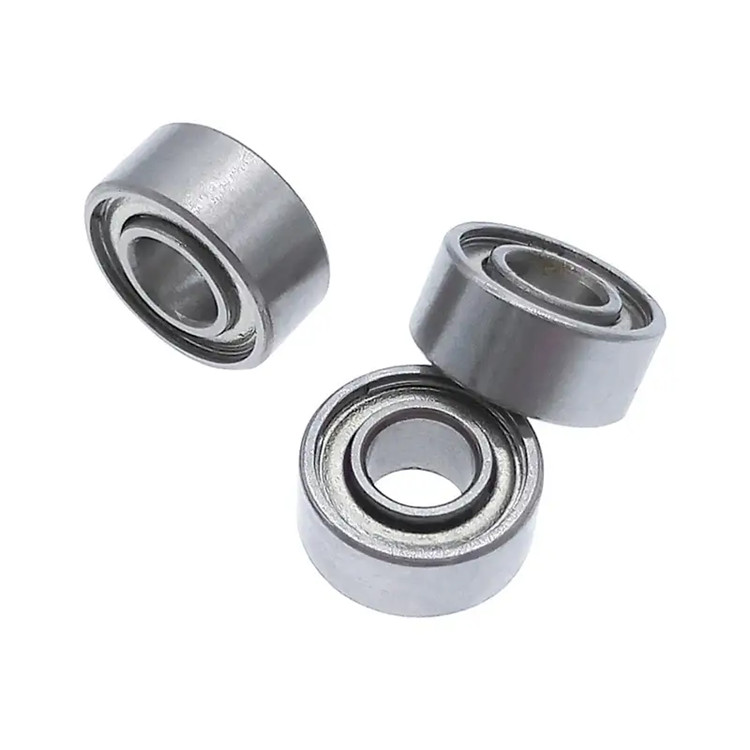

686 rs bearing deep groove ball bearing 686rs 686 2rs 6*13*5mm
686 rs bearing deep groove ball bearing 686rs 686 2rs 6*13*5mm
The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.
Bearing structure
Deep groove ball bearing has simple structure, compared with other types of easy to achieve high manufacturing accuracy, so easy to become series mass production, lower manufacturing costs, the use of very common. Deep groove ball bearing except basic types, there are various kinds of structural change, such as: deep groove ball bearings with dust cover, deep groove ball bearings with a rubber sealing ring, deep groove ball bearings with snap groove, deep groove ball bearings have high load capacity of ball filling gap, double deep groove ball bearings.
Types
Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.
Application
The bearings can be found in transmission, instrumentation, motors, household appliances automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
1,Q: Are you trading company or manufacturer ?A: We are factory.
2,Q: How long is your delivery time for 686 rs bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for 686 rs bearing ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for 686 rs bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for 686 rs bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for 686 rs bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of 686 rs bearing?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing
If need any type or brand bearings,don't forget to contact me!
Contact:Bella
Whatsapp/Tel:+8615315596312
TEL/Wechat:+8615318805907
Email/Skype:skf@llhbearing.com
| TYPE | Dimension | ||||
| Bore Diameter | Outer Diameter | width for open type | width for shield type (ZZ or RS) | Radius | |
| ZZ | d(mm) | D(mm) | b | b1 | mm |
| 681 | 1 | 3 | 1 | ||
| 681XZZ | 1.5 | 4 | 2 | ||
| 682zz | 2 | 5 | 1.5 | 2.3 | 0.08 |
| MR52zz | 5 | 2 | 2.5 | 0.10 | |
| 692zz | 6 | 2.3 | 3 | 0.15 | |
| MR62zz | 6 | 2.5 | 2.5 | 0.15 | |
| MR72zz | 7 | 2.5 | 3 | 0.15 | |
| 602zz | 7 | 2.8 | 3.5 | 0.15 | |
| 682Xzz | 2.5 | 6 | 1.8 | 2.6 | 0.08 |
| 692Xzz | 7 | 2.5 | 3.5 | 0.15 | |
| 602Xzz | 8 | 2.8 | 4 | 0.15 | |
| MR63zz | 3 | 6 | 2 | 2.5 | 0.10 |
| 683zz | 7 | 2 | 3 | 0.10 | |
| MR83zz | 8 | 2.5 | 3 | 0.15 | |
| 693zz | 8 | 3 | 4 | 0.15 | |
| MR93zz | 9 | 2.5 | 4 | 0.20 | |
| 623zz | 10 | 4 | 4 | 0.15 | |
| MR74zz | 4 | 7 | 2 | 2.5 | 0.10 |
| MR84zz | 8 | 2 | 3 | 0.15 | |
| 684zz | 9 | 2.5 | 4 | 0.10 | |
| MR104zz | 10 | 3 | 4 | 0.20 | |
| 694zz | 11 | 4 | 4 | 0.15 | |
| MR85zz | 5 | 8 | 2 | 2.5 | 0.10 |
| MR95zz | 9 | 2.5 | 3 | 0.15 | |
| MR105zz | 10 | 3 | 4 | 0.15 | |
| MR115zz | 11 | – | 4 | 0.15 | |
| 685zz | 11 | 3 | 5 | 0.15 | |
| 695zz | 13 | 4 | 4 | 0.20 | |
| MR106zz | 6 | 10 | 2.5 | 3 | 0.15 |
| MR126zz | 12 | 3 | 4 | 0.20 | |
| 686zz | 13 | 3.5 | 5 | 0.15 | |
| 696zz | 15 | 5 | 5 | 0.20 | |
| MR117zz | 7 | 11 | 2.5 | 3 | 0.15 |
| MR137zz | 13 | 3 | 4 | 0.20 | |
| 687zz | 14 | 3.5 | 5 | 0.15 | |
| MR128zz | 8 | 12 | 2.5 | 3.5 | 0.15 |
| MR148zz | 14 | 3.5 | 4 | 0.20 | |
| 688zz | 16 | 4 | 5 | 0.20 | |
| 698zz | 19 | 6 | 6 | 0.30 | |
| 6700zz | 15 | 4 | 4 | 0.15 | |
| 6800zz | 19 | 5 | 5 | 0.30 | |
Jinan Maolei Bearing CO.,LTD is a professional bearing manufacturer and trade company. We have served more than 100 countries in the past 10 years, we can provide various kind of bearings with high quality,low price,short delivery time.
The product include deep groove ball bearing, self-aligning ball bearing, self-aligning roller bearing, cylindrical roller bearing, tapered roller bearing, insert bearing & pillow block bearing,needle bearing and etc.
We can offer customized service to meet customers’ requirements.
We welcome customers from all over the world to establish business relations and cooperate with us.
We committed to be your reliable bearing supplier.
