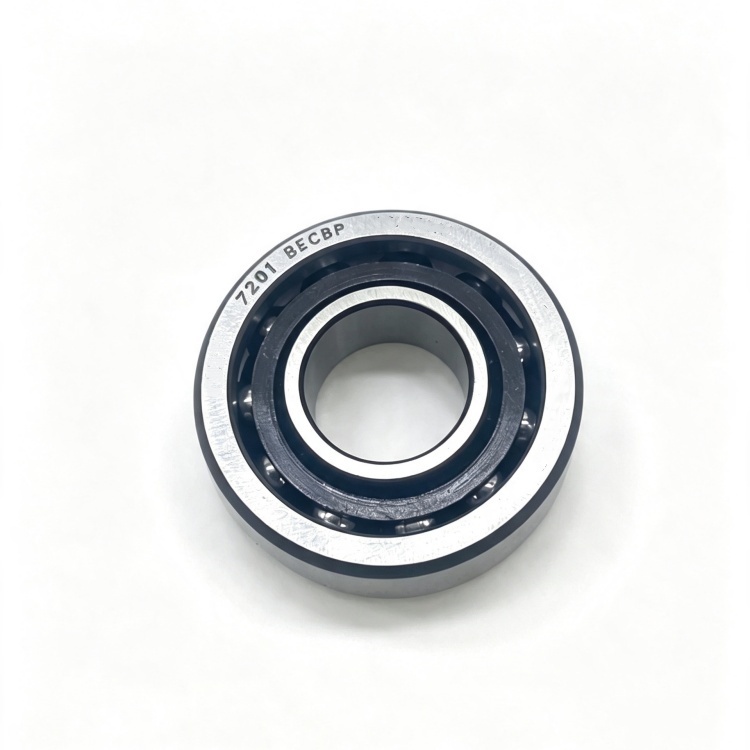

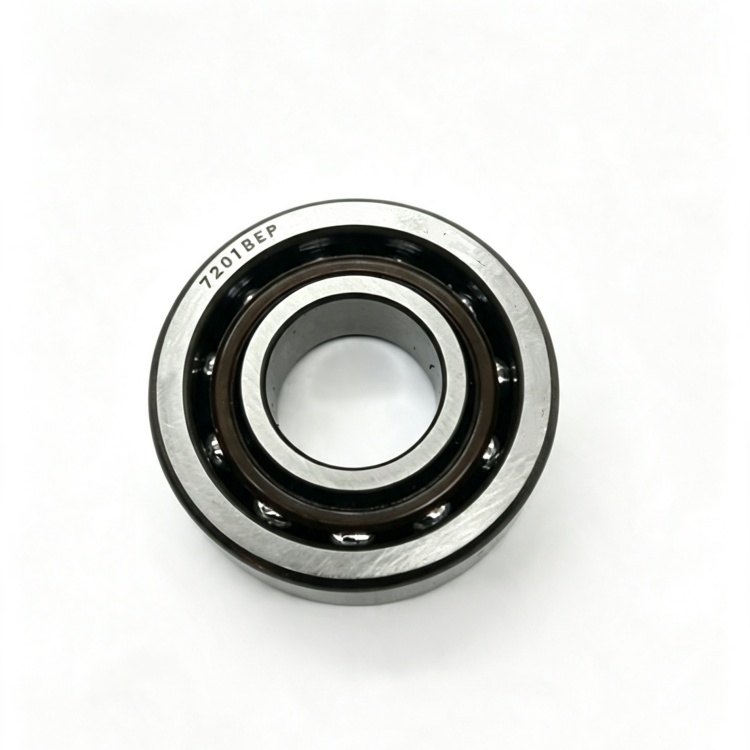

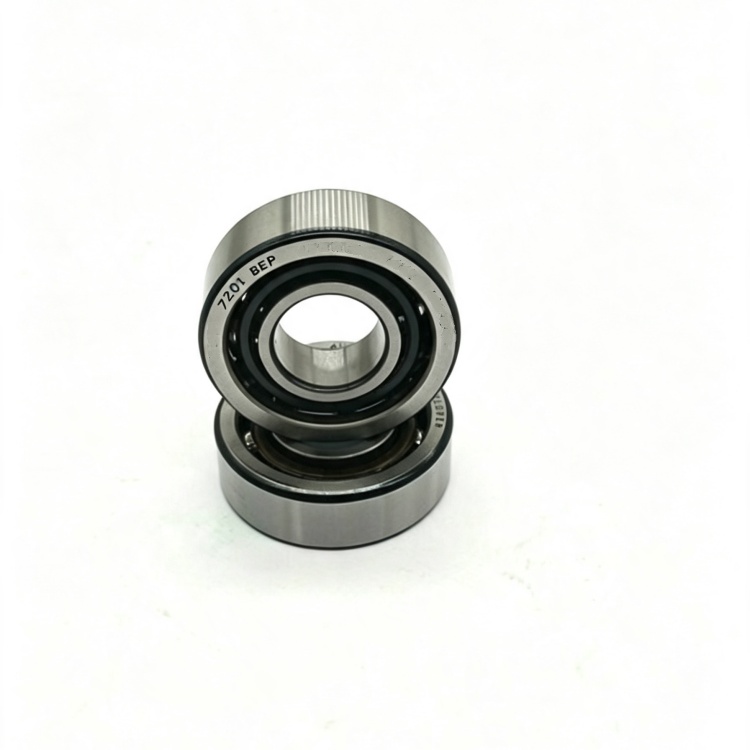

7201 BECBP Angular Contact Ball Bearing 7201BEP Size 12x32x10mm
7201 BECBP is a single-row angular contact ball bearing featuring solid inner and outer rings. Its name derives from the contact angle formed when the raceways of the inner and outer rings are axially offset relative to one another. Each bearing ring is designed with one high shoulder and one low shoulder. The low shoulder enables the installation of a larger quantity of balls inside the bearing.
Single-row angular contact ball bearings withstand substantial radial loads as well as unidirectional axial loads. A larger contact angle corresponds to higher axial load carrying capacity of the bearing.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for 7201 becbp?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for 7201 becbp? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for 7201 becbp?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for 7201 becbp?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of 7201 becbp?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
 |
| If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace |
| d |
12 mm
|
Bore diameter |
|---|---|---|
| tΔdmp | -0.008 – 0 mm | Deviation limits of mid-range bore diameter |
| D |
32 mm
|
Outside diameter |
| tΔDmp | -0.011 – 0 mm | Deviation limits of mid-range outside diameter |
| B |
10 mm
|
Width |
| tΔBs | -0.12 – 0 mm | Deviation limits of ring width |
| d1 |
≈20.2 mm
|
Shoulder diameter of inner ring (large side face) |
| d2 |
≈16.57 mm
|
Shoulder diameter of inner ring (small side face) |
| D1 |
≈25 mm
|
Shoulder diameter of outer ring (large side face) |
| a |
14 mm
|
Distance side face to pressure point |
| r1,2 |
min.0.6 mm
|
Chamfer dimension |
| r3,4 |
min.0.3 mm
|
Chamfer dimension |
|
Normal
|
ISO tolerance class for dimensions |
|
Item Number
|
Inner (d) MM
|
Outer (D) MM
|
Width (B) MM
|
Weight (kg)
|
|
7200 BECBP
|
10
|
30
|
9
|
0.0300
|
|
7201 BECBP
|
12
|
32
|
10
|
0.0360
|
|
7202 BECBP
|
15
|
35
|
11
|
0.0450
|
|
7203 BECBP
|
17
|
40
|
12
|
0.0650
|
|
7204 BECBP
|
20
|
47
|
14
|
0.1100
|
|
7205 BECBP
|
25
|
52
|
15
|
0.1300
|
|
7206 BECBP
|
30
|
62
|
16
|
0.2000
|
|
7207 BECBP
|
35
|
72
|
17
|
0.2800
|
|
7208 BECBP
|
40
|
80
|
18
|
0.3700
|
|
7209 BECBP
|
45
|
85
|
19
|
0.4200
|
|
7210 BECBP
|
50
|
90
|
20
|
0.4700
|
