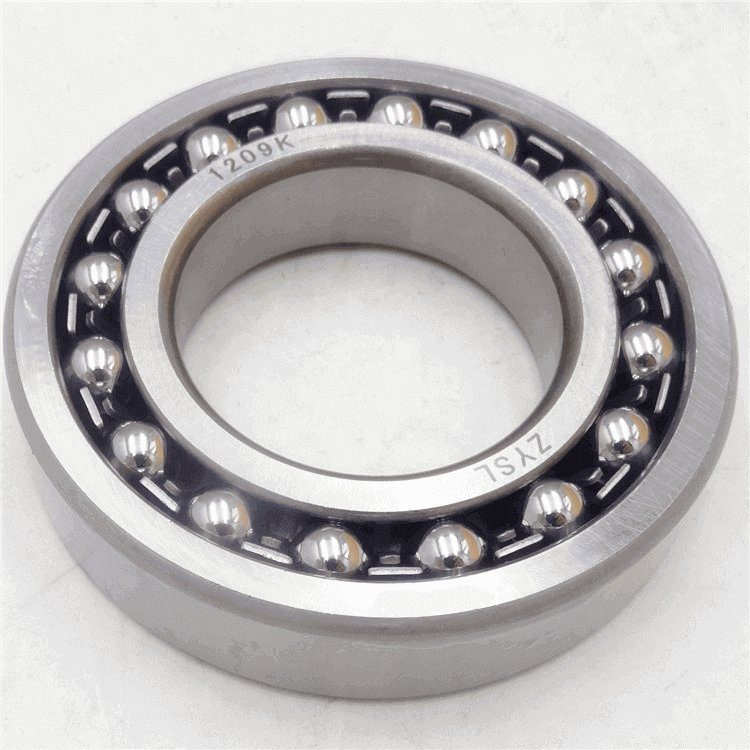

Abec 12 bearings 1209k ball bearing

Abec 12 bearing1209k ball bearing is applied to withstand heavy load and impact load, precision instruments, low noise motor, automobile, motorcycle, metallurgy, rolling mill, mine, oil, paper, cement, sugar industry, general machinery and so on.

Product Specification:

  • Model 1209k
  • Size 45*85*19 mm
  • Brand LLH
  • Origin China
See Price

loose steel ball bearing

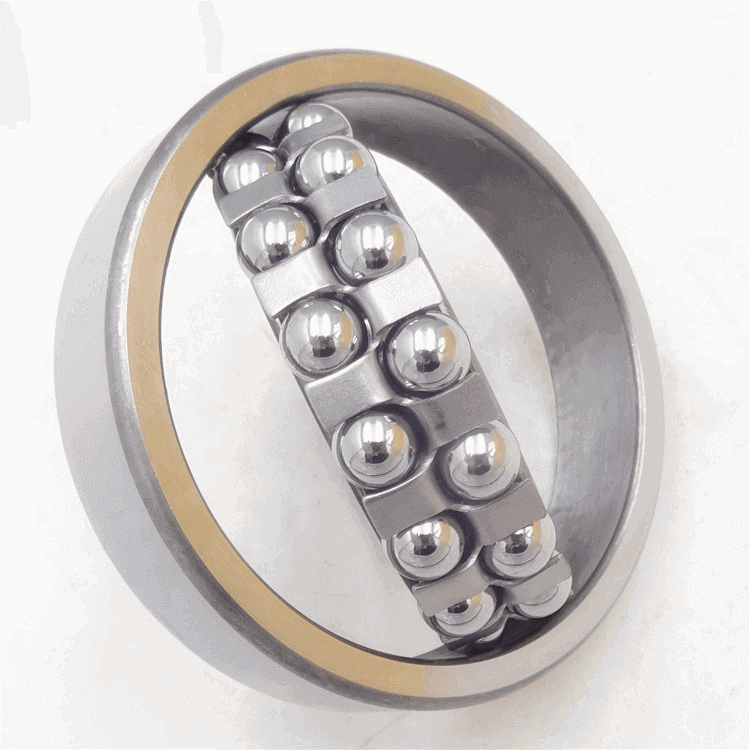

abec 12 bearings Abec 12 bearings 1209k ball bearing include two rows of balls, a cage, an inner ring, and an outer ring with a common concave sphered raceway.This type of bearings is self-aligning and insensitive to angular misalignments of the shaft relative to the housing. The bearings are produced in several design: open bearings with the basic design, sealed bearings, open bearings with an extended inner ring.The self alignning ball bearings have the lowest friction of all rolling bearings.The bearings are available with a cylindrical bore or with a tapered bore in certain size ranges. Self-aligning ball bearings have two rows of balls and a common concave sphered raceway in the outer ring.

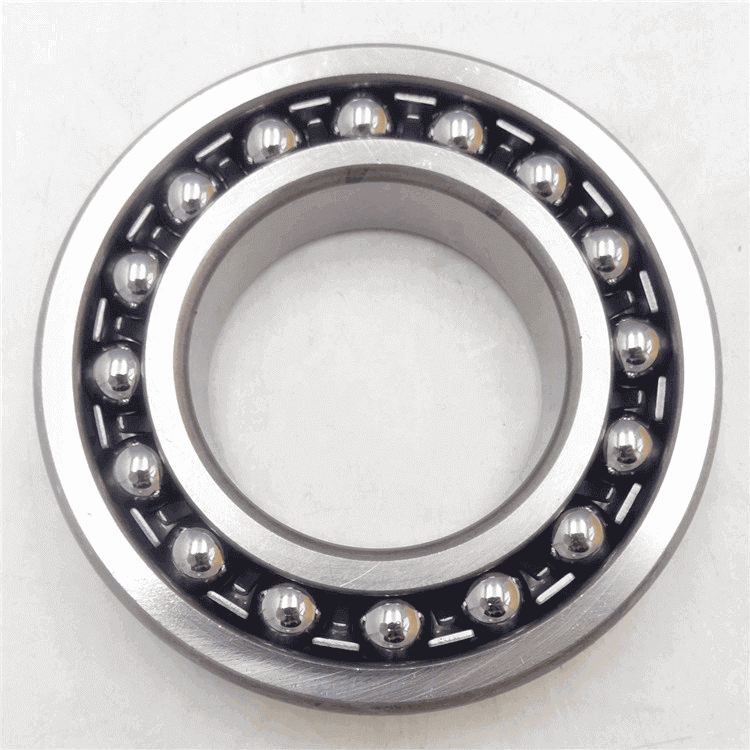

loose steel ball bearing photo

original abec 12 bearingsprecision abec 12 bearingsloose steel ball bearing feature

best abec 12 bearingsabec 12 bearings

Abec 12 bearings 1209k ball bearing is consequently self-aligning and insensitive to angular misalignments of the shaft relative to the housing. It is particularly suitable for applications where considerable shaft deflections or misalignment are to be expected. Additionally, the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds.

Abec 12 bearings 1209k ball bearing features:

When shaft shell deflection occurs, they can be automatically adjusted without increasing the burden on the bearings. They can withstand higher radial load, but also bear certain axial load. This kind of bearing's outer ring raceway is spherical, aligning it with the performance, when the bend or tilt axis force leaves the center line of the inner and outer rings relative to the center line of slope less than 1 ° to 2.5 °, the bearings can still work.With two structures of bore cylindrical or tapered and retainers made of steel sheet or synthetic resins, the bearings' spherically formed outer ring raceways allowes for misalignment within 3 degree deflection between inner ring and outer ring so as to compensate concentricity and deflection errors.

Product line:

Mini-series: 10x, 12x, 13x

General Series: 12xx, 13xx, 22xx 23xx

Typical applications for Abec 12 bearings 1209k ball bearing:

Aligning ball bearings are widely applied to heavy loads and shock load, precision instruments, low noise motors, automobiles, motorcycles, metallurgy, mill, mining, petroleum, paper, cement, squeezed sugar industry and general machinery.

Suffix definitions of Self-aligning ball bearings:

C3: radial clearance than ordinary clearance

K: 1/12 taper tapered bore

K30: 1/30 taper tapered bore

M: Ball guided machined brass cage

2RS: with both ends of closures

TV: ball guide glass fiber reinforced polyamide (nylon) solid cage

loose steel ball bearing shipment

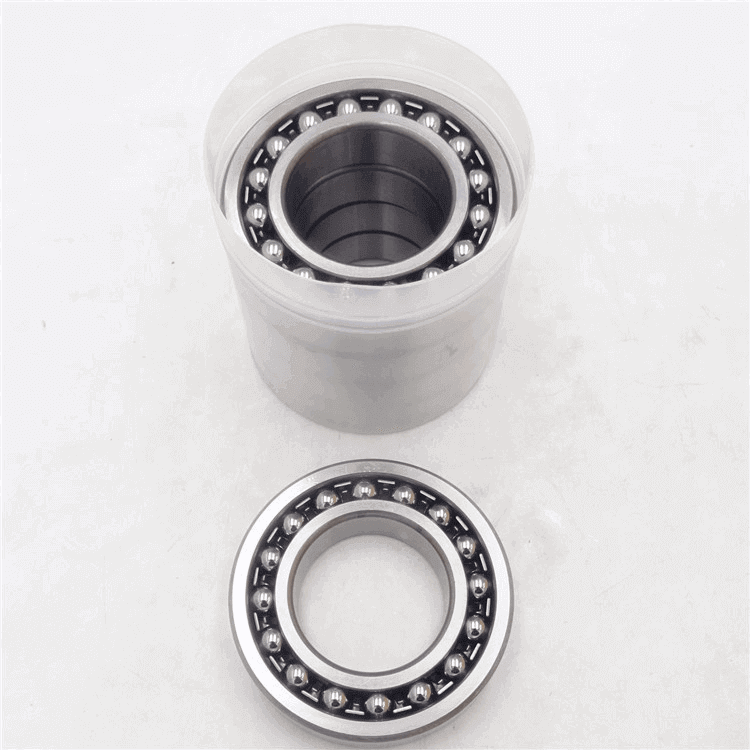

loose steel ball bearing seals loose steel ball bearing loose steel ball bearing package

loose steel ball bearing certificateloose steel ball bearingsloose steel ball bearing factory

loose steel ball bearings Jinan Maolei Bearing co.,Ltd is a product and trade integrated company specializing in bearings.We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers. So one of our biggest advantages compared others is that we can provide the best factory price based on the same good quality.

loose steel ball bearing FAQ

1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for Abec 12 bearings 1209k ball bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Abec 12 bearings 1209k ball bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for Abec 12 bearings 1209k ball bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for Abec 12 bearings 1209k ball bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of Abec 12 bearings 1209k ball bearing?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need Abec 12 bearings 1209k ball bearing or any models of bearings, please contact me!

Contact: Leon
Skype: lh19881023
MP/Whatsapp: +8615098916271

Material Chrome steel or stainless steel
Brand LLH
Grade ABEC-3 ABEC-5 , ABEC-7, ABEC-9
Clearance C0, C3 ,C5
Package Carton package
Used Machine


customized buy tiny ball bearings

bearing code
d D B C C0 Pu reference speed limiting speed mass
1204 20 47 14 12,7 3,4 0,18 32000 20000 0,12
1205 25 52 15 14,3 4 0,21 28000 18000 0,14
1305 25 62 17 19 5,4 0,28 22000 15000 0,26
1206 30 62 16 15,6 4,65 0,24 24000 15000 0,22
1306 30 72 19 22,5 6,8 0,36 19000 13000 0,39
1207 35 72 17 19 6 0,31 20000 13000 0,32
1307 35 80 21 26,5 8,5 0,43 16000 11000 0,51
1208 40 80 18 19,9 6,95 0,36 18000 11000 0,42
1308 40 90 23 33,8 11,2 0,57 14000 9500 0,68
1209 45 85 19 22,9 7,8 0,4 17000 11000 0,47
1309 45 100 25 39 13,4 0,7 12000 8500 0,96
1210 50 90 20 26,5 9,15 0,48 16000 10000 0,53
1310 50 110 27 43,6 14 0,72 12000 8000 1,20
1211 55 100 21 27,6 10,6 0,54 14000 9000 0,71
1311 55 120 29 50,7 18 0,92 11000 7500 1,60
1212 60 110 22 31,2 12,2 0,62 12000 8500 0,90

high quality buy tiny ball bearings

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.

precision buy tiny ball bearings
