NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

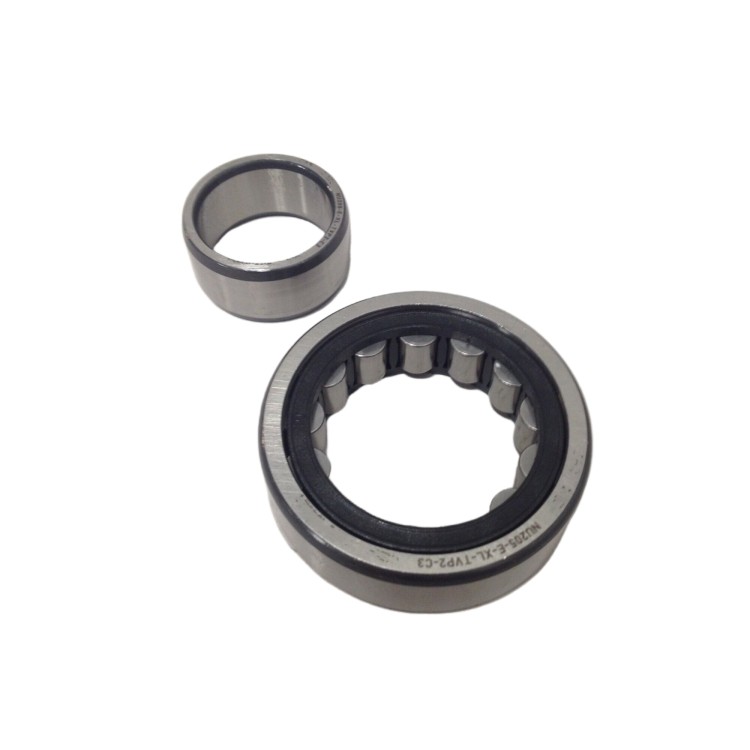

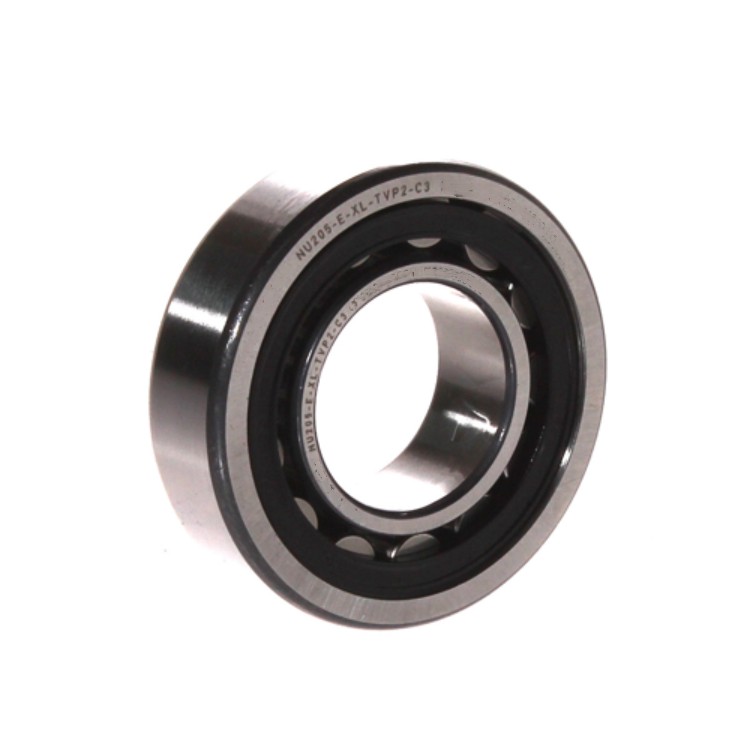

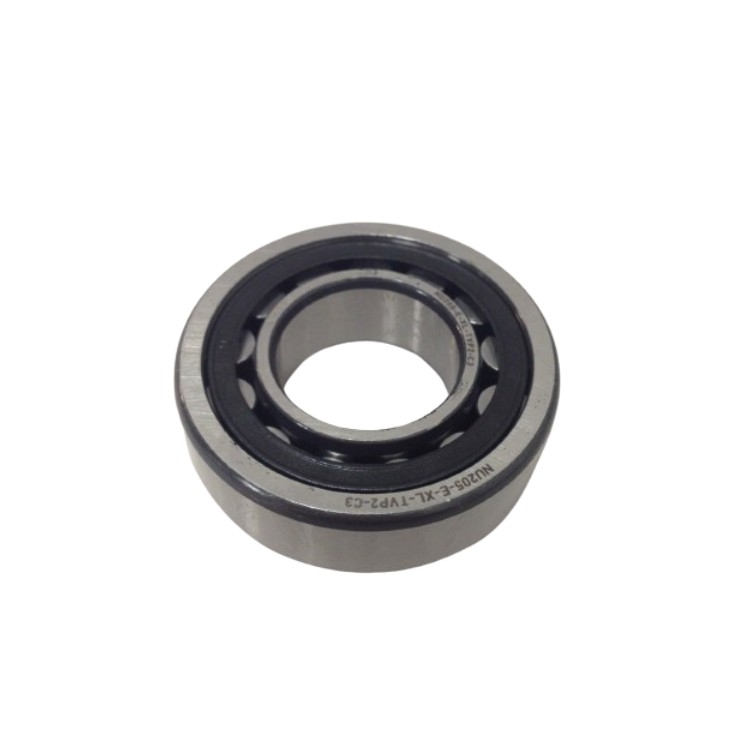

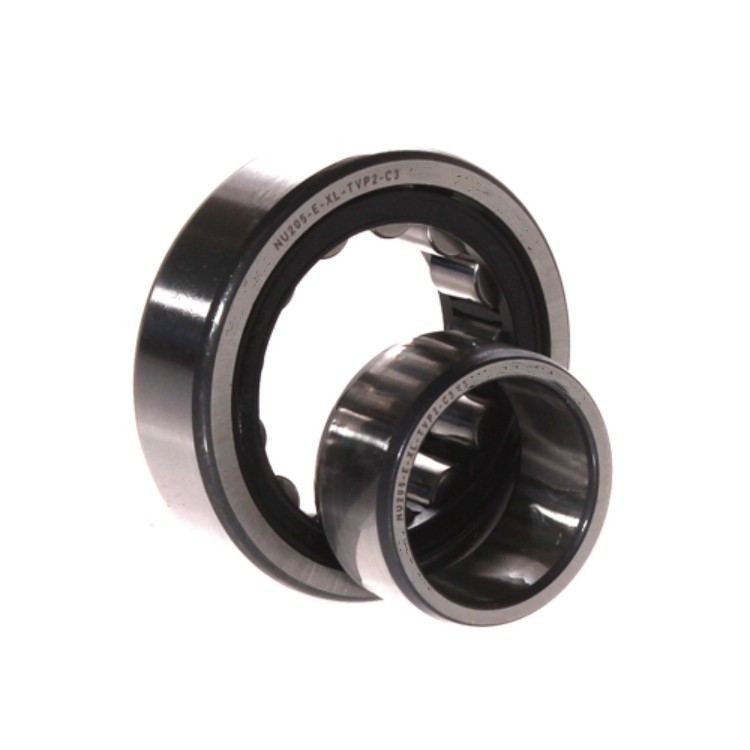

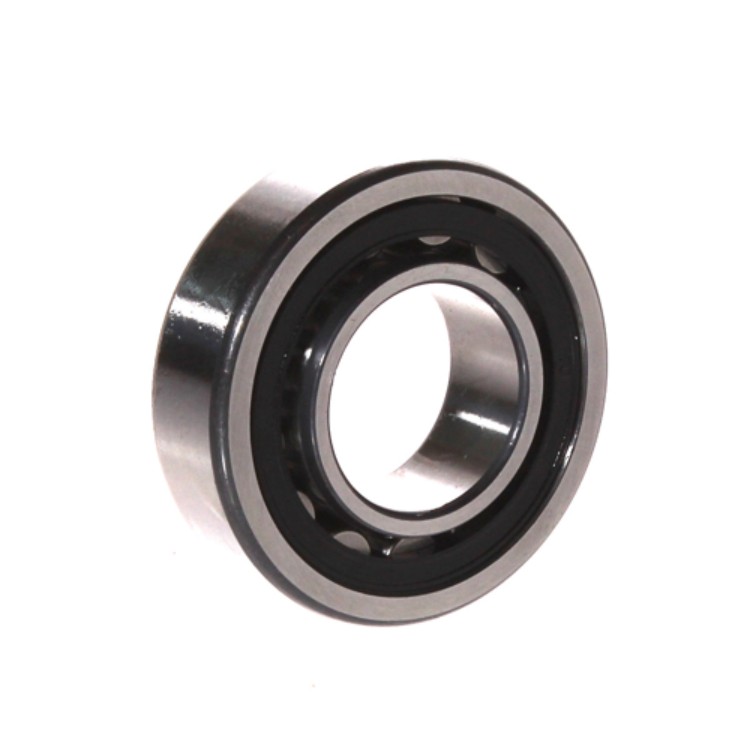

Bearing NU 205 Cylindrical Roller Bearing w/ removable inner ring NU205-E-XL-TVP2-C3
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for bearing nu 205?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing nu 205?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for bearing nu 205?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearing nu 205?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for bearing nu 205?
A: Usually ≥1, According your demand.
9,Q: Will you check these bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
| d |
25 mm
|
Bore diameter |
|---|---|---|
| D |
52 mm
|
Outside diameter |
| B |
15 mm
|
Width |
| D1 |
≈43.3 mm
|
Shoulder diameter of outer ring |
| F |
31.5 mm
|
Raceway diameter of inner ring |
| r1,2 |
min.1 mm
|
Chamfer dimension |
| r3,4 |
min.0.6 mm
|
Chamfer dimension |
| s |
max.1.3 mm
|
Permissible axial displacement |
| Model number | Old Model | ID | OD | B | Cr | Cor | Limiting Speeds(rpm) | Limiting Speeds(rpm) |
| (mm) | (mm) | (mm) | (kN) | (kN) | Grease(r/min) | OIL (r/min) | ||
| NU202 | 32202 | 15 | 35 | 11 | 7.98 | 5.5 | 15000 | 19000 |
| NU203 | 32203 | 17 | 40 | 12 | 9.12 | 7 | 14000 | 18000 |
| NU303 | – | 17 | 47 | 14 | 12.8 | 10.8 | 13000 | 17000 |
| NU1004 | – | 20 | 42 | 12 | 10.5 | 9.2 | 13000 | 17000 |
| NU204E | 32504E | 20 | 47 | 14 | 25.8 | 24 | 12000 | 16000 |
| NU2204E | 32204E | 20 | 47 | 18 | 30.8 | 30 | 12000 | 16000 |
| NU3O4E | – | 20 | 52 | 15 | 29 | 25.5 | 11000 | 15000 |
| NU2304E | 32604E | 20 | 52 | 21 | 39.2 | 37.5 | 10000 | 14000 |
| NU1005 | 32105 | 25 | 47 | 12 | 11 | 10.2 | 11000 | 15000 |
| NU205E | 32205E | 25 | 52 | 15 | 27.5 | 26.8 | 11000 | 14000 |
| NU2205E | 32505E | 25 | 52 | 18 | 32.8 | 33.8 | 11000 | 14000 |
| NU305E | 32305E | 25 | 62 | 17 | 38.5 | 35.8 | 9000 | 12000 |
| NU2305E | 32605E | 25 | 62 | 24 | 53.2 | 54.5 | 9000 | 12000 |
| NU1006 | 32106 | 30 | 55 | 13 | 13 | 12.8 | 9500 | 12000 |
| NU206E | 32206E | 30 | 62 | 16 | 36 | 35.5 | 8500 | 11000 |
| NU2206E | 32506E | 30 | 62 | 20 | 45.5 | 48 | 8500 | 11000 |
| NU306E | 32306E | 30 | 72 | 19 | 49.2 | 48.2 | 8000 | 10000 |
| NU2306E | 32606E | 30 | 72 | 27 | 70 | 75.5 | 8000 | 10000 |
| NU406 | 32406 | 30 | 90 | 23 | 57.2 | 53 | 7000 | 9000 |
| NU1007 | 32107 | 35 | 62 | 14 | 19.5 | 18.8 | 8500 | 11000 |
| NU207E | 32207E | 35 | 72 | 17 | 46.5 | 48 | 7500 | 9500 |
| NU2207E | 32507E | 35 | 72 | 23 | 57.5 | 63 | 7500 | 9500 |
| NU307E | 32307E | 35 | 80 | 21 | 62 | 63.2 | 7000 | 9000 |
| NU2307E | 32607E | 35 | 80 | 31 | 87.5 | 98.2 | 7000 | 9000 |
| NU407 | 32407 | 35 | 100 | 25 | 70.8 | 68.2 | 6000 | 7500 |
| NU1008 | 32108 | 40 | 68 | 15 | 21.2 | 22 | 7500 | 9500 |
| NU208E | 32208E | 40 | 80 | 18 | 51.5 | 53 | 7000 | 9000 |
| NU2208E | 32508E | 40 | 80 | 23 | 67.5 | 75.2 | 7000 | 9000 |
| NU308E | 32308E | 40 | 90 | 23 | 76.8 | 77.8 | 6300 | 8000 |
| NU2308E | 32608E | 40 | 90 | 33 | 105 | 118 | 6300 | 8000 |
| NU408 | 32408 | 40 | 110 | 27 | 90.5 | 89.8 | 5600 | 7000 |
| NU1009 | 32109 | 45 | 75 | 16 | 23.2 | 23.8 | 6500 | 8500 |
| NU209E | 32209E | 45 | 85 | 19 | 58.5 | 63.8 | 6300 | 8000 |
| NU2209E | 32509E | 45 | 85 | 23 | 71 | 82 | 6300 | 8000 |
| NU2309E | 32609E | 45 | 100 | 36 | 130 | 152 | 5600 | 7000 |
| NU400 | – | 45 | 120 | 29 | 102 | 100 | 5000 | 6300 |
| NU1010 | 32110 | 50 | 80 | 16 | 25 | 27.5 | 6300 | 8000 |
| NU210E | 32210E | 50 | 90 | 20 | 61.2 | 69.2 | 6000 | 7500 |
