Spherical ball bearing has two rows of spherical balls, the outer race is provided with a common concave spherical raceway, while the inner race is provided with two concave spherical raceways that form an angle with the bearing axis. The curvature center of the outer raceway is consistent with the bearing center.

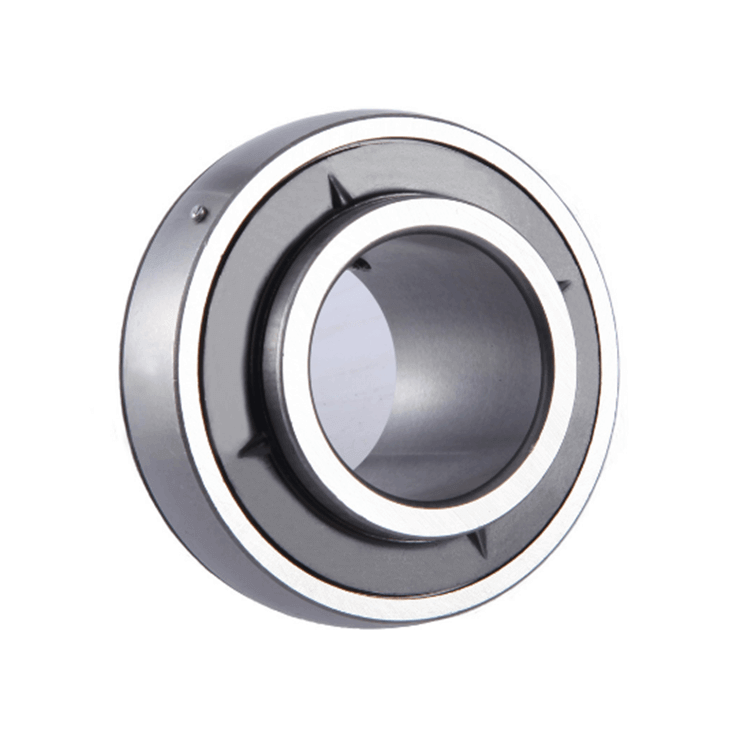

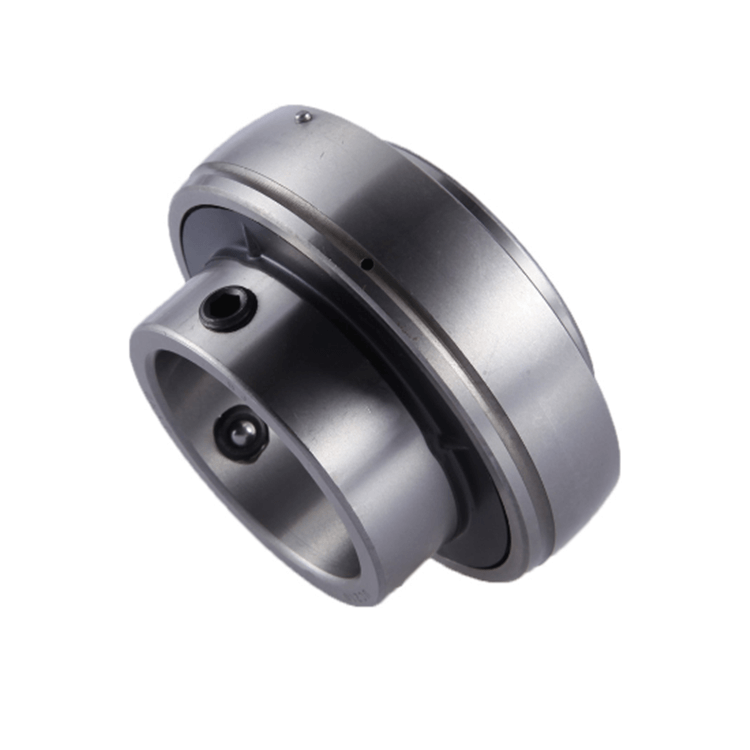

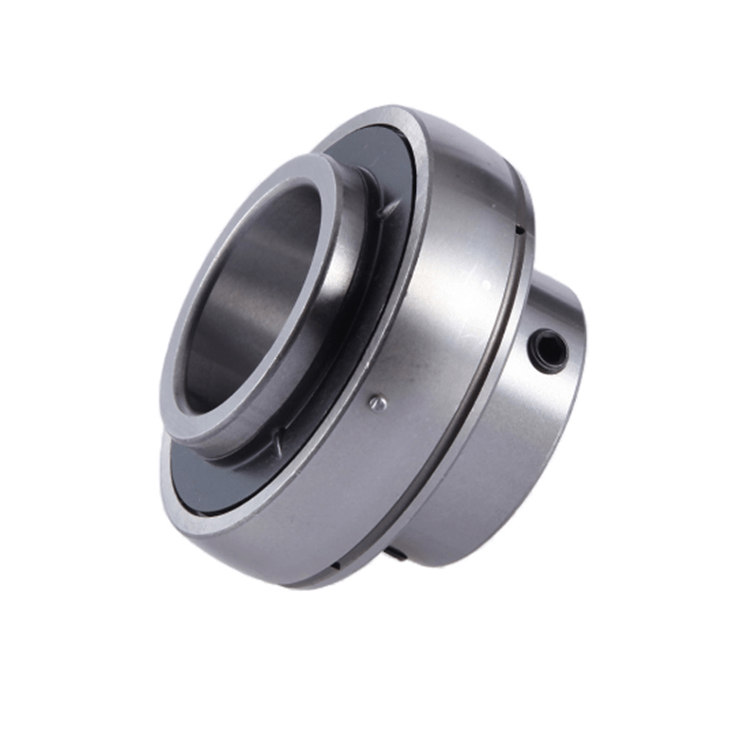

chinese bearings quality insert bearing UC310 ls china bearings
Specifications:
chinese bearings quality Spherical Ball Bearings
We also supply casting service, machining service, mold designing and producing service and so on.
chinese bearings quality Spherical ball bearing has two rows of spherical balls, the outer race is provided with a common concave spherical raceway, while the inner race is provided with two concave spherical raceways that form an angle with the bearing axis. The curvature cente of the outer raceway is consistent with the bearing center.
FAQ
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for chinese bearings quality ls china bearings?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for chinese bearings quality ls china bearings? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for chinese bearings quality ls china bearings?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price of chinese bearings quality ls china bearings ?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of chinese bearings quality ls china bearings?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need chinese bearings quality, ls china bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: 008618668903871
Wechat:GraceXu1314
| Bearing Material | GCr15, or stainless steel |
| Bearing Ball | Steel ball |
| Seal | ZZ, 2RS |
| Cage | J shape steel plate stamping |
| Grease | SRL Alvanin,SRI2 Chevron,ordinary grease etc. |
| Working temperature | -10°C~120°C |
| Brand | LLH |
| Certificate | ISO9001:2008 |
| Application | Agricultural machinery, textile machinery, transmission machinery,
car wash equipment, etc. |
| Bearing No. | Bore Dia d | Dimensinons(mm) | Basic Load | Weight (kg) | ||||
| in | mm | D | Bi | T | Co | Cor | ||
| UC307 | 35 | 0.75 | ||||||
| UC308-24 | 1-1/2 | 90 | 52 | 8.2 | 3200 | 2280 | 1.07 | |
| 308-25 | 1-9/16 | 1 | ||||||
| UC308 | 40 | 1 | ||||||
| UC309-26 | 1-5/8 | 100 | 57 | 9 | 4150 | 3060 | 1.39 | |
| UC309 | 45 | 1.26 | ||||||
| UC310-30 | 1-7/8 | 110 | 61 | 10 | 4850 | 3640 | 1.75 | |
| 310-31 | 1-15/16 | 1.67 | ||||||
| UC310 | 50 | 1.65 | ||||||
| UC313-40 | 2-1/2 | 140 | 75 | 12.2 | 7370 | 5780 | 3.46 | |
| UC313 | 65 | 3.32 | ||||||
| UC314-44 | 2-3/4 | 150 | 78 | 13 | 8170 | 6480 | 3.9 | |
| UC314 | 70 | 3.9 | ||||||
| UC315-48 | 3 | 160 | 82 | 13.8 | 8900 | 7310 | 4.33 | |
| UC315 | 75 | 4.18 | ||||||
| UC316-50 | 3-1/8 | 170 | 86 | 14.5 | 9650 | 8330 | 5.25 | |
| UC317-52 | 3-1/4 | 180 | 96 | 15 | 10410 | 9130 | 7 | |
| UC324 | 120 | 260 | 126 | 22 | 21100 | 18400 | 18.7 | |
| UC326 | 130 | 280 | 135 | 23 | 23400 | 20400 | 23.3 | |
