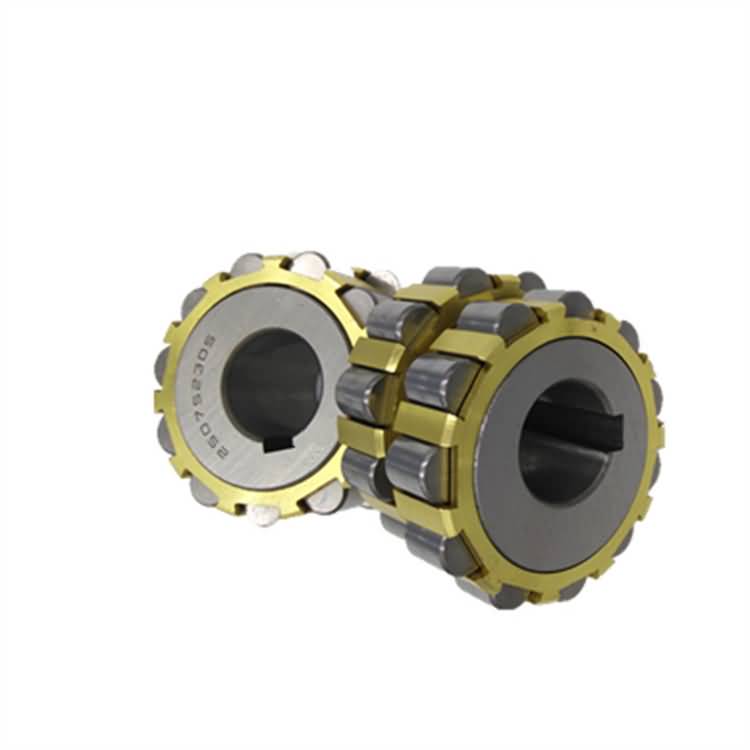

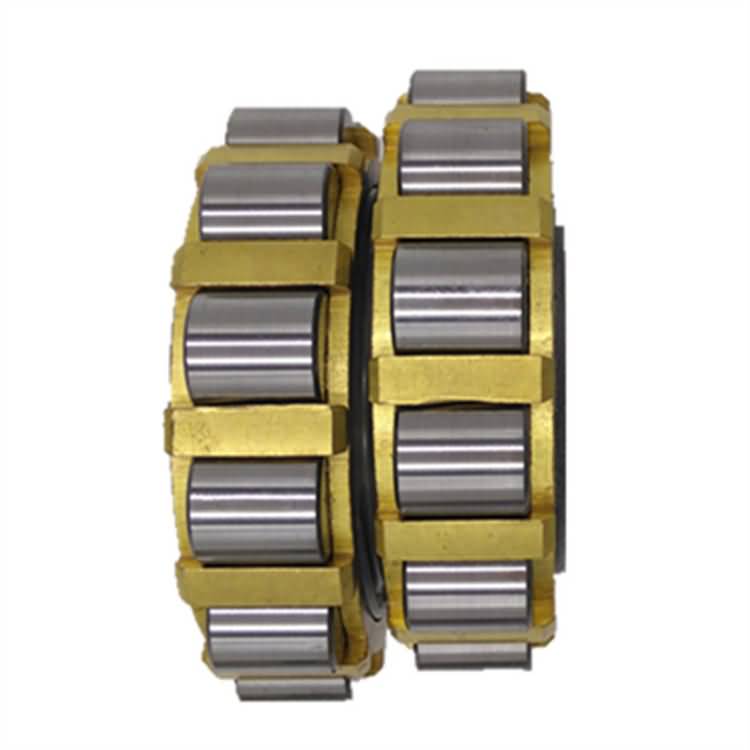

LLH eccentric bearing 250752307 best bearings in china

LLH eccentric bearing 250752307 use in cars and any other machinery Widely used in car, vehicle, automobile cooling water pump, in textile machinery, engineering machinery, etc.


Product Specification:

  • Model 250752307
  • ID 35mm
  • OD 86.5mm
  • Thickness 50mm
  • Brand LLH
  • Origin China
See Price

LLH eccentric bearing 250752307 best bearings in china

eccentric bearing-2

eccentric bearing-1

Description of LLH eccentric bearing 250752307 best bearings in china:

Eccentric bearing generally consist of cages, rollers and are guided by two capped edges on a ring. It is a separable bearing and convenient to mount and dismount. Its merit is especially unique under the condition that the interference is required and assorted with inner ring, outer ring and housing. On one hand, this type of bearing can normally withstand the radial load, on the other hand, single-row cylindrical roller bearing with ribbed inner ring and outer ring can take smaller axial load or intermittent axial load, this kind of bearing has a larger carrying capacity of axial load in comparison with the deep groove ball bearing. The structure of the bearing ensures that it runs very well under high rotational speed.

Types of eccentric bearing:

1.Single-row cylindrical roller bearing including NU, NJ, NUP, N and NF

2.Double-row cylindrical roller bearing such as NNU, NN, etc.

3.Four-row cylindrical roller bearing

N type:

The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.

NU type:

The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.

NJ type:

The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction.

NF type:

The outer ring has one integral flange and the inner ring two integral flanges.

NUP type:

The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.

RN type:

No outer ring and the inner ring two integral flanges.

NN type:

NN type bearing without ribs on outer ring,there is a wall in the midel of between both sides of inner ring. It can make shaft relative bearing between the axial displacement generated in both directions.

Typical applications:

They are widely used in the large and medium-size motor, locomotive, spindle, internal combustion engine, generator, gas turbine, reducer, rolling mill, vibrating screen and lifting transportation machinery, etc.

Application of LLH eccentric bearing 250752307:

Eccentric bearing have taper roller bearings and angular contact ball bearings,single row and double row taper roller usually use in front wheel hub bearings.Car wheel bearings installed in the car wheel hub unit,it is aim to improve the wheel bearing performance,wheel bearings from the early two single row taper roller bearings developed to double row taper roller bearings and double row angular contact ball bearing,but also from a simple bearing development in the core of the bearing hub bearing units.

eccentric bearing-best bearing

FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for eccentric bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for eccentric bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize eccentric bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your products?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need eccentric bearing or any models of bearings, please contact me!

Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271

Product Name LLH eccentric bearing 250752307 best bearings in china
Material hybrid ceramic,  Si3N4  or ZrO2 ball , chrome steel or stainless steel ring
Brand LLH
Standard DIN GB ISO JIS BA ANSI
Grade ABEC-3 ABEC-5 , ABEC-7, ABEC-9
Clearance C0, C3 ,C5
Package carton package
Used Machine,wheel hub



eccentric bearing-03

Bearing type size(mm) net weight (kg)
50712200 10*33.9*12 0.0592
100712200 10*33.9*12 0.0592
200712200 10*33.9*12 0.0592
80712202 15*40*14 0.0872
50712202 15*40*14 0.0872
100712202 15*40*14 0.0872
150712202 15*40*14 0.0872
180712202 15*40*14 0.0872
200712202 15*40*14 0.0872
250712202 15*40*14 0.0872
50752202 15*40*28 0.1743
100752202 15*40*28 0.1743
130752202 15*40*28 0.1743
15072202 15*40*28 0.1743
200752202 15*40*28 0.1743
250752202 15*40*28 0.1743
300752202 15*40*28 0.1743
70752904 22*53.5*32 0.3528
80752904 22*53.5*32 0.3528
100752904 22*53.5*32 0.3528
130752904 22*53.5*32 0.3528
150752904 22*53.5*32 0.3528
200752904 22*53.5*32 0.3528
250752904 22*53.5*32 0.3528
300752904 22*53.5*32 0.3528
350752904 22*53.5*32 0.3528

eccentric bearing-4

eccentric bearing-05



eccentric bearing-9
