spherical roller bearing 22215EK heavy load bearing with H315 bearing sleeve

Spherical roller bearings have two rows of rollers.the outer ring has a shared spherical raceway,the inner ring has two raceways at an angle to the vertical axis of the bearing

Product Specification:

Model 22215EK+H315
Size 65x130x31 mm
Brand LLH
Original China

See Price

Product Details
Description
Specification
Our factory

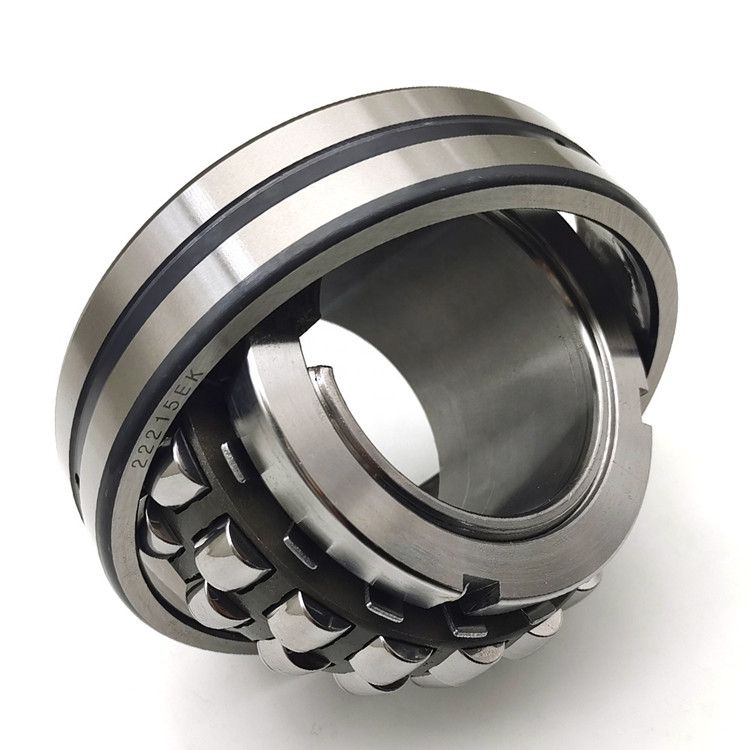

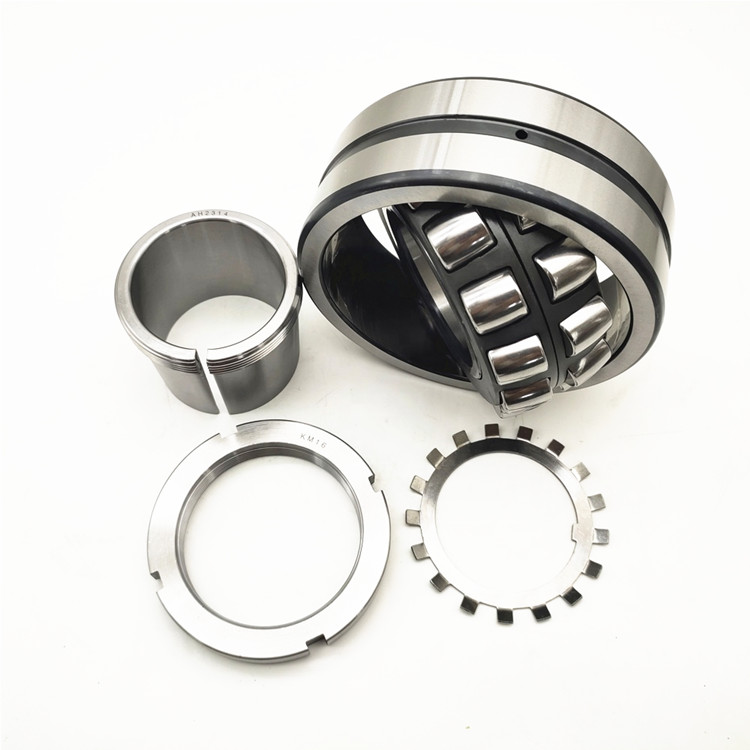

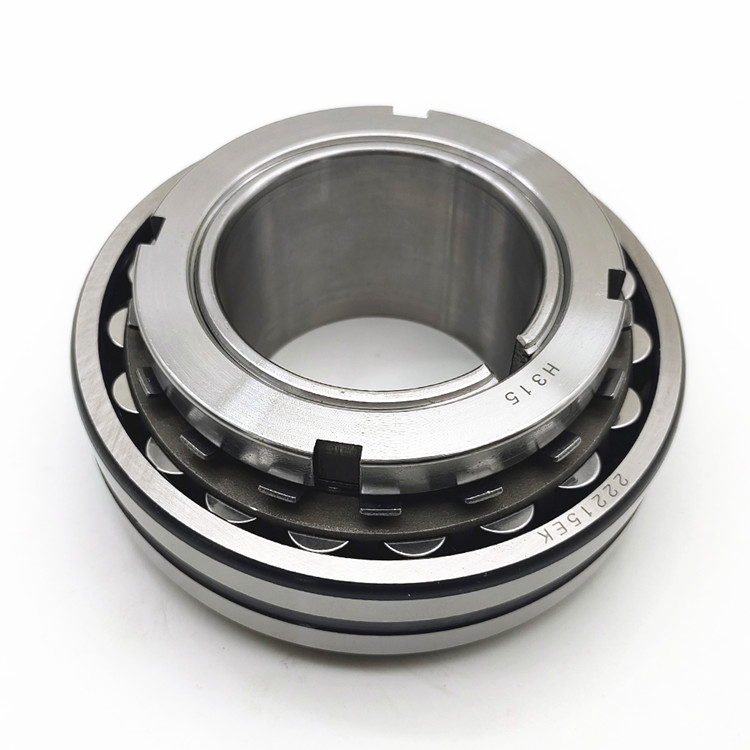

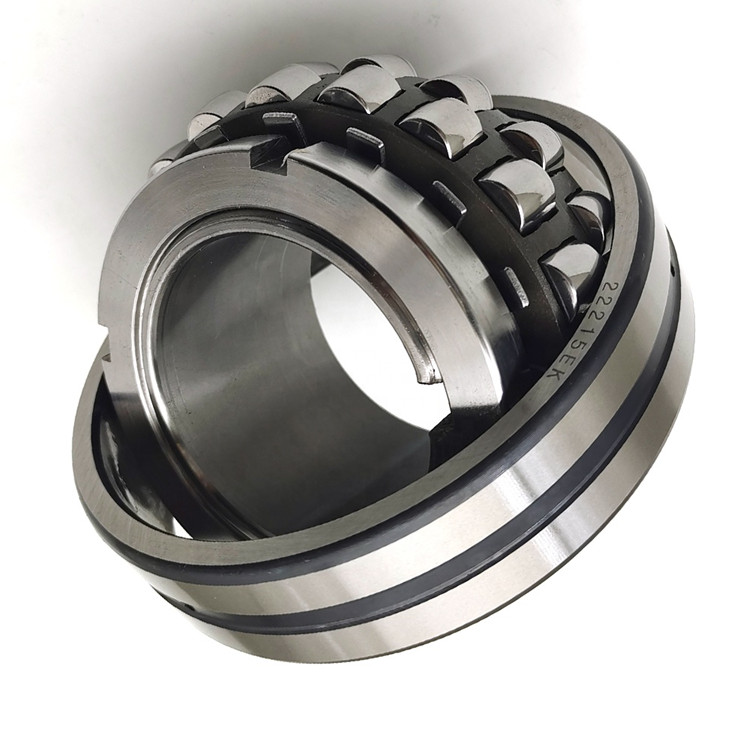

spherical roller bearing 22215EK heavy load bearing with H315 bearing sleeve

Spherical roller bearings with two rollers, mainly bear radial load, but also can withstand axial load in either direction. A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway is spherical shape, so the good performance of its self-aligning, can compensate concentricity error.

There are two symmetrical spherical roller, there is a common spherical outer ring raceway, the bearing inner ring with two axis tilt

Angle of raceway, aligning with good performance, when the axis force bent or install a different heart is still bearing the normal use, transfer concentric with the bearing size range varies, generally aligning allowed 1 to 2.5 degree angle load bearing capacity of the larger type, in addition to radial loads but also under way outside the role of bearing axial load, with good impact resistance, in general, self-aligning roller bearings allowed working speed than the low.

C(J),EC(J).CA,ECA,CAF,CAFA, and so on.
1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride
2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride
3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride
4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride
5.CTN1: Double row symmetrical rollers ,nylon cage
6.K: Tapered bore bearing, the taper is 1:12
7.K30: Tapered bore bearing,the taper is 1:3

Self-aligning Spherical roller bearing Application:
1. printing presses, paper mills or coaters in high precision execution
2. very arduous operating conditions, e. g.continuous casters
3. high temperature applications
4. mounting with loose fit on roll necks
5. railway vehicles

heavy load bearing heavy load bearing with sleeve bearing

Jinan Maolei Bearing co.,Ltd is a product and trade integrated company specializing in bearings.We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers.

FAQ:

1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for 22215EK heavy load bearing with H315 bearing sleeve?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for 22215EK heavy load bearing with H315 bearing sleeve? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for 22215EK heavy load bearing with H315 bearing sleeve?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for 22215EK heavy load bearing with H315 bearing sleeve?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of 22215EK heavy load bearing with H315 bearing sleeve?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234

Row Number	double row rollers
Cage	Steel cage or brass cage
Clearance	C3
Material	Chrome steel GCr15
MOQ	1 pc

high speed bearing

d	D	B	C	Co	r/min	L/P	Type
20	52	18	49,9	44	13000	17000	22205 EK + H 305 *
25	62	20	66,1	60	10000	14000	22206 EK + H 306 *
25	72	19	65,7	61	8200	10000	21306 CCK + H 306
30	72	23	88,8	85	9000	12000	22207 EK + H 307 *
30	80	21	79,2	72	7300	9500	21307 CCK + H 307
35	80	23	98,5	90	8000	11000	22208 EK + H 308 *
35	90	23	107	108	7000	9500	21308 EK + H 308 *
35	90	33	155	140	6000	8000	22308 EK + H 2308 *
40	85	23	104	98	7500	10000	22209 EK + H 309 *
40	100	25	129	127	6300	8500	21309 EK + H 309 *
40	100	36	190	183	5300	7000	22309 EK + H 2309 *
45	90	23	107	108	7000	9500	22210 EK + H 310 *
45	110	27	159	166	5600	7500	21310 EK + H 310 *
45	110	40	228	224	4800	6300	22310 EK + H 2310 *
50	100	25	129	127	6300	8500	22211 EK + H 311 *
50	120	29	159	166	5600	7500	21311 EK + H 311 *
50	120	43	280	280	4300	5600	22311 EK + H 2311 *
55	110	28	159	166	5600	7500	22212 EK + H 312 *
55	130	31	217	240	4800	6300	21312 EK + H 312 *
55	130	46	325	335	4000	5300	22312 EK + H 2312 *
60	120	31	198	216	5000	7000	22213 EK + H 313 *
60	125	31	213	228	5000	6700	22214 EK + H 314 *
60	140	33	243	270	4300	6000	21313 EK + H 313 *
60	140	48	357	360	3800	5000	22313 EK + H 2313 *
60	150	35	291	325	4000	5600	21314 EK + H 314 *
60	150	51	413	430	3400	4500	22314 EK + H 2314 *
65	130	31	217	240	4800	6300	22215 EK + H 315 *
65	160	37	291	325	4000	5600	21315 EK + H 315 *
65	160	55	462	475	3200	4300	22315 EK + H 2315 *
70	140	33	243	270	4300	6000	22216 EK + H 316 *
70	170	39	331	375	3800	5300	21316 EK + H 316 *
70	170	58	516	540	3000	4000	22316 EK + H 2316 *
75	150	36	291	325	4000	5600	22217 EK + H 317 *
75	180	41	331	375	3800	5300	21317 EK + H 317 *
75	180	60	577	620	2800	3800	22317 EK + H 2317 *
80	160	40	331	375	3800	5300	22218 EK + H 318 *
80	160	52,4	372	440	2800	3800	23218 CCK/W33 + H 2318 *
80	190	43	393	450	3600	4800	21318 EK + H 318 *
80	190	64	637	695	2600	3600	22318 EK + H 2318 *
85	170	43	393	450	3600	4800	22219 EK + H 319 *
85	200	45	433	490	3400	4500	21319 EK + H 319 *
85	200	67	699	765	2600	3400	22319 EK + H 2319 *
90	165	52	385	490	3000	4000	23120 CCK/W33 + H 3120 *
90	180	46	433	490	3400	4500	22220 EK + H 320 *
90	180	60,3	498	600	2400	3400	23220 CCK/W33 + H 2320 *
90	215	47	433	490	3400	4500	21320 EK + H 320 *
90	215	73	847	950	2400	3000	22320 EK + H 2320 *
100	170	45	326	440	3400	4300	23022 CCK/W33 + H 322 *
100	180	56	450	585	2800	3600	23122 CCK/W33 + H 3122 *
100	200	53	572	640	3000	4000	22222 EK + H 322 *
100	200	69,8	626	765	2200	3200	23222 CCK/W33 + H 2322
100	240	80	989	1120	2000	2800	22322 EK + H 2322 *
110	180	46	366	510	3200	4000	23024 CCK/W33 + H 3024 *
110	200	62	534	695	2600	3400	23124 CCK/W33 + H 3124 *
110	215	58	652	765	2800	3800	22224 EK + H 3124 *
110	215	76	732	930	2000	2800	23224 CCK/W33 + H 2324
110	260	86	1019	1120	2000	2600	22324 CCK/W33 + H 2324 *
115	200	52	452	610	2800	3600	23026 CCK/W33 + H 3026 *
115	210	64	586	780	2400	3200	23126 CCK/W33 + H 3126
115	230	64	758	930	2600	3600	22226 EK + H 3126 *

high quality bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers. precision bearing
