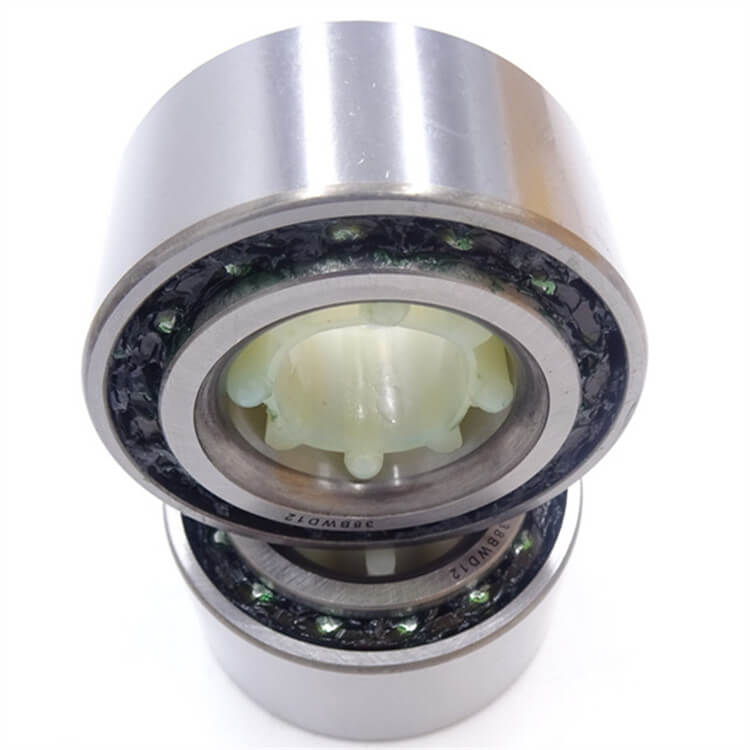

LLH hub bearing 38BWD12 wheel hub bearings

LLH hub bearing 38BWD12 wheel hub bearings use in cars and any other machinery Widely used in car, vehicle, automobile cooling water pump, in textile machinery, engineering machinery, etc.

Product Specification:

Model 38BWD12
ID 38mm
OD 72mm
Thickness 36/33mm
Brand LLH
Origin China

See Price

Product Details
Description
Specification
Our factory

LLH hub bearing 38BWD12 wheel hub bearings

hub bearing-wheel hub

Description of hub bearing:

LLH hub bearing 38BWD12 wheel hub bearings
Auto wheel hub bearing is the main purpose of bearing and to provide accurate guide to the rotation of the wheel hub, it is under axial load and radial load, is a very important component.It is developed on the basis of standarded angular contact ball bearings and tapered roller bearings. Greased and sealed for life, the first generation wheel bearing cuts installation time and virtually eliminates problems caused by improper seal handling and bearing clearances. It is often equipped with a seal, on one side of the bearing unit, including an integrated magnetised ABS impulse wheel.

Application of Front wheel hub bearing:

Auto hub bearing have taper roller bearings and angular contact ball bearings,single row and double row taper roller usually use in front wheel hub bearings.Car wheel bearings installed in the car wheel hub unit,it is aim to improve the wheel bearing performance,wheel bearings from the early two single row taper roller bearings developed to double row taper roller bearings and double row angular contact ball bearing,but also from a simple bearing development in the core of the bearing hub bearing units.

hub bearing

FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for hub bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for hub bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for hub bearing?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your products?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need hub bearing or any models of bearings, please contact me!

Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271

Product Name	LLH hub bearing 38BWD12 wheel hub bearings
Material	hybrid ceramic, Si3N4 or ZrO2 ball , chrome steel or stainless steel ring
Brand	LLH
Standard	DIN GB ISO JIS BA ANSI
Grade	ABEC-3 ABEC-5 , ABEC-7, ABEC-9
Clearance	C0, C3 ,C5
Package	carton package
Used	Machine,wheel hub

hub bearing-8

hub bearing number	Dimension (mm)				weight
	d	D	B	C	kg
DAC35720433	35	72.04	33	33	0.58
DAC36720534	36	72	34	34	0.58
DAC36680033	36	68	33	33	0.5
DAC36720534	36	72.05	34	34	0.58
DAC37720237	37	72.02	37	37	0.59
DAC37720237	37	72.02	37	37	0.59
DAC37720437	37	72.04	37	37	0.59
DAC37740045	37	74	45	45	0.79
DAC38700038	38	70	38	38	0.55
DAC38710233/30	38	71.02	33	33	0.5
DAC38700037	38	70	37	37	0.52
DAC38720236/33	38	72.02	36	33	0.54
DAC38720040	38	72	40	40	0.63
DAC38740236/33	38	74.02	36	33	0.58
DAC38740050	38	74	50	50	0.78
DAC39680037	39	68.07	37	37	0.48
DAC39720037	39	72	37	37	0.56
DAC39/41750037	39/41	75	37	37	0.62
DAC39740039	39	74	39	39	0.66
DAC40720036/33	40	72	36	33	0.54
DAC40720037	40	72	37	37	0.55
DAC40720038	40	72	38	38	0.55
DAC40740036/34	40	74	36	34	0.58
DAC40740036	40	74	36	36	0.6
DAC40740040	40	74	40	40	0.66
DAC40740042	40	74	42	42	0.7
DAC40750037	40	75	37	37	0.62
DAC40760033	40	76	33	33	0.53
DAC40760033/28	40	76	33	28	0.54
DAC40760041/38	40	76	41	38	0.66
DAC408000302	40	80	30.2	30.2	0.7
DAC40800036/34	40	80	36	34	0.73
DAC40800381	40	80	38.1	38.1	0.75
DAC40800381	40	80	38.1	38.1	0.75
DAC40900046	40	90	46	46	0.9
DAC42720038/35	42	72	38	35	0.58
DAC42750037	42	75	37	37	0.59
DAC42760038/35	42	76	38	35	0.64
DAC42760039	42	76	39	39	0.62
DAC42760040/37	42	76	40	37	0.64
DAC42800342	42	80.03	42	42	0.81
