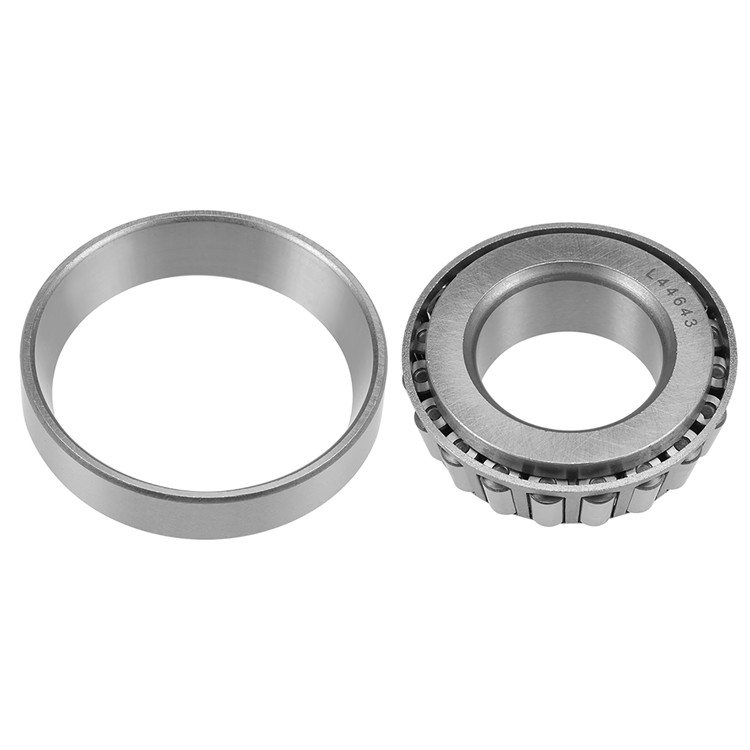

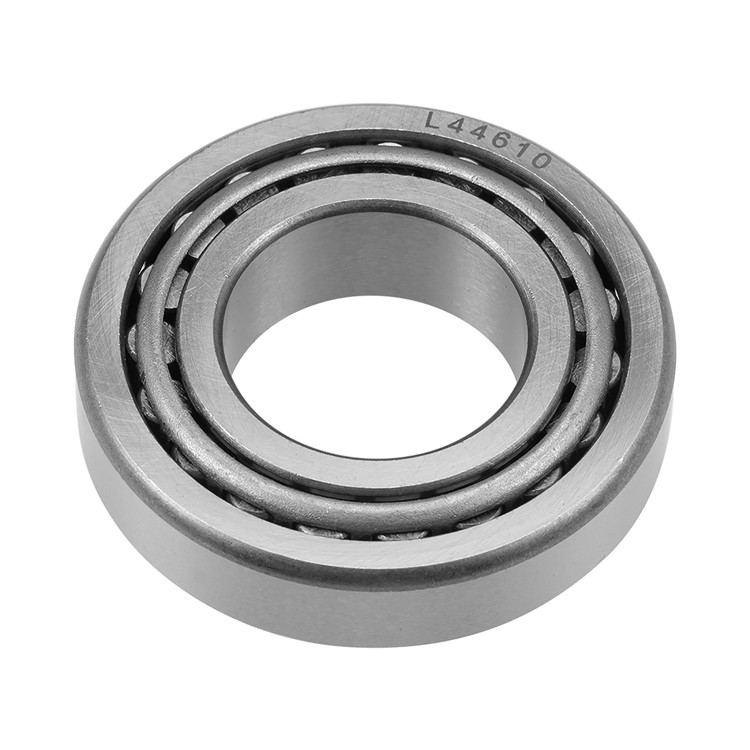

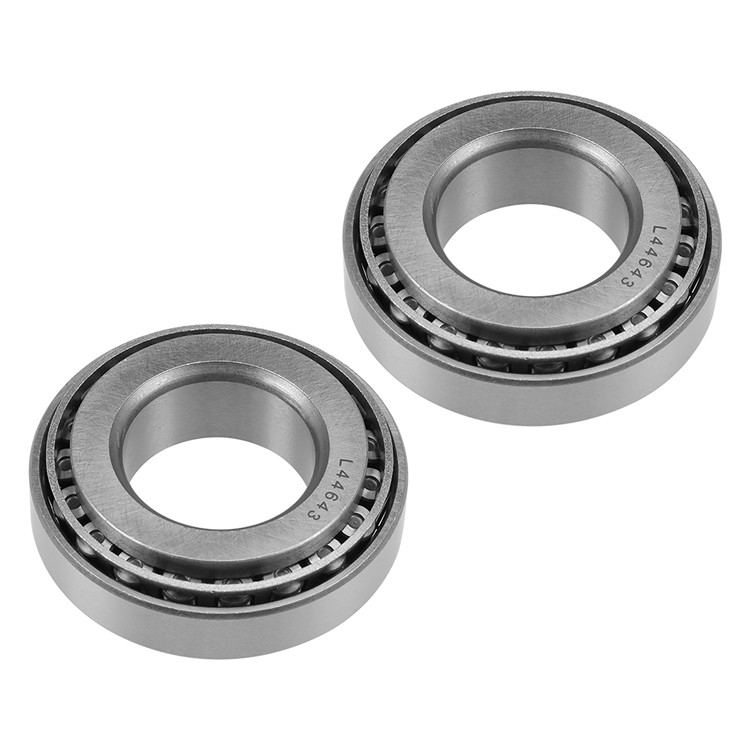

L44610 bearing L44643/L44610 tapered roller bearing size 25×50.292×14.22mm

Tapered roller bearings are widely used in automobiles, rolling mills, mining, metallurgy, plastic machinery and other industries.


Product Specification:

  • Model L44643/L44610
  • Size 25x50.292x14.22mm
  • Brand LLH or as your request
  • Original China or as your request
See Price

L44610 bearing L44643/L44610 tapered roller bearing size 25x50.292x14.22mm

Ball bearing

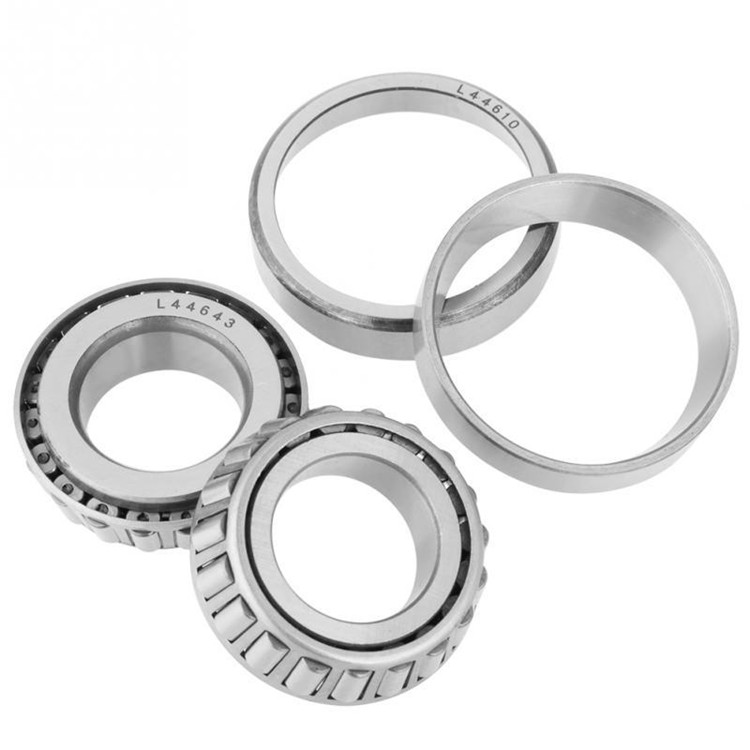

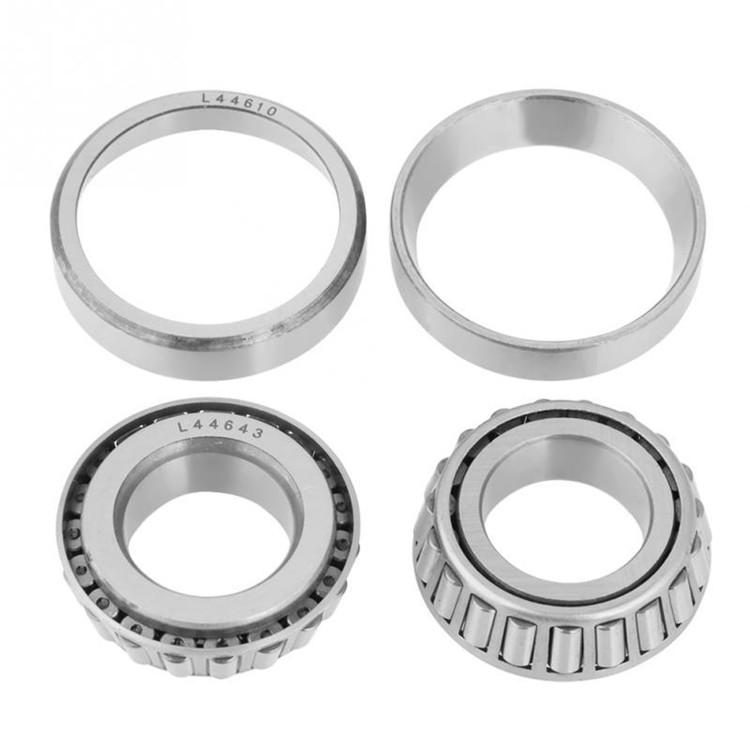

Inch Tapered roller bearings consist of four interdependent components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer. The taper angles allow the bearing to handle a combination of radial and thrust loads. The steeper the cup angle, the greater the ability of the tapered roller bearing to handle thrust loads.

Tapered roller bearings mainly bear radial and axial combined loads. The bearing capacity of the bearing depends on the raceway angle of the outer ring.

The greater the carrying capacity. This type of bearing is a split type bearing, which is divided into single row, double row and four row tapered roller bearings according to the number of rows of rolling elements in the bearing. The clearance of the single-row tapered roller bearing needs to be adjusted by the user during installation; the double-row and four-row tapered roller bearing clearance has been given according to the user's requirements at the time of shipment from the factory, and no user adjustment is required.

Tapered roller bearings are widely used in automobiles, rolling mills, mining, metallurgy, plastic machinery and other industries.

bearing

l44610 bearing l44610 bearings
L44643/L44610 tapered roller bearing L44643/L44610 tapered roller bearings

bearinghigh quality bearingbearing

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for l44610 bearing L44643/L44610 tapered roller bearing?

A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

3,Q: Do you provide samples for l44610 bearing L44643/L44610 tapered roller bearing? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for l44610 bearing L44643/L44610 tapered roller bearing?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.

5, Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price for bearing?

A:  after we get your inquiry, usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of KFL000 zinc alloy pillow block flange bearing?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ of your l44610 bearing L44643/L44610 tapered roller bearing?
A: Usually ≥1, According your demand.

9,Q: Will you check these products before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if If you are not satisfied with l44610 bearing L44643/L44610 tapered roller bearing?
A: If have any problem,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
bearing manufaturer

Series

L44600

Cone Part Number

L44643

Cup Part Number

L44610

Design Unit

Inch

Bearing Weight

0.3 lb0.1 Kg

Cage Material

Stamped Steel

high speed bearing

d – Bore

1 in

25.400 mm

D – Cup Outer Diameter

1.98 in

50.292 mm

B – Cone Width

0.5800 in

14.732 mm

C – Cup Width

0.4200 in

10.668 mm

T – Bearing Width

0.5600 in

14.224 mm

Model d D B Weight
(mm) (mm) (mm) (kg)
LM67049A/LM67010 31.75 59.131 16.764 0.183
LM67048/LM67010 31.75 59.13 15.88 0.18
LM654649/LM654610 285.75 380.898 65.088 0
LM607049A/LM607010 31.75 59.131 15.875 0.182
LM607048/LM607010 31.75 59.131 15.875 0.179
LM607045/LM607010 31.75 59.131 15.875 0.187
LM603049/LM603014 45.242 79.974 19.842 0
LM603049/LM603012 45.2 77.79 19.8 0.377
LM603049/LM603011 45.242 77.788 19.842 0
LM545849/LM545810 234.95 314.325 49.212 0
LM522546/LM522510 107.95 159.987 34.925 0
LM501349/LM501414 41.275 73.431 21.43 0.354
LM501349/LM501314 41.275 73.431 21.43 0
LM501349/LM501311 41.275 73.431 23.012 0
LM501349/LM501310 41.275 73.45 19.558 0.334
LM48549X/LM48510 34.925 65.088 18.288 0.251
LM48548A/LM48510 34.925 58.088 18.034 0
LM48548/LM48511A 34.925 65.088 21.082 0
LM48548/LM48510A 34.925 65.088 18.034 0.262
LM48548/LM48510 34.925 65.088 18.034 0.26
LM451349A/LM451310 266.7 355.6 57.15 0
LM451349/LM451310 266.7 355.6 57.15 15.1
LM451345/LM451310 263.525 355.6 57.15 0
LM377449/LM377410 558.8 736.6 104.775 0
LM300849/LM300811 40.988 67.975 17.5 0
LM29749/LM29711 38.1 65.088 19.812 0
LM29749/LM29710 38.1 65.088 18.034 0.233
LM29748/LM29748 38.1 65.088 18.034 0.23
LM29748/LM29710 38.1 65.088 18.034 0
LM272249/LM272210 482.6 615.95 85.725 0
L476549/L476510 549.275 692.15 80.962 0
L467549/L467510 406.4 508 61.912 0
L45449/L45410 29 50.292 14.224 0.118
L44649/L44610 26.988 50.292 14.224 0.126
L44649/L44120 26.9 50.3 14.22 0.122
L44643L/L44610 25.4 50.292 14.22 0.129
L44643/L44610 25.4 50.29 14.224 0.128
L44642/L44610 25.4 50.292 14.224 0
L44640/L44610 23.812 50.292 14.224 0
L432348/L432310 158.75 205.583 23.812 0
L357049NW/L3570100 304.8 393.7 107.95 29.8
