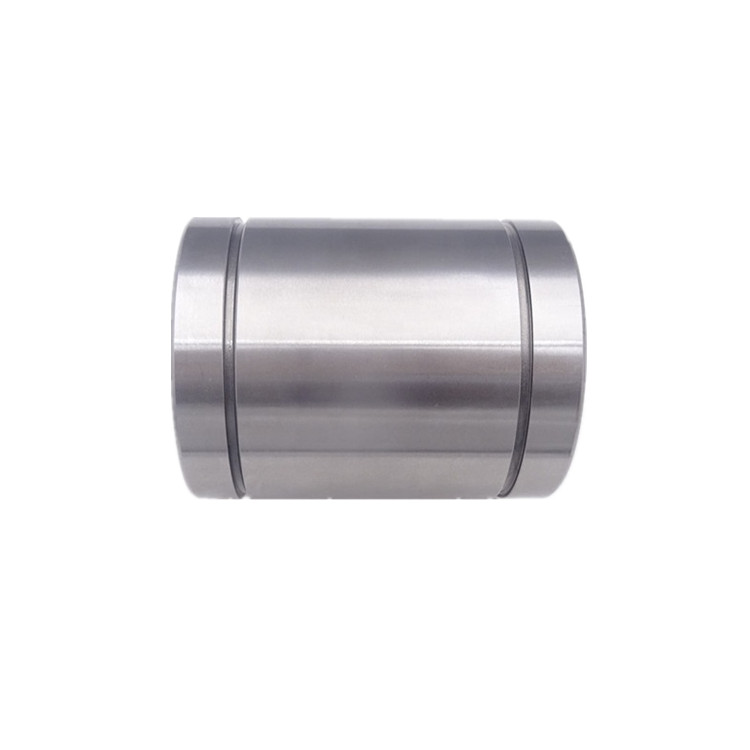

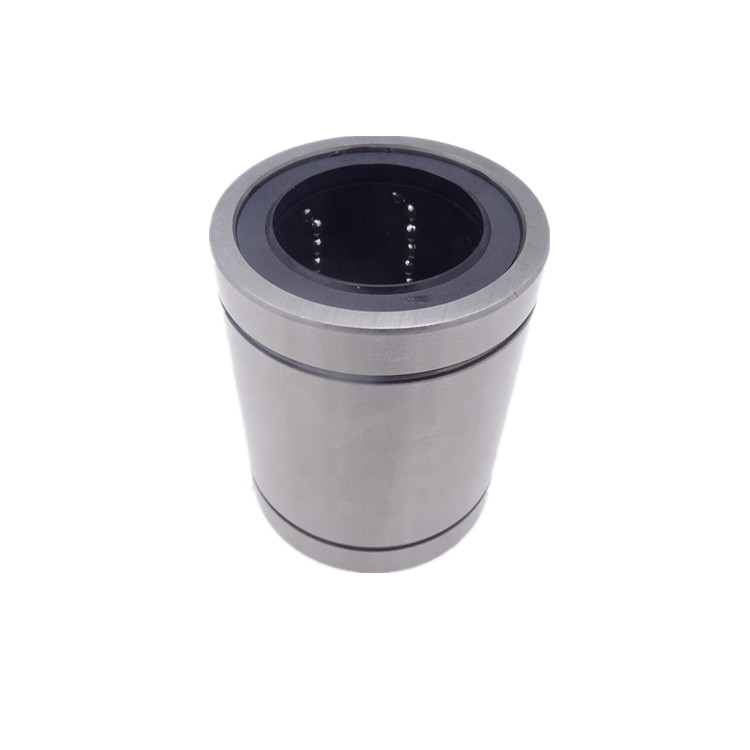

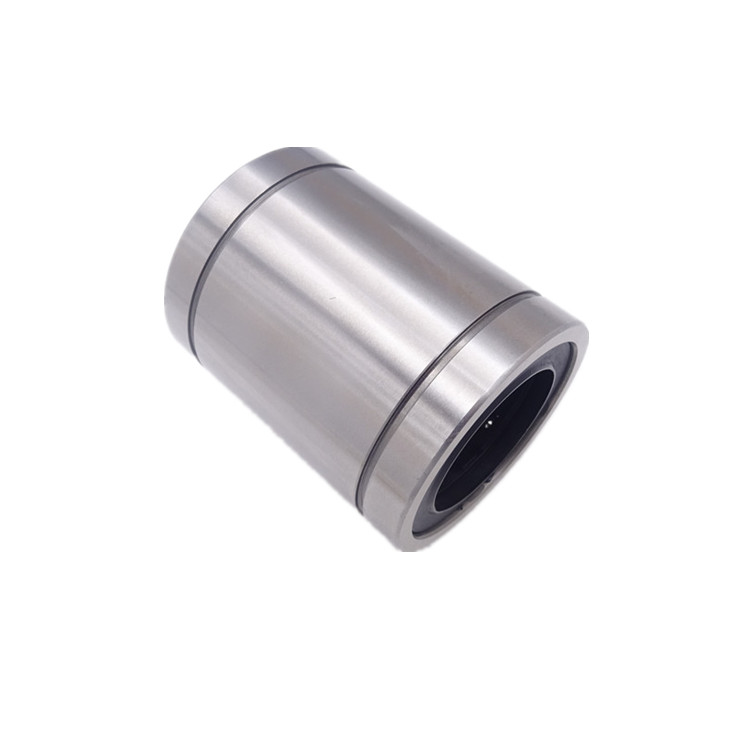

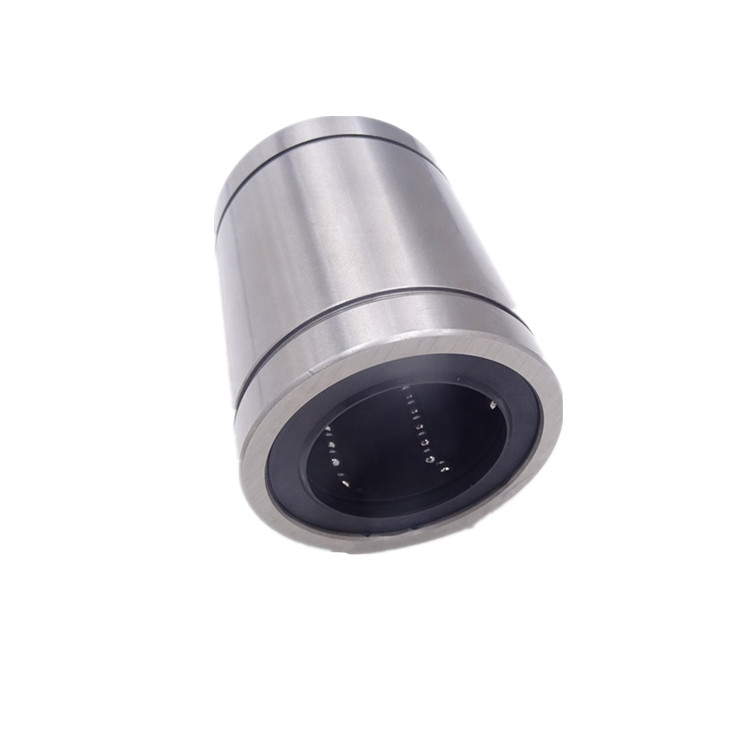

Linear ball bushing bearings LM50UU linear bearing

Linear bearings are widely used in electronic equipment, pull tester and the digital three-dimensional coordinate measuring device


Product Specification:

  • Model LM50UU
  • Brand LLH or as your request
  • Origianl China
See Price

linear ball bushing bearings LM50UU linear bearing

custom spherical self aligning ball bearing

linear ball bushing bearings is a low-cost linear motion system used with the cylindrical shaft for unlimited travel. The working load of such bearings is small due to the point contact of the ball and the shaft. The balls can rotate with minimal frictional resistance, thus obtaining high-precision smooth movement.

Features:
linear ball bushing bearings is often used with quenching line transmission shaft, a system for rectilinear movement. It has lower loading capacity due to the point contact between the load-carrying balls and quenching transmission shaft, and characterized by smallest friction, high precision and fast moving speed in case of rectilinear movement.spherical self aligning ball bearing photo

linear ball bushing bearings linear ball bushing bearing
linear ball bearings LM50UU linear ball bearings

spherical self aligning ball bearing certificatespherical self aligning ball bearingspherical self aligning ball bearing FAQ

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for rod eye with linear ball bushing bearings LM50UU linear bearing?

A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

3,Q: Do you provide samples for rod eye with linear ball bushing bearings LM50UU linear bearing? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for rod eye with linear ball bushing bearings LM50UU linear bearing?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.

5, Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price for bearing?

A:  after we get your inquiry, usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of rod eye with linear ball bushing bearings LM50UU linear bearing?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ of your rod eye with linear ball bushing bearings LM50UU linear bearing?
A: Usually ≥1, According your demand.

9,Q: Will you check these products before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if If you are not satisfied with rod eye with linear ball bushing bearings LM50UU linear bearing?
A: If have any problem,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
bearing manufaturer
 Product Name   3D Printer High Speed Linear Motion Bearing LM50UU Bearing
      Model Number  LM50UU
     Inner Diameter  50MM
     Outer Diameter  80mm
         Breadth  100mm
     Product Material Chrome steel
     Precision Grade P0 P6 P5 P4 P2 are all available

high speed bearing

MODEL
NO.
NUMBER
OF BALL
ROWS
MAIN DIMENSIONS BASIC LOAD
RATING
WEIGHT
g
INNER DIAMETER OUTER DIAMETER LENGTH OUTER LOCKING GROOVE W c(kgf) Co(kgf)
dr TOLERANCE D TOLERANCE L TOLERANCE B TOLERANCE D1
LM3 4 3 0

-0.008

7 0

-0.009

10 0

-0.12

LM4 4 4 8 12 9 13 3
LM5 4 5 10 15 10.2 0

-0.20

9.6 1.1 17 21 4
LM6UU 4 6 0

-0.009

12 0

-0.011

17 0

-0.20

13.5 11.5 1.1 21 27 6
LM8S 4 8 15 19 11.5 14.3 1.1 18 23 9
LM8UU 4 8 15 24 17.5 14.3 1.1 27 41 14
LM10UU 4 10 19 0

-0.013

29 22 18 1.3 38 56 28
LM12UU 4 12 21 30 23 20 1.3 42 61 32
LM13UU 4 13 23 32 23 22 1.3 52 79 38
LM16UU 5 16 28 37 26.5 27 1.6 79 120 74
LM20UU 5 20 0

-0.010

32 0

-0.016

42 30.5 30.5 1.6 88 140 80
LM25UU 6 25 40 59 0

-0.30

41 0

-0.30

38 1.85 100 160 206
LM30UU 6 30 45 64 44.5 43 1.85 160 280 240
LM35UU 6 35 0

-0.012

52 0

-0.019

70 49.5 49 2.1 170 320 370
LM40UU 6 40 60 80 60.5 57 2.1 220 410 589
LM50UU 6 50 80 100 74 76.5 2.6 390 810 1480
LM60UU 6 60 0

-0.015

90 0

-0.022

110 85 86.5 3.15 480 1020 1750

high quality bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
