Metric ball joint rod ends stainless rod end bearings is widely used in engineering hydraulic cylinder, forging machine tools, engineering machinery, automation equipment, automobile shock absorber, water conservancy machinery industries.

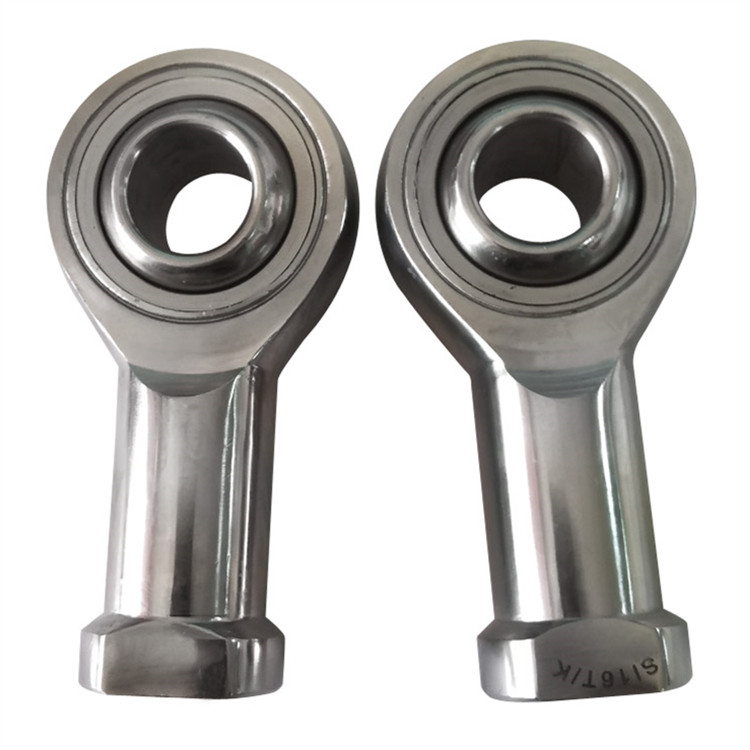

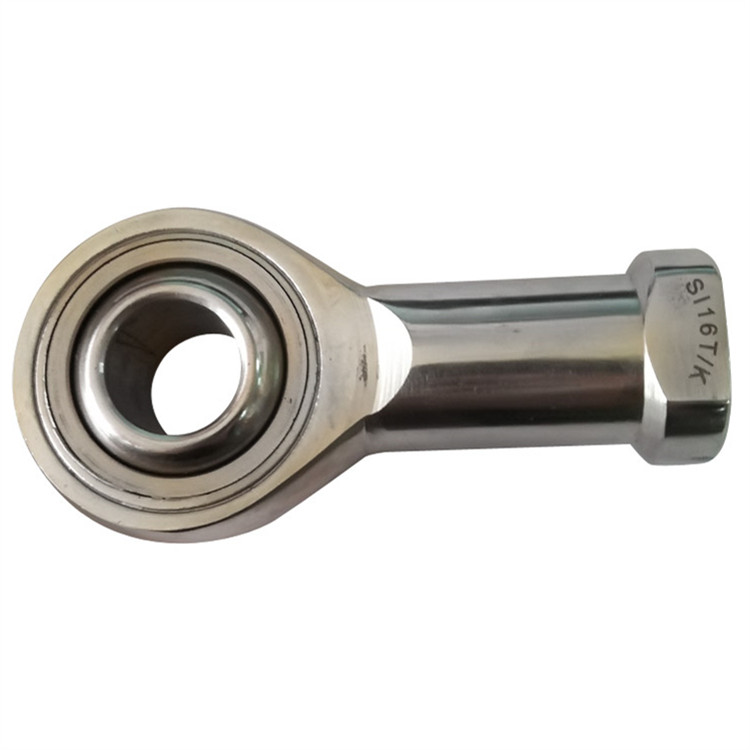

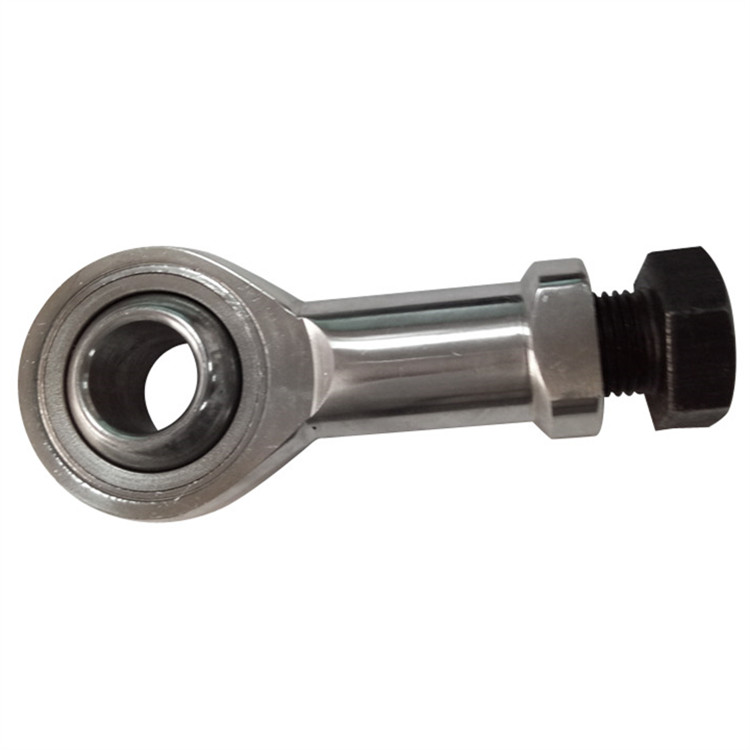

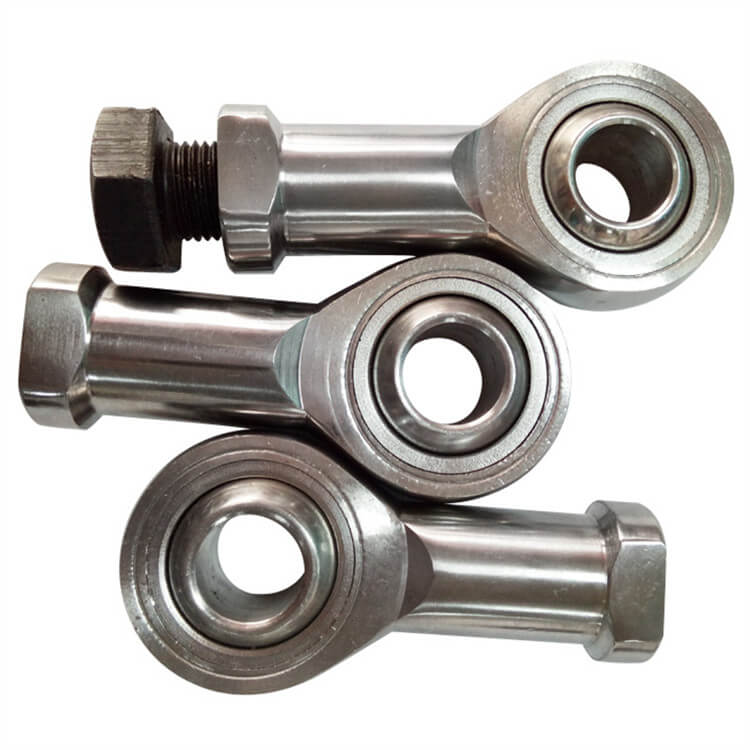

Metric ball joint rod ends stainless rod end bearings
Stainless steel spherical bearings radial spherical plain joint bearing is a kind of special structure of sliding bearing. It is simple in structure than the rolling bearing, which is mainly composed of a spherical inner ring and a spherical outer ring, can bear larger load, according to the different types and structures, can be combined load to bear radial load, axial load and radial, axial exist at the same time.
Features of Metric ball joint rod ends stainless rod end bearings:
1) Can bear high load. According to its different types and structures, rod end bearing can bear radial load, axial load as well as two kinds of loads together.
2) Spherical outside surface of inner ring is lined with composite, so it is self-lubricating.
3) Metric ball joint rod ends stainless rod end bearings has shock resistance, because of its spherical sliding large contact area, large dip angle and special craft processing method, such as lamenting, zincing, chroming or lining of outside sliding surface, spraying and so on.
4) Metric ball joint rod ends stainless rod end bearings has the resistance of corrosion, abrasion. It also can be self-aligning, self-lubricating, so it can work normally even though installed improperly.
FAQ:
1,Q: Are you trading company or manufacturer?
A: We are factory.
2,Q: How long is your delivery time for Metric ball joint rod ends stainless rod end bearings?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Metric ball joint rod ends stainless rod end bearings? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for Metric ball joint rod ends stainless rod end bearings?
A: Payment<=1000USD,100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for Metric ball joint rod ends stainless rod end bearings?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for Metric ball joint rod ends stainless rod end bearings?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of Metric ball joint rod ends stainless rod end bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with bearings?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need Metric ball joint rod ends stainless rod end bearings or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
|
Product Name
|
Rod End Bearing
|
|
Material
|
Gcr15, stainless steel, Chrome steel
|
|
Brand name
|
LLH or OEM
|
|
Vibration
|
V1,V2,V3,V4
|
|
Precision Rating
|
P0, P6,P5,P4,P2
|
|
Quality standard
|
ISO9001, ABEC-1(Z1V1)
|
|
Tolerance Grades
|
ABEC-1 (P0), ABEC-3 (P6),ABEC-5(P5)
|
|
Package |
A: tube package+outer carton+pallets
B: single box+outer carton+pallet C: According to your’s requirement |
| CODE | Dimension(mm) | Load ratings KN |
Weight | ||||||||||||||
| d | d3 6H | B | C1 | W | L3 min | d2 | L4 | h1 | L5 | d4 | d5 | d1 | α≈ | dyn. Cd | stat. Cs | KG | |
| PHS4 | 4 | M4x0.7 | 7 | 5.25 | 8 | 8 | 14 | 31 | 24 | 4 | 8 | 9.5 | 6.5 | 13 | 3 | 5 | 0.009 |
| PHS5 | 5 | M5×0.8 | 8 | 6 | 9 | 10 | 16 | 35 | 27 | 4 | 8.5 | 11 | 7.7 | 13 | 3.25 | 5.7 | 0.016 |
| PHS6 | 6 | M6×1.0 | 9 | 6.75 | 11 | 12 | 18 | 39 | 30 | 5 | 10 | 13 | 8.96 | 13 | 4.3 | 7.2 | 0.022 |
| PHS8 | 8 | M8×1.25 | 12 | 9 | 14 | 16 | 22 | 47 | 36 | 5 | 12.5 | 16 | 10.4 | 14 | 7.2 | 11.6 | 0.047 |
| PHS10 | 10 | M10×1.5 | 14 | 10.5 | 17 | 20 | 26 | 56 | 43 | 6.5 | 15 | 19 | 12.9 | 13 | 10 | 14.5 | 0.077 |
| PHS12 | 12 | M12×1.75 | 16 | 12 | 19 | 22 | 30 | 65 | 50 | 6.5 | 17.5 | 22 | 15.4 | 13 | 13.4 | 17 | 0.1 |
| PHS14 | 14 | M14×2.0 | 19 | 13.5 | 22 | 25 | 34 | 74 | 57 | 8 | 20 | 25 | 16.9 | 16 | 17 | 24 | 0.16 |
| PHS16 | 16 | M16×2.0 | 21 | 15 | 22 | 28 | 40 | 84 | 64 | 8 | 22 | 27 | 19.4 | 15 | 21.6 | 28.5 | 0.22 |
| PHS18 | 18 | M18×1.5 | 23 | 16.5 | 27 | 32 | 44 | 93 | 71 | 10 | 25 | 31 | 21.9 | 15 | 26 | 42.5 | 0.32 |
| PHS20 | 20 | M20×1.5 | 25 | 18 | 30 | 33 | 50 | 102 | 77 | 10 | 27.5 | 34 | 24.4 | 14 | 31.5 | 42.5 | 0.42 |
| PHS22 | 22 | M22×1.5 | 28 | 20 | 32 | 37 | 54 | 111 | 84 | 12 | 30 | 38 | 25.8 | 15 | 47.5 | 68 | 0.54 |
| PHS25 | 25 | M24×2.0 | 31 | 22 | 36 | 42 | 60 | 124 | 94 | 12 | 33.5 | 42 | 29.6 | 15 | 47.5 | 68 | 0.73 |
| PHS28 | 28 | M27×2.0 | 35 | 24 | 41 | 48 | 66 | 136 | 103 | 14 | 37 | 46 | 32.3 | 15 | 58 | 75.5 | 0.98 |
| PHS30 | 30 | M30×2.0 | 37 | 25 | 41 | 51 | 70 | 145 | 110 | 15 | 40 | 50 | 34.8 | 17 | 64 | 88 | 1.1 |
