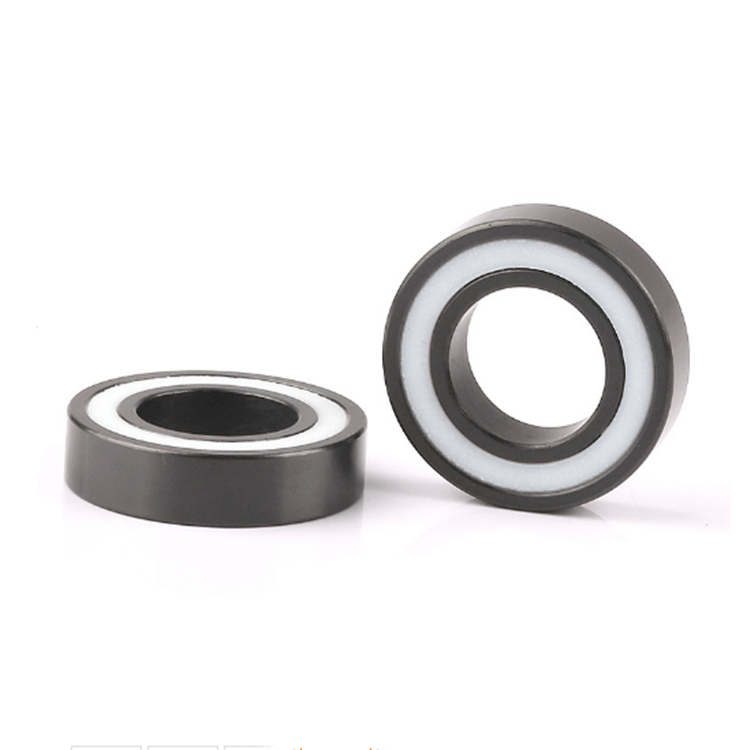

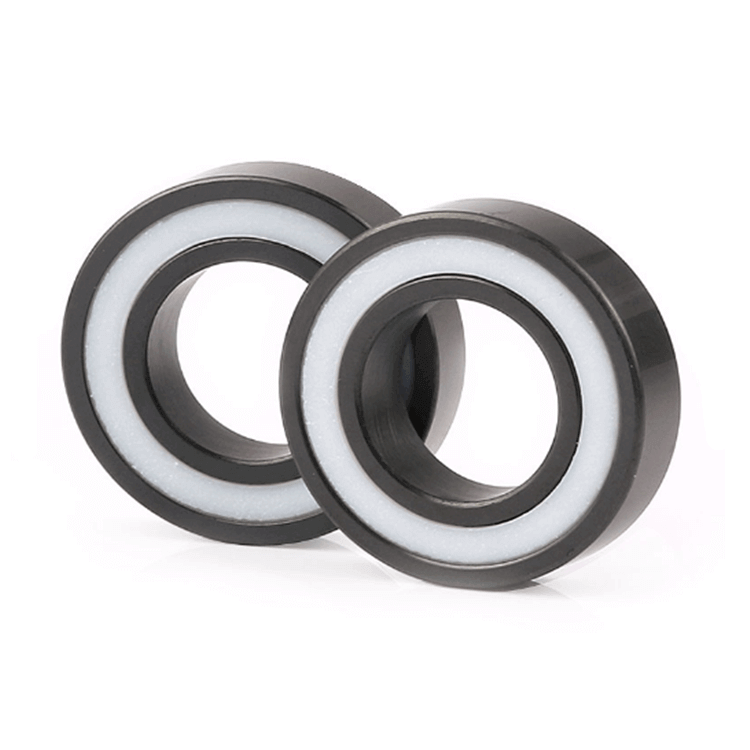

micro ceramic ball bearings good quality deep groove ball bearing micro bearing 6902

micro ceramic ball bearings with the features of high temperature, cold, wear resistance, corrosion resistance, magnetic insulation, oil-free self-lubricating, high-speed and other characteristics.


Product Specification:

  • Structure Deep Groove
  • Type: Ball
  • Brand Name LLH or OEM
  • Seals Type Open, 2rs, Z,ZZ,RS,2RS,
See Price

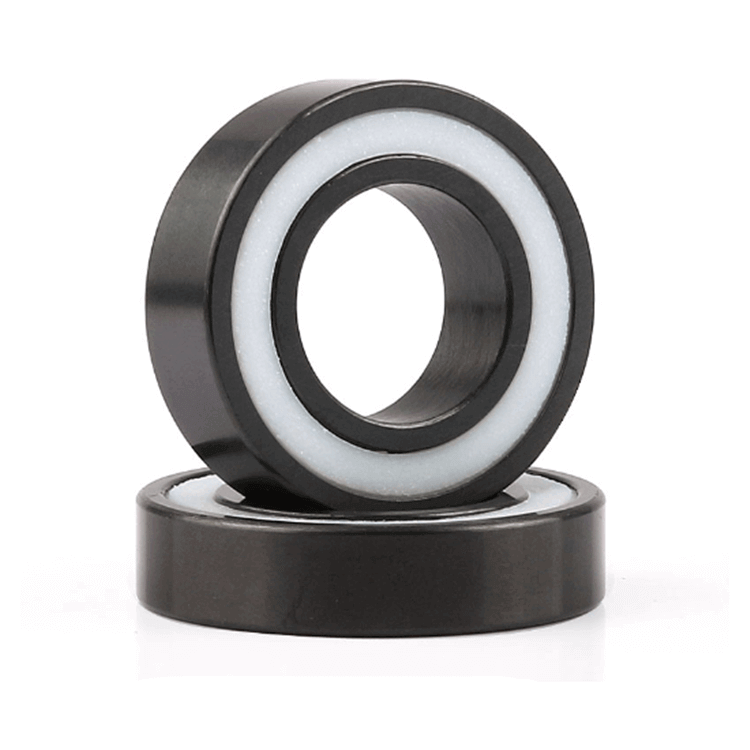

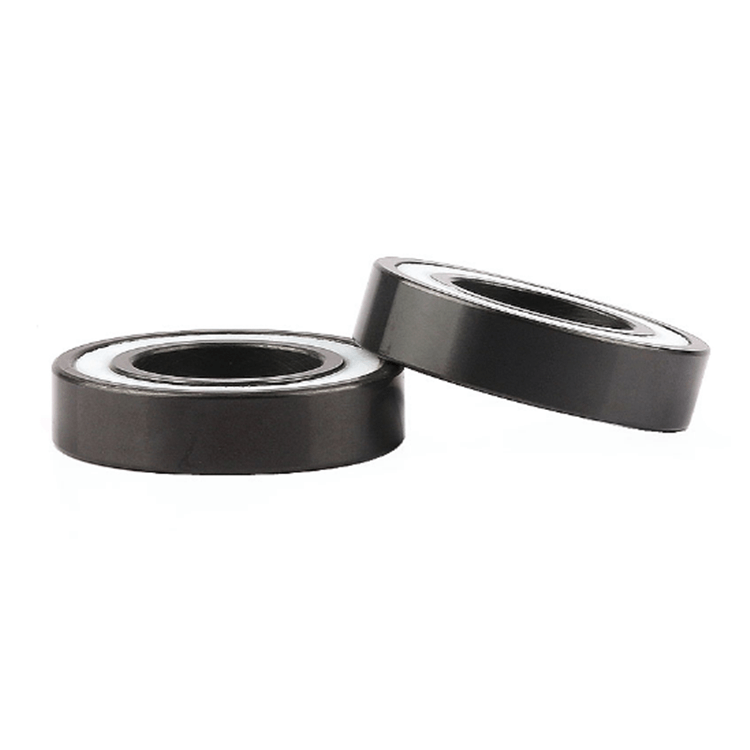

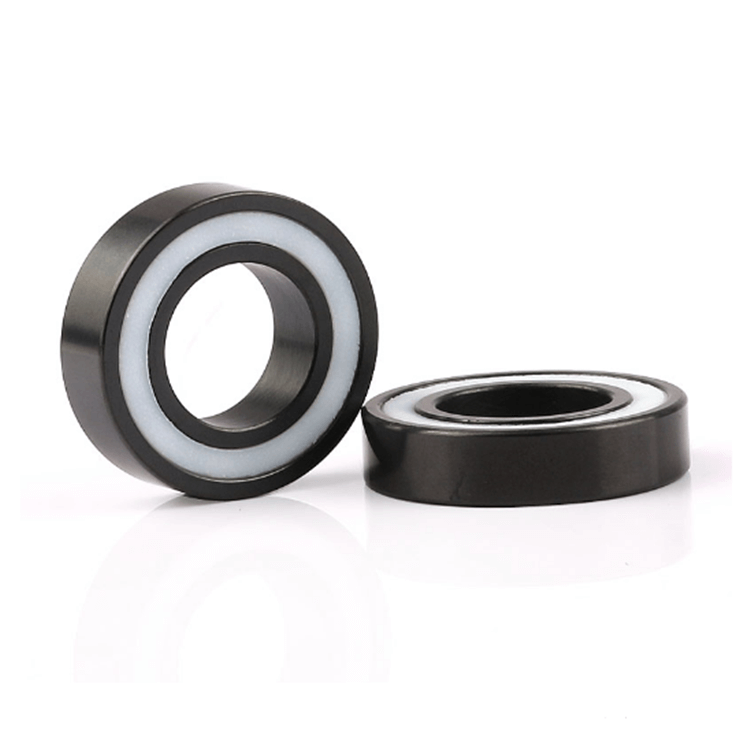

micro ceramic ball bearings good quality deep groove ball bearing micro bearing 6902

micro ceramic ball bearings 6902

1.micro ceramic ball bearings micro bearing 6902 Information:

Single row radial ball bearings are the most widely used bearings and utilize an uninterrupted raceway, which makes these bearings suitable for radial loads, or a combination of thrust and radial loads. This design permits precision tolerances even at high speed operation. Shielded bearings are protected on one, or both sides (suffixes Z and ZZ, respectively) by metal shields fastened to the outer ring. micro ceramic ball bearings factory

2.micro ceramic ball bearings micro bearing 6902 features:

1:Retainer: Brass/Nylon/Steel as your requirement
2:Single direction
3:Restricted tolerances
4:Vibration resistance
5:Suitable for high speed

6:Radial load Product micro ceramic ball bearings manufacturer

3.micro ceramic ball bearings micro bearing 6902 Protection:
1. The installation is correct, that affects precision, life, performance. And fill the bearing with lubricant after installation.
2. Don't allow strong impact, such as hammer striking, transfer roller pressure
3. Use the accurate installation tool, avoid to use cloth kind and short fibers
4. Lubricate the bearing to avoid rust with high quality mineral oil, especially in summer
5. General inspection, such as the surrounding temperature, vibrate, noise inspection
6. Keep bearing cleaning from dirt, dust, pollutant, moisture.
7. Bearing should not be ultra cooled.micro ceramic ball bearings supplier

FAQ

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for micro ceramic ball bearings micro bearing 6902?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3,Q: Do you provide samples for micro ceramic ball bearings micro bearing 6902? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for micro ceramic ball bearings micro bearing 6902?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.

5, Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price of micro ceramic ball bearings micro bearing 6902 ?
A:  after we get your inquiry, usually within 2-6 hours. Urgent will be faster.

7,Q:How about your quality of micro ceramic ball bearings micro bearing 6902 ?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ for micro ceramic ball bearings micro bearing 6902 ?
A: Usually ≥1, According your demand.

9,Q: Will you check these products before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if  you are not satisfied with the micro ceramic ball bearings micro bearing 6902?
A: If have any abnormal, Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: 008618668903871
Wechat:GraceXu1234



 Product Name micro ceramic ball bearings good quality deep groove ball bearing micro bearing 6902
 Inner Diameter (ID)  15 mm
 Outer Diameter (OD)  28 mm
 Width/Thickness  7 mm
 Material  Si3N4/ZrO2 Ceramic Rings + Si3N4/ZrO2 Ceramic Balls + PTFE Cage + PEEK/PTFE Seals
 Row Number  Single Row
 Radial Clearance  C0 ( 3um-18um )
 Lubrication  Dry ( Self-lubricated )
 Precision  P0 (ABEC-1), P6 (ABEC-3), P5 (ABEC-5),etc.

supply micro ceramic ball bearings

N0. Bore O.D Width Chamfer Load Rating Maximuum Seed Weight
mm mm mm mm Dynamic Static Grease Oil Kg/pcs
Cr Cor r/min r/min
623 3 10 4 0.15 0.5 0.216 38000 48000 0.0015
624 4 13 5 0.2 1.15 0.4 36000 45000 0.0032
625 5 16 5 0.3 1.76 0.68 32000 40000 0.005
626 6 19 6 0.3 2.34 0.885 28000 36000 0.008
627 7 22 7 0.3 3.35 1.4 26000 34000 0.013
628 8 24 8 0.3 4 1.59 24000 32000 0.017
629 9 26 8 0.3 4.55 1.96 22000 30000 0.019
6200 10 30 9 0.6 5.1 2.39 19000 26000 0.03
6201 12 32 10 0.6 6.1 2.75 18000 24000 0.036
6202 15 35 11 0.6 7.75 3.6 17000 22000 0.046
6203 17 40 12 0.6 9.6 4.6 16000 20000 0.065
6204 20 47 14 1 12.8 6.65 14000 18000 0.107
6205 25 52 15 1 14 7.85 12000 16000 0.125
6206 30 62 16 1 19.5 11.3 10000 13000 0.201
6207 35 72 17 1.1 25.6 15.5 9000 11000 0.2854
6208 40 80 18 1.1 27.6 17.4 8500 10000 0.373
6209 45 85 19 1.1 31.2 20.4 7500 9000 0.42
6210 50 90 20 1.1 35.1 23.2 7000 8500 0.467
6211 55 100 21 1.5 43.4 29.2 6300 7500 0.609
6212 60 110 22 1.5 47.8 32.9 6000 7000 0.804
6213 65 120 23 1.5 50.7 37.1 5300 6300 1.04
6214 70 125 24 1.5 55.8 41.1 5000 6000 1.12
6215 75 130 25 1.5 60.8 45.4 4800 5600 1.2

micro bearing 6902

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.precision bearing micro ceramic ball bearings
