Micro linear bearings flange linear bearing for medical is used in end supported applications, where spanning or bridging a gap is required. They have the greatest range of industrial application.However, care must be taken to select a shaft diameter to minimizes deflection.

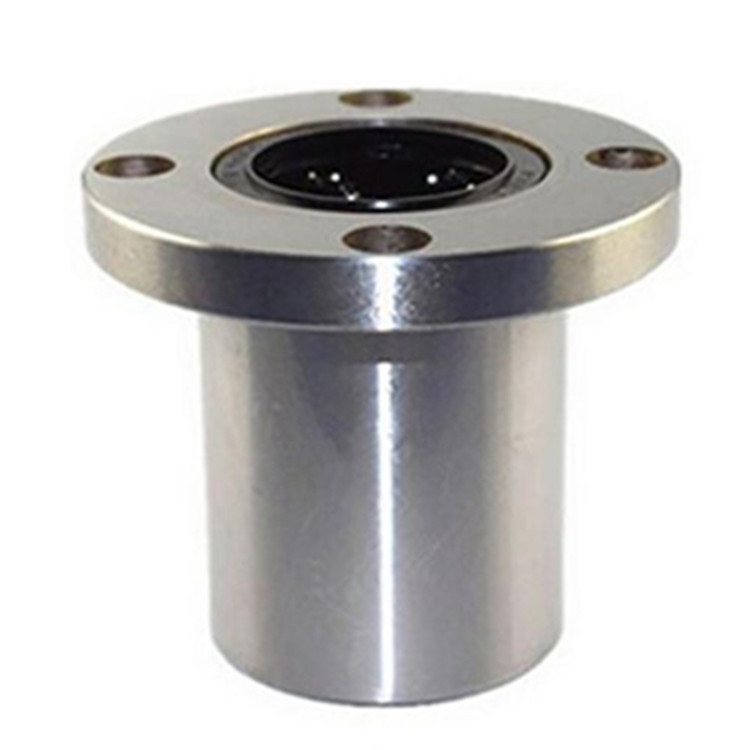

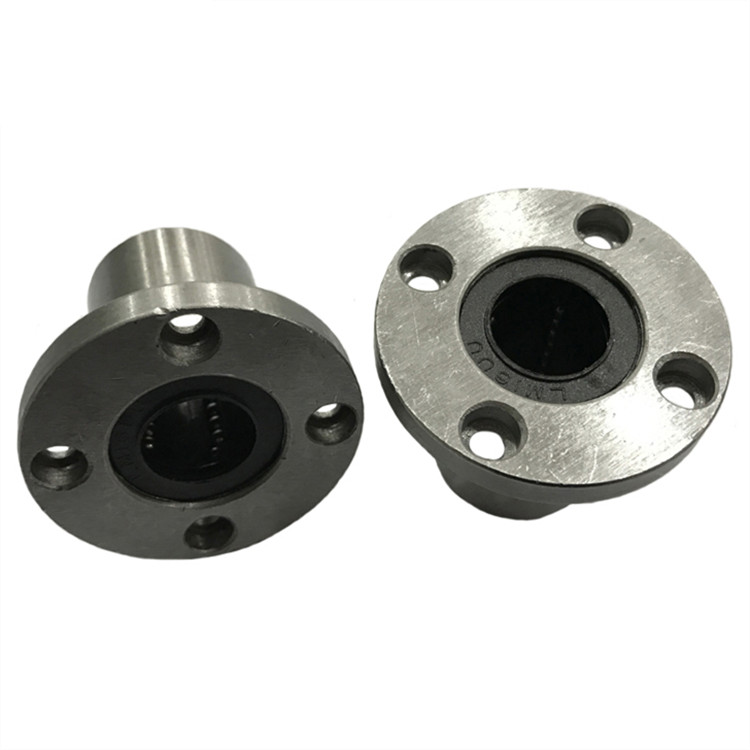

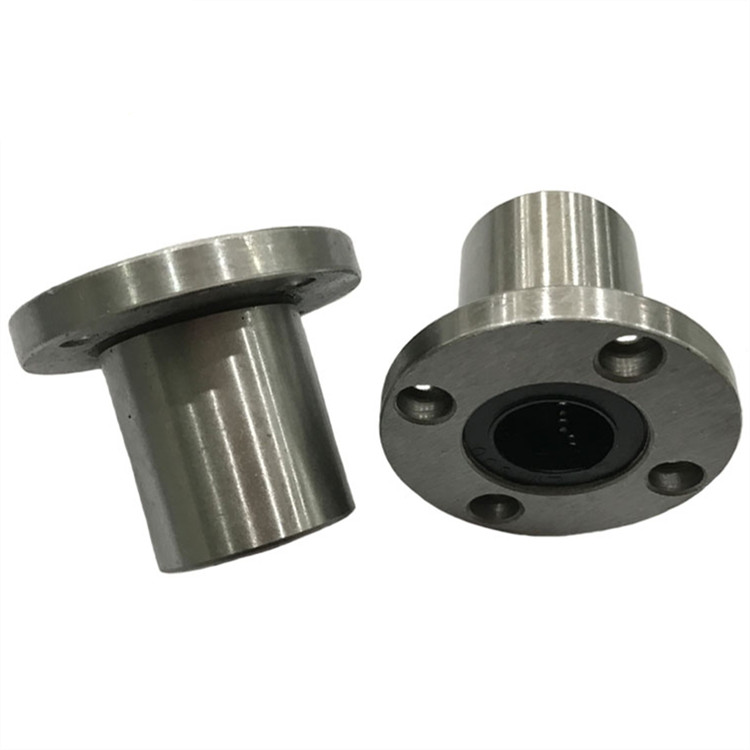

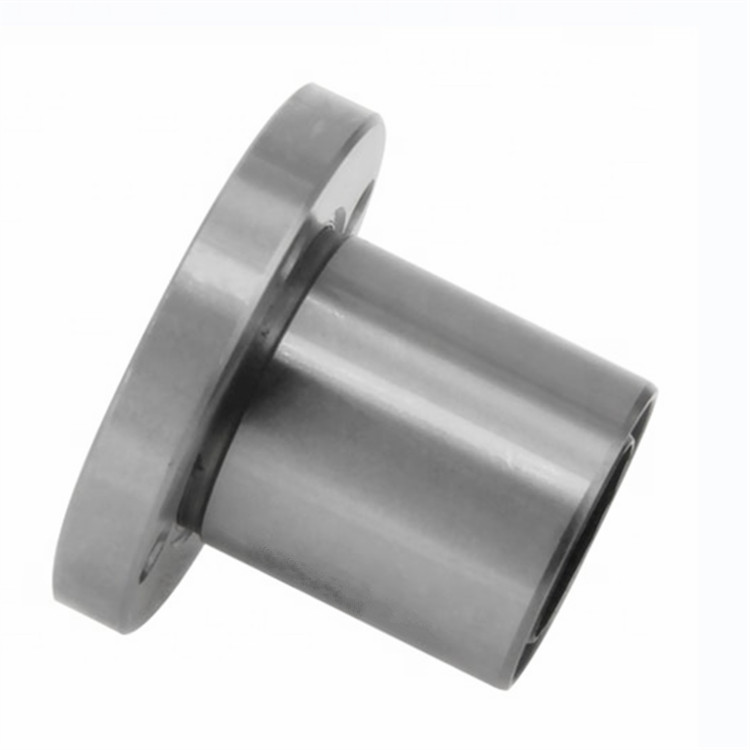

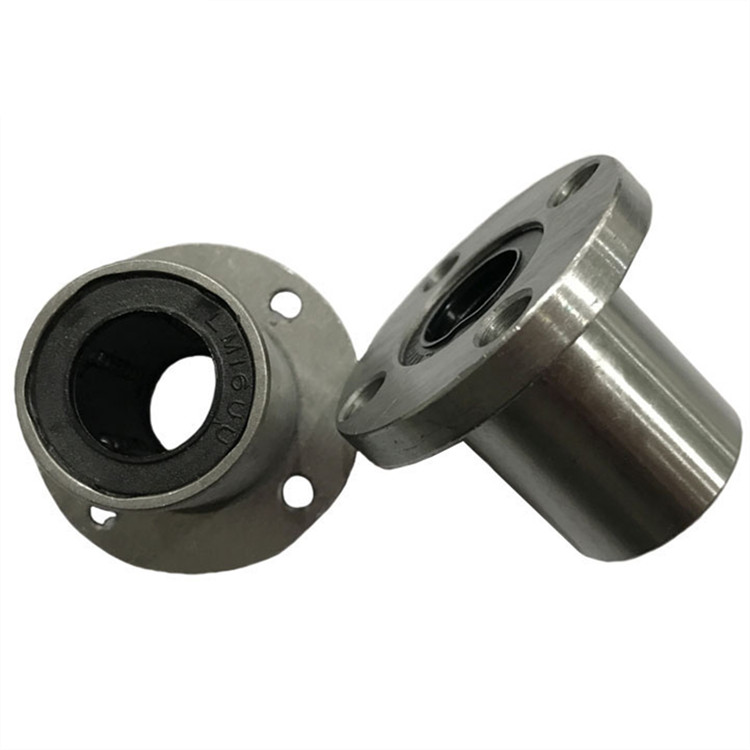

Micro linear bearings flange linear bearing for medical
Micro linear bearings flange linear bearing for medical is rectilinear motion system. Due to the fact that the ball and axle are point-contact type as well as smaller work load and the ball rotation under the smallest bearing drag, linear bearings can support smooth, long-term and high-accuracy running.
Micro linear bearings flange linear bearing for medical are extensively used in electronic aid, tension tester, digitized three-dimensional coordinate measurement system, and slide unit of multi-spindle, machine, punch, grinders, automatic gas cutting machine, printer, card cull eliminator, food packaging machinery etc.
FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for Micro linear bearings flange linear bearing for medical?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Micro linear bearings flange linear bearing for medical? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for Micro linear bearings flange linear bearing for medical?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for Micro linear bearings flange linear bearing for medical?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of Micro linear bearings flange linear bearing for medical?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your Micro linear bearings flange linear bearing for medical?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if you are not satisfied with the product?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need Micro linear bearings flange linear bearing for medical or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
| Bearing Brand | LLH or OEM |
| Bearing Material | Chrome Steel,Stainless Steel |
| Bearing Origin | China |
| Bearing Precision Grade | P0 P6 P5 P4 P2 |
| Samples | Acceptable |
| Features | 1.Best competitive price
2. Low nosie, high precision 3.Long life and stable service |
| MODEL NO. |
NUMBER OF BALL ROWS |
MAIN DIMENSIONS | BASIC LOAD RATING |
WEIGHT
g
|
||||||||||||
| INNER DIAMETER | OUTER DIAMETER | LENGTH | OUTER LOCKING GROOVE | W | c(kgf) | Co(kgf) | ||||||||||
| dr | TOLERANCE | D | TOLERANCE | L | TOLERANCE | B | TOLERANCE | D1 | ||||||||
| LM3 | 4 | 3 | 0-0.008 | 7 | 0-0.009 | 10 | 0-0.12 | |||||||||
| LM4 | 4 | 4 | 8 | 12 | 9 | 13 | 3 | |||||||||
| LM5 | 4 | 5 | 10 | 15 | 10.2 | 0-0.20 | 9.6 | 1.1 | 17 | 21 | 4 | |||||
| LM6UU | 4 | 6 | 0-0.009 | 12 | 0-0.011 | 17 | 0-0.20 | 13.5 | 11.5 | 1.1 | 21 | 27 | 6 | |||
| LM8S | 4 | 8 | 15 | 19 | 11.5 | 14.3 | 1.1 | 18 | 23 | 9 | ||||||
| LM8UU | 4 | 8 | 15 | 24 | 17.5 | 14.3 | 1.1 | 27 | 41 | 14 | ||||||
| LM10UU | 4 | 10 | 19 | 0-0.013 | 29 | 22 | 18 | 1.3 | 38 | 56 | 28 | |||||
| LM12UU | 4 | 12 | 21 | 30 | 23 | 20 | 1.3 | 42 | 61 | 32 | ||||||
| LM13UU | 4 | 13 | 23 | 32 | 23 | 22 | 1.3 | 52 | 79 | 38 | ||||||
| LM16UU | 5 | 16 | 28 | 37 | 26.5 | 27 | 1.6 | 79 | 120 | 74 | ||||||
| LM20UU | 5 | 20 | 0-0.010 | 32 | 0-0.016 | 42 | 30.5 | 30.5 | 1.6 | 88 | 140 | 80 | ||||
| LM25UU | 6 | 25 | 40 | 59 | 0-0.30 | 41 | 0-0.30 | 38 | 1.85 | 100 | 160 | 206 | ||||
| LM30UU | 6 | 30 | 45 | 64 | 44.5 | 43 | 1.85 | 160 | 280 | 240 | ||||||
| LM35UU | 6 | 35 | 0-0.012 | 52 | 0-0.019 | 70 | 49.5 | 49 | 2.1 | 170 | 320 | 370 | ||||
| LM40UU | 6 | 40 | 60 | 80 | 60.5 | 57 | 2.1 | 220 | 410 | 589 | ||||||
| LM50UU | 6 | 50 | 80 | 100 | 74 | 76.5 | 2.6 | 390 | 810 | 1480 | ||||||
| LM60UU | 6 | 60 | 0-0.015 | 90 | 0-0.022 | 110 | 85 | 86.5 | 3.15 | 480 | 1020 | 175 | ||||
