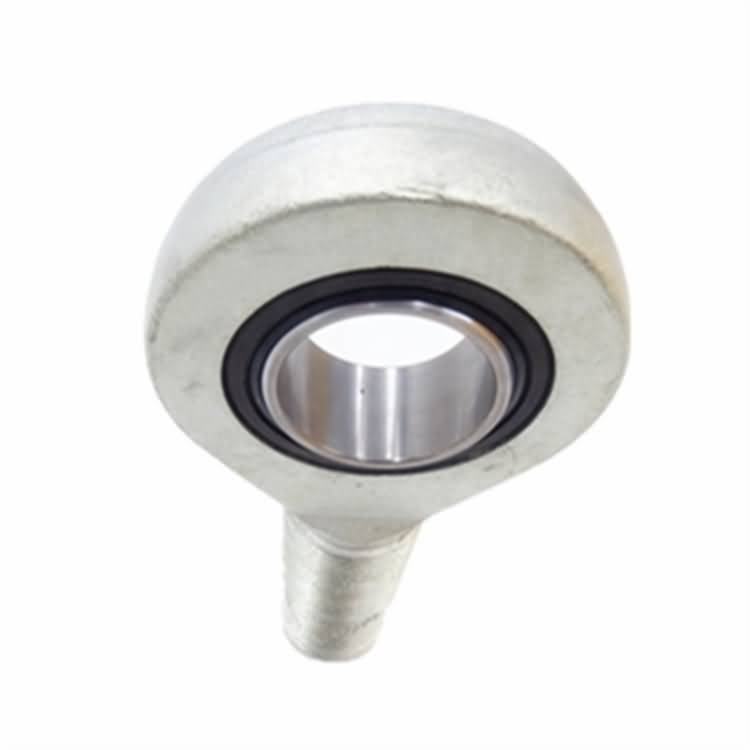

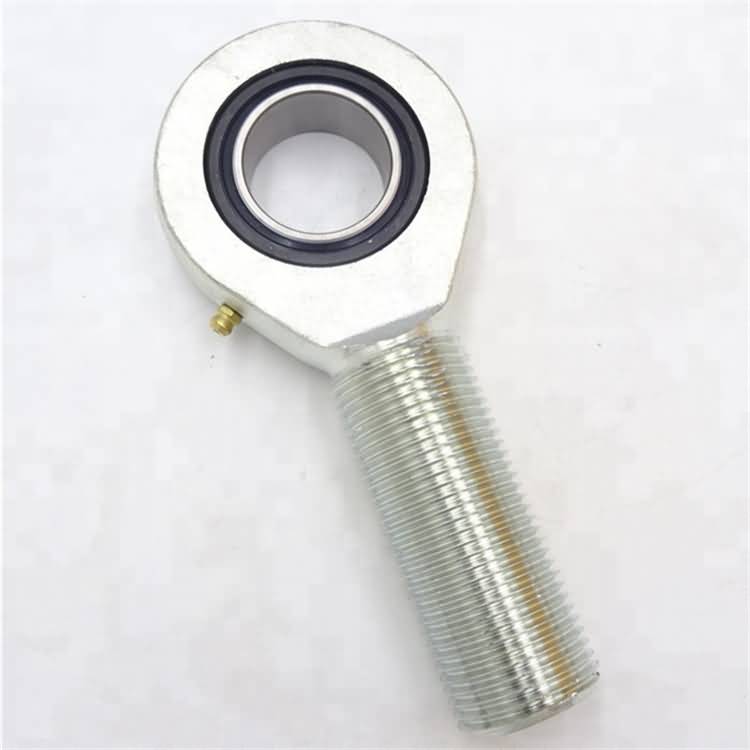

Miniature Bearings Metric SALA 40 TXE-2LS bearing

Miniature Bearings Metric SALA 40 TXE-2LS bearing are design to cater to all heavy loading equipments. Plain bearings are able to cater to various sliding contact surfaces; Steel/PTFE composite material and Steel/PTFE fabric material. Range of production range from ID15mm to ID250mm.


Product Specification:

  • Type Rod End
  • Brand Name LLH or as your request
  • Model Number SALA 40 TXE-2LS
  • Structure Spherical bearings
  • Material Gcr15 Steel
See Price

Miniature Bearings Metric SALA 40 TXE-2LS bearing

Miniature Bearings Metric SA



Miniature Bearings Metric SALA 40 TXE-2LS bearing specification

1)Inner Race:Gcr15 Steel,hardened HRC 58-64,surface phosphated.
2)Outer Race:Gcr15 Steel,hardened HRC 54-60,surface phosphated.
3)Bore size  bigger than 140mm:Inner and outer race are all Gcr15 SiMn.
4)Sliding contact surfaces:Steel/Steel or Steel/PTFE

Miniature Bearings Metric SALA 40 TXE-2LS bearing features

1)Heavy duty
2)Outer race fractured
3)Inner race hardened

Miniature Bearings Metric BEARINGS      Miniature Bearings Metric SALA 40 TXE-2LS bearing applications                                                                     1)Agriculture,
2)Light textile,
3)Mining,
4)Food &beverage,
5)Pharmaceutical,
6)Chemical processing,
7)Printing,
8)Dyeing,
9)Airport,
10)Air-conditioning,
1
1)Various kinds of conveying and rolling devices.SALA 40 TXE-2LS bearing



FAQ

FAQ:
1,Q: Are you trading company or manufacturer?
A: We are factory.
2,Q: How long is your delivery time for Miniature Bearings Metric SALA 40 TXE-2LS bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Miniature Bearings Metric SALA 40 TXE-2LS bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for Miniature Bearings Metric SALA 40 TXE-2LS bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for Miniature Bearings Metric SALA 40 TXE-2LS bearing?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with bearings?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need Miniature Bearings Metric SALA 40 TXE-2LS bearing or any models of bearings, please contact me!

Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271

Maintenance type
maintenance-free, maintenance required
Outer ring
chrome steel 52100(100Cr6), stainless steel AISI 304L/AISI 316L
Self lubricating material
China PTFE, TOARY PTFE, DUPONT PTFE, PTFE composite
Balls
chrome steel, stainless steel
Dimension
metric and inch ( bore 5 mm – 1000 mm )
Radial Metric
GE, GEG, GE-LO, GE-HO-2RS, GE-UK, GE-UK-2RS,
Inch
GEZ, GEGZ, GEZM, GACZ, GEFZ
Thrust
GE-AX, GE-AW
Angular contact
GE-SX. GE-SW
Extruded outer ring
COM, COM-T



SALA 40 TXE-2LS bearings

Dimension (mm) mm Grad Dyn Stat Mass Model
d d2 max B G 6g C1 max h a C Co kg R L
35 84 25 M 36X3 22 130 6 224 110 1,30 SA 35 TXE-2LS SAL 35 TXE-2LS
40 94 28 M 39X3 24 150 6 280 140 1,85 SAA 40 TXE-2LS SALA 40 TXE-2LS
40 94 28 M 42X3 24 145 6 280 140 1,90 SA 40 TXE-2LS SAL 40 TXE-2LS
45 104 32 M 42X3 28 163 7 360 200 2,45 SAA 45 TXE-2LS SALA 45 TXE-2LS
45 104 32 M 45X3 28 165 7 360 200 2,55 SA 45 TXE-2LS SAL 45 TXE-2LS
50 114 35 M 45X3 31 185 6 440 245 3,30 SAA 50 TXE-2LS SALA 50 TXE-2LS
50 114 35 M 52X3 31 195 6 440 245 3,90 SA 50 TXE-2LS SAL 50 TXE-2LS
60 137 44 M 52X3 39 210 6 695 360 5,70 SAA 60 TXE-2LS SALA 60 TXE-2LS
60 137 44 M 60X4 39 225 6 695 360 6,25 SA 60 TXE-2LS SAL 60 TXE-2LS
70 162 49 M 72X4 43 265 6 880 490 10,0 SA 70 TXE-2LS SAL 70 TXE-2LS
80 182 55 M 80X4 48 295 5 1 140 585 14,5 SA 80 TXE-2LS SAL 80 TXE-2LS

SALA 40 TXE-2LS bearing manufacturer

Miniature Bearings Metric sa SeriesMiniature Bearings Metric cheap
