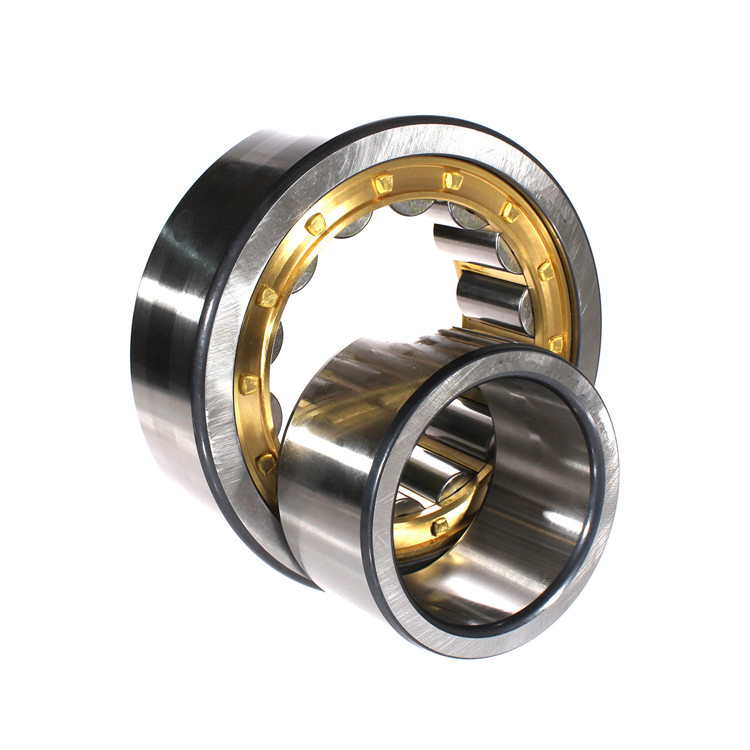

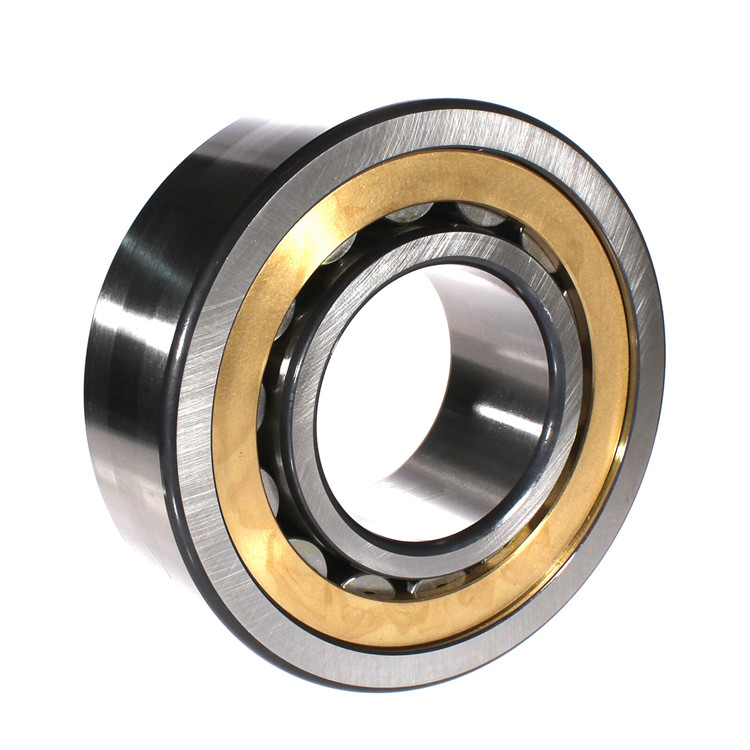

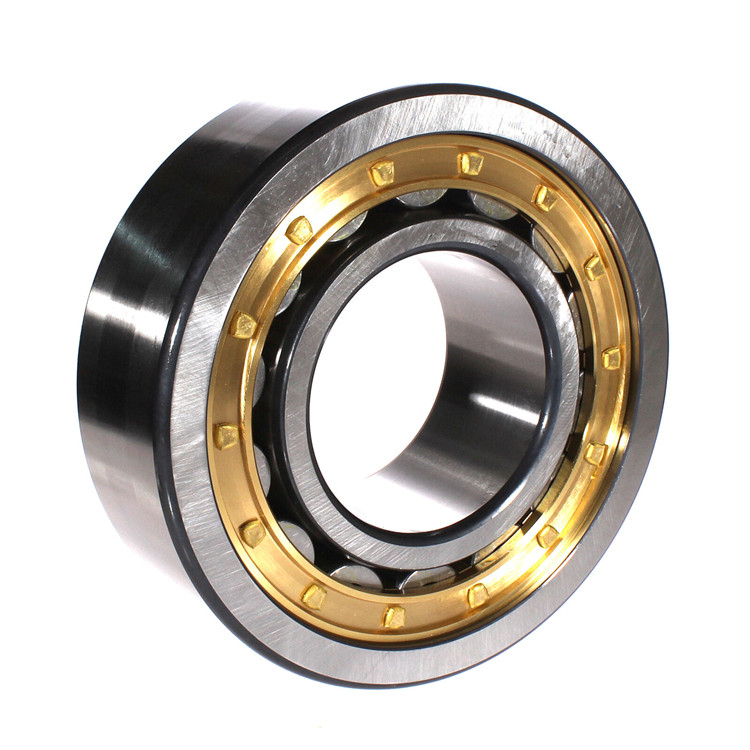

NU2320 nu bearings NU2320M Cylindrical Roller Bearing
Product Introduction:
NU2320 Cylindrical roller bearing is of high load capacity and can operate at high speeds because they use rollers as their rolling elements. They can therefore be used in applications involving heavy radial and impact loading.
The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitable for applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.
The rollers of cylindrical roller bearings are a key component. Their geometry, the so-called logarithmic profile, provides an optimum stress distribution in the contact zones in the bearing, their surface finish maximizes lubricant film formation and optimizes rolling motion of the rollers. The benefits derived from this compared with traditional designs include enhanced operational reliability and a greater insensitivity to misalignment.
|
Type
|
Cylindrical Roller Bearing
|
Model
|
NU2320
|
|
Brand
|
LLH/OEM
|
d (mm)
|
100mm
|
|
Material
|
Chrome steel
|
D (mm)
|
215mm
|
|
Type
|
Open/Seal
|
B (mm)
|
73mm
|
|
Precision rate
|
P0, P6, P5, or as requested
|
Weight(lbs)
|
29.32lbs
|
Product Show
 |
 |
 |
Related Products
| Bearing No. | d(mm) | D(mm) | B(mm) |
| NJ322 | 110 | 240 | 50 |
| NJ2205 | 25 | 52 | 18 |
| NJ2210 | 50 | 90 | 23 |
| NJ2220 | 100 | 180 | 46 |
| NJ2305 | 25 | 62 | 24 |
| NJ2319 | 95 | 200 | 67 |
| NUP204 | 20 | 47 | 14 |
| NUP220 | 100 | 180 | 46 |
| NUP304 | 20 | 52 | 15 |
| NUP320 | 100 | 215 | 47 |
| NUP2205 | 25 | 52 | 18 |
| NUP2210 | 50 | 90 | 23 |
| NUP2220 | 100 | 180 | 46 |
| NUP2320 | 100 | 215 | 73 |
FAQ
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for nu2320 nu bearings?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.
3,Q: Do you provide samples for nu2320 nu bearings? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for nu2320 nu bearings?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for nu2320 nu bearings?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of nu2320 nu bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your nu2320 nu bearings?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the nu2320 nu bearings?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
|
Type
|
Cylindrical Roller Bearing
|
Model
|
NU2320
|
|
Brand
|
LLH/OEM
|
d (mm)
|
100mm
|
|
Material
|
Chrome steel
|
D (mm)
|
215mm
|
|
Type
|
Open/Seal
|
B (mm)
|
73mm
|
|
Precision rate
|
P0, P6, P5, or as requested
|
Weight(lbs)
|
29.32lbs
|
| Bearing No. | Boundary dimensions (mm) | Basic load ratings (KN) | Weight KG | |||
| d | D | B | Cr | C0r | ||
| N224 | 120 | 215 | 40 | 325 | 318 | 6.31 |
| NU224R | 215 | 40 | 419 | 421 | 5.85 | |
| NU2224 | 215 | 58 | 456 | 492 | 8.56 | |
| NU2224R | 215 | 58 | 565 | 619 | 8.56 | |
| NU3224 | 215 | 76 | 596 | 695 | 11.9 | |
| N324 | 260 | 55 | 596 | 551 | 13.1 | |
| NU324R | 260 | 55 | 660 | 610 | 13.4 | |
| NU2324 | 260 | 86 | 886 | 918 | 23.1 | |
| NU2926 | 130 | 180 | 30 | 191 | 243 | 2.27 |
| NU1026 | 200 | 33 | 215 | 238 | 3.77 | |
| N226 | 230 | 40 | 353 | 362 | 7.21 | |
| NU226R | 230 | 40 | 454 | 453 | 6.6 | |
| NU2226 | 230 | 64 | 495 | 560 | 11.2 | |
| NU2226R | 230 | 64 | 662 | 737 | 11.2 | |
| NU3226 | 230 | 80 | 689 | 857 | 14.1 | |
| N326 | 280 | 58 | 699 | 667 | 16.4 | |
| NU326R | 280 | 58 | 771 | 736 | 16.7 | |
| NU2326 | 280 | 93 | 1050 | 1130 | 29.1 | |
| NU2326R | 280 | 93 | 1150 | 1230 | 29.1 | |
| NU3326 | 280 | 112 | 1170 | 1290 | 34.6 | |
| NU2928 | 140 | 190 | 30 | 207 | 275 | 2.49 |
| NU1028 | 210 | 33 | 220 | 250 | 4 | |
| N228 | 250 | 42 | 406 | 421 | 8.78 | |
| NU228R | 250 | 42 | 491 | 514 | 8.5 | |
| NU2228 | 250 | 68 | 583 | 671 | 14.3 | |
| NU2228R | 250 | 68 | 716 | 835 | 14.3 | |
| N328 | 300 | 62 | 771 | 746 | 21.8 | |
| NU328R | 300 | 62 | 829 | 797 | 21.8 | |
