peek plastic material bearing high performance plastic bearing 6305

Product Specification:

Structure Deep Groove
Type Ball
Brand Name LLH or as your request
Precision Rating High precision
Seals Type 2RS,RS,ZZ,OPEN

See Price

Product Details
Description
Specification
Our factory

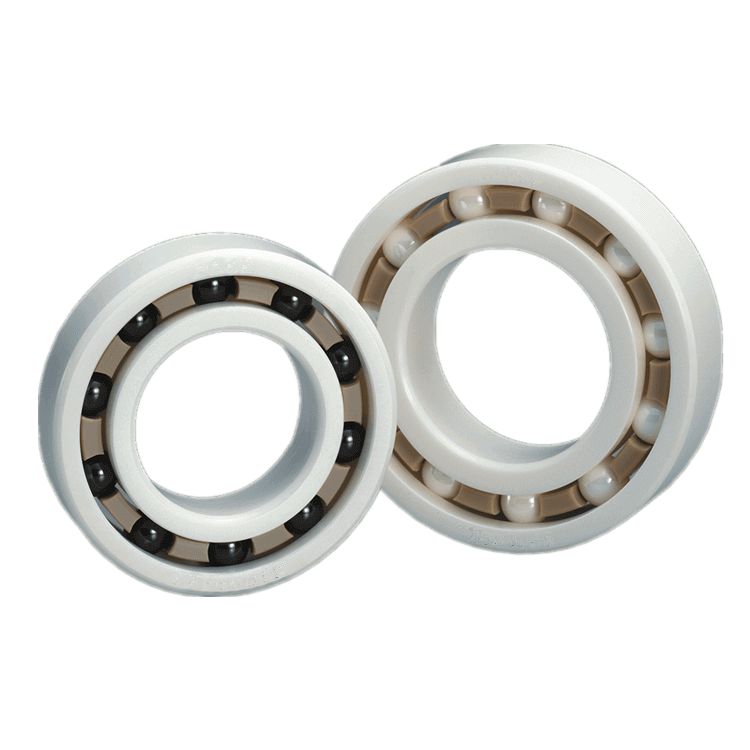

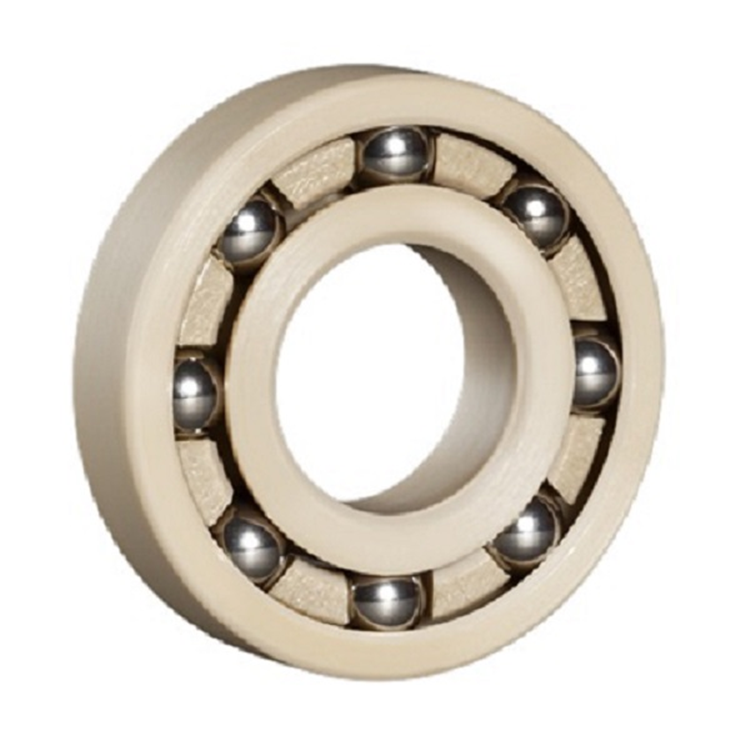

peek plastic material bearing high performance plastic bearing 6305

peek plastic material bearing manufacturer

High temperature peek plastic material bearing strong points:

Abrasion resistance

Self lubrication

Dimensional stability

Fatigue resistance

Creep resistance

Chemical stability

Corrosion resistance

Flame resistance: 94V-1 (0.3mm); UL94-0 (1.5mm); 94V-5 (3.2mm)

Weather ability

Resistance to heat & humidity: long term thermal resistance is 250℃; short-tem thermal resistance is 300℃.

Electrical insulation

No-toxic

plastic bearing 6305

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time for peek plastic material bearing or plastic bearing 6305 ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples for peek plastic material bearing or plastic bearing 6305 ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment for peek plastic material bearing or plastic bearing 6305 ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.

Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

Q: When can I get the price of peek plastic material bearing?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.

Q:How about your quality of plastic flanged sleeve bearings ?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

Q: What is the MOQ of your peek plastic material bearing ?
A: Usually ≥1, According your demand.

Q: Will you check these products before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.

If you need peek plastic material bearing plastic bearing 6305 or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype: +8618668903871
Whatsapp: 008618668903871
Wechat:GraceXu1314

Item name	High temperature plastic peek bearing
Material	Top engineering plastics-PEEK
Characteristic	Light weight; high performance; replace traditional parts and good value for money
Brand Name	LLH / OEM
Color	Nature color / Customized
Size	Custom made as your artwork or sample
Manufacture way	Injection and machinery process
MOQ	Any piece is ok, less quantity and higher price

Bearing NO.	Old NO.	ID	OD	B	Cr	Cor	Max Speed (Grease)	Max Speed (Oil)	Mass
		(mm)	(mm)	(mm)	(kN)	(kN)	(r/min)	(r/min)	(kg)

6200	200	10	30	9	5.1	2.38	20000	26000	0.032
6201	201	12	32	10	6.82	3.05	19000	24000	0.037
6202	202	15	35	11	7.65	3.72	18000	22000	0.045
6203	203	17	40	12	9.58	4.78	16000	20000	0.065
6204	204	20	47	14	12.8	6.65	14000	18000	0.106
6205	205	25	52	15	14	7.85	13000	15000	0.128
6206	206	30	62	16	19.5	11.3	11000	13000	0.199
6207	207	35	72	17	25.7	15.4	9200	11000	0.288
6208	208	40	80	18	29.5	18	8000	10000	0.368
6209	209	45	85	19	31.5	20.5	7000	9000	0.416
6210	210	50	90	20	35	23.2	6700	8500	0.463
6211	211	55	100	21	43.2	29.2	6000	7500	0.603
6212	212	60	110	22	47.8	32.8	5600	7000	0.789
6213	213	60	120	23	57.2	40	5000	6300	0.99
6214	214	70	125	24	60.8	45	4800	6000	1.084
6215	215	75	130	25	66	49.5	4500	5600	1.171
6216	216	80	140	26	71.5	54.2	4300	5300	1.448
6217	217	85	150	28	83.2	63.8	4000	5000	1.803
6218	218	90	160	30	95.8	71.5	3800	4800	2.17
6219	219	95	170	32	110	82.8	3600	4500	2.62
6220	220	100	180	34	122	92.8	3400	4300	3.19
6221	221	105	190	36	133	105	3200	4000	3.78
6222	222	110	200	38	144	117	3000	3800	4.42
6224	224	120	215	40	155	131	2600	3400	5.3
6226	226	130	230	40	165	148	2400	3200	6.12
6228	228	140	250	42	179	167	2000	2800	7.77
6230	230	150	270	45	203	199	1900	2600	9.78
6232	232	160	290	48	215	218	1800	2400	12.22
6234	234	170	310	52	245	260	1700	2200	15.241
6236	236	180	320	52	262	285	1600	2000	15.518
6238	238	190	340	55	285	322	1500	1900	18.691
6240	240	200	360	58	288	332	1400	1800	22.577
6244	244	220	400	65	355	365	1200	1600	36.5
6248	248	240	440	72	358	467	1000	1400	53.9

peek plastic material bearing 6305 6305 peek plastic material bearing plastic bearing 6305 SUPPLY
