pillow block bearing types UCF208 pillow block bearing puller

Pillow blocks are supplied in a variety of configurations. Pressed steel pillow block bearings are also available for light-duty applications

Product Specification:

Model UCF208
Brand LLH or as your request

See Price

Product Details
Description
Specification
Our factory

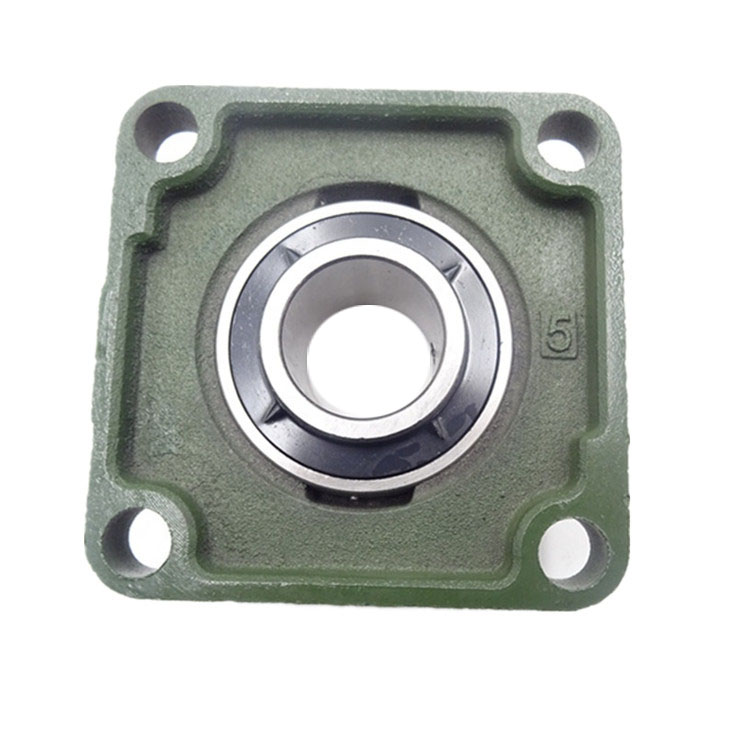

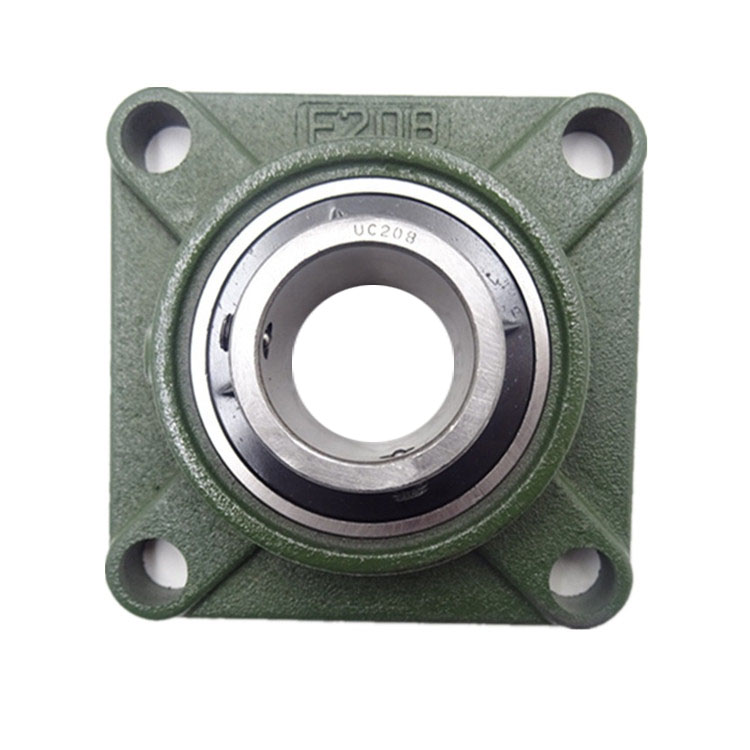

pillow block bearing types UCF208 pillow block bearing puller

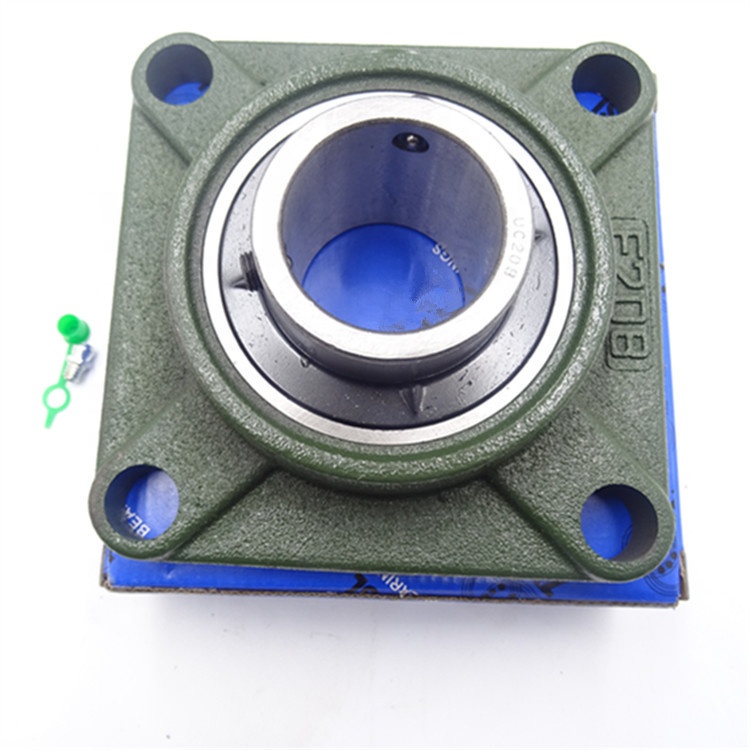

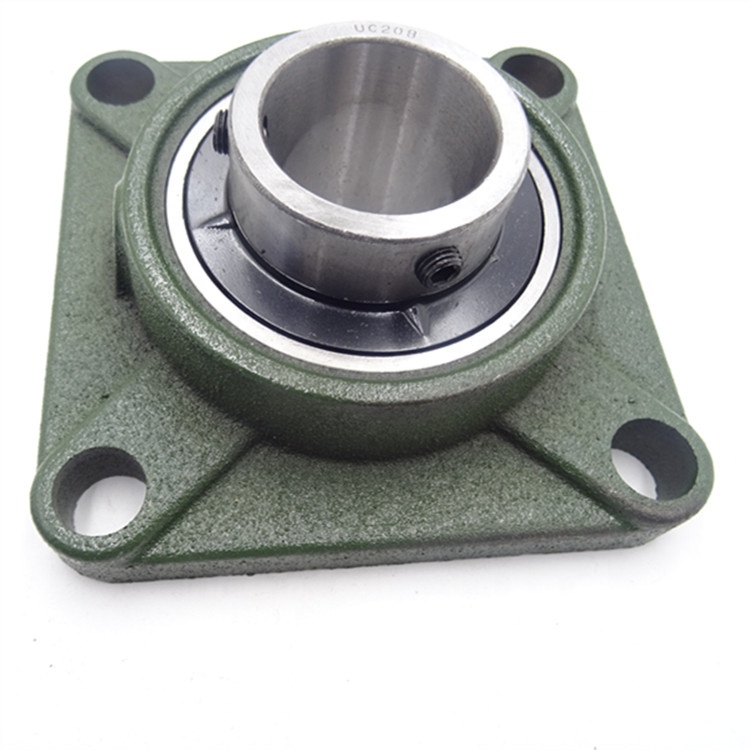

pillow block bearing

The design for pillow block bearing types UCF208 is
scientific and reasonable, the process
performance is superior, and the application
is reliable. In addition, the inner screw hole of
the outer spherical ball bearing top, the
surrounding bearing lifting screw adopts high
temperature tempering treatment, which strengthens
the toughness and impact resistance, and can prevent
the screw from loosening and falling off during the working process.

Product name	pillow block bearing types UCF208 Agricultural bearing with housing
Model Nmuber	UCF208
Material	Chrome steel or bearing steel(Gcr15) Stainless steel / Carbon steel/Ceramic
Types:	UCP; UCF; UC; UCT; UCPH; UCPA; UCFL; UCFC; UCFB; UCFA; UCHA
Advantages	1.high speed and high precision 2.long service lifetime 3.lowest noise and good performance
Applications	Papermaking machinery, speed reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industry.
Packing	A: Industrial packaging: Plastic tube (10pcs in 1tube)+ carton + plywood pallets B:Commercial packing: 1pc/plastic bag+ single color box+ carton + plywood pallets C:According to customer's requirements

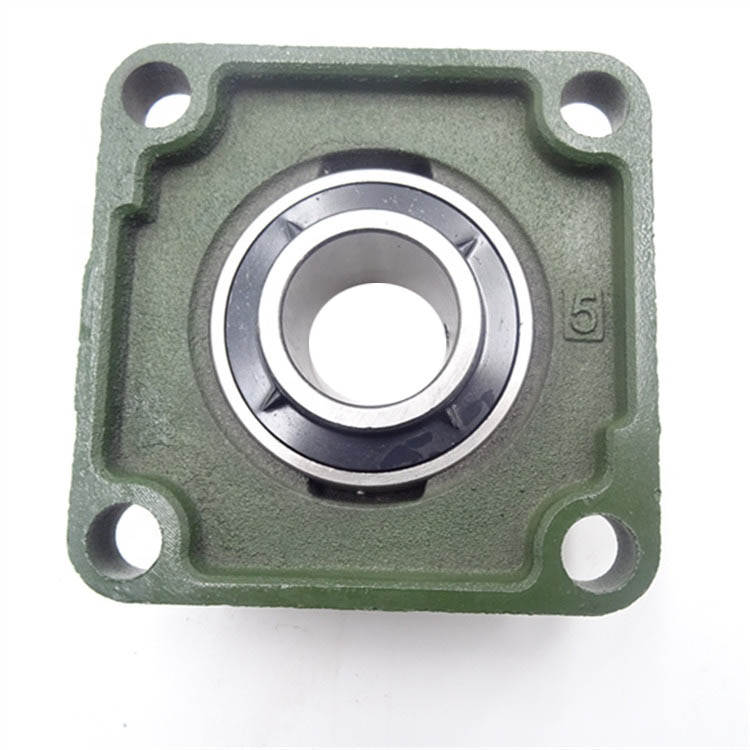

pillow block bearing puller

A: Industrial packaging: Plastic tube (10pcs in 1tube)+ carton + plywood pallets

B: Commercial packing: 1pc/plastic bag+ single color box+ carton + plywood pallets;

C: According to customer's requirements pillow block bearing

1,Q: Are you trading company or manufacturer?
A: We are factory.
2,Q: How long is your delivery time for pillow block bearing types UCF208 pillow block bearing puller?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for pillow block bearing types UCF208 pillow block bearing puller? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for pillow block bearing types UCF208 pillow block bearing puller?
A: Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for pillow block bearing types UCF208?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for pillow block bearing types UCF208 pillow block bearing puller?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of pillow block bearing types UCF208 pillow block bearing puller?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for pillow block bearing types UCF208 pillow block bearing puller?
A: Usually ≥1, According your demand.
9,Q: Will you check these pillow block bearing types UCF208 pillow block bearing puller before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the pillow block bearing types UCF208 pillow block bearing puller?
A: If have any abnormal,Please contact us at first time, we will immediately processing.

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: 008618668903871
Wechat:GraceXu1234

d	1.5748 in 40.000 mm
L	5.1250 in 130.0 mm
J	4.0156 in 102.0 mm
A	1.4062 in 36.0 mm
A0	2.0156 in 51.200 mm
A1	0.5937 in 15.0 mm
A2	0.8281 in 21.0 mm
N	0.6250 in 16.0 mm
B	1.9370 in 49.200 mm
S	0.7480 in 19.000 mm

high speed bearing

Unit No.	Dimensions mm											Bolt Sizemm	Bearing No.	Housing No.	Weight (kg)
Unit No.	d	a	e	i	g	I	s	z	t	B	n	Bolt Sizemm	Bearing No.	Housing No.	Weight (kg)
UCF201	12	86	64	15	12	25.5	12	33.3	37.5	31	12.7	M10	UC201	F204	0.6
UCF202	15	86	64	15	12	25.5	12	33.3	37.5	31	12.7	M10	UC202	F204	0.59
UCF203	17	86	64	15	12	25.5	12	33.3	37.5	31	12.7	M10	UC203	F204	0.58
UCF204	20	86	64	15	12	25.5	12	33.3	37.5	34.1	14.3	M10	UC204	F204	0.56
UCF205	25	95	70	16	14	27	12	35.8	40	34.1	14.3	M10	UC205	F205	0.8
UCF206	30	108	83	18	14	31	12	40.2	44.5	38.1	15.9	M10	UC206	F206	1.12
UCF207	35	117	92	19	16	34	14	44.4	48.5	42.9	17.5	M12	UC207	F207	1.46
UCF208	40	130	102	21	16	36	16	51.2	55.5	49.2	19	M14	UC208	F208	1.84
UCF209	45	137	105	22	18	38	16	52.2	56.5	49.2	19	M14	UC209	F209	2.15
UCF210	50	143	111	22	18	40	16	54.6	59.5	51.6	19	M16	UC210	F210	2.42

high quality bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers. precision bearing
