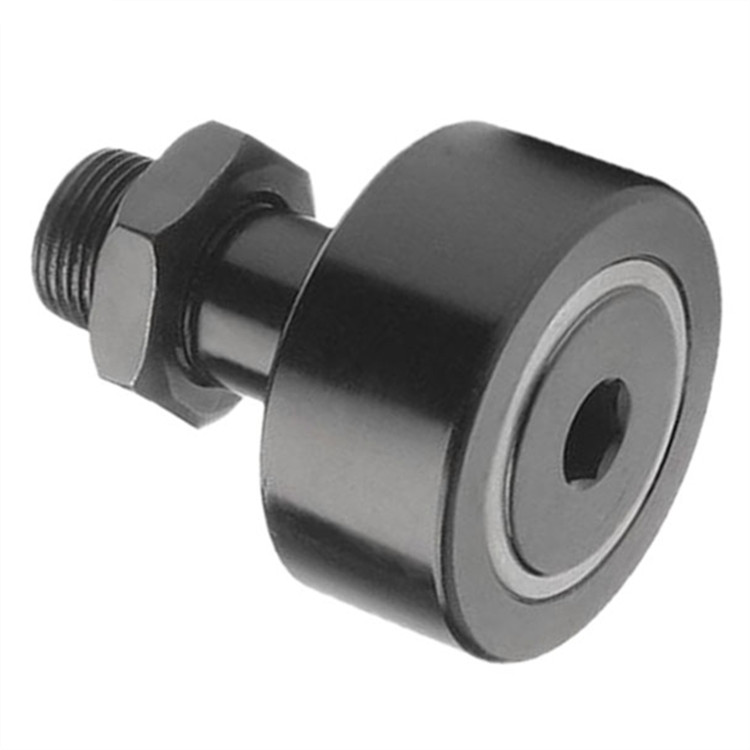

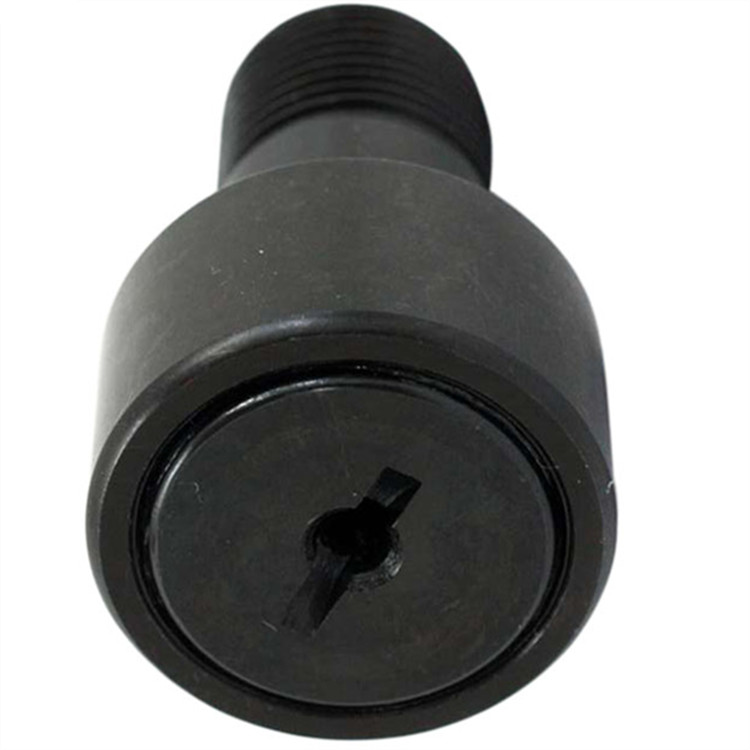

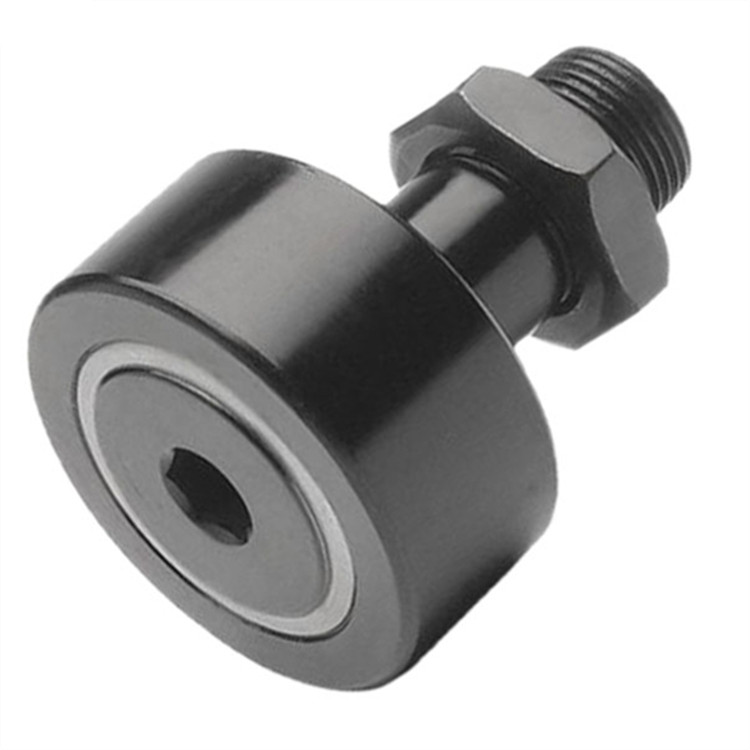

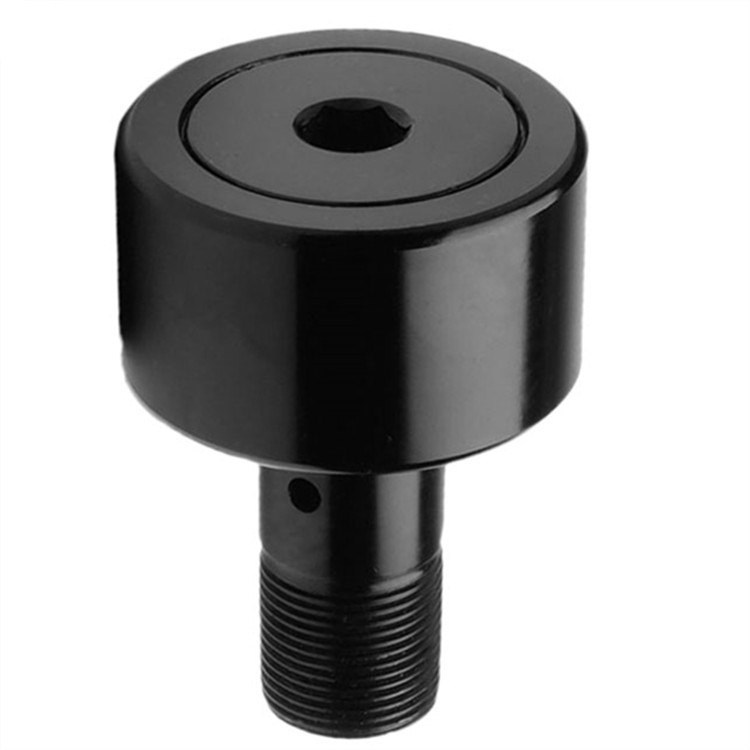

Roller track bearings v groove cam follower are the special-purposed bearings in order to meet the supporting requirement of main machine. The outer ring has roller structure and the bolt shaft substitutes the inner ring.
Roller track bearings v groove cam follower
Roller track bearings v groove cam follower is a bearing unit composed of machined outer ring,needle rollers or cylindrical roller sets,it can bear high radial load and widely used in machine tool,metallurgical,textile machinery and printing machinery,etc .
Roller track bearings v groove cam followerstud and bolt type cam follower,stud type track rollers are similar in their construction to single and double row track rollers, except that the raceway is formed by a heavy-section roller stud with a fixing thread and lubrication hole.
FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for Roller track bearings v groove cam follower?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Roller track bearings v groove cam follower? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for Roller track bearings v groove cam follower?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your Roller track bearings v groove cam follower?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal,Please contact us at first time, we will immediately
processing.
If you need Roller track bearings v groove cam follower or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
| Standard | DIN GB ISO JIS BA ANSI |
| Grade | ABEC-3 ABEC-5 , ABEC-7, ABEC-9 |
| Clearance | C0, C3 ,C5 |
| Package | carton package |
| Used | Machine |
| CF KR SPECIFICATIONS | |||||||||
| Model | Weight | d | D | C | B1 | B2 | G | G1 | |
| No Seal | Reference model | (gram) | mm | mm | mm | mm | mm | mm | |
| CF 3 | KR10 | 4.5 | 3 | 10 | 7 | 17 | 9 | M3X0.5 | 5 |
| CF 4 | KR12 | 7.5 | 4 | 12 | 8 | 20 | 11 | M4X0.7 | 6 |
| CF 5 | KR13 | 10.5 | 5 | 13 | 9 | 23 | 13 | M5X0.8 | 7.5 |
| CF 6 | KR16 | 18.5 | 6 | 16 | 11 | 28 | 16 | M6X1 | 8 |
| CF 8 | KR19 | 28.5 | 8 | 19 | 11 | 32 | 20 | M8X1.25 | 10 |
| CF10 | KR22 | 45 | 10 | 22 | 12 | 36 | 23 | M10X1.25 | 12 |
| CF10-1 | KR26 | 60 | 10 | 26 | 12 | 36 | 23 | M10X1.25 | 12 |
| CF12 | KR30 | 95 | 12 | 30 | 14 | 40 | 25 | M12X1.5 | 13 |
| CF12-1 | KR32 | 105 | 12 | 32 | 14 | 40 | 25 | M12X1.5 | 13 |
| CF16 | KR35 | 170 | 16 | 35 | 18 | 52 | 32.5 | M16X1.5 | 17 |
| CF18 | KR40 | 250 | 18 | 40 | 20 | 58 | 36.5 | M18X1.5 | 19 |
| CF20 | KR47 | 460 | 20 | 47 | 24 | 66 | 40.5 | M20X1.5 | 21 |
| CF20-1 | KR52 | 385 | 20 | 52 | 29 | 66 | 40.5 | M20X1.5 | 21 |
| CF24 | KR62 | 815 | 24 | 62 | 29 | 80 | 49.5 | M24X1.5 | 25 |
| CF24-1 | KR72 | 1,140 | 24 | 72 | 29 | 80 | 49.5 | M24X1.5 | 25 |
| CF30 | KR80 | 1,870 | 30 | 80 | 35 | 100 | 63 | M30X1.5 | 32 |
| CF30-1 | KR85 | 2.03 | 30 | 85 | 35 | 100 | 63 | M30X1.5 | 32 |
| CF30-2 | KR90 | 2,220 | 30 | 90 | 35 | 100 | 63 | M30X1.5 | 32 |
Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
