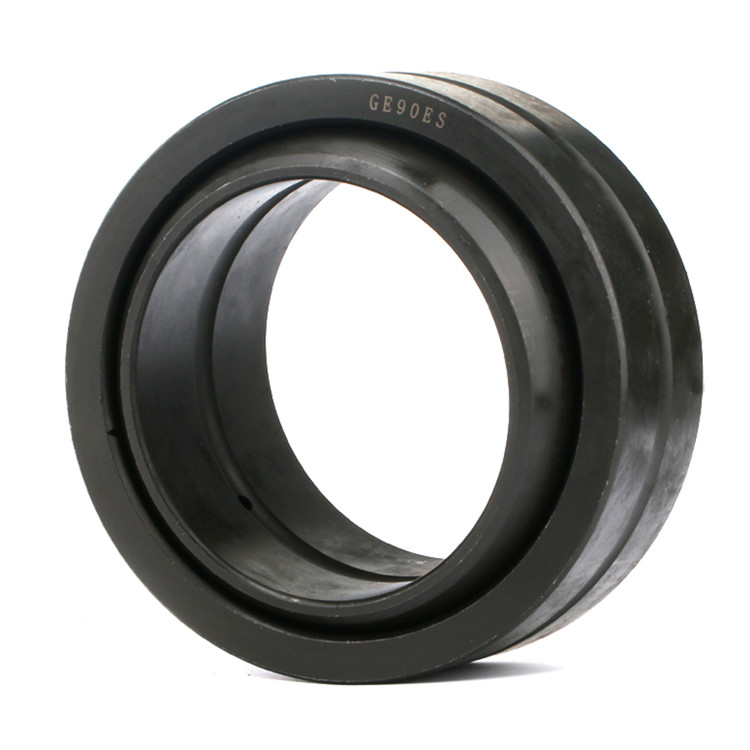

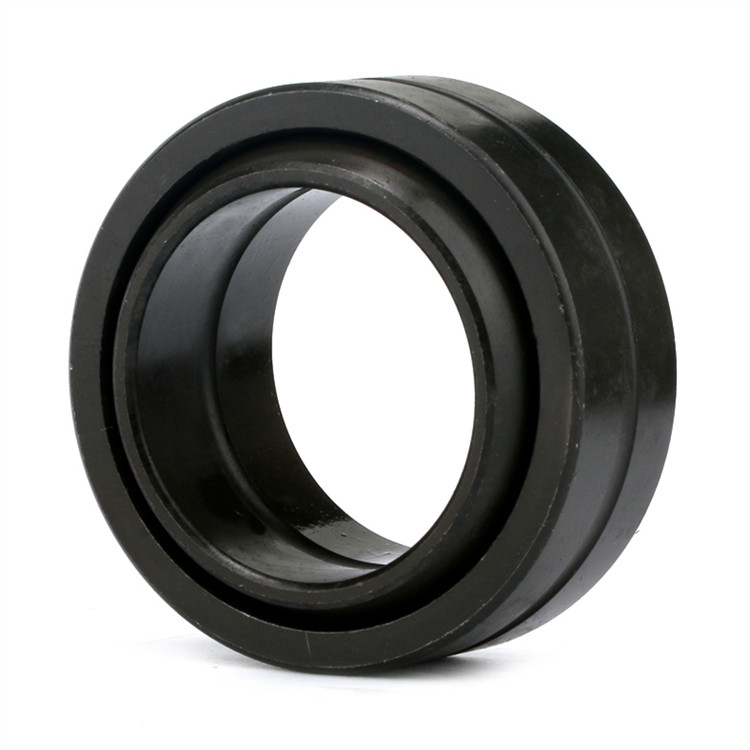

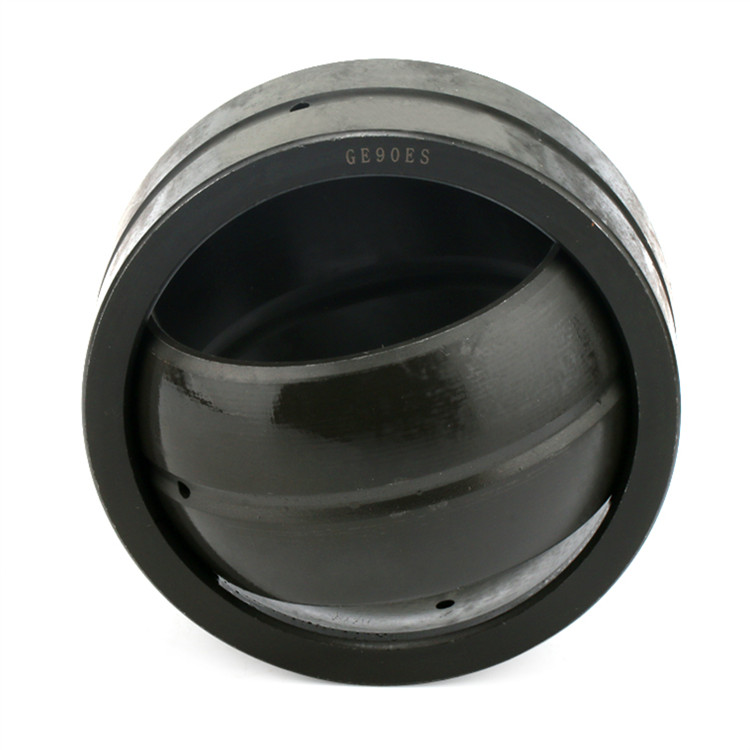

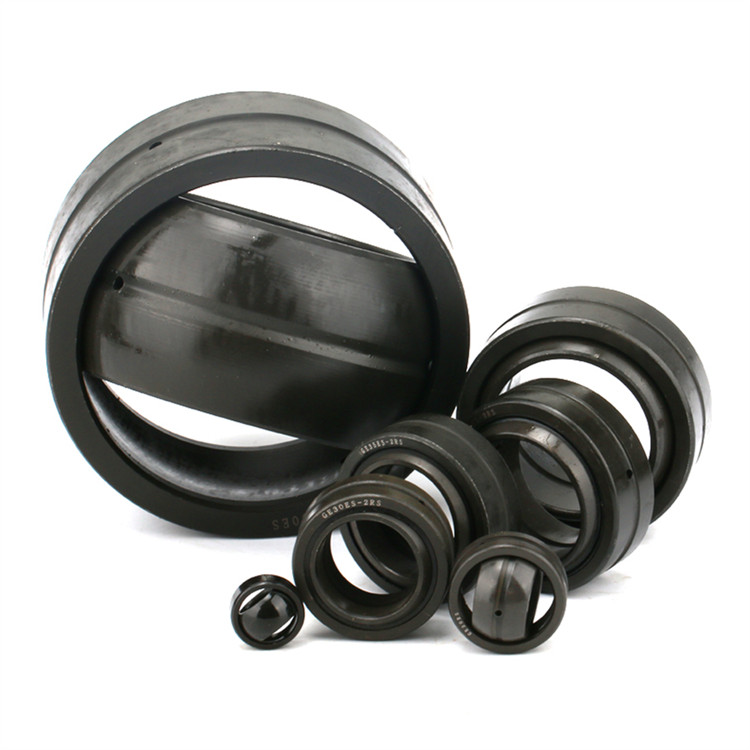

Spherical plain shaft bearing spherical rod bearings

Spherical plain shaft bearing spherical rod bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated.


Product Specification:

  • Model GE 90ES
  • Brand LLH
  • Origin China
See Price

Spherical plain shaft bearing spherical rod bearings

spherical plain shaft bearing

llh spherical plain shaft bearing

Spherical plain shaft bearing spherical rod bearings has shock resistance, because of its spherical sliding large contact area, large dip angle and special craft processing method, such as lamenting, zincing, chroming or lining of outside sliding surface, spraying and so on.

precision spherical plain shaft bearing

original spherical plain shaft bearing

Spherical plain shaft bearing spherical rod bearings Applications

1)Agriculture,
2)Light textile,
3)Mining,
4)Food &beverage,
5)Pharmaceutical,
6)Chemical processing,
7)Printing.

high precision spherical rod bearings

FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for Spherical plain shaft bearing spherical rod bearings?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for Spherical plain shaft bearing spherical rod bearings?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of Spherical plain shaft bearing spherical rod bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for Spherical plain shaft bearing spherical rod bearings?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need Spherical plain shaft bearing spherical rod bearings or any models of bearings, please contact me!

Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271

Maintenance type
maintenance-free, maintenance required
Outer ring
chrome steel 52100(100Cr6), stainless steel AISI 304L/AISI 316L
Self lubricating material
China PTFE, TOARY PTFE, DUPONT PTFE, PTFE composite
Balls
chrome steel, stainless steel
Dimension
metric and inch ( bore 5 mm – 1000 mm )
Radial Metric
GE, GEG, GE-LO, GE-HO-2RS, GE-UK, GE-UK-2RS,
Inch
GEZ, GEGZ, GEZM, GACZ, GEFZ
Thrust
GE-AX, GE-AW
Angular contact
GE-SX. GE-SW
Extruded outer ring
COM, COM-T



china spherical rod bearings

No. Model Dimensions(mm) Load Ratings Weight(Kg)
d D B C dk r1 min r2 min α Dynamic Static
(KN) (KN)
1 GE15ES 2RS 15 26 12 9 22 0.3 0.3 8 16 84 0.027
2 GE17ES 2RS 17 30 14 10 25 0.3 0.3 10 21 106 0.041
3 GE20ES 2RS 20 35 16 12 29 0.3 0.3 9 30 146 0.066
4 GE25ES 2RS 25 42 20 16 35.5 0.6 0.6 7 48 240 0.119
5 GE30ES 2RS 30 47 22 18 40.7 0.6 0.6 6 62 310 0.153
6 GE35ES 2RS 35 55 25 20 47 0.6 1 6 79 399 0.233
7 GE40ES 2RS 40 62 28 22 53 0.6 1 7 99 495 0.306
8 GE45ES 2RS 45 68 32 25 60 0.6 1 7 127 637 0.427
9 GE50ES 2RS 50 75 35 28 66 0.6 1 6 156 780 0.546
10 GE60ES 2RS 60 90 44 36 80 1 1 6 245 1220 1.04
11 GE70ES 2RS 70 105 49 40 92 1 1 6 313 1560 1.55
12 GE80ES 2RS 80 120 55 45 105 1 1 6 400 2000 2.31
13 GE90ES 2RS 90 130 60 50 115 1 1 5 488 2440 2.75
14 GE100ES 2RS 100 150 70 55 130 1 1 7 607 3030 4.45
15 GE110ES 2RS 110 160 70 55 140 1 1 6 654 3270 4.82

original spherical rod bearings

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.

high quality spherical rod bearings
