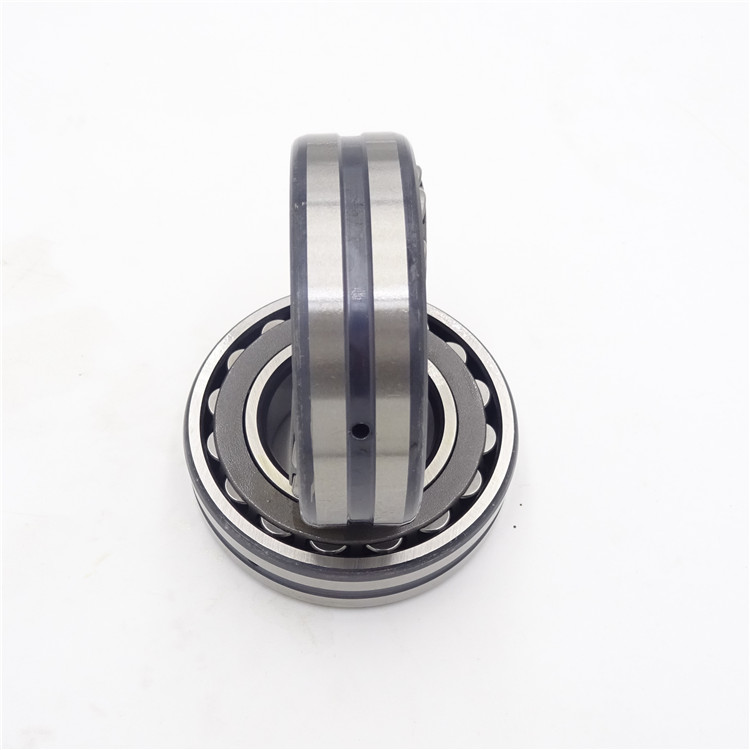

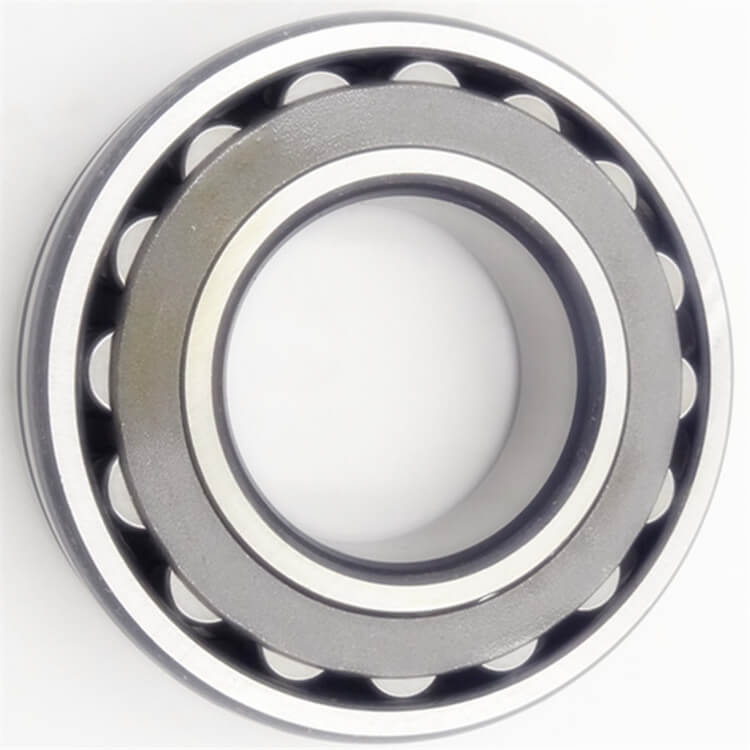

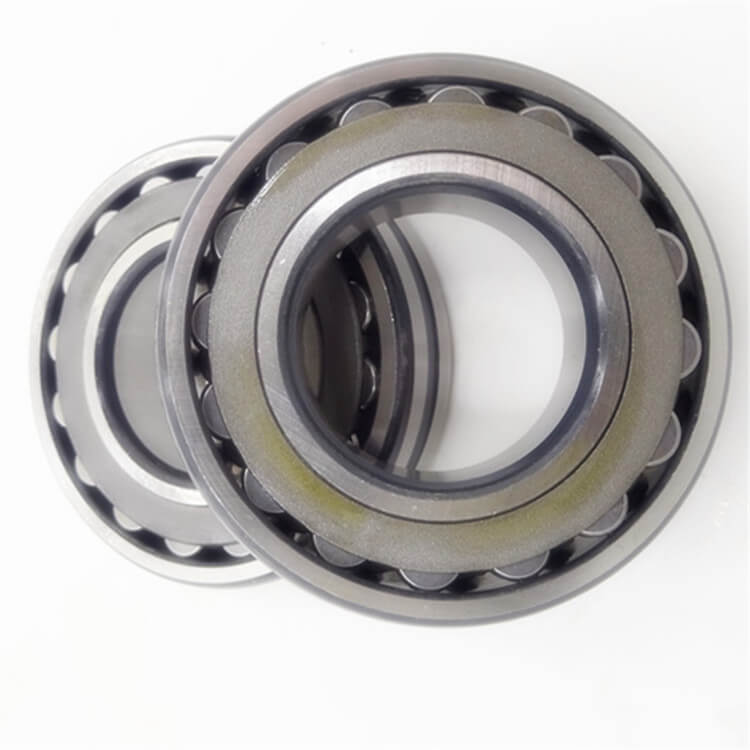

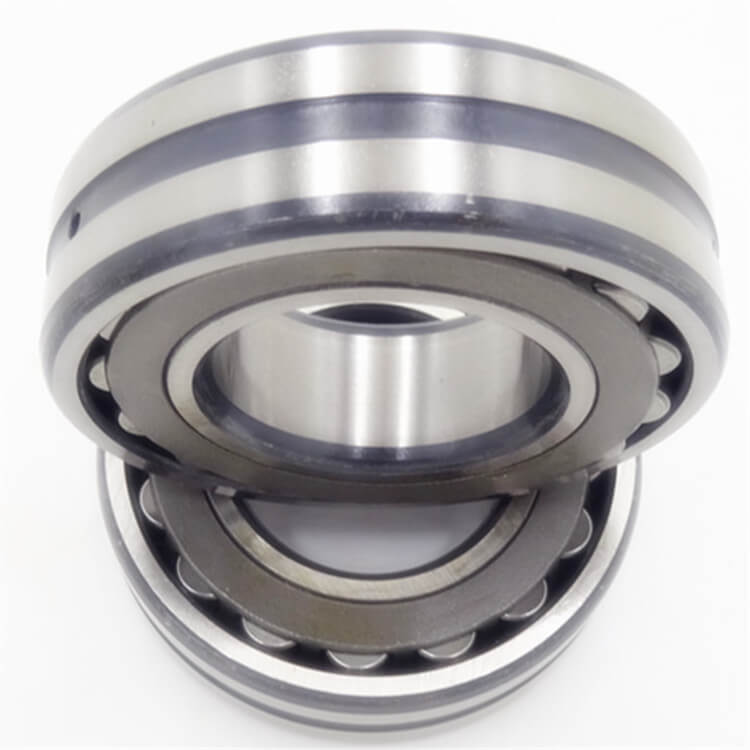

Spherical roller bearing number 22213CCW33

Spherical roller bearing number 22213CCW33 with two rollers, mainly bear radial load, but also can withstand axial load in either direction. A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway is spherical shape, so the good performance of its self-aligning, can compensate concentricity error.


Product Specification:

  • Model 22213CCW33
  • Brand LLH
  • Origin China
See Price

custom concave roller bearings

spherical roller bearing number Spherical roller bearing number 22213CCW33 have two symmetrical spherical roller, there is a common spherical outer ring raceway, the bearing inner ring with two axis tilt.
Angle of raceway, aligning with good performance, when the axis force bent or install a different heart is still bearing the normal use, transfer concentric with the bearing size range varies, generally aligning allowed 1 to 2.5 degree angle load bearing capacity of the larger type, in addition to radial loads but also under way outside the role of bearing axial load, with good impact resistance, in general, self-aligning roller bearings allowed working speed than the low.

concave roller bearings photoprecision spherical roller bearing numberoriginal spherical roller bearing numberconcave roller bearings feature22213CCW33spherical roller bearing numberchina spherical roller bearing number

C(J),EC(J).CA,ECA,CAF,CAFA, and so on.

1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride

2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride

3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride

4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride

5.CTN1: Double row symmetrical rollers ,nylon cage

6.K: Tapered bore bearing, the taper is 1:12

7.K30: Tapered bore bearing,the taper is 1:3

Spherical roller bearing number 22213CCW33 application:

1. printing presses, paper mills or coaters in high precision execution

2. very arduous operating conditions, e. g.continuous casters

3. high temperature applications

4. mounting with loose fit on roll necks

5. railway vehicles

Pls send detail to nsk@zyslbearing.com if you need other concrete mixer bearing.

concave roller bearings shipment

concave roller bearings seals custom concave roller bearings concave roller bearings package

concave roller bearings certificate11mm ball bearingconcave roller bearingsconcave roller bearings factory

concave roller bearing Jinan Maolei Bearing co.,Ltd is a product and trade integrated company specializing in bearings. We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers.

concave roller bearings FAQ

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for Spherical roller bearing number 22213CCW33?

A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

3,Q: Do you provide samples for Spherical roller bearing number 22213CCW33? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment ?

A: Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.

5, Q:Could you accept OEM and customize for Spherical roller bearing number 22213CCW33?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price?

A:  after we get your inquiry, usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of Spherical roller bearing number 22213CCW33?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ of Spherical roller bearing number 22213CCW33?

A: Usually ≥1, According your demand.

9,Q: Will you check these products before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if If you are not satisfied with the product?

A: If have any abnormal,Please contact us at first time, we will immediately processing.

If you need Spherical roller bearing number 22213CCW33 or any models of bearings,please contact me!

Contact: Leon

Email: nsk@zyslbearing.com

Skype: lh19881023

MP/Whatsapp: +8615098916271

Wechat:leon15098916271

Row Number
double row rollers
Cage
Steel cage or brass cage
Clearance
C3
Material
Chrome steel GCr15
MOQ
1 pc



30 mm id roller bearing

specification

dimensions(mm) specification dimensions(mm)
22205 25*52*18 23064 320*480*121
22206 30*62*20 23068 340*520*133
22207 35*72*23 23072 360*540*134
22208 40*80*23 23076 380*560*135
22209 45*85*23 23080 400*600*148
22210 50*90*23 23084 420*620*150
22211 55*100*25 23088 440*650*157
22212 60*110*28 23092 460*680*163

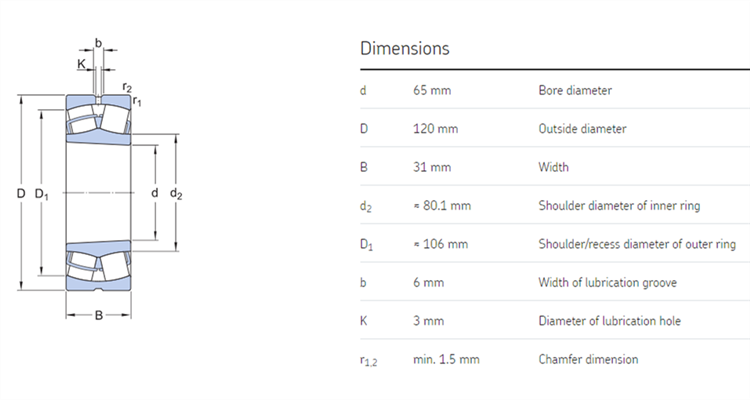

22213 65*120*31 23096 480*700*165
22214 70*125*31 230/500 500*720*167
22215 75*130*31 230/530 530*780*185
22216 80*140*33 230/560 560*780*195
22217 85*150*36 230/600 600*870*200
22218 90*160*40 230/630 630*920*212
22219 95*170*43 230/670 670*980*230
22220 100*180*46 240/850 850*1220*365
22222 110*200*53 240/900 900*1280*375
22224 120*215*58 23121 105*175*56
22226 130*230*64 23122 110*180*56
22228 140*250*68 23124 120*200*62
22230 150*270*73 23126 130*210*80
22232 160*260*80 23128 140*225*85
22234 170*310*86 23130 150*250*80
22236 180*320*86 23132 160*270*86
22238 190*320*92 23134 170*280*88
22240 200*360*98 23136 180*300*96
22244 220*400*108 23138 190*320*104
22248 240*440*120 23140 200*340*112
22252 260*480*130 23144 220*370*120
22256 280*500*130 23148 240*400*128
22260 300*540*140 23152 260*440*144
22308 40*90*33 23156 280*460*146
22309 45*90*33 23160 300*500*160
22310 50*110*40 23164 320*540*176
22311 55*120*43 23168 340*580*190
22312 60*130*46 23172 360*600*192
22313 65*140*48 23176 380*620*194
22314 70*150*51 23180 400*650*200
22315 75*160*55 23184 420*700*224
22316 80*170*58 23188 440*720*226
22317 85*180*60 23192 460*760*240
22318 90*190*64 23196 480*790*248
22319 95*200*67 23218 90*160*52.4
22320 100*215*73 23220 100*180*60.3
22322 110*240*80 23222 100*180*60.3
22324 120*246*80 23224 120*200*69.8
22326 130*280*93 23226 120*230*80
22328 140*300*102 23228 140*250*88
22330 150*320*108 23230 150*270*96
22332 1608340*114 23232 160*290*104
22334 170*360*120 23234 180*310*110
22336 180*380*126 23236 180*320*112
22338 190*400*132 23238 190*340*120
22340 200*420*138 23240 200*360*128
22344 220*4608145 23244 200*400*144
22348 240*500*155 23248 240*440*160
22352 260*540*165 23252 260*480*174
22356 280*580*175 23256 280*500*176
22372 360*750*244 23260 300*540*192
22380 400*820*243 23264 320*580*208

original 30 mm id roller bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.

high quality 30 mm id roller bearing
