sprag bearing MZ30-25 one way sprag clutch bearing MZ 30-25

Product Specification:

Model MZ30-25
Brand LLH or OEM
Original China

See Price

Product Details
Description
Specification
Our factory

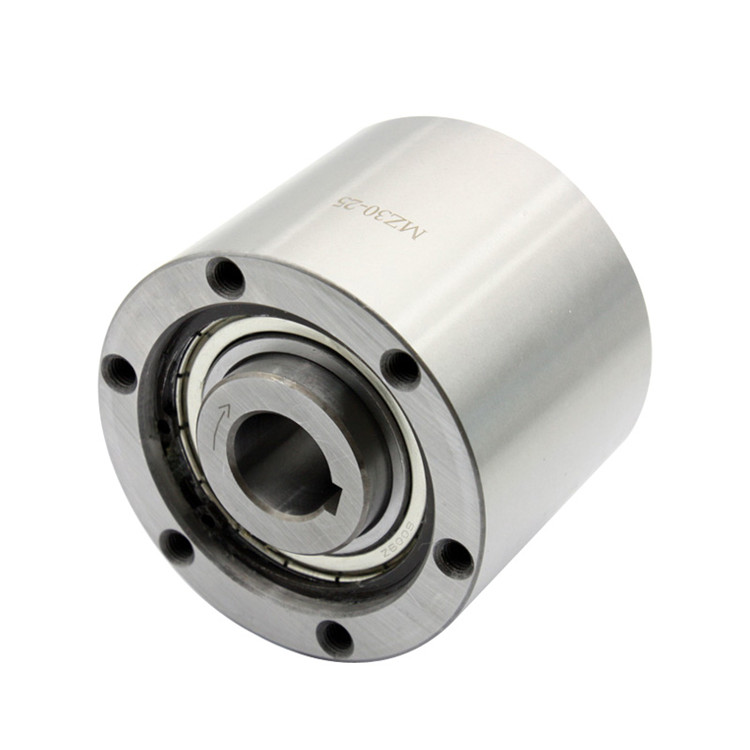

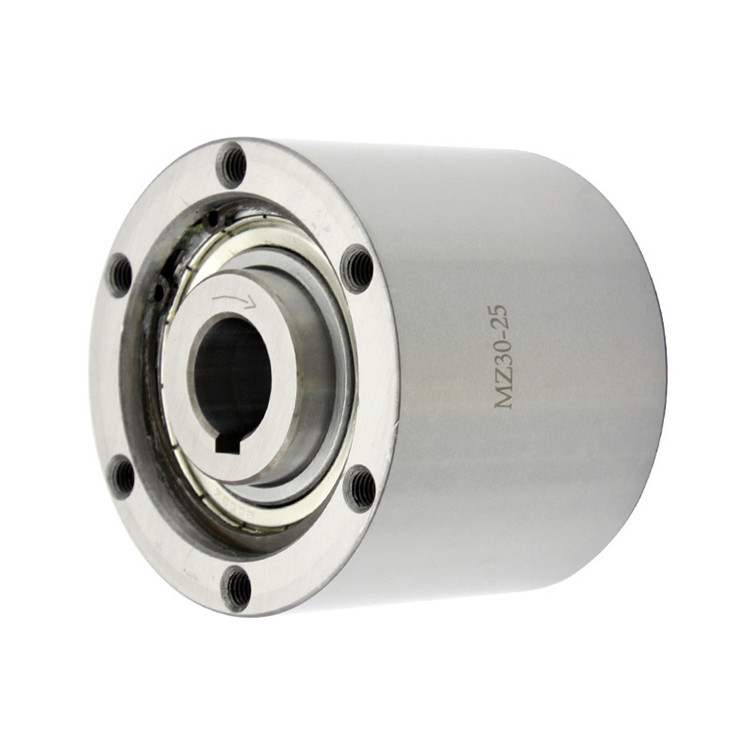

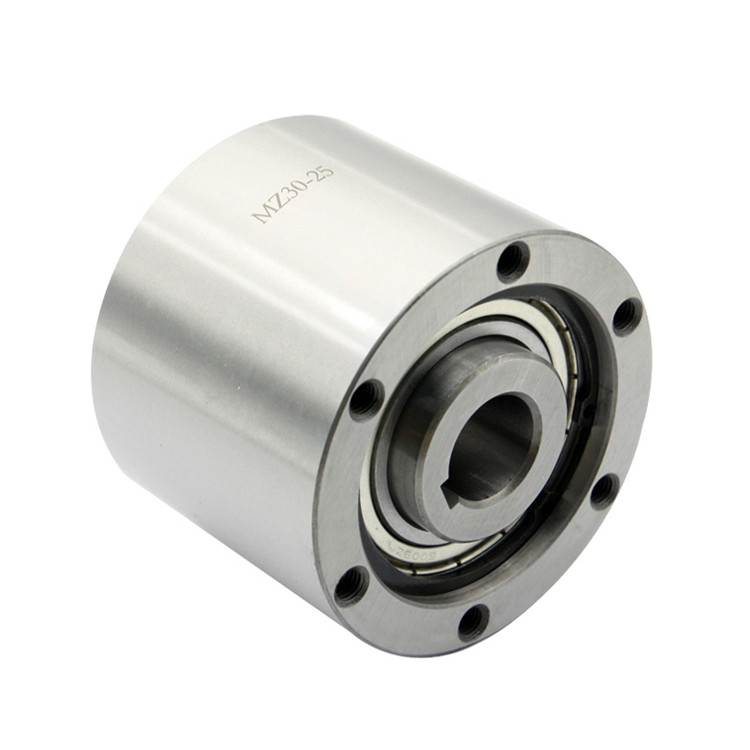

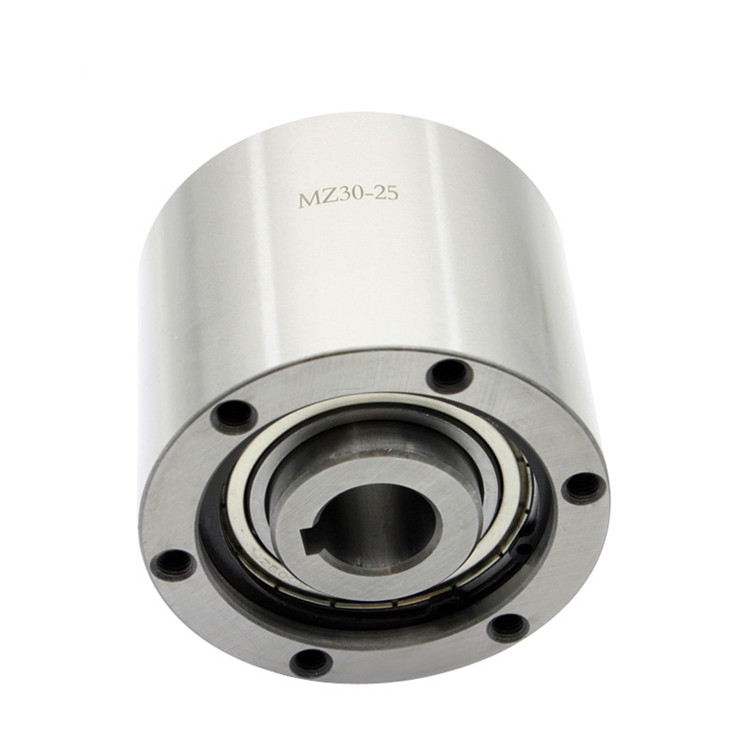

sprag bearing MZ30-25 one way sprag clutch bearing MZ 30-25

sprag bearing MZ series is a type sprag freewheel supported by sprag bearing used for overrunning speed between 600-1500rmin, torque 180-8000 N.m, even highest torque more than 70000N.m. sprag bearing allows roation in package machine, derrick machine, metallurgy machine, etc.

Item	MZ30-25
Material	GCr15
Bore dia.	25 mm
Outer dia.	100 mm
Width	82 mm
Torque capacity	735 N.m
Drag torque	0.39 N.m
Weight	3.7 kg
Package	Carton box, wooden box or as your requirements

bearing

1. MZ Series sprag bearing is Shielded by shield bearings on both ends, packed with a special grease, and are ready for use. No additional lubricant is required.
2. For attaching pulleys, gears or sprockets to the clutches, insert hubs (with f7 tolerance of ISOR773) along the inner surface of the outer race and screw the bolts (high tension) into the tapped holes on the clutch end.
3. Recommended shaft tolerances are shown in the table on the lower left.
4. External thrust load should be supported by other devices, not by the sprag bearing of Cam Clutch.
5. Use only a parallel key to secure the clutch to the shaft. Do not use a tapered Key.
6. When mounting the clutch sprag bearing onto the shaft, apply pressure to the inner race but never to the outer race.
7. Ambient temperature range is 5° to 40°C.
8. Key to be used should be in accordance with ISOR773. (DIN 6885.1)

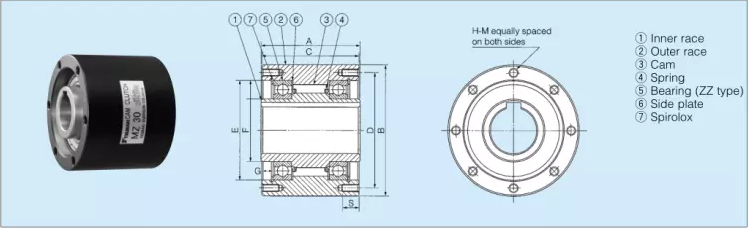

Model	indexing Max. (cycle/min)	Bore Size Dia(H7)	Key way	A	B	C	PCDD	(M6) E	F	G	H-M No. of Tapped x HolesSize× Pitch	S	Wt (kg)
MZ15	150	15	5*2.3	62	68	60	58	47	25	5.5	6M5P0.8	10	1.4
MZ17	150	17	5*2.3	66	75	64	64	52	28	6.3	6M5P0.8	10	1.8
MZ20	150	20	6*2.8	67	80	65	68	55	30	7.6	6M6P1.0	12	2.0
MZ30-22	150	22	6*2.8	82	100	80	88	75	45	8.9	6M8P1.25	16	3.7
MZ30-25	150	25	8*3.3	82	100	80	88	75	45	8.9	6M8P1.25	16	3.7
MZ30	150	30	10*3.3	82	100	80	88	75	45	8.9	6M8P1.25	16	3.7
MZ35	150	35	10*3.3	87	110	85	95	80	50	8.7	6M8P1.25	16	4.8
MZ45-40	150	40	12*3.3	92	125	90	110	95	60	8.4	8M8P1.25	16	6.2
MZ45	150	45	14*3.8	92	125	90	110	95	60	8.4	8M8P1.25	16	6.2
MZ60-50	150	50	14*3.8	102	155	100	140	125	80	9.1	8M8P1.25	16	10.2
MZ60-55	150	55	16*4.3	102	155	100	140	125	80	9.1	8M8P1.25	16	10.2
MZ60	150	60	18*4.4	102	155	100	140	125	80	9.1	8M8P1.25	16	10.2
MZ70-65	150	65	18*4.4	105	175	103	162	145	95	8.6	8M8P1.25	16	13.2
MZ70	150	70	20*4.9	105	175	103	162	145	95	8.6	8M8P1.25	16	13.2

one way bearing

high quality sprag bearing high quality one way bearing

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for sprag bearing MZ30-25 one way sprag clutch bearing?

A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

3,Q: Do you provide samples for sprag bearing MZ30-25 one way sprag clutch bearing? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for sprag bearing MZ30-25 one way sprag clutch bearing?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.

5, Q:Could you accept OEM and customize for sprag bearing?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price for sprag bearing MZ30-25 one way sprag clutch bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of sprag bearing MZ30-25 one way sprag clutch bearing?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ of your sprag bearing MZ30-25 one way sprag clutch bearing?
A: Usually ≥1, According your demand.

9,Q: Will you check these sprag bearing before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if If you are not satisfied with the sprag bearing MZ30-25 one way sprag clutch bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234

Item	MZ30-25
Material	GCr15
Bore dia.	25 mm
Outer dia.	100 mm
Width	82 mm
Torque capacity	735 N.m
Drag torque	0.39 N.m
Weight	3.7 kg
Package	Carton box, wooden box or as your requirements

high speed bearing

Model	Capacity Torque (Nm)	Torque Drag (Nm)	Over running (r/min) Max. Inner Race	Over running (r/min) Max. Outer Race	indexing Max. (cycle/min)	Bore Size Dia(H7)	Key way	A	B	C	PCDD	(M6) E	F	G	H-M No. of Tapped x HolesSize× Pitch	S	Wt (kg)
MZ15	186	0.20	2,200	900	150	15	5*2.3	62	68	60	58	47	25	5.5	6M5P0.8	10	1.4
MZ17	215	0.20	2,000	800	150	17	5*2.3	66	75	64	64	52	28	6.3	6M5P0.8	10	1.8
MZ20	323	0.29	1,900	700	150	20	6*2.8	67	80	65	68	55	30	7.6	6M6P1.0	12	2.0
MZ30-22	735	0.39	1,800	500	150	22	6*2.8	82	100	80	88	75	45	8.9	6M8P1.25	16	3.7
MZ30-25	735	0.39	1,800	500	150	25	8*3.3	82	100	80	88	75	45	8.9	6M8P1.25	16	3.7
MZ30	735	0.39	1,800	500	150	30	10*3.3	82	100	80	88	75	45	8.9	6M8P1.25	16	3.7
MZ35	1,080	0.49	1,700	300	150	35	10*3.3	87	110	85	95	80	50	8.7	6M8P1.25	16	4.8
MZ45-40	1,620	0.69	1,700	300	150	40	12*3.3	92	125	90	110	95	60	8.4	8M8P1.25	16	6.2
MZ45	1,620	0.69	1,700	300	150	45	14*3.8	92	125	90	110	95	60	8.4	8M8P1.25	16	6.2
MZ60-50	2,110	0.98	1,600	250	150	50	14*3.8	102	155	100	140	125	80	9.1	8M8P1.25	16	10.2
MZ60-55	2,110	0.98	1,600	250	150	55	16*4.3	102	155	100	140	125	80	9.1	8M8P1.25	16	10.2
MZ60	2,110	0.98	1,600	250	150	60	18*4.4	102	155	100	140	125	80	9.1	8M8P1.25	16	10.2
MZ70-65	3,040	1.27	1,300	250	150	65	18*4.4	105	175	103	162	145	95	8.6	8M8P1.25	16	13.2
MZ70	3,040	1.27	1,300	250	150	70	20*4.9	105	175	103	162	145	95	8.6	8M8P1.25	16	13.2
