stainless steel thrust bearing is divided into two types: flat base cushion type and aligning spherical seat cushion type.

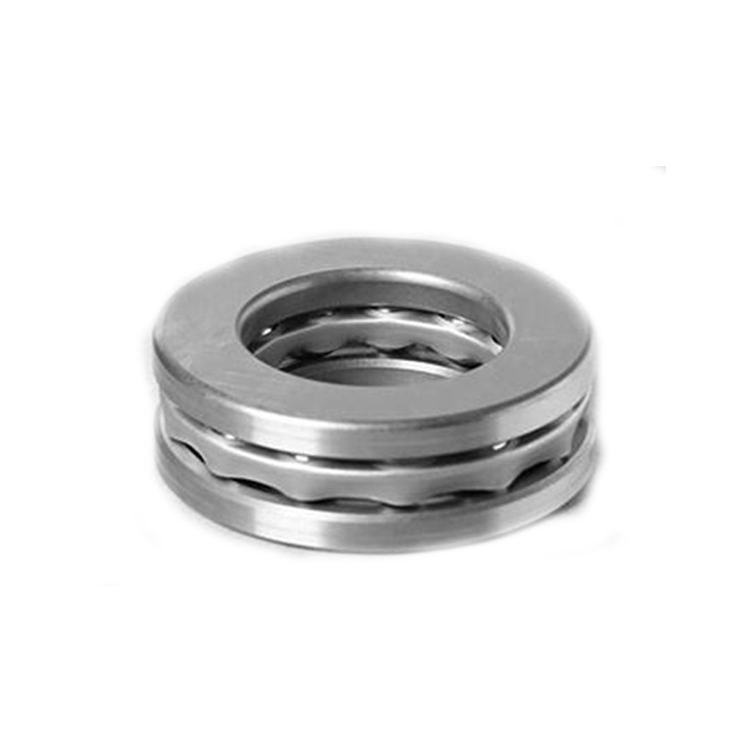

stainless steel thrust bearing 51105 steel cage thrust bearing
1.Single stainless steel thrust bearing: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
2. Double stainless steel thrust bearing: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.
FAQ
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for stainless steel thrust bearing steel cage thrust bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for stainless steel thrust bearing steel cage thrust bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for stainless steel thrust bearing steel cage thrust bearing?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price of stainless steel thrust bearing steel cage thrust bearing?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of your products ?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for radial axial bearing inch size thrust bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these stainless steel thrust bearing steel cage thrust bearing before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if you are not satisfied with the stainless steel thrust bearing steel cage thrust bearing?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
| Model No. | 51105 |
| Bore Diameter d. | 25mm |
| Outer Diameter D. | 42mm |
| Thickness | 11mm |
| Dynamic Load Cr | 19.5kN |
| Static Load Cor | 37.2kN |
| Weight | 0.059kg |
| Bearing Designations | Dimensions(mm) | Basic Load Rating(kn) | Limiting Speed(r/min) | Weight | |||||
| New No. | Old No. | d | D | B | Dynamic Cr | Static Cor | Grease | Oil | (kg) |
| 51100 | 8100 | 10 | 24 | 9 | 10 | 14 | 6500 | 10000 | 0.02 |
| 51101 | 8101 | 12 | 26 | 9 | 10.3 | 15.4 | 6500 | 10000 | 0.022 |
| 51102 | 8102 | 15 | 28 | 9 | 10.5 | 16.8 | 6100 | 9400 | 0.024 |
| 51103 | 8103 | 17 | 30 | 9 | 10.8 | 18.2 | 6100 | 9400 | 0.028 |
| 51104 | 8104 | 20 | 35 | 10 | 14.2 | 24.7 | 5100 | 7900 | 0.04 |
| 51105 | 8105 | 25 | 42 | 11 | 19.5 | 37.2 | 4400 | 6800 | 0.059 |
| 51106 | 8106 | 30 | 47 | 11 | 20.4 | 42.2 | 4300 | 6600 | 0.068 |
| 51107 | 8107 | 35 | 52 | 12 | 20.4 | 44.7 | 3900 | 6000 | 0.09 |
| 51108 | 8108 | 40 | 60 | 13 | 26.9 | 62.8 | 3400 | 5300 | 0.12 |
| 51109 | 8109 | 45 | 65 | 14 | 27.8 | 69.1 | 3200 | 5000 | 0.15 |
| 51110 | 8110 | 50 | 70 | 14 | 28.8 | 75.4 | 3100 | 4800 | 0.16 |
| 51111 | 8111 | 55 | 78 | 16 | 34.8 | 93.1 | 2800 | 4300 | 0.24 |
| 51112 | 8112 | 60 | 85 | 17 | 41.4 | 113 | 2600 | 4000 | 0.29 |
| 51113 | 8113 | 65 | 90 | 17 | 41.7 | 117 | 2400 | 3700 | 0.34 |
| 51114 | 8114 | 70 | 95 | 18 | 43 | 127 | 2300 | 3600 | 0.36 |
| 51115 | 8115 | 75 | 100 | 19 | 42.3 | 127 | 2200 | 3400 | 0.42 |
| 51116 | 8116 | 80 | 105 | 19 | 44.6 | 141 | 2100 | 3300 | 0.43 |
| 51117 | 8117 | 85 | 110 | 19 | 45.9 | 150 | 2100 | 3200 | 0.46 |
| 51118 | 8118 | 90 | 120 | 22 | 59.7 | 190 | 1900 | 2900 | 0.68 |
| 51120 | 8120 | 100 | 135 | 25 | 85 | 268 | 1600 | 2500 | 0.99 |
| 51122 | 8122 | 110 | 145 | 25 | 87.1 | 288 | 1600 | 2400 | 1.08 |
| 51124 | 8124 | 120 | 155 | 25 | 89 | 308 | 1500 | 2300 | 1.16 |
