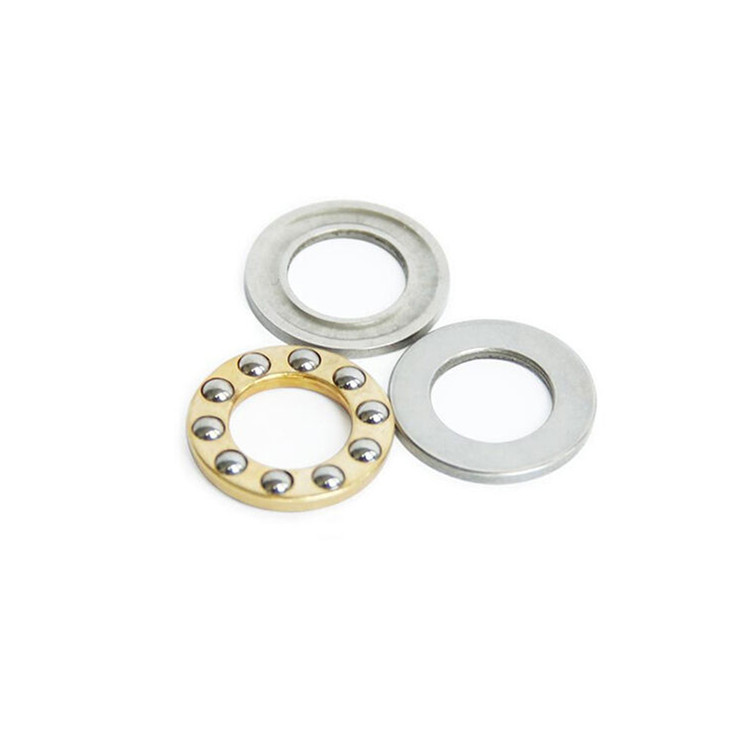

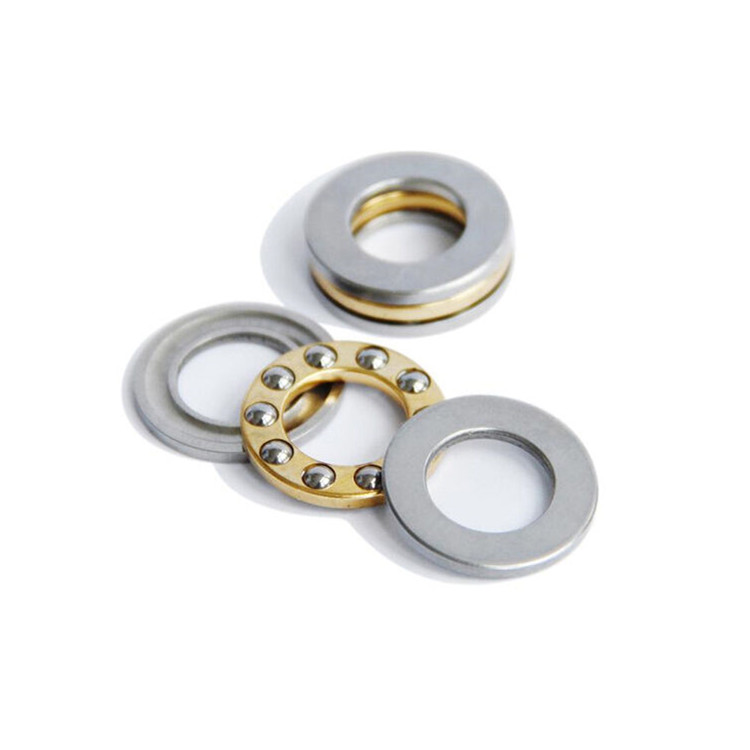

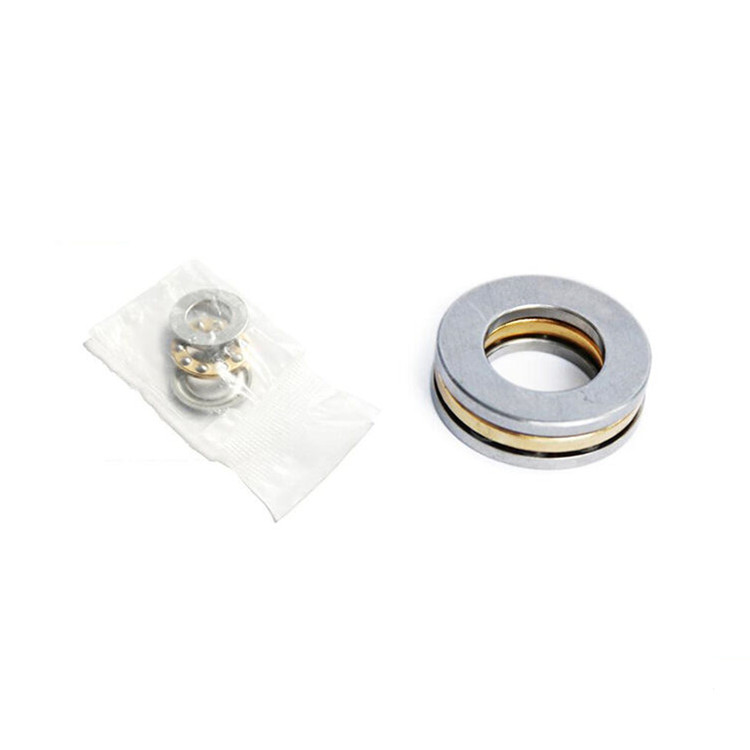

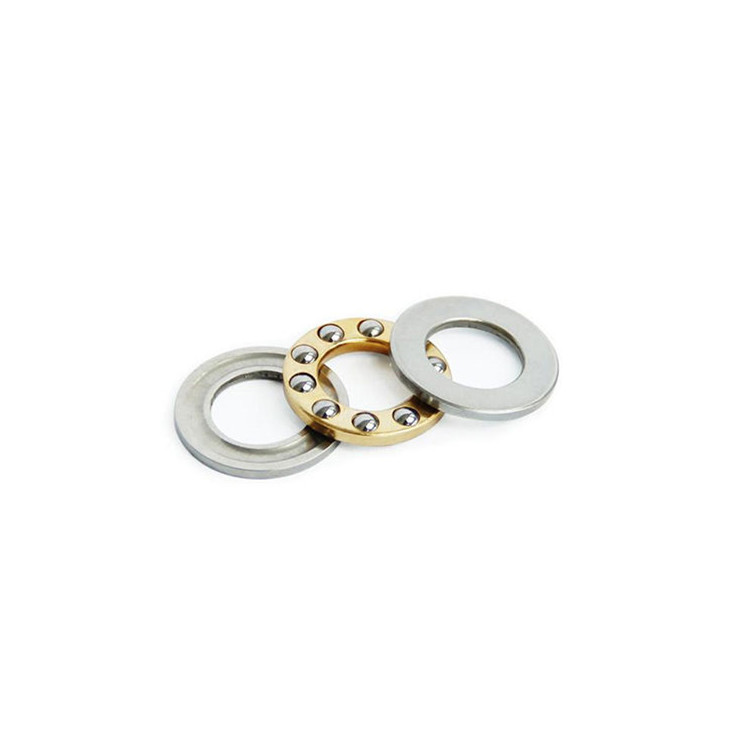

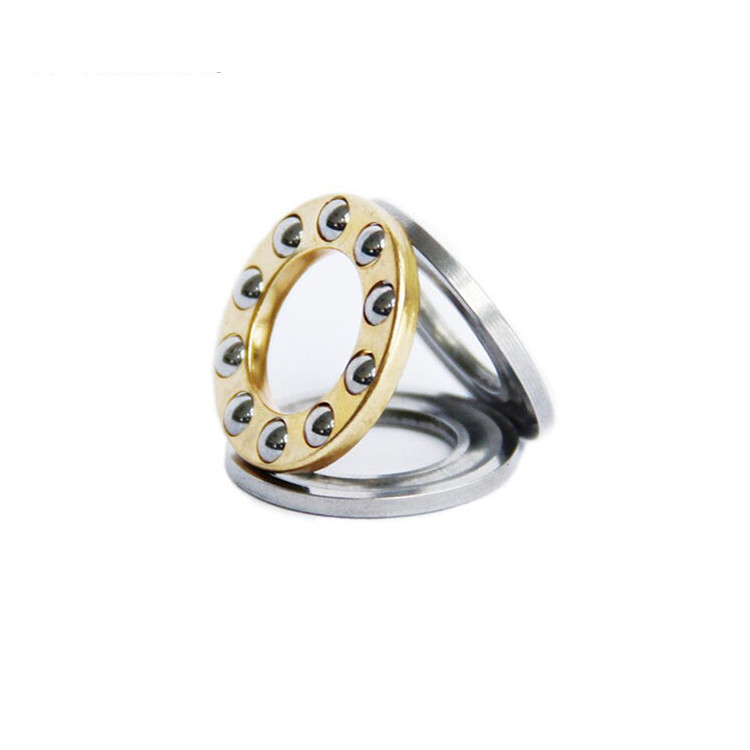

thrust bearing working principle 3mm thrust bearing F3-8M 3*8*3.5mm

thrust bearing working principle 3mm thrust bearing is produced as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.


Product Specification:

  • Model F3-8
  • Size 3*8*3.2mm
  • Weight 0.9g
  • Brand LLH
See Price

thrust bearing working principle 3mm thrust bearing F3-8M 3*8*3.5mmmini thrust ball bearing

thrust bearing working principle 3mm thrust bearing is a typical rotary rolling-element bearing. This bearings permits rotation between parts but  are designed to support a predominant axial load. The varieties of thrust bearings are Thrust Ball Bearings,  Cylindrical Thrust Roller Bearings, Taper Roller Thrust Bearings, Spherical Toller Thrust Bearing, Fluid  Bearings and Magnetic Bearings.3mm thrust bearing
In most cases it is seen that the thrust bearing working principle 3mm thrust bearing are generally used in cars as the forward gears in modern car gearboxes use helical gears which boosts the smoothness and curtails unnecessary noise. This causes axial forces and needs to be dealt with. Apart from this, Thrust Bearings are also used with radio antenna masts to cut down load on an antenna rotator. A significant citation of Thrust Bearing in an automobile is the clutch “throw out” bearing, also known as the clutch release bearing.thrust bearing F3-8

FAQ:
1,Q: Are you trading company or manufacturer?
A: We are factory.
2,Q: How long is your delivery time for about thrust bearing working principle 3mm thrust bearing ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for about thrust bearing working principle 3mm thrust ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for about thrust bearing working principle 3mm thrust bearing ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for products?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price of about thrust bearing working principle 3mm thrust bearing ?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of your products?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for about thrust bearing working principle 3mm thrust bearing ?
A: Usually ≥1, According your demand.
9,Q: Will you check these about thrust bearing working principle 3mm thrust bearing before shipment ?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the thrust bearing working principle 3mm thrust bearing ?
A: If have any abnormal, Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234

Model Number F3-8M
Brand Name LLH
Structure Thrust ball bearing
Type Ball
Boundary Dimensions

(mm)

d: 3
D:8
B:3.5
Rings Material Ring Material Chrome Steel ,Carbon steel,Stainless steel
Cages Material Nylon ,steel , brass

high speed 3mm thrust bearing

Type d D d1 D1 H Load Load Rating Cor(N)
Rating
Cr(N)
F3-8M 3 8 3.2 7.8 3.5 600 480
F4-9M 4 9 4.2 8.8 4 800 520
F4-10M 4 10 4.2 9.8 4 658 580
F5-10M 5 10 5.2 9.8 4 950 830
F5-11M 5 11 5.2 10.8 4.5 988 880
F5-12M 5 12 5.2 11.8 4 988 880
F6-12M 6 12 6.2 11.8 4.5 1600 1255
F6-14M 6 14 6.25 13.8 5 1800 1588
F7-13M 7 13 7.2 16.8 4.5 1422 1255
F7-15M 7 15 7.2 14.8 5 2200 2000
F7-17M 7 17 7.2 16.8 6 2600 2256
F8-16M 8 16 8.2 15.8 5 2500 3000
F8-19M 8 19 8.2 18.8 7 3452 3000
F9-20M 9 20 9.2 19.8 7 3356 2999
F10-18M 10 18 10.2 17.8 5.5 2230 2721

high quality thrust bearings

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.precision thrust bearings
