UCF204 flange pillow block bearing UCF200 series housing unit

Product Specification:

Model UCF204
International brand Available
Brand LLH or as required
Original China

See Price

Product Details
Description
Specification
Our factory

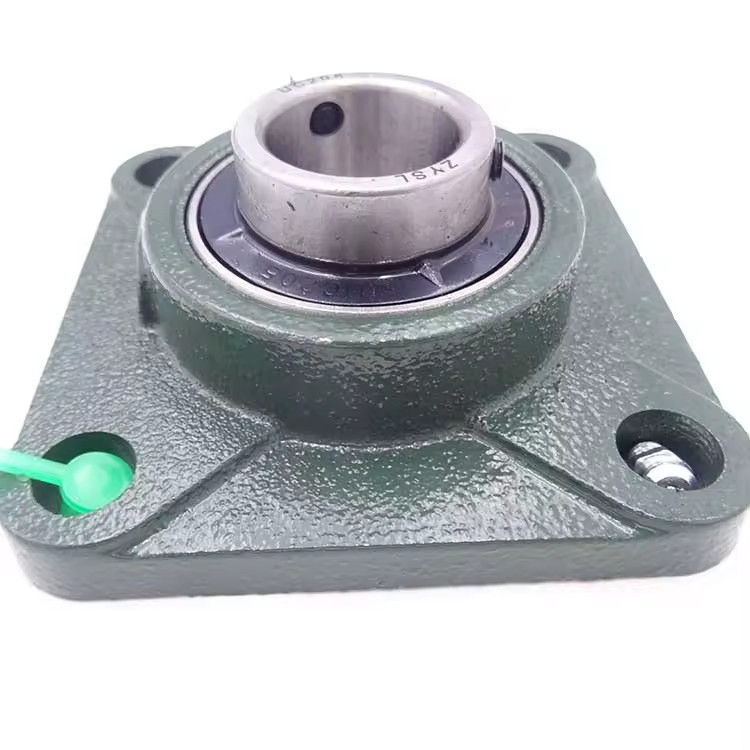

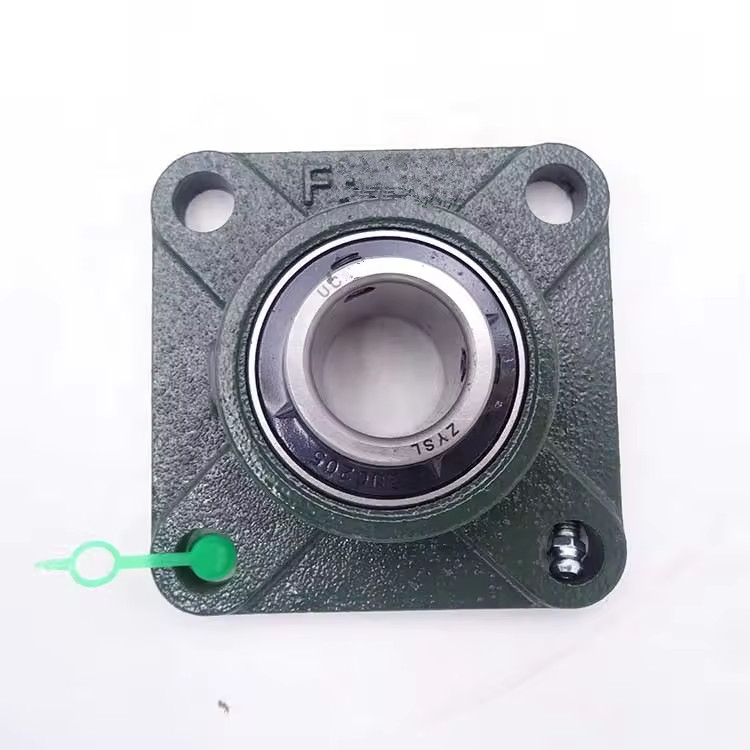

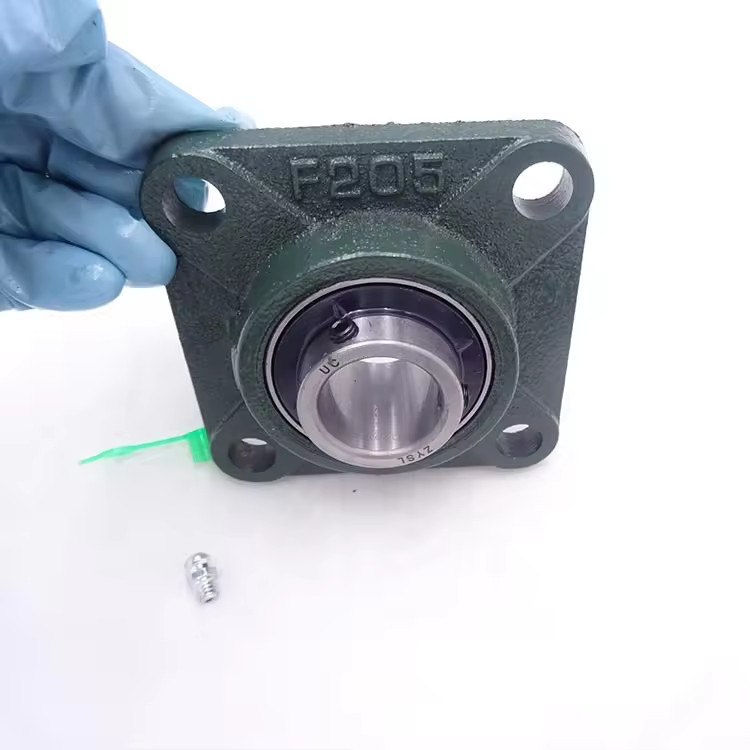

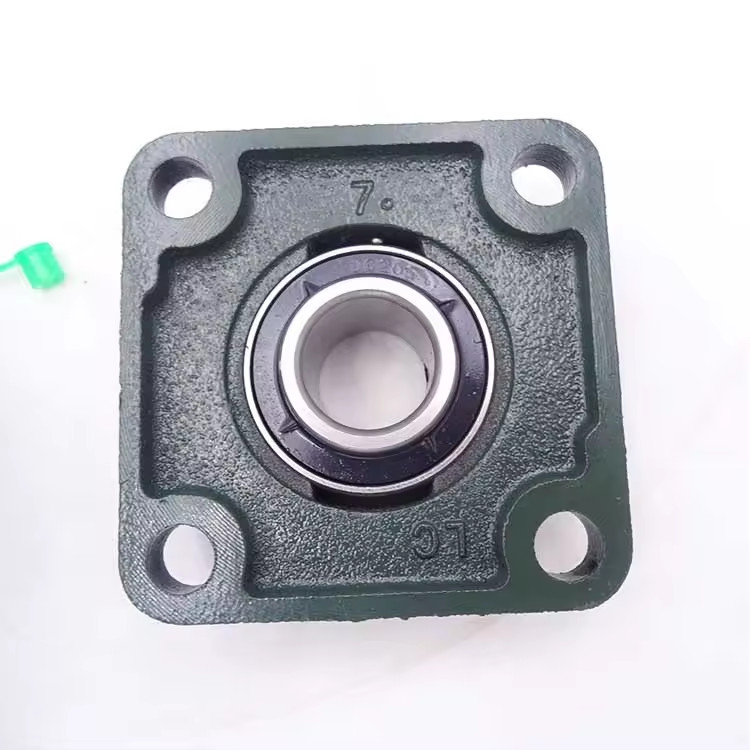

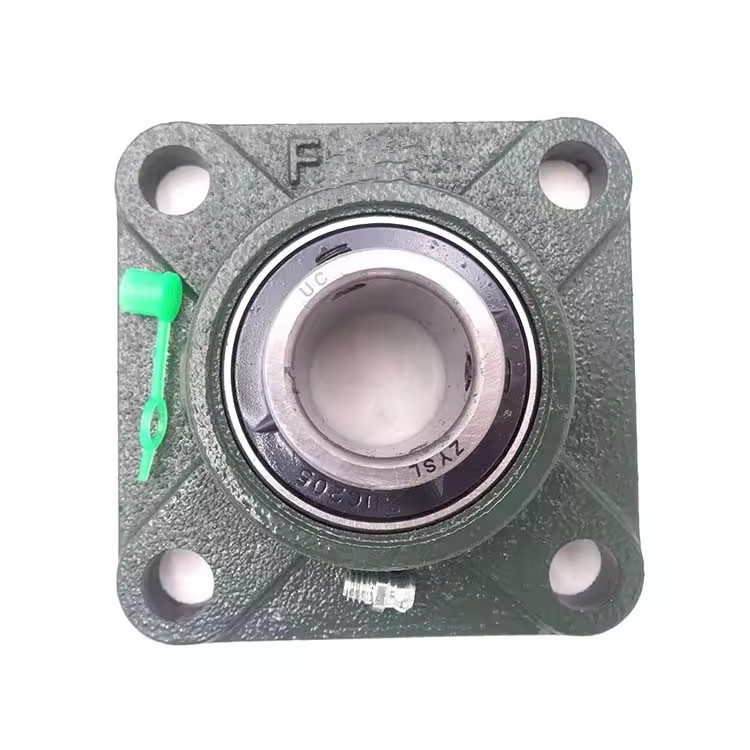

UCF204 pillow block bearing

Pillow block bearing is a bearing unit that combines an outer spherical bearing with a bearing seat. Most outer spherical bearings are made of spherical outer diameter and installed together with bearing seats with spherical inner holes, with diverse structural forms, good universality and interchangeability.

this type of bearing also has a certain degree of centering in design, is easy to install, and has a dual structure sealing device, which can work in harsh environments. The bearing seat is generally formed by casting or stamping. Commonly matched cast bearing seats include:
Vertical seat (P), narrow vertical seat (PA), high center vertical seat (PH), square seat (F), convex square seat (FS), convex circular seat (FC), diamond seat (FL), circular seat (C), slider seat (T), suspension seat (HA), adjustable diamond seat (FA), and suspension bearing seat (FB); The commonly used stamped bearing seats include circular stamped seats (PF), diamond stamped seats (PFL), triangular stamped seats (PFT), and vertical stamped seats (PP).

UCF204 pillow block bearing factory UCF204 pillow block bearing supplier UCF204 pillow block bearing manufacturer

best groove ball bearing

1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for UCF204 pillow block bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for UCF204 pillow block bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for UCF204 pillow block bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for UCF204 pillow block bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of UCF204 pillow block bearing?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Bella
Skype/Email: skf@llhbearing.com
TEL/Wechat:+8615318805907
Whatsapp: +008615315596312

high speed bearing

UCF-201	12 mm	N/A	N/A	N/A	N/A
UCF-201-8	1/2 in	N/A	N/A	N/A	N/A
UCF-202-9	9/16 in	76 mm	54 mm	17 mm	11 mm
UCF-202	15 mm	76 mm	54 mm	17 mm	11 mm
UCF-202-10	5/8 in	76 mm	54 mm	17 mm	11 mm
UCF-203	17 mm	N/A	N/A	N/A	N/A
UCF-203-11	11/16 in	N/A	N/A	N/A	N/A
UCF-204-12	3/4 in	86 mm	63.5 mm	19 mm	11 mm
UCF-204	20 mm	86 mm	63.5 mm	19 mm	11 mm
UCF-205-14	7/8 in	95 mm	70 mm	19 mm	13 mm
UCF-205-15	15/16 in	95 mm	70 mm	19 mm	13 mm
UCF-205	25 mm	95 mm	70 mm	19 mm	13 mm
UCF-205-16	1 in	95 mm	70 mm	19 mm	13 mm
UCF-206-18	1 1/2 in	108 mm	82.5 mm	20 mm	13 mm
UCF-206	30 mm	108 mm	82.5 mm	20 mm	13 mm
UCF-206-19	1 3/16 in	108 mm	82.5 mm	20 mm	13 mm
UCF-206-20	1 1/4 in	108 mm	82.5 mm	20 mm	13 mm
UCF-207-20	1 1/4 in	117 mm	92 mm	21 mm	15 mm
UCF-207-21	1 5/16 in	117 mm	92 mm	21 mm	15 mm
UCF-207-22	1 3/8 in	117 mm	92 mm	21 mm	15 mm
UCF-207	35 mm	117 mm	92 mm	21 mm	15 mm
UCF-207-23	1 7/16 in	117 mm	92 mm	21 mm	15 mm
UCF-208-24	1 1/2 in	130 mm	101.5 mm	24 mm	15 mm
UCF-208-25	1 9/16 in	130 mm	101.5 mm	24 mm	15 mm
UCF-208	40 mm	130 mm	101.5 mm	24 mm	15 mm

UCF-209-26	1 5/8 in	137 mm	105 mm	24 mm	16 mm
UCF-209-27	1 11/16 in	137 mm	105 mm	24 mm	16 mm
UCF-209-28	1 3/4 in	137 mm	105 mm	24 mm	16 mm
UCF-209	45 mm	137 mm	105 mm	24 mm	16 mm
UCF-210-30	1 7/8 in	143 mm	111 mm	28 mm	16 mm
UCF-210-31	1 15/16 in	143 mm	111 mm	28 mm	16 mm
UCF-210	50 mm	143 mm	111 mm	28 mm	16 mm
UCF-210-32	2 in	143 mm	111 mm	28 mm	16 mm
UCF-211-32	2 in	162 mm	130 mm	31 mm	18 mm
UCF-211-34	2 1/8 in	162 mm	130 mm	31 mm	18 mm
UCF-211	55 mm	162 mm	130 mm	31 mm	18 mm
UCF-211-35	2 3/16 in	162 mm	130 mm	31 mm	18 mm
UCF-212-36	2 1/4 in	175 mm	143 mm	34 mm	18 mm
UCF-212-37	2 5/16 in	175 mm	143 mm	34 mm	18 mm
UCF-212	60 mm	175 mm	143 mm	34 mm	18 mm
UCF-212-38	2 3/8 in	175 mm	143 mm	34 mm	18 mm
UCF-212-39	2 7/16 in	175 mm	143 mm	34 mm	18 mm
UCF-213-40	2 1/2 in	187 mm	149.5 mm	34 mm	20 mm
UCF-213	65 mm	187 mm	149.5 mm	34 mm	20 mm
UCF-213-43	2 11/16 in	187 mm	149.5 mm	34 mm	20 mm
UCF-214-44	2 3/4 in	193 mm	152 mm	35 mm	24 mm
UCF-214	70 mm	193 mm	152 mm	35 mm	24 mm
UCF-215-44	2 3/4 in	200 mm	159 mm	35 mm	24 mm
UCF-215-47	2 15/16 in	200 mm	159 mm	35 mm	24 mm
UCF-215	75 mm	200 mm	159 mm	35 mm	24 mm
UCF-215-48	3 in	200 mm	159 mm	35 mm	24 mm
UCF-216	80 mm	208 mm	165 mm	35 mm	24 mm
UCF-216-52	3 1/4 in	208 mm	165 mm	35 mm	24 mm
UCF-217-52	3 1/4 in	220 mm	175 mm	36 mm	26 mm
UCF-217	85 mm	220 mm	175 mm	36 mm	26 mm
UCF-218-56	3 1/2 in	235 mm	187 mm	42 mm	26 mm
UCF-218	90 mm	235 mm	187 mm	42 mm	26 mm

high quality bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers. precision bearing
