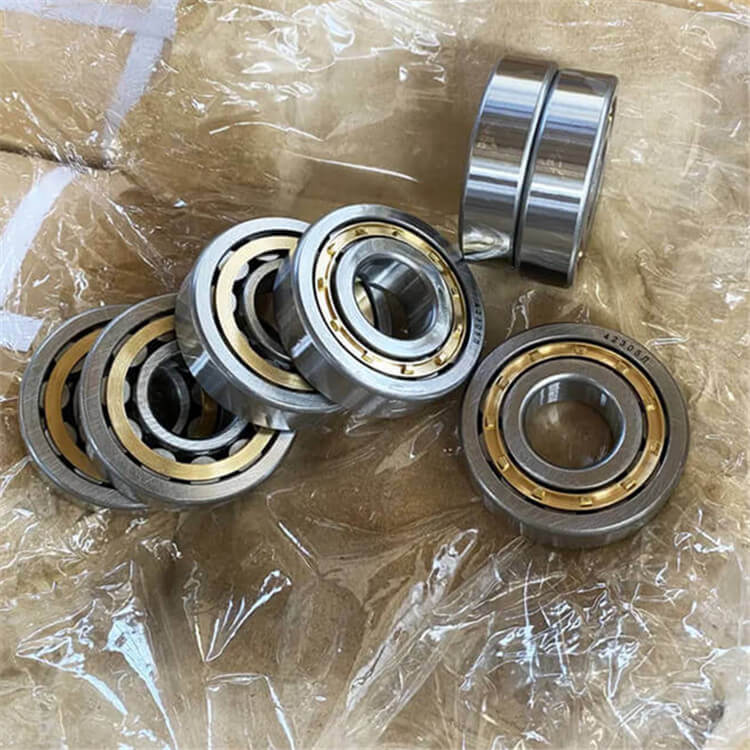

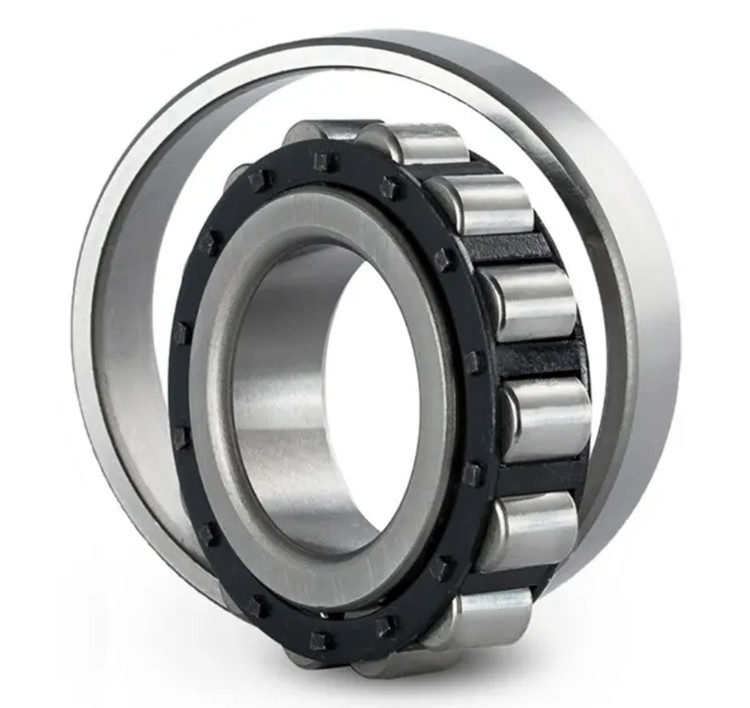

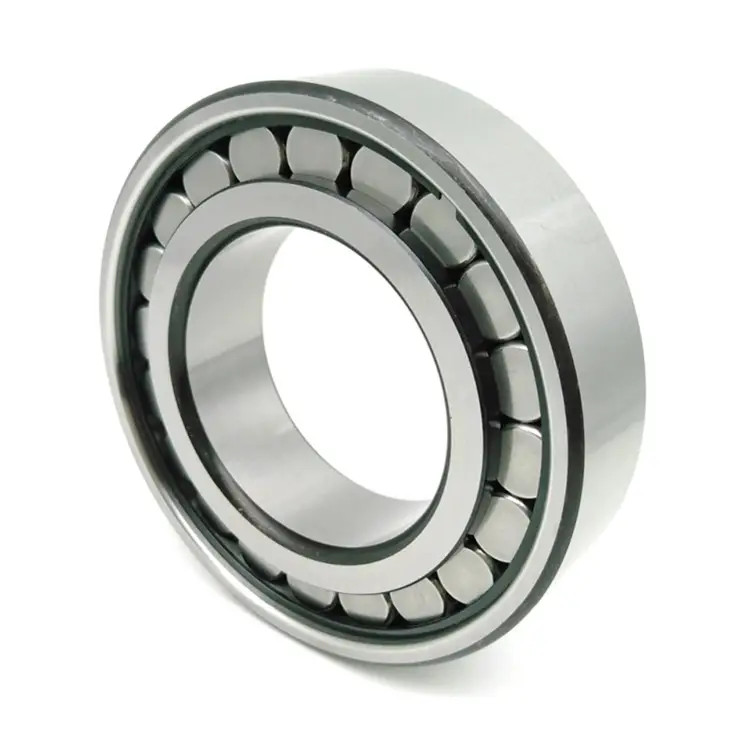

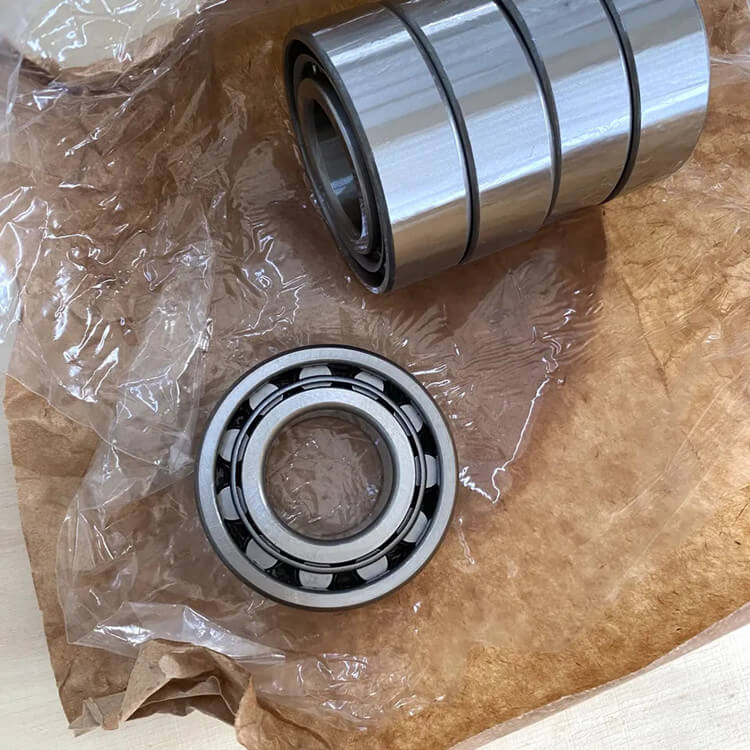

NJ 2305 bearing cylindrical roller bearings 25*62*24mm

NJ 2305 bearing cylindrical roller bearings 25*62*24mm


Product Specification:

  • Model NJ 2305
  • Size 25*62*24mm
  • Brand LLH or as your request
  • Original China or as your request
See Price

NJ 2305 bearing cylindrical roller bearings 25*62*24mm

bearing supplier

bearing

Customized bearings

We can design the bearing according to your required types,sizes and application.
If you have drawing and datasheets, it is better. We will produce the bearing according to your drawing and datasheet totally.

Shipment

Small order: by DHL/TNT/FedEx/Aramex ... express;
Large order: by air plane/by sea transportation

Delivery

After receiving payment, we can arrange shipment immediately.

Receiving

Customers suggested unpack, inspect and sign for the goods when you receive bearings. If you find any problem, please contact us.

Issues occurred during use

Bearing is not only related to its own quality, but also related to the installation method, load, speed, temperature and daily working hours.
If there is any problem in the use of bearing, please provide us with the above information in time so that our technicians can make an accurate and effective analysis.roller bearingCylindrical roller bearing

N Series- Bearings of N design are single row cylindrical roller bearing and have two fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the N Series bearings have virtually no thrust capacity.

NU Series- Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NU Series bearings have no virtually thrust capacity.

NN Series- Bearings of NN design are double row cylindrical roller bearing and have three fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the NN Series bearings have no virtually thrust capacity.

NNU Series- Are double row cylindrical roller bearings and have three fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NNU Series bearings have no virtually thrust capacity.

single row cylindrical roller bearings :N NU NJ NF NUP NFP NH(NJ+HJ)

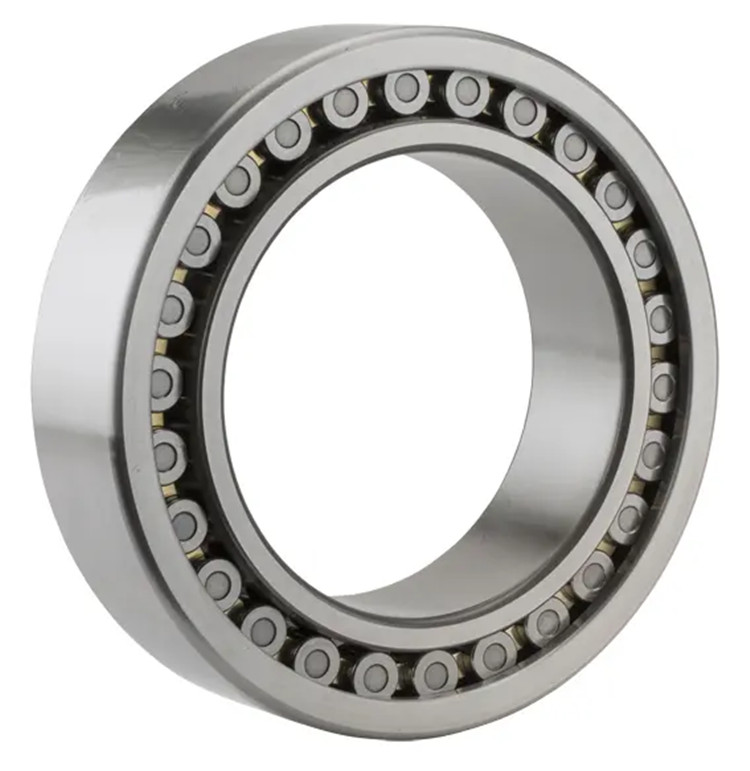

double row cylindrical roller bearings :NN NNU NNF

four row cylindrical roller bearings :FC FCD

full complement cylindrical roller bearings

Application
widely used in automobile, electrical equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries,machine spindle application and are used for cool and hot mills.NJ 2305 bearing factoryNJ 2305 bearing manufacturerNJ 2305 bearing supplierstock NJ 2305 bearingball bearing factory1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for NJ 2305 bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for NJ 2305 bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for NJ 2305 bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for NJ 2305 bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of NJ 2305 bearing?
A: Usually ≥1,According your demand.
9,Q: Will you check NJ 2305 bearing shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing.bearing factoryIf you need any brand bearings or any models of bearings, please contact me!

Contact: Bella
Skype/Email: skf@llhbearing.com
whatsapp:+8615315596312
Tel/Wechat: +8615318805907

Product

Cylindrical roller bearing
Model Number NJ2305
Bore Size(d) 25 mm
Outside Diameter(D) 62 mm
Width (B) 24 mm
Cage Brass Cage / Nylon Cage / Steel Cage
Sampe & Stock

Available

high speed bearing

Shaft diameter Bearing Designation Mass Boundary Dimensions
Current Designation Original Designation d D B
mm Kg mm
17 N203 2203 0.078 17 40 12
NJ203 42203 0.069 17 40 12
NJ203ETN1 0.07158 17 40 12
NU203 32203 0.07 17 40 12
NU203ETN1 0.06654 17 40 12
NJ2203E 0.092 17 40 16
20 N204 2204 0.133 20 47 14
NF204 12204 0.11 20 47 14
NJ204 42204 0.14 20 47 14
NU204 32204 0.135 20 47 14
N304 2304 0.1447 20 52 15
NJ304 42304 0.1575 20 52 15
NU304 32304 0.1519 20 52 15
NUP304ETN1 0.15582 20 52 15
NJ2304ETN1 0.21267 20 52 21
25 N205 2205 0.1328 25 52 15
NF205 12205 0.1363 25 52 15
NJ205 42205 0.1484 25 52 15
NJ205E 42205E 0.134 25 52 15
NJ205ETN1 0.1351 25 52 15
NU205 32205 0.133 25 52 15
NU205/C3 0.133 25 52 15
NU205E 32205E 0.13013 25 52 15
NU205ETN1 0.13107 25 52 15
NUP205 92205 0.1495 25 52 15
NCL205 102205 0.145 25 52 15
N2205 2505 0.187 25 52 18
NJ2205 C0G42505 0.17 25 52 18
NU2205 32505 0.1653 25 52 18
NU2205/C3 0.1653 25 52 18
NU2205EV 0.1652 25 52 18
N305 2305 0.2343 25 62 17
N305EYNR1/C3 0.2334 25 62 17
NF305 12305 0.2433 25 62 17
NJ305 42305 0.2458 25 62 17
NJ305/C3 C3G42305 0.2458 25 62 17
NJ305E 42305E 0.271 25 62 17
NJ305ETN1 0.24364 25 62 17
NU305 32305 0.2397 25 62 17
NUP305 0.25551 25 62 17
NUP305E 0.28505 25 62 17
NUP305N C0G192305 0.263 25 62 17
NCL305 102305 0.246 25 62 17
NU2305E 0.36939 25 62 24
NJ2305E 0.37739 25 62 24
NJ2305EV/C4 C4G532605E 0.3692 25 62 24
NJ2305VH 0.3695 25 62 24
NUP2305E 0.37657 25 62 24
NCL2305 102605 0.358 25 62 24
30 N206 2206 0.2038 30 62 16
N206E 2206E 0.24 30 62 16
NJ206 42206 0.2338 30 62 16
NJ206E C0G42206E 0.2308 30 62 16
NJ206ETN1 0.2308 30 62 16
NU206 32206 0.2113 30 62 16
NU206E 32206E 0.2231 30 62 16
NUP206E 92206E 0.2354 30 62 16
NUP206E/C4 0.2351 30 62 16
NCL206 102206 0.224 30 62 16
NJ2206ETN1 0.25792 30 62 20
NJ2206E 0.3497 30 62 20
NJ2206E.TVP 0.25792 30 62 20
N306 2306 0.3448 30 72 19
NJ306 42306 0.3524 30 72 19
NJ306E 0.40082 30 72 19
NJ306E/C3 0.40082 30 72 19
NU306 32306K 0.3459 30 72 19
NU306E 0.39282 30 72 19
NU306MN/P63 0.381 30 72 19
NUP306 92306 0.3695 30 72 19
NFP306 22306K 0.37 30 72 19

high quality bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.
