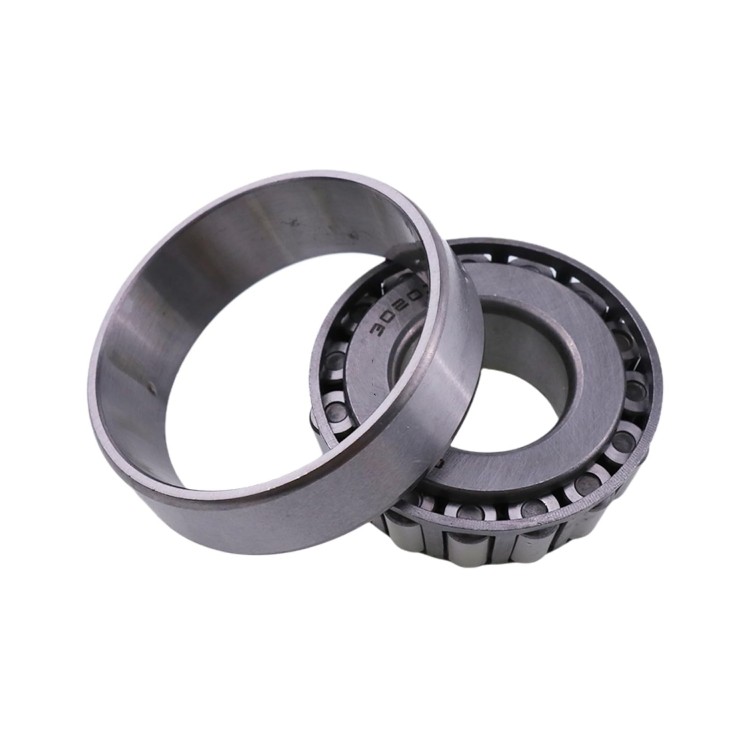

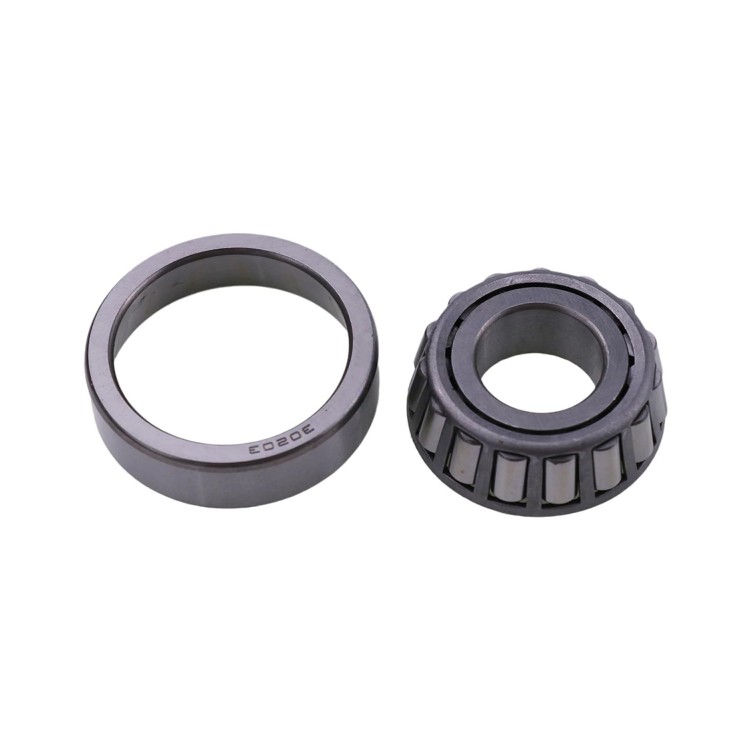

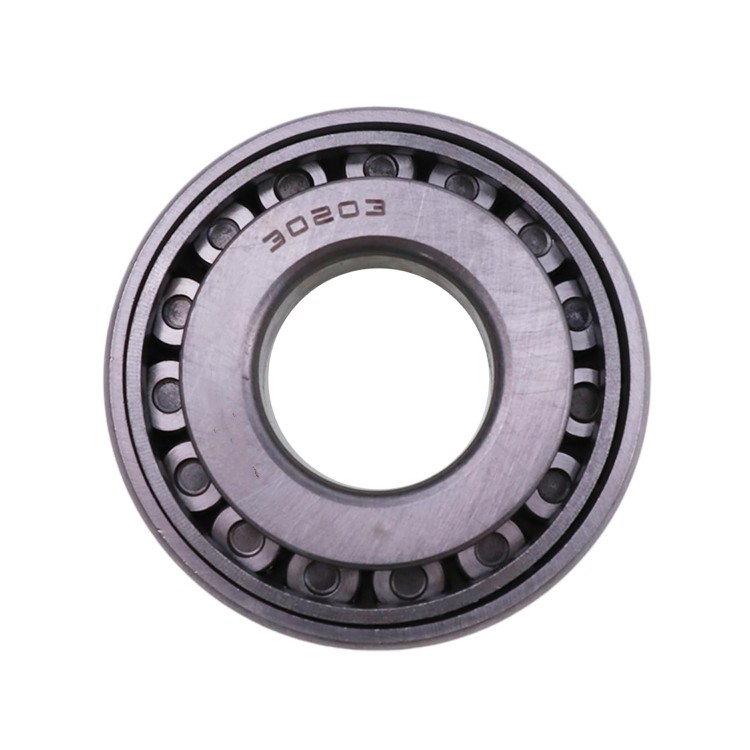

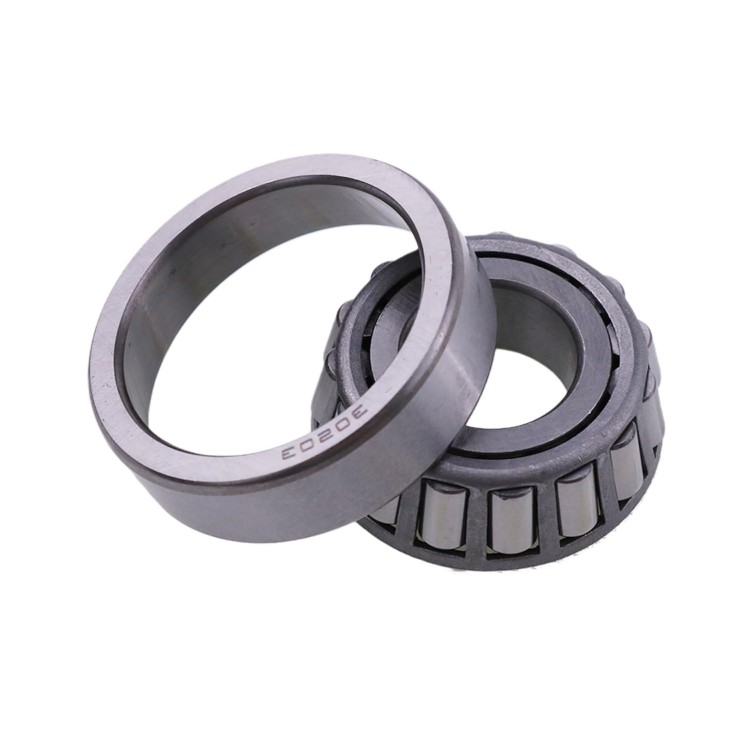

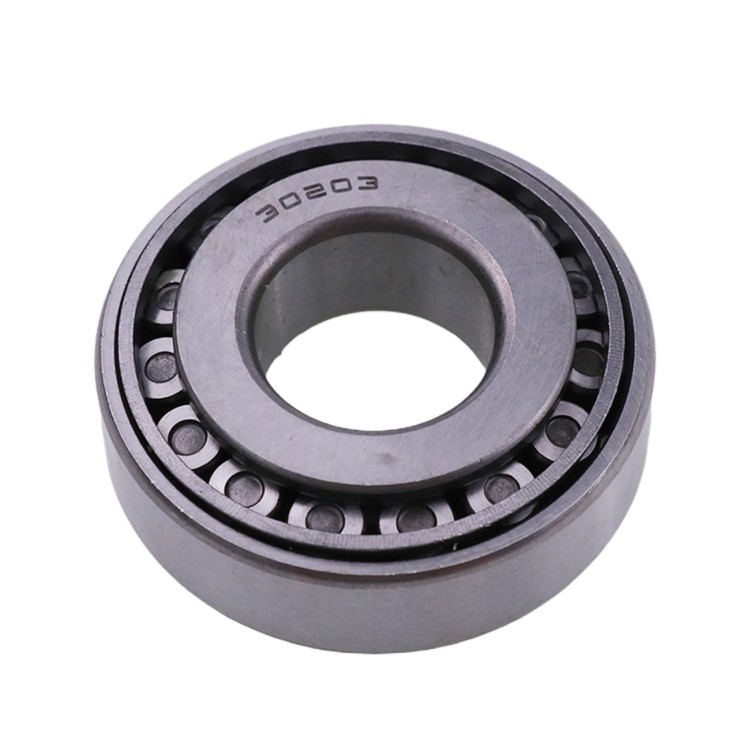

30203 tapered roller bearing size 17x40x13.25 mm


Product Specification:

See Price

30203 tapered roller bearing size 17x40x13.25 mm

high speed bearing

bearings

1. Taper roller bearing mainly bear radial primarily diameter, the axial load. Bearing capacity depends on the Angle of the outer ring raceway, the greater the Angle, the greater the carrying capacity.
2. Taper roller bearing type belongs to the separation bearing, , according to the bearing the number of columns of the scroll body can be divided into single row, double row and four row circular cone roller bearings.
3.Single row inch taper roller bearing clearance to users in the installation adjustment; Double row and four row circular cone roller bearings clearance has according to user requirements for a given when the products leave the factory, not the user.

Taper Roller Bearings Specifications

1. Allows maintenance-free and long-life operation
2. suitable for the radial and axial loaded
3. With low and smoothly coefficient of friction and without stick-slip effects
4. Suitable for dirty, corrosion, impact load and edge loading
5. The base material provided a good shock-absorbing capacity
6. Can be used over a large temperature range.
7. Suitable for reciprocating, rotating and oscillating movement with start frequency and difficulty to form oil film occasions
8. With low wear rate and long life service

BEARING

30203 tapered roller bearing 30203 tapered roller bearings 30203 roller bearing 30203 bearing 30203 tapered bearing roller bearing

1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for 30203 tapered roller bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for 30203 tapered roller bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for 30203 tapered roller bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of 30203 tapered roller bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for 30203 tapered roller bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the 30203 tapered roller bearing?
A: If have any abnormal, Please contact us at first time, we will immediately processing.roller bearing

If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
bearing manufaturer
Bore diameter 17 mm
Outside diameter 40 mm
Width, total 13.25 mm
Width, inner ring 12 mm
Width, outer ring 11 mm
Contact angle 12.953 °

high speed bearing

Related Bearing Models
Bearig
Number
Principal dimensions(mm) Weight(KG)
d D B C r1min rsmin
30203 17 40 12 11 1.0  1.0 0.079
30303 17 47 14 12 1.0  1.0 0.134
32004X 20 42 15 12 0.6  0.6 0.097
30204 20 47 14 12 1.0  1.0 0.127
32204 20 47 18 15 1.0  1.0 0.16
30304 20 52 15 13 1.5  1.5 0.172
32304 20 52 21 18 1.5  1.5 0.241
32005X 25 47 15 11.5 0.6  0.6 0.116
30205 25 52 15 13 1.0  1.0 0.157
32205 25 52 18 15 1.0  1.0 0.187
33205 25 52 22 18 1.0  1.0 0.221
30305 25 62 17 15 1.5  1.5 0.27

high quality bearing precision bearing
