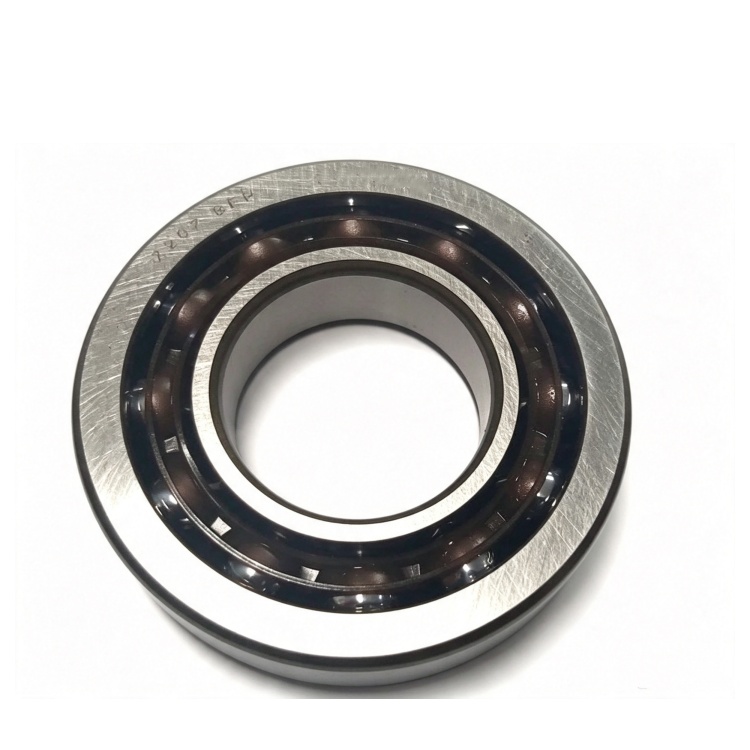

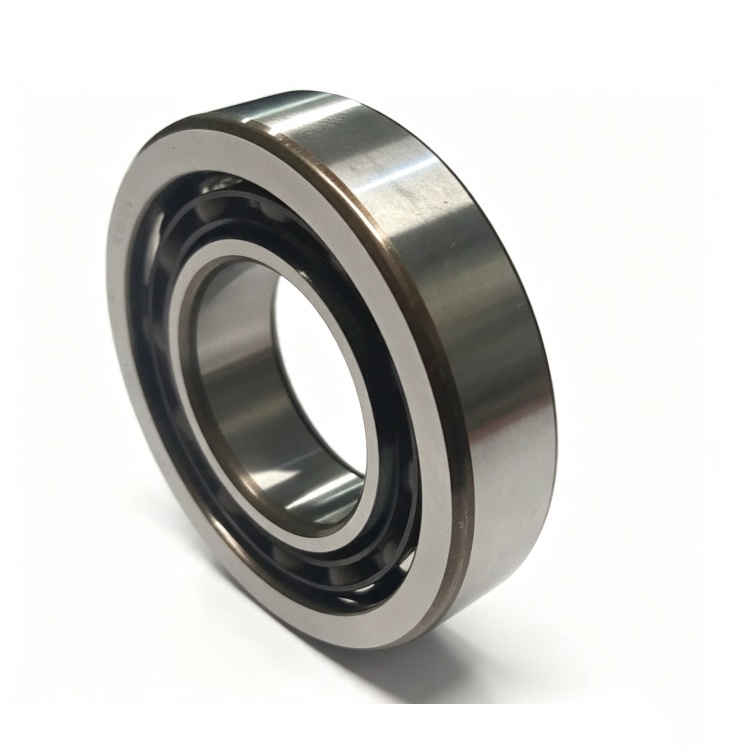

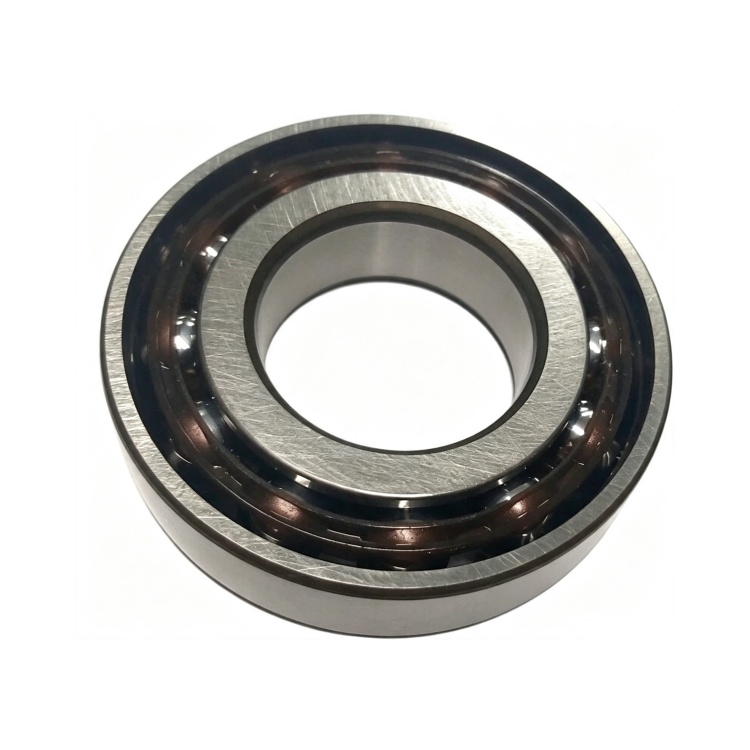

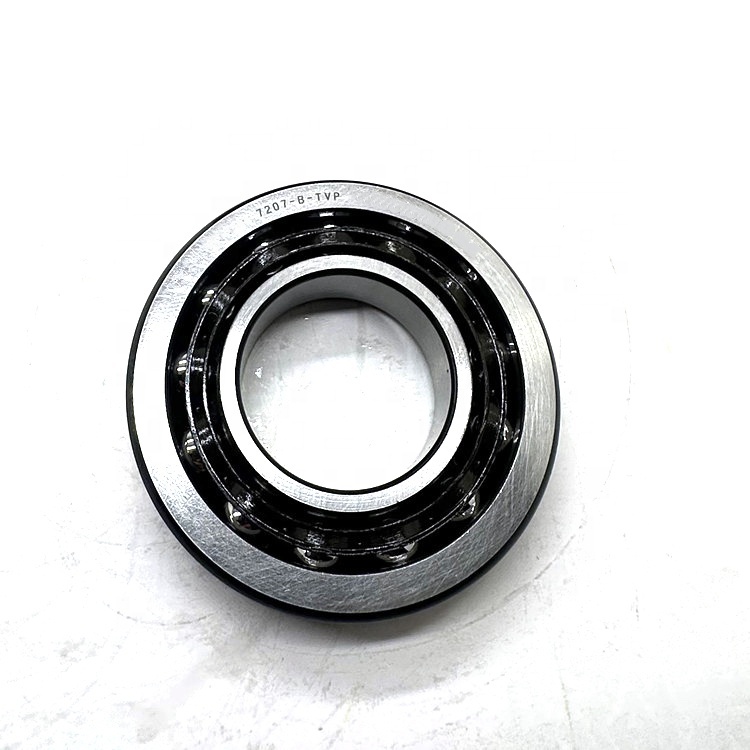

7207 BECBP Single row angular contact ball bearing size 35x72x17mm
7207 BECBP is a single-row angular contact ball bearing designed for high-precision applications operating under combined loads. Optimized to withstand heavy radial loads as well as unidirectional axial loads, it delivers high rigidity for rigorous working conditions. Produced to P6 (ABEC-3) tolerance grade, the bearing guarantees outstanding rotational accuracy and dependable performance. It comes pre-lubricated with a 40° contact angle, enabling excellent high-speed performance and steady operation for precision-critical machinery.
7207 BECBP Bearing Structural Features & Performance Benefits
High Rigidity & Load Capacity: Optimized internal geometry featuring a 40° contact angle and high-load BE construction allows the bearing to withstand heavy combined radial and axial loads, delivering rigid, stable support.
High-Speed Performance: The lightweight nylon BP cage reduces centrifugal forces and guarantees smooth running.
Precision Engineering: Manufactured to P6 tolerance class, the bearing delivers excellent rotational accuracy, low vibration and stable performance for high-precision applications.
Ready-to-Use: This bearing is pre-lubricated to enable immediate installation and startup, eliminating the requirement for extra lubrication.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for 7207 becbp?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for 7207 becbp? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for 7207 becbp?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for 7207 becbp?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of 7207 becbp?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
 |
| If you need any brand bearings or any models of bearings, please contact me!Contact: Grace Email: ntn@llhbearing.com Skype:+8618668903871 MP/Whatsapp: +8618668903871 Wechat:GraceXu1234 |
| d |
35 mm
|
Bore diameter |
|---|---|---|
| tΔdmp | -0.01 – 0 mm | Deviation limits of mid-range bore diameter |
| D |
72 mm
|
Outside diameter |
| tΔDmp | -0.011 – 0 mm | Deviation limits of mid-range outside diameter |
| B |
17 mm
|
Width |
| tΔBs | -0.12 – 0 mm | Deviation limits of ring width |
| d1 |
≈49.65 mm
|
Shoulder diameter of inner ring (large side face) |
| d2 |
≈41.96 mm
|
Shoulder diameter of inner ring (small side face) |
| D1 |
≈58.25 mm
|
Shoulder diameter of outer ring (large side face) |
| a |
31 mm
|
Distance side face to pressure point |
| r1,2 |
min.1.1 mm
|
Chamfer dimension |
| r3,4 |
min.0.6 mm
|
Chamfer dimension |
|
Item Number
|
Inner (d) MM
|
Outer (D) MM
|
Width (B) MM
|
Weight (kg)
|
|
7200 BECBP
|
10
|
30
|
9
|
0.0300
|
|
7201 BECBP
|
12
|
32
|
10
|
0.0360
|
|
7202 BECBP
|
15
|
35
|
11
|
0.0450
|
|
7203 BECBP
|
17
|
40
|
12
|
0.0650
|
|
7204 BECBP
|
20
|
47
|
14
|
0.1100
|
|
7205 BECBP
|
25
|
52
|
15
|
0.1300
|
|
7206 BECBP
|
30
|
62
|
16
|
0.2000
|
|
7207 BECBP
|
35
|
72
|
17
|
0.2800
|
|
7208 BECBP
|
40
|
80
|
18
|
0.3700
|
|
7209 BECBP
|
45
|
85
|
19
|
0.4200
|
|
7210 BECBP
|
50
|
90
|
20
|
0.4700
|
