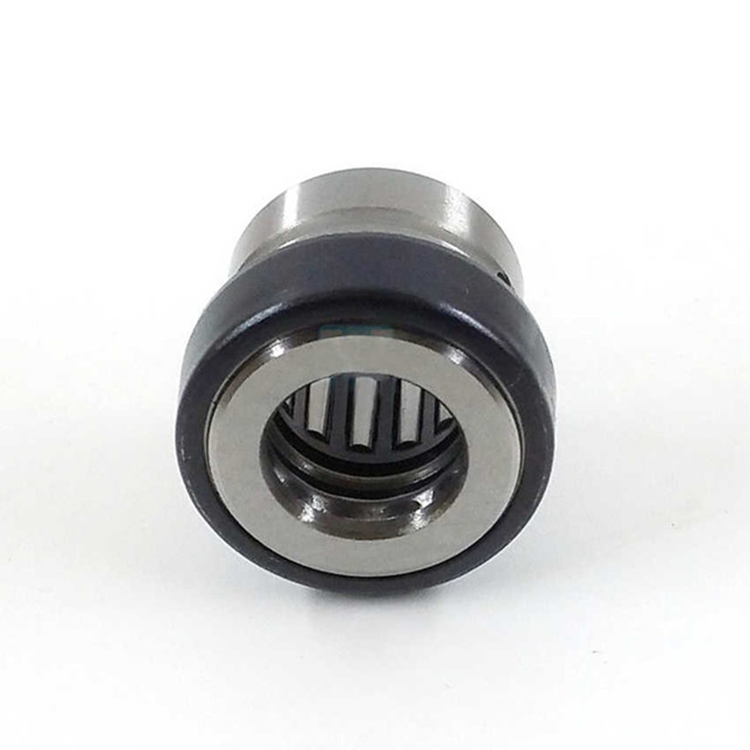

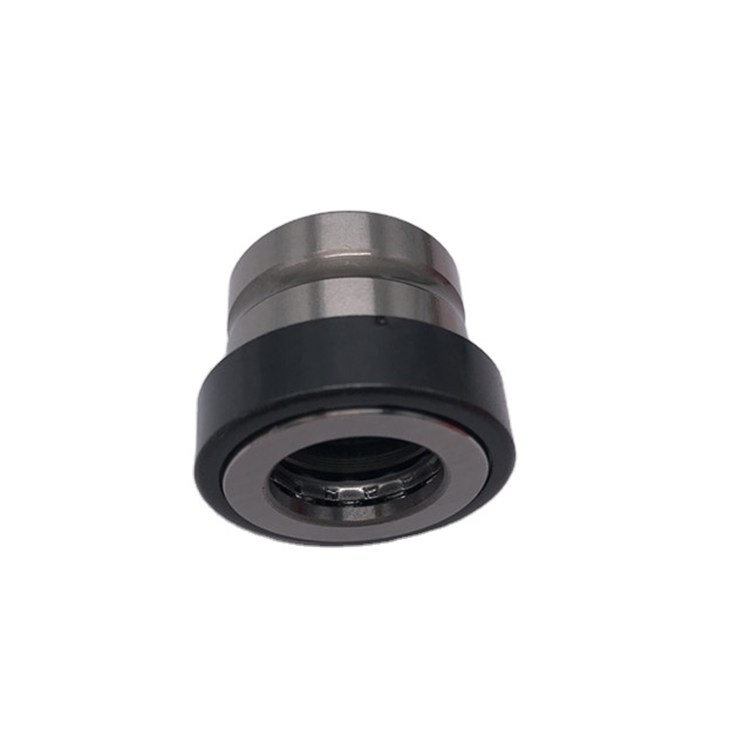

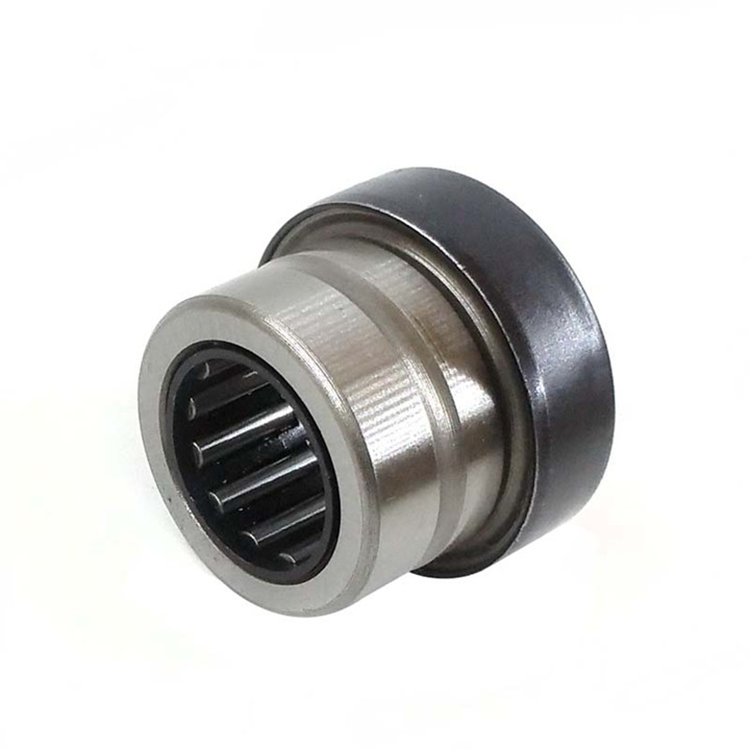

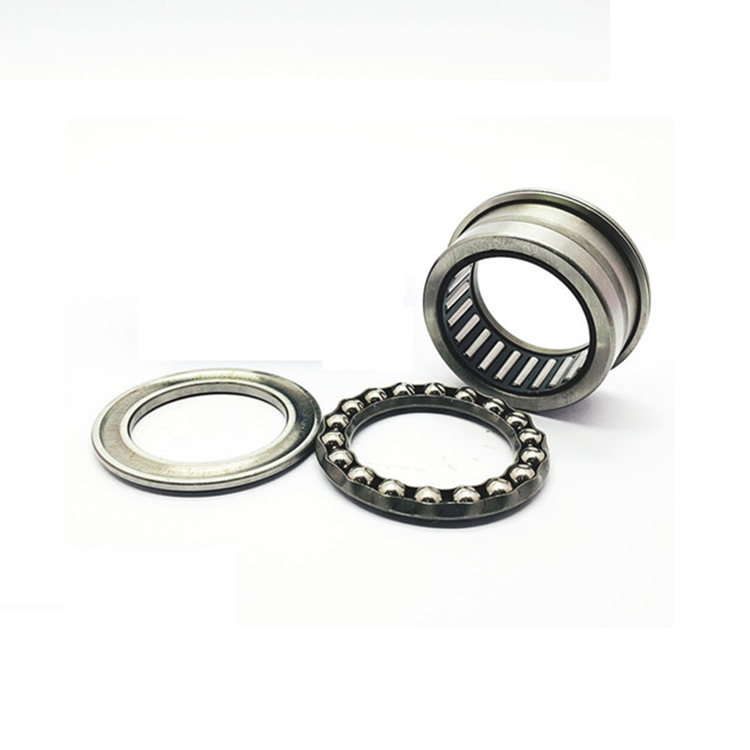

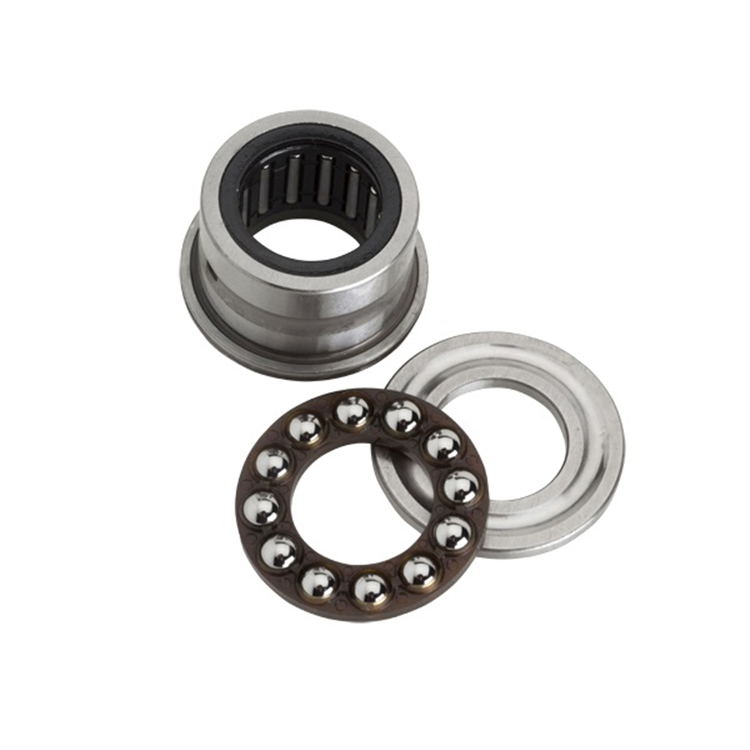

ball and roller bearing engineering NKX25Z 1 inch roller ball bearing
combination of a ball and roller bearing engineering suitable for high radial loads and relatively high axial loads in one direction .space-saving due to low radial section height.condition for the use is a hardened and ground shaft; if the shaft is not usable as raceway, a combination with an inner ring is possible with circumferential groove and lubrication holes in the outer ring .

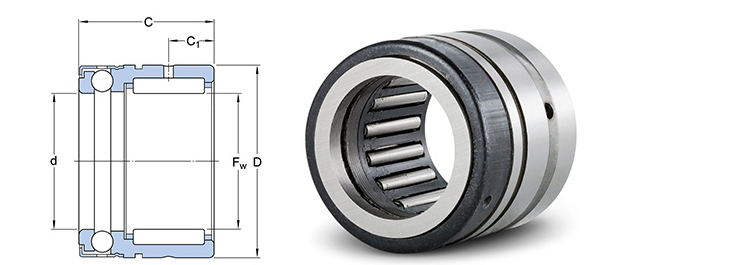

the following is basic design of NX needle roller thrust ball bearing:

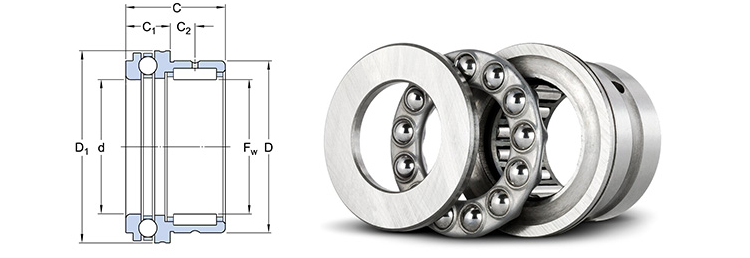

the following is basic design of NKX needle roller thrust ball bearing:
| Designations : | NKX 25 Z |
| Combined Needle Roller Thrust Ball Bearing | |
| Inside : | 25 mm |
| Outside : | 37 mm |
| Width : | 30 mm |
| Product Weight : | 0.13 kg |
| Ring Material : | GCR15/ Chrome Steel |
| Roller Material : | GCR15/ Chrome Steel |
| Cage Material : | Stamped Steel |
| Number of Row : | Single Row |
| Seal : | Z |
| Precision Rating : | P0 P6 P5 P4 |
| Application Industries : | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining etc. |
 |
 |
 |
 |
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for ball and roller bearing engineering 1 inch roller ball bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.
3,Q: Do you provide samples for ball and roller bearing engineering 1 inch roller ball bearing ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for ball and roller bearing engineering 1 inch roller ball bearing?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for ball and roller bearing engineering 1 inch roller ball bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of ball and roller bearing engineering 1 inch roller ball bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your ball and roller bearing engineering 1 inch roller ball bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the ball and roller bearing engineering 1 inch roller ball bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
| Specifications: NKX25 combined needle roller bearing | |
| Bore size | 25mm |
| Outer diamter | 37mm |
| Overall width | 30mm |
| Mass | 0.132kgs |
| Bearing material |
steel bearing Gcr15 |
| Bearing cage type |
stamped steel |
| Bearing type | Combination Needle Roller/Thrust Ball Bearing |
| Bearing closure type | open |
| Bearing inner ring |
IR12x15x16 inner bearing |
| Bearing Number | Dimension(mm) | |||
| FW | D | D2 Max. | C | |
| NKX10ZTV | 10 | 19 | 25.2 | 23 |
| NKX12Z | 12 | 21 | 27.2 | 23 |
| NKX15Z | 15 | 24 | 29.2 | 23 |
| NKX17Z | 17 | 26 | 31.2 | 25 |
| NKX20Z | 20 | 30 | 36.2 | 30 |
| NKX25Z | 25 | 37 | 43.2 | 30 |
| NKX30Z | 30 | 42 | 48.2 | 30 |
| NKX35Z | 35 | 47 | 53.2 | 30 |
| NKX40Z | 40 | 52 | 61.2 | 32 |
| NKX45Z | 45 | 58 | 66.5 | 32 |
| NKX50Z | 50 | 62 | 71.5 | 35 |
| NKX60Z | 60 | 72 | 86.5 | 40 |
| NKX70Z | 70 | 85 | 96.5 | 40 |
