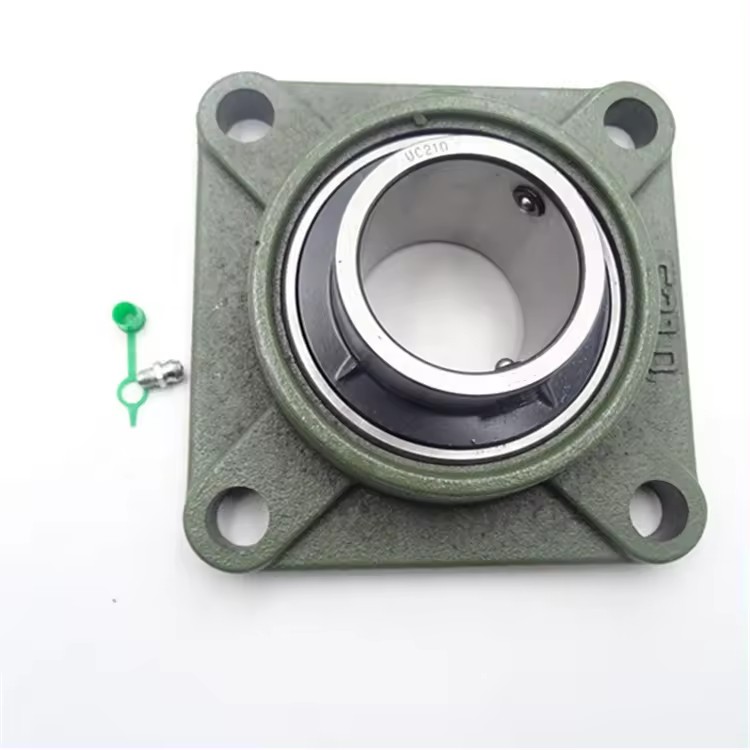

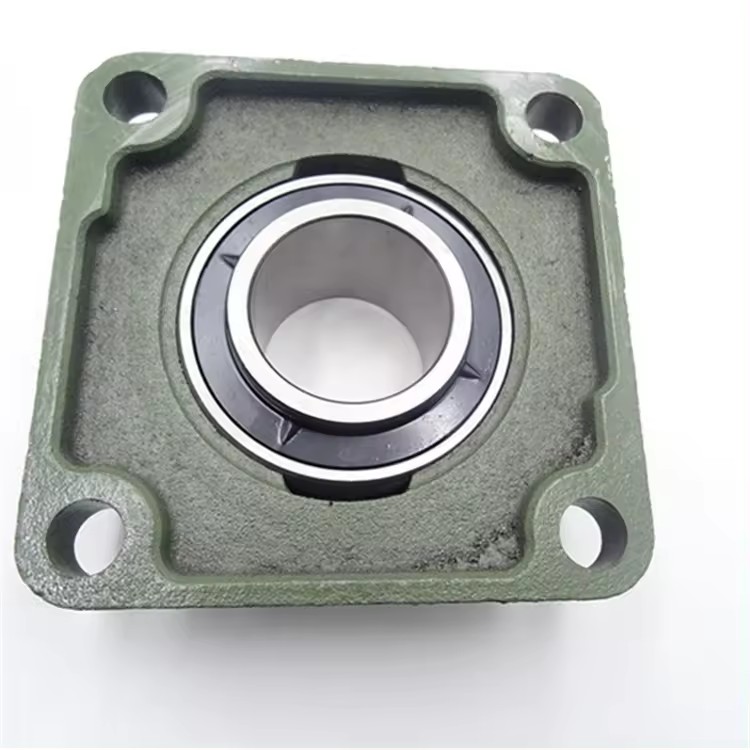

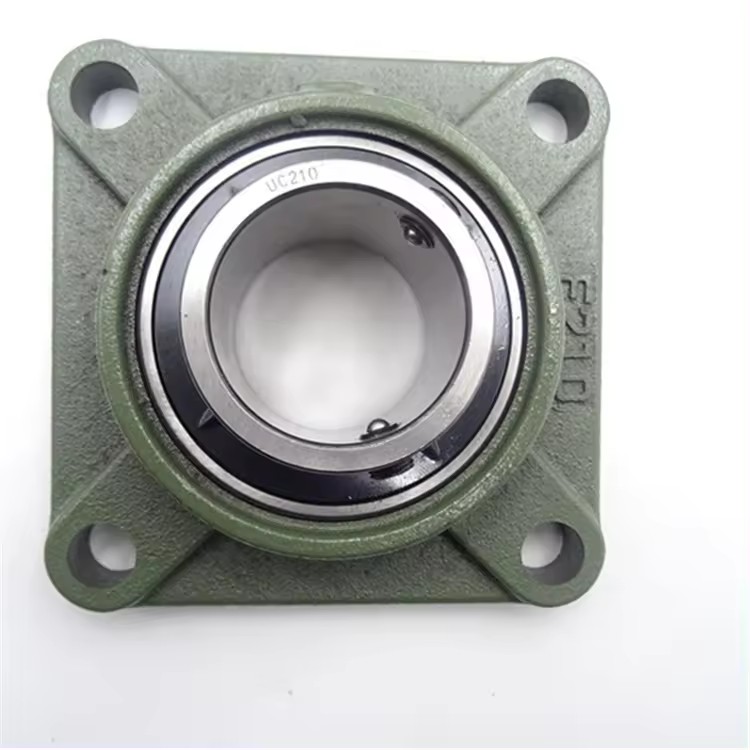

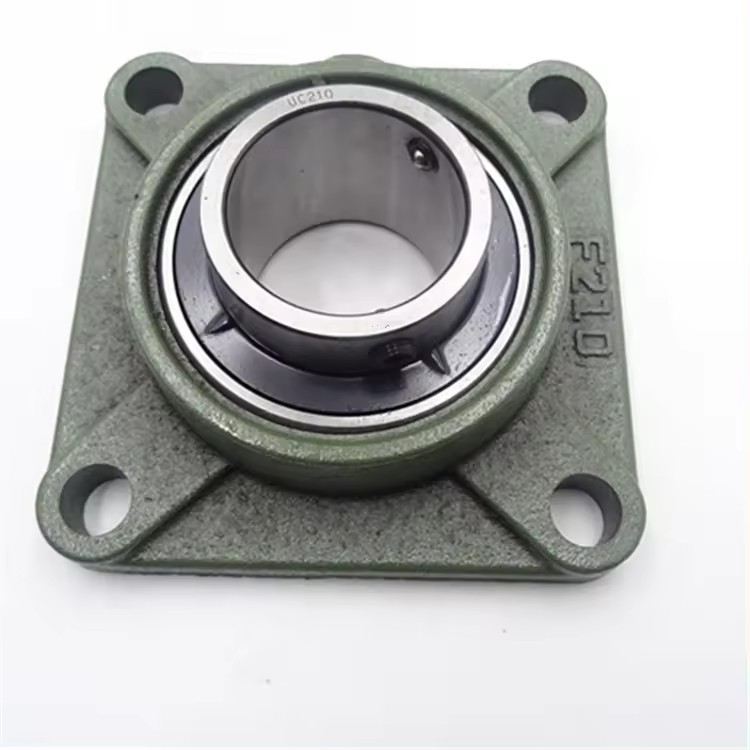

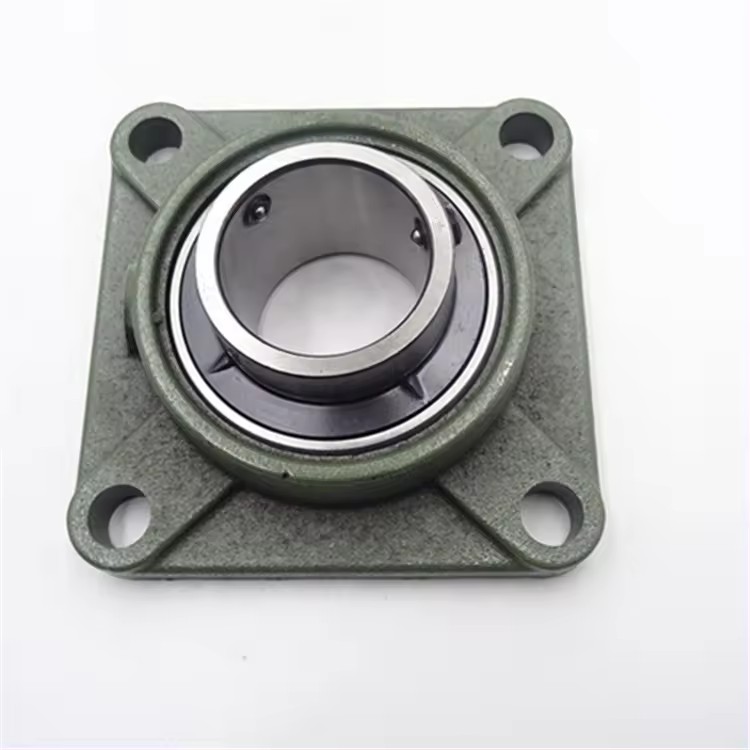

UCF210 pillow block bearing UCF 210 Four Bolt Square Flanged Unit
Bearing units structure:
The outer ring of the selfcontained ball bearing in ground to a sphere, and the bore of housing in machined to a matching radius, This permits self-aligning between the two members.Following figure is a view of a Pillow Block which is the most popular type of Insert Ball BearingUnits with set screw locking. The bearing units have various types of perfect sealing devices and can operate satisfactorily under hard working conditions, especially for machines operated in industry or muddy surroundings.
Applications:
This kind of bearing is widely used in agricultural machinery, construction machinery, textile machinery, food stuff machinery, conveying devices, Hollow glass production lines, engineering and engineering design, inkjet printer, spices processing equipment, heat exchangers, water treatment equipment, pump, electric welder, household sewing machines, tables, sorting screen, plating equipment, polishing machines, rubber molding machine, pill machine, plastic rolling machine, agricultural machinery parts, granulation drying equipment, etc.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for bearing ucf 210?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing ucf 210?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for bearing ucf 210?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearing ucf 210?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check bearing ucf 210 before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing ucf 210?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
| d |
50 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈62.1 mm
|
Outer diameter of inner ring |
| A |
39.5 mm
|
Width of housing |
| A1 |
16 mm
|
Flange width |
| A5 |
33 mm
|
Standout of end cover |
| B |
51.6 mm
|
Width of inner ring |
| B4 |
9.5 mm
|
Distance from locking device side face to thread centre |
| Db1 |
115 mm
|
Top external diameter |
| J |
111 mm
|
Distance between attachment bolts |
| L |
143 mm
|
Overall length |
| N |
16 mm
|
Diameter of attachment bolt hole |
| s1 |
32.6 mm
|
Distance from locking device side face to raceway centre |
| T |
54.6 mm
|
Overall width |
|
Bearing No
|
ID
(mm) |
Thickness
(mm) |
Bearing No
|
ID
(mm) |
Thickness
(mm) |
|
UCFL203
|
17
|
33.3
|
UCFA203
|
17
|
32.04
|
|
UCFL204
|
20
|
33.3
|
UCFA204
|
20
|
32.04
|
|
UCFL205
|
25
|
35.7
|
UCFA205
|
25
|
35.7
|
|
UCFL206
|
30
|
40.2
|
UCFA206
|
30
|
40.2
|
|
UCFL207
|
35
|
44.1
|
UCFA207
|
35
|
44.4
|
|
UCFL208
|
40
|
51.2
|
UCFA208
|
40
|
51.2
|
|
UCFL209
|
45
|
52.2
|
UCFA209
|
45
|
52.2
|
|
UCFL210
|
50
|
54.6
|
UCFC203
|
17
|
28.3
|
|
UCFL211
|
55
|
58.4
|
UCFC204
|
20
|
28.3
|
|
UCFL212
|
60
|
68.7
|
UCFC205
|
25
|
29.8
|
|
UCF203
|
17
|
33.3
|
UCFC206
|
30
|
32.2
|
|
UCF204
|
20
|
33.3
|
UCFC207
|
35
|
36.4
|
|
UCF205
|
25
|
35.7
|
UCFC208
|
40
|
41.2
|
|
UCF206
|
30
|
40.2
|
UCFC209
|
45
|
40.2
|
|
UCF207
|
35
|
44.4
|
UCFC210
|
50
|
42.6
|
|
UCF208
|
40
|
51.2
|
UCFC211
|
55
|
46.4
|
|
UCF209
|
45
|
52.2
|
UCFC212
|
60
|
56.7
|
|
UCF210
|
50
|
54.6
|
UCFC213
|
65
|
55.7
|
|
UCF211
|
55
|
58.4
|
UCFC214
|
70
|
61.4
|
|
UCF212
|
60
|
68.7
|
UCFC215
|
75
|
62.5
|
|
UCF213
|
65
|
69.7
|
UCFC216
|
80
|
67.3
|
|
UCF214
|
75.4
|
70
|
UCFC217
|
85
|
69.6
|
|
UCF215
|
78.5
|
75
|
UCFC218
|
90
|
78.3
|
|
UCF216
|
83.3
|
80
|
UCFB203
|
17
|
31
|
|
UCF217
|
87.6
|
85
|
UCFB204
|
20
|
31
|
|
UCF218
|
97.3
|
90
|
UCFB205
|
25
|
34.1
|
|
UCF305
|
25
|
38
|
UCFB206
|
30
|
38.1
|
|
UCF306
|
30
|
43
|
UCFB207
|
35
|
42.9
|
|
UCF307
|
35
|
48
|
UCFB208
|
40
|
49.2
|
|
UCF308
|
40
|
52
|
UCFB209
|
45
|
49.2
|
|
UCF309
|
45
|
57
|
UCFB210
|
50
|
51.6
|
|
UCF310
|
50
|
61
|
UCF315
|
75
|
82
|
|
UCF311
|
55
|
66
|
UCF316
|
80
|
86
|
|
UCF312
|
60
|
71
|
UCF317
|
85
|
96
|
|
UCF313
|
65
|
75
|
UCF318
|
90
|
96
|
|
UCF314
|
70
|
78
|
