Stamping bearing: the most representative stamping bearing, widely used, can withstand radial load and bidirectional axial load; suitable for high-speed rotation and low noise, low vibration occasions

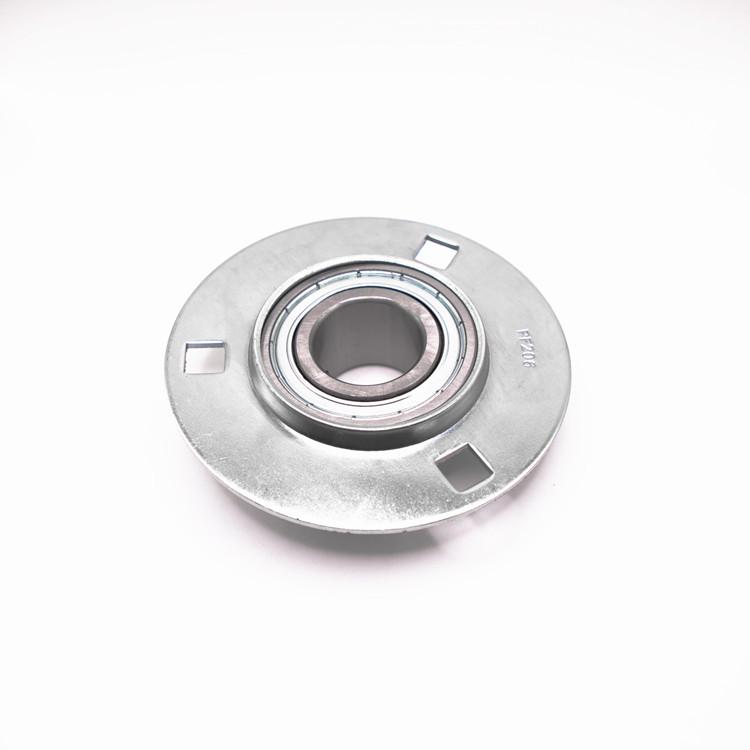

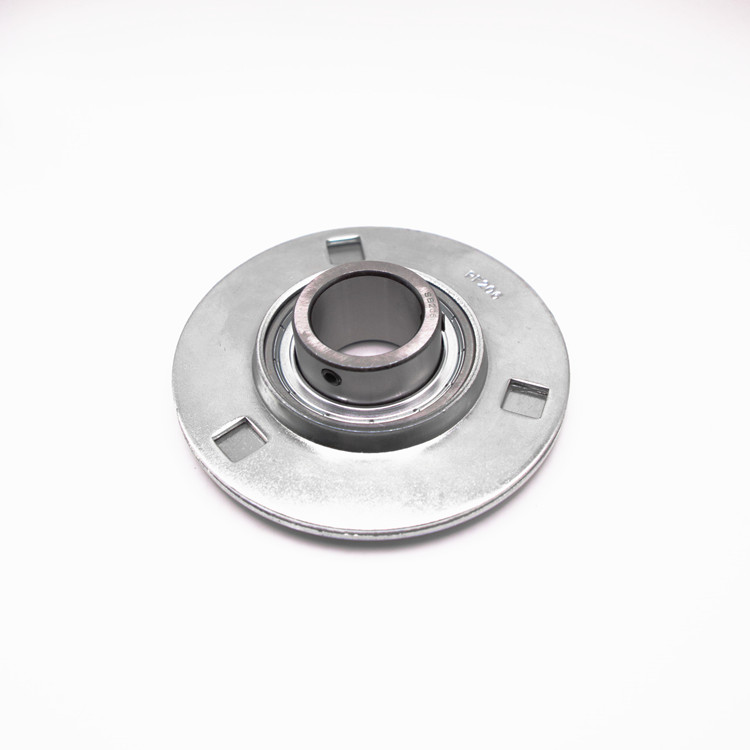

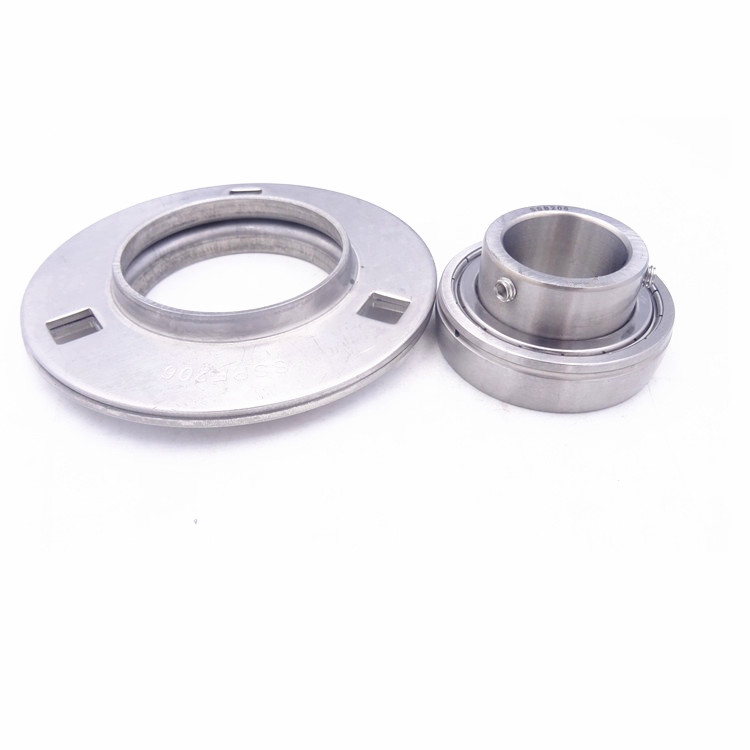

SBPF206 Pressed steel pillow block bearing seat PF206 with SB206ZZ bearing
|
| Stamping bearing: the most representative stamping bearing, widely used, can withstand radial load and bidirectional axial load; suitable for high-speed rotation and low noise, low vibration occasions; sealed bearing with steel dust cover or rubber sealing ring pre-filled with appropriate amount of grease; bearing with outer ring stop ring or flange, that is, easy to axial positioning, and easy to install in the shell; The dimension of the maximum load bearing is the same as that of the standard bearing, but there is a filling slot in the inner and outer rings, which increases the number of balls and increases the rated load. |
|
| Stamping steel flange bearing seat is made of chromium, 6 + free steel plate plus zinc coating to achieve corrosion protection. They are designed for applications that can only withstand limited loads and speeds without any additional lubrication. |
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for bearing seat PF206 with SB206ZZ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for bearing seat PF206 with SB206ZZ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing seat PF206 with SB206ZZ?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for bearing seat PF206 with SB206ZZ?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of bearing seat PF206 with SB206ZZ?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234

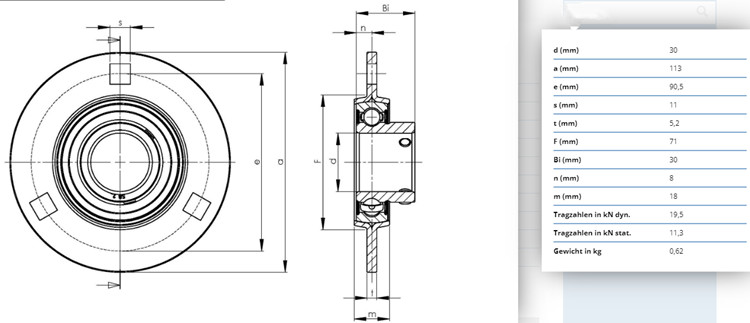

| Housing | Bearing | Model No. | Size(mm) |
| PF203 | SB201 | SBPF201 | 12x82x64x22 |
| PF203 | SB202 | SBPF202 | 15x82x64x22xx |
| PF203 | SB203 | SBPF203 | 17x82x64x22 |
| PF204 | SB204 | SBPF204 | 20x91x71x25 |
| PF205 | SB205 | SBPF205 | 25x95x76x27 |
| PF206 | SB206 | SBPF206 | 30x113x90x29 |
| PF207 | SB207 | SBPF207 | 35x122x100x32 |
| PF203 | SB201-8 | SBPF201-8 | 12.7x81x63.5×22 |
| PF203 | SB202-10 | SBPF202-10 | 15.875x81x63.5×22 |
| PF203 | SB202-9 | SBPF202-9 | 14.288x81x63.5×22 |
| PF203 | SB203-11 | SBPF203-11 | 17.462x81x63.5×22 |
| PF204 | SB204-12 | SBPF204-12 | 19.05x90x71.5×25 |
| PF205 | SB205-14 | SBPF205-14 | 22.225x95x76x27 |
| PF205 | SB205-15 | SBPF205-15 | 23.812x95x76x27 |
| PF206 | SB205-16 | SBPF205-16 | 25.4x95x76x27 |
| PF206 | SB206-18 | SBPF206-18 | 28.575x113x90.5×30 |
| PF206 | SB206-19 | SBPF206-19 | 30.162x113x90.5×30 |
| PF206 | SB206-20 | SBPF206-20 | 31.75x113x90.5×30 |
| PF207 | SB207-20 | SBPF207-20 | 31.75x122x100x32 |
| PF207 | SB207-21 | SBPF207-21 | 33.338x122x100x32 |
| PF207 | SB207-22 | SBPF207-22 | 34.952x122x100x32 |
| PF207 | SB207-23 | SBPF207-23 | 36.512x122x100x32 |
| PF203 | SA201 | SAPF201 | 12x82x64x22 |
| PF203 | SA202 | SAPF202 | 15x82x64x22xx |
| PF203 | SA203 | SAPF203 | 17x82x64x22 |
| PF204 | SA204 | SAPF204 | 20x91x71x25 |
| PF205 | SA205 | SAPF205 | 25x95x76x27 |
| PF206 | SA206 | SAPF206 | 30x113x90x29 |
| PF207 | SA207 | SAPF207 | 35x122x100x32 |
| PF203 | SA201-8 | SAPF201-8 | 12.7x81x63.5×22 |
| PF203 | SA202-10 | SAPF202-10 | 15.875x81x63.5×22 |
| PF203 | SA202-9 | SAPF202-9 | 14.288x81x63.5×22 |
| PF203 | SA203-11 | SAPF203-11 | 17.462x81x63.5×22 |
| PF204 | SA204-12 | SAPF204-12 | 19.05x90x71.5×25 |
| PF205 | SA205-14 | SAPF205-14 | 22.225x95x76x27 |
| PF205 | SA205-15 | SAPF205-15 | 23.812x95x76x27 |
| PF206 | SA205-16 | SAPF205-16 | 25.4x95x76x27 |
| PF206 | SA206-18 | SAPF206-18 | 28.575x113x90.5×30 |
| PF206 | SA206-19 | SAPF206-19 | 30.162x113x90.5×30 |
| PF206 | SA206-20 | SAPF206-20 | 31.75x113x90.5×30 |
| PF207 | SA207-20 | SAPF207-20 | 31.75x122x100x32 |
| PF207 | SA207-21 | SAPF207-21 | 33.338x122x100x32 |
| PF207 | SA207-22 | SAPF207-22 | 34.952x122x100x32 |
| PF207 | SA207-23 | SAPF207-23 | 36.512x122x100x32 |
