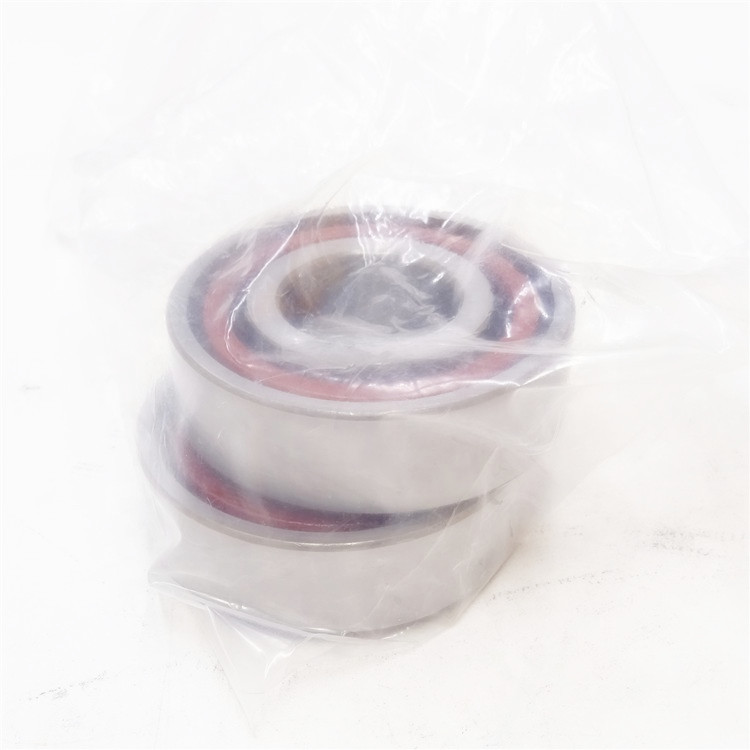

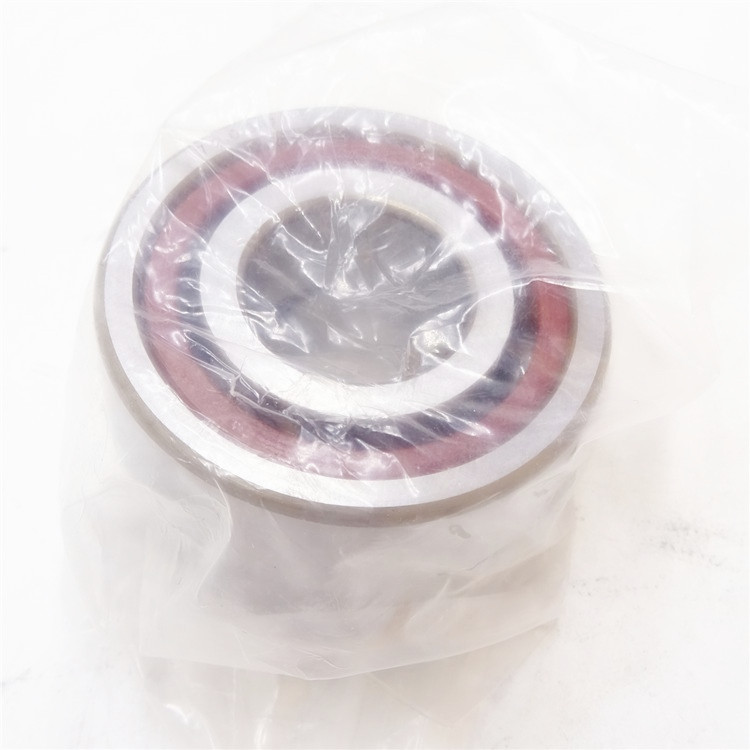

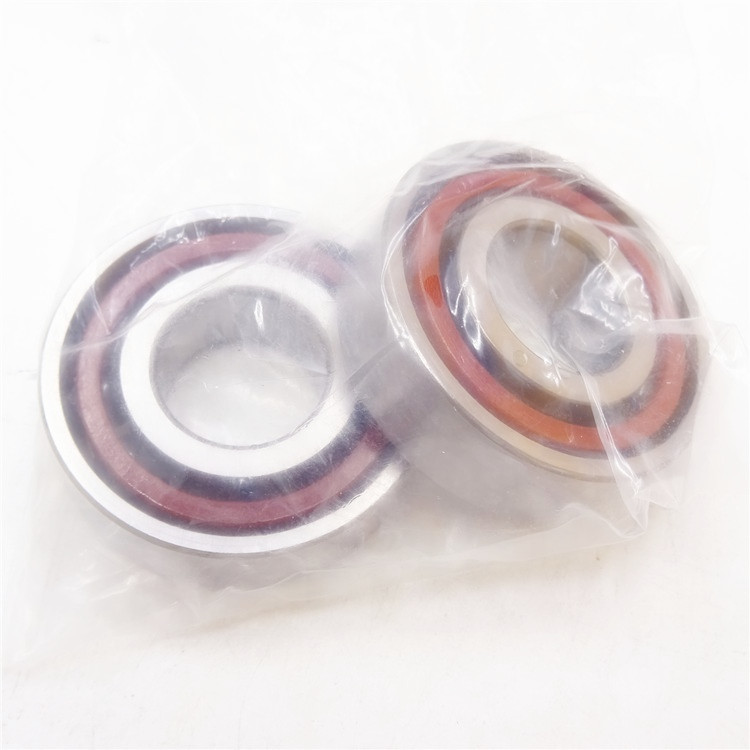

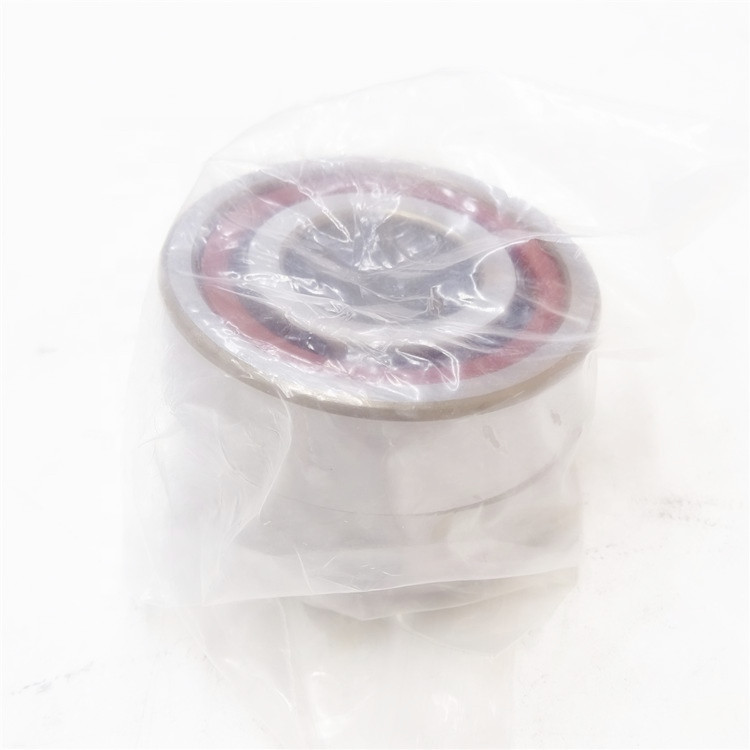

Double angular contact ball bearing 7203DF bearing

Double angular contact ball bearing 7203DF bearing with glass fiber by 66 before the nylon-made cage (suffix TVP). This cage can be below 120 °C temperature stability of the work of the occasion. If the use of oil-lubricated bearings, lubricating oil additives in the cage may affect the life and a high temperature, aging of the oil will shorten the life of the cage, to strictly abide by the cycle. The use of machining brass cage of the angular contact ball bearing oil suffix MP.


Product Specification:

  • Model 7203DF
  • Origin China
See Price

double angular contact ball bearing

double angular contact ball bearing Double angular contact ball bearing 7203DF bearing after heat treatment can be no higher than 150 °C working temperature. 240mm in diameter than the outer ring of bearings can be no higher than 200 °C working temperature. If the use of nylon cage, the bearings allow the temperature to be maintained by the material plane.

double angular contact ball bearing



double angular contact ball bearing 7203

7203 double angular contact ball bearingdouble angular contact ball bearing

original double angular contact ball bearing

double angular contact ball bearing

double angular contact ball bearingdouble angular contact ball bearing

double angular contact ball bearing

7203DF bearing Jinan Maolei Bearing co.,Ltd is a product and trade integrated company specializing in bearings. We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers. So one of our biggest advantages compared others is that we can provide the best factory price based on the same good quality.



FAQ:
1,Q: Are you trading company or manufacturer?
A: We are factory.
2,Q: How long is your delivery time for Double angular contact ball bearing 7203DF bearing?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Double angular contact ball bearing 7203DF bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for Double angular contact ball bearing 7203DF bearing?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for Double angular contact ball bearing 7203DF bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of Double angular contact ball bearing 7203DF bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of your products?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need Double angular contact ball bearing 7203DF bearing or any models of bearings, please contact me!

Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271

Material Gcr15
Brand LLH
Standard DIN GB ISO JIS BA ANSI
Grade ABEC7
Clearance C3
Package NSK box package
Used Machine



japan 7203DF bearing

Bearing

      No.

Dimensions (mm) Weight (kg)       Bearing      No. Dimensions (mm) Weight (kg)
d D B d D B
7004C 7004AC 20 42 12 0.06 7212C 7212AC 60 110 22 0.80
7005C 7005AC 25 47 12 0.07 7213C 7213AC 65 120 23 1.00
7006C 7006AC 30 55 13 0.11 7214C 7214AC 70 125 24 1.10
7007C 7007AC 35 62 14 0.15 7215C 7215AC 75 130 25 1.20
7008C 7008AC 40 68 15 0.18 7216C 7216AC 80 140 26 1.45
7009C 7009AC 45 75 16 0.23 7217C 7217AC 85 150 28 1.80
7010C 7010AC 50 80 16 0.25 7218C 7218AC 90 160 30 2.25
7011C 7011AC 55 90 18 0.38 7219C 7219AC 95 170 32 2.70
7012C 7012AC 60 95 18 0.40 7220C 7220AC 100 180 34 3.25
7013C 7013AC 65 100 18 0.43 7221C 7221AC 105 190 36 3.85
7014C 7014AC 70 110 20 0.60 7222C 7222AC 110 200 38 4.55
7015C 7015AC 75 115 20 0.63 7224C 7224AC 120 215 40 5.40
7016C 7016AC 80 125 22 0.85 7304C 7304AC 20 52 15 0.15
7017C 7017AC 85 130 22 0.89 7305C 7305AC 25 62 17 0.23
7018C 7018AC 90 140 24 1.15 7306C 7306AC 30 72 19 0.35
7019C 7019AC 95 145 24 1.20 7307C 7307AC 35 80 21 0.47
7020C 7020AC 100 150 24 1.25 7308C 7308AC 40 90 23 0.66
7021C 7021AC 105 160 26 1.60 7309C 7309AC 45 100 25 0.86
7022C 7022AC 110 170 28 1.95 7310C 7310AC 50 110 27 1.08
7024C 7024AC 120 180 28 2.10 7311C 7311AC 55 120 29 1.42
7203C 7203AC 17 40 12 0.06 7312C 7312AC 60 130 31 1.71
7204C 7204AC 20 47 14 0.10 7313C 7313AC 65 140 33 2.23
7205C 7205AC 25 52 15 0.12 7314C 7314AC 70 150 35 2.67
7206C 7206AC 30 62 16 0.19 7315C 7315AC 75 160 37 3.10
7207C 7207AC 35 72 17 0.28 7316C 7316AC 80 170 39 3.60
7208C 7208AC 40 80 18 0.37 7317C 7317AC 85 180 41 4.38
7209C 7209AC 45 85 19 0.41 7318C 7318AC 90 190 43 5.17
7210C 7210AC 50 90 20 0.46 7319C 7319AC 95 200 45 6.69

high quality 7203DF bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.

high quality 7203DF bearing
