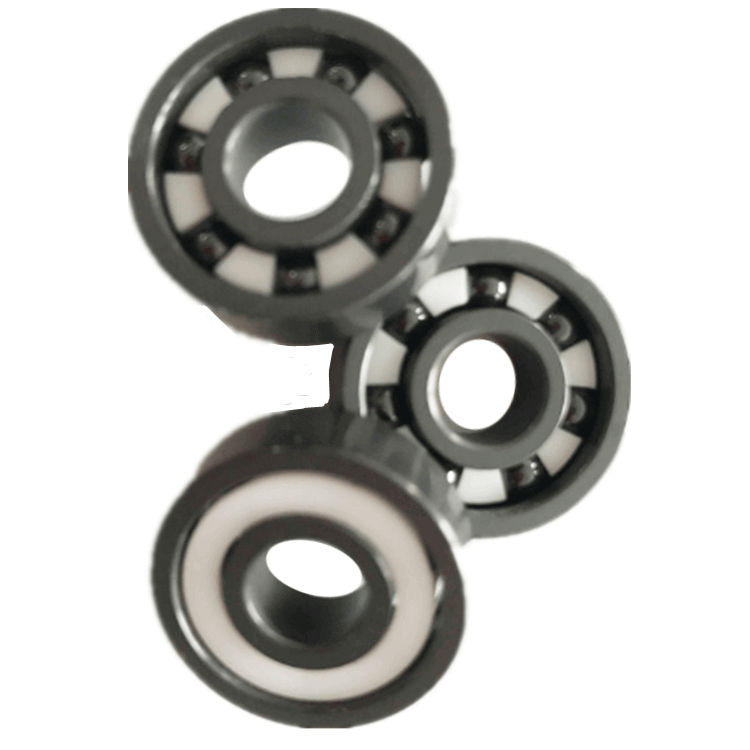

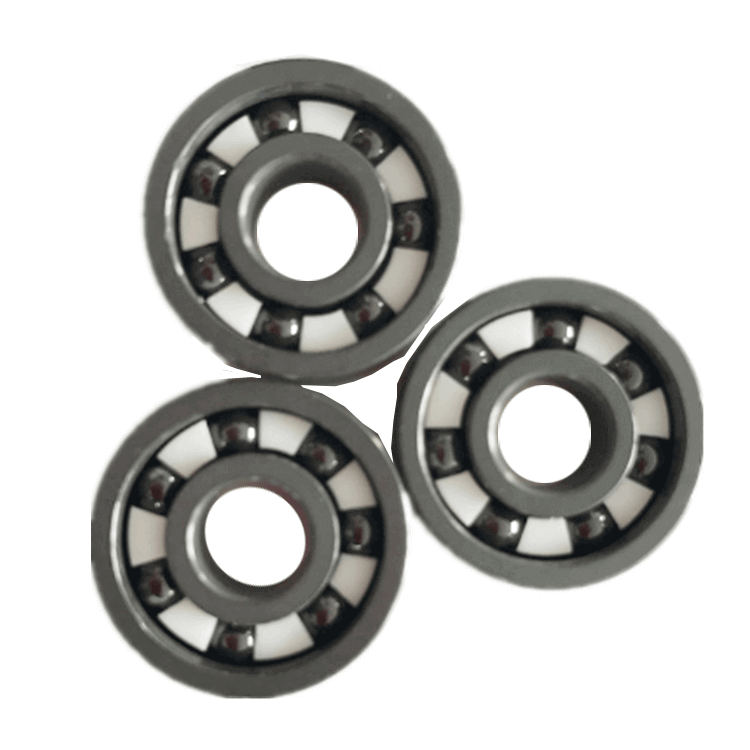

full ceramic 624 bearing has high temperature resistance, cold resistance, wear resistance, corrosion resistance, resistance to magnetoelectricity insulation, since no oil lubrication, high speed and other characteristics.

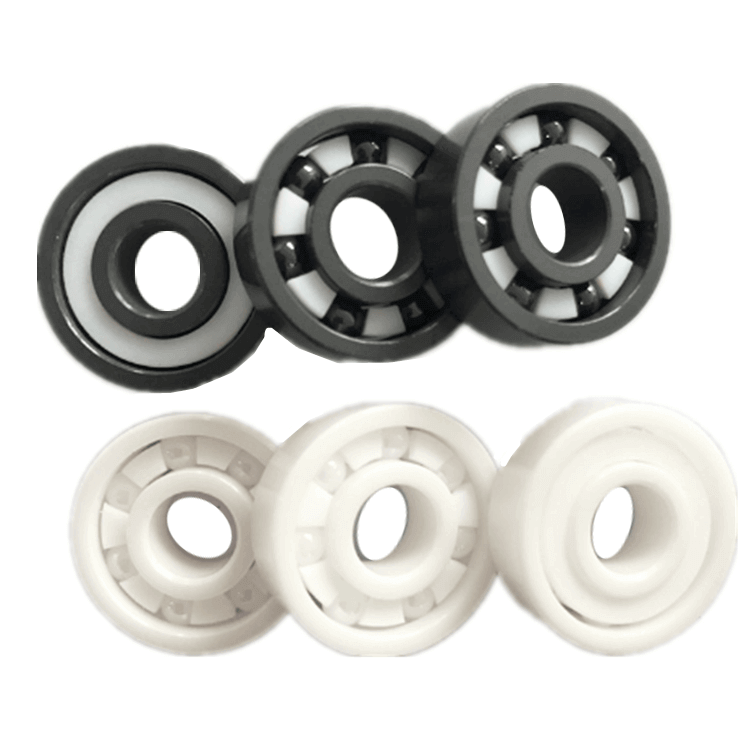

full ceramic 624 bearing bike bearing 624 sealed full ceramic 4*13*5mm bearing
full ceramic 624 bearing 4*13*5mm bearing with high precision are the most commonly used rolling bearings. Its structure is simple, easy to use. Mainly used to bear radial load, but increase the bearing radial clearance, with certain features of the angular contact ball bearings can withstand radial and axial load. In the high speed and should not use thrust ball bearings, can also be used to withstand the pure axial load. And deep groove ball bearing specifications of the same size of the other types of bearings, such bearings friction coefficient is small, high speed limit. But impatient impact, not suitable for heavy loads.
Application of full ceramic 624 bearing:
Electro plating, electro polishing ,Food processing, vacuum applications.
Fiber processing, conveyor processing. Medical radiation, photo processing,
Computer assembly, electronics applications, Medicine equipment, wet applications
FAQ
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for full ceramic 624 bearing 4*13*5mm bearing ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for full ceramic 624 bearing 4*13*5mm bearing ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for full ceramic 624 bearing 4*13*5mm bearing ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price of full ceramic 624 bearing 4*13*5mm bearing ?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of full ceramic 624 bearing 4*13*5mm bearing ?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for full ceramic 624 bearing 4*13*5mm bearing ?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if you are not satisfied with the full ceramic 624 bearing 4*13*5mm bearing ?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: 008618668903871
Wechat:GraceXu1234
| Product name | bike bearing 624 rs skateboard bearing 624 sealed full ceramic bearings |
| Bearing number | 624 |
| Size | 4x13x5mm |
| Material | full ceramic |
| Seals material | PEEK, PTFE |
| Stock | 10000pcs |
| Advantage | anti high temperature, high speed |
| Application | bicycle, skateboard, fishing reels |
| OEM service | acceptable |
| N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
| mm | mm | mm | mm | Dynamic | Static | Grease | Oil | Kg/pcs | |
| Cr | Cor | r/min | r/min | ||||||
| 623 | 3 | 10 | 4 | 0.15 | 0.5 | 0.216 | 38000 | 48000 | 0.0015 |
| 624 | 4 | 13 | 5 | 0.2 | 1.15 | 0.4 | 36000 | 45000 | 0.0032 |
| 625 | 5 | 16 | 5 | 0.3 | 1.76 | 0.68 | 32000 | 40000 | 0.005 |
| 626 | 6 | 19 | 6 | 0.3 | 2.34 | 0.885 | 28000 | 36000 | 0.008 |
| 627 | 7 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.013 |
| 628 | 8 | 24 | 8 | 0.3 | 4 | 1.59 | 24000 | 32000 | 0.017 |
| 629 | 9 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
| 6200 | 10 | 30 | 9 | 0.6 | 5.1 | 2.39 | 19000 | 26000 | 0.03 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.1 | 2.75 | 18000 | 24000 | 0.036 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.6 | 17000 | 22000 | 0.046 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.6 | 4.6 | 16000 | 20000 | 0.065 |
| 6204 | 20 | 47 | 14 | 1 | 12.8 | 6.65 | 14000 | 18000 | 0.107 |
| 6205 | 25 | 52 | 15 | 1 | 14 | 7.85 | 12000 | 16000 | 0.125 |
| 6206 | 30 | 62 | 16 | 1 | 19.5 | 11.3 | 10000 | 13000 | 0.201 |
| 6207 | 35 | 72 | 17 | 1.1 | 25.6 | 15.5 | 9000 | 11000 | 0.2854 |
| 6208 | 40 | 80 | 18 | 1.1 | 27.6 | 17.4 | 8500 | 10000 | 0.373 |
| 6209 | 45 | 85 | 19 | 1.1 | 31.2 | 20.4 | 7500 | 9000 | 0.42 |
| 6210 | 50 | 90 | 20 | 1.1 | 35.1 | 23.2 | 7000 | 8500 | 0.467 |
| 6211 | 55 | 100 | 21 | 1.5 | 43.4 | 29.2 | 6300 | 7500 | 0.609 |
| 6212 | 60 | 110 | 22 | 1.5 | 47.8 | 32.9 | 6000 | 7000 | 0.804 |
| 6213 | 65 | 120 | 23 | 1.5 | 50.7 | 37.1 | 5300 | 6300 | 1.04 |
| 6214 | 70 | 125 | 24 | 1.5 | 55.8 | 41.1 | 5000 | 6000 | 1.12 |
| 6215 | 75 | 130 | 25 | 1.5 | 60.8 | 45.4 | 4800 | 5600 | 1.2 |
