Thrust ball bearing inch series f3-8m micro thrust ball bearing are produced as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.
Thrust ball bearing inch series f3-8m micro thrust ball bearing
Discription of Thrust ball bearing inch series f3-8m micro thrust ball bearing:
Thrust ball bearing inch series f3-8m micro thrust ball bearing are produced as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.

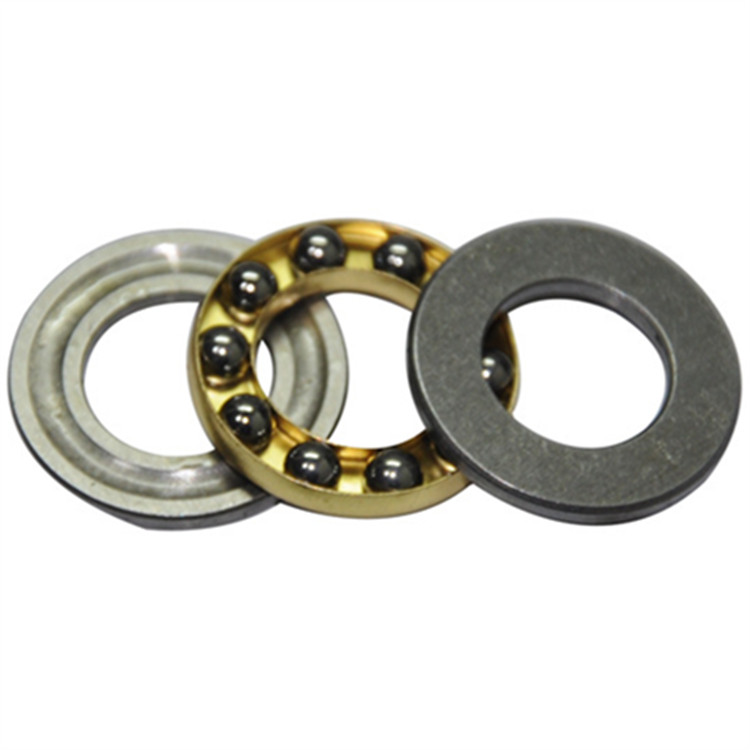

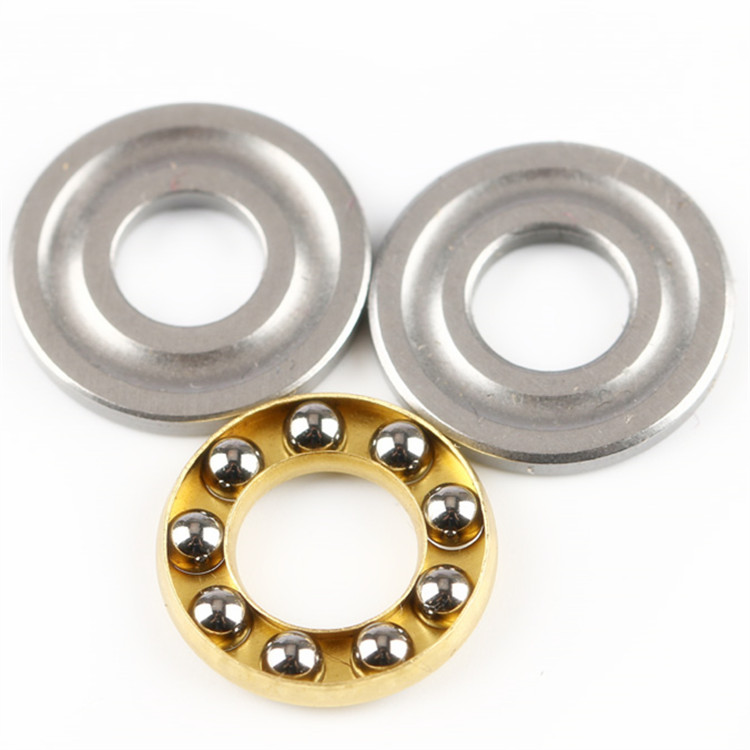

Thrust ball bearing inch series f3-8m micro thrust ball bearing are separable, the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.
Specifications for Thrust ball bearing inch series f3-8m micro thrust ball bearing:
1. Thrust ball bearing Equipped with one-way, two-way two types
2. In order to allow installation error, either one-way or two-way, can choose spherical self-aligning spherical seat cushion type or with spherical seat type.
3. High quality steel - used can extend bearing life highest 80% super clean steel
Application of Thrust ball bearing inch series f3-8m micro thrust ball bearing:
1.Thrust ball bearing inch series f3-8m micro thrust ball bearing should use close to the radial bearing, in order to prevent the effect of shafts deflection.
2.When using big size ball bearings on a horizontal shaft, preload should be implemented to prevent the clearance between housing washer and balls.
3.Under the inevitable circumstances of shaft deflection and misalignment, aligning seat washer should be applied.
FAQ:
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for Thrust ball bearing inch series f3-8m micro thrust ball bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Thrust ball bearing inch series f3-8m micro thrust ball bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for Thrust ball bearing inch series f3-8m micro thrust ball bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need Thrust ball bearing inch series f3-8m micro thrust ball bearing or any models of bearings, please contact me!
Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271
| Product Name | Thrust ball bearing inch series f3-8m micro thrust ball bearing |
| Material | chrome steel or stainless steel ,hybrid ceramic, |
| Brand | LLH or OEM |
| Standard | DIN GB ISO JIS BA ANSI |
| Grade | ABEC-3 ABEC-5 , ABEC-7, ABEC-9 |
| Clearance | C0, C3 ,C5 |
| Package | carton package |
| Used | Machine |
|
Model |
DIA (mm) | Weight (kg) | |||
| d | d1 | D | H | ||
| 52202 | 15 | 10 | 32 | 26 | 0.085 |
| 52204 | 20 | 15 | 40 | 26 | 0.144 |
| 52205 | 25 | 20 | 47 | 28 | 0.23 |
| 52206 | 30 | 25 | 52 | 29 | 0.26 |
| 52207 | 35 | 30 | 62 | 34 | 0.405 |
| 52208 | 40 | 30 | 68 | 36 | 0.54 |
| 52209 | 45 | 35 | 73 | 37 | 0.64 |
| 52210 | 50 | 40 | 78 | 39 | 0.71 |
| 52211 | 55 | 45 | 90 | 45 | 1.12 |
| 52212 | 60 | 50 | 95 | 46 | 1.15 |
| 52213 | 65 | 55 | 100 | 47 | 1.36 |
| 52214 | 70 | 55 | 105 | 47 | 1.52 |
| 52215 | 75 | 60 | 110 | 47 | 1.6 |
| 52216 | 80 | 64 | 115 | 48 | 1.73 |
| 52217 | 85 | 70 | 125 | 55 | 2.22 |
| 52218 | 90 | 75 | 135 | 62 | 3.14 |
| 52220 | 100 | 85 | 150 | 67 | 4.2 |
| Size | stell balls | Weight | RPM r/min | load | ||||||
| Model number | ID | OD | H | balls quantity | Diameter | KG | grease | Oil | Co(KN) | C(KN) |
| F2.5-6 | 2.5 | 6 | 3 | 6 | 1.2 | 0.0007 | 16000 | 17500 | 0.6 | 85 |
| F3-8 | 3 | 8 | 3.5 | 7 | 1.588 | 0.001 | 9100 | 11700 | 0.72 | 0.9 |
| F4-9 | 4 | 9 | 4 | 8 | 1.588 | 0.0012 | 8800 | 11400 | 0.72 | 0.84 |
| F4-10 | 4 | 10 | 4 | 9 | 1.588 | 0.0016 | 8800 | 11400 | 0.72 | 0.84 |
| F5-10 | 5 | 10 | 4 | 9 | 1.588 | 0.0015 | 8500 | 11100 | 0.72 | 0.79 |
| F5-11 | 5 | 11 | 4.5 | 9 | 1.588 | 0.0021 | 8500 | 11100 | 1.7 | 1.81 |
| F5-12 | 5 | 12 | 4 | 9 | 1.58 | 0.0022 | 8500 | 11100 | 0.79 | 0.72 |
| F6-11 | 6 | 11 | 4.5 | 9 | 1.588 | 0.002 | 8500 | 11100 | 1.7 | 1.81 |
| F6-12 | 6 | 12 | 4.5 | 9 | 2 | 0.0024 | 5000 | 7000 | 1.9 | 1.96 |
| F6-14 | 6 | 14 | 5 | 5 | 2.381 | 0.0036 | 4000 | 7000 | 1.9 | 1.96 |
| F7-13 | 7 | 13 | 4.5 | 9 | 2 | 0.0025 | 4000 | 7000 | 1.9 | 1.96 |
| F7-15 | 7 | 15 | 5 | 8 | 3 | 0.004 | 3600 | 7000 | 1.91 | 1.975 |
| F7-15 | 7 | 15 | 5.5 | 9 | 2.381 | 0.004 | 3600 | 7100 | 1.91 | 1.974 |
| F7-17 | 7 | 17 | 6 | 6 | 3 | 0.006 | 3500 | 7100 | 2.56 | 3.15 |
| F8-16 | 8 | 16 | 5 | 9 | 3 | 0.004 | 4000 | 7000 | 1.88 | 1.943 |
| F8-19 | 8 | 19 | 7 | 10 | 3.175 | 0.009 | 3000 | 8000 | 3.5 | 3.85 |
| F9-17 | 9 | 17 | 5 | 10 | 3 | 0.0045 | 3400 | 5000 | 1.898 | 1.75 |
| F9-20 | 9 | 20 | 7 | 7 | 3.175 | 0.0089 | 2500 | 4500 | 3.5 | 3.85 |
| F10-18 | 10 | 18 | 5.5 | 10 | 3.175 | 0.006 | 2500 | 4500 | 2.56 | 3.15 |
| F12-21 | 12 | 21 | 5 | 11 | 3 | 0.006 | 1800 | 3000 | 2.1 | 2.6 |
| F12-23 | 12 | 23 | 7.5 | 11 | 3 | 0.013 | 1800 | 3000 | 3.605 | 3.9 |
| 2805 | 11.1 | 22.2 | 6.35 | 11 | 3 | 0.01 | 1800 | 3000 | 2.35 | 2.9 |
PS:This is part model number of thrust ball bearings we have, if you are fail to find the one you need, please contact us directly.
