NU2210 NU2210EC3 Cylindrical Roller Bearing NU2210ECJ size 50x90x23mm

Product Specification:

Model NU2210
Size 50x90x23mm
Original China
Brand LLH

See Price

Product Details
Description
Specification
Our factory

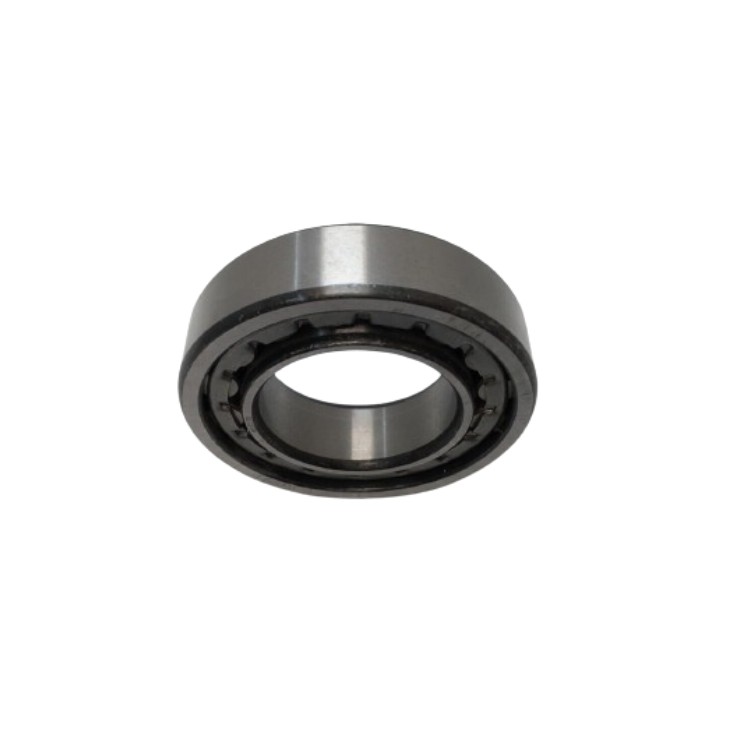

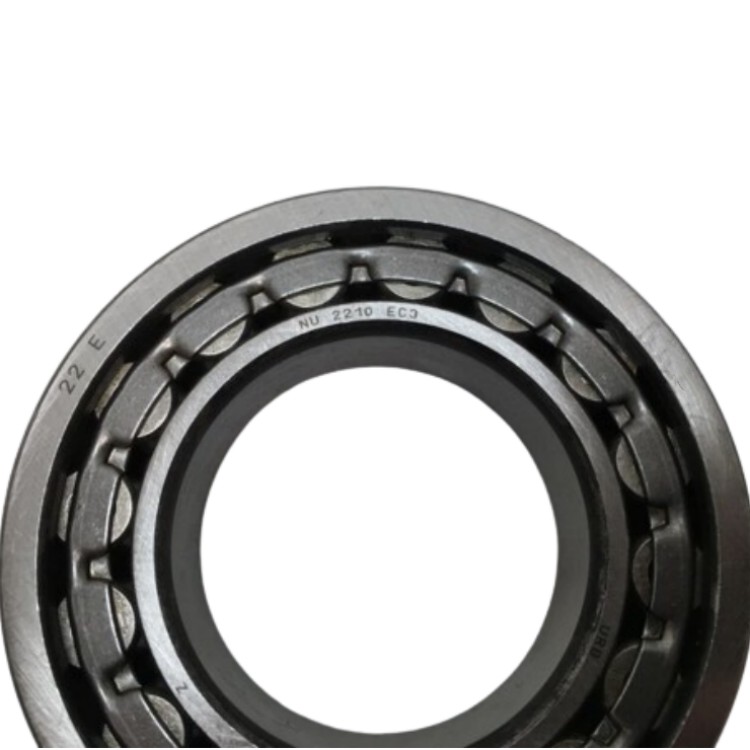

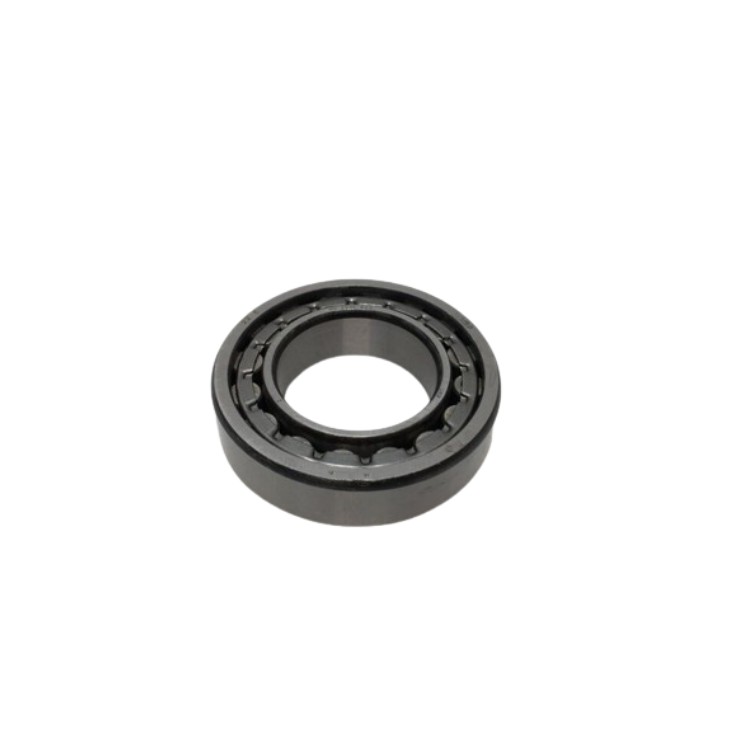

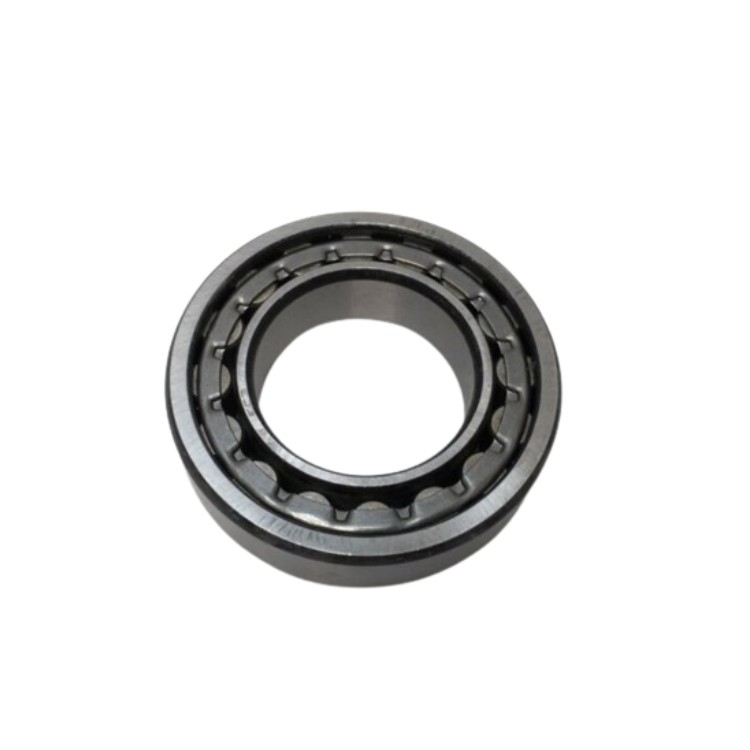

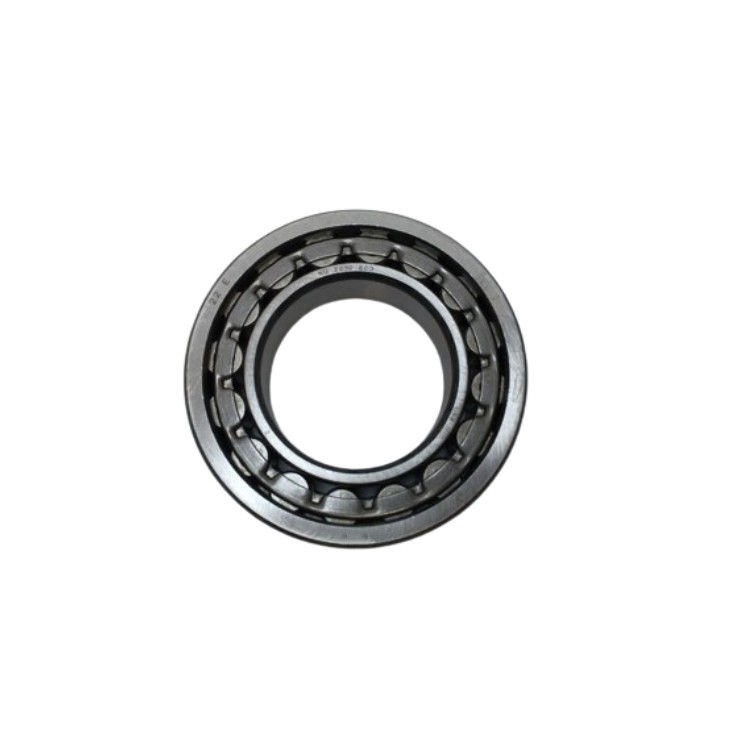

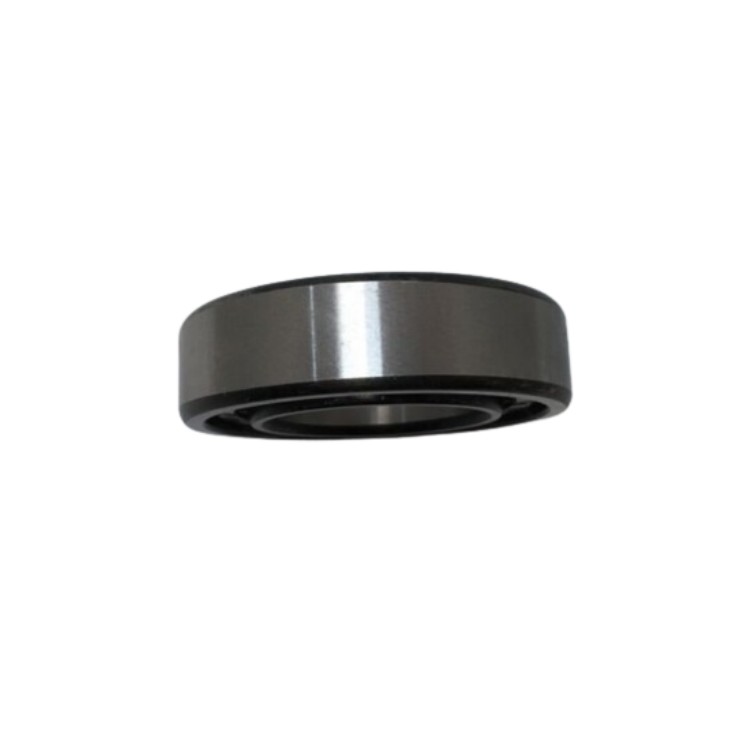

NU2210EC3 Cylindrical Roller Bearing 50x90x23mm NU2210 NU2210ECJ

1.Cylindrical roller bearings are separable bearings, installation and removal is very convenient.
2.Cylindrical roller bearings can withstand greater radial load, suitable for use in high speed applications.
3.Cylindrical roller bearings can be divided into single row, double row and multi-row cylindrical roller bearings and other different structures.
4.Cylindrical roller bearings can be divided into PO, P6, P5, P4, P2 according to accuracy class.

Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rolling elements. They can therefore be used in applications involving heavy radial and impact loading.

The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitable for applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.

There are different types designated NU, NJ, NUP, N, NF for single-row bearings, and NNU, NN for double-row bearings depending on the design or absence of side ribs.

1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for nu2210?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for nu2210?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for nu2210?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of nu2210?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check nu2210 before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234

d – Internal diameter	50 mm
D – External diameter	90 mm
B – Bearing/Inner ring width	23 mm
E – Upper roller diameter	80,4 mm
F – Under roller diameter	60,4 mm
rs – Min fillet radius	1,1 mm
r1s – Min fillet radius	1,1 mm
Radial clearance class	CN
Mass	0,571 kg

high speed bearing

Model number	Old Model	ID	OD	B	Cr	Cor
		(mm)	(mm)	(mm)	(kN)	(kN)
NU202	32202	15	35	11	7.98	5.5
NU203	32203	17	40	12	9.12	7
NU303	–	17	47	14	12.8	10.8
NU1004	–	20	42	12	10.5	9.2
NU204E	32504E	20	47	14	25.8	24
NU2204E	32204E	20	47	18	30.8	30
NU3O4E	–	20	52	15	29	25.5
NU2304E	32604E	20	52	21	39.2	37.5
NU1005	32105	25	47	12	11	10.2
NU205E	32205E	25	52	15	27.5	26.8
NU2205E	32505E	25	52	18	32.8	33.8
NU305E	32305E	25	62	17	38.5	35.8
NU2305E	32605E	25	62	24	53.2	54.5
NU1006	32106	30	55	13	13	12.8
NU206E	32206E	30	62	16	36	35.5
NU2206E	32506E	30	62	20	45.5	48
NU306E	32306E	30	72	19	49.2	48.2
NU2306E	32606E	30	72	27	70	75.5
NU406	32406	30	90	23	57.2	53
NU1007	32107	35	62	14	19.5	18.8
NU207E	32207E	35	72	17	46.5	48
NU2207E	32507E	35	72	23	57.5	63
NU307E	32307E	35	80	21	62	63.2
NU2307E	32607E	35	80	31	87.5	98.2
NU407	32407	35	100	25	70.8	68.2
NU1008	32108	40	68	15	21.2	22
NU208E	32208E	40	80	18	51.5	53
NU2208E	32508E	40	80	23	67.5	75.2
NU308E	32308E	40	90	23	76.8	77.8
NU2308E	32608E	40	90	33	105	118
NU408	32408	40	110	27	90.5	89.8
NU1009	32109	45	75	16	23.2	23.8
NU209E	32209E	45	85	19	58.5	63.8
NU2209E	32509E	45	85	23	71	82
NU2309E	32609E	45	100	36	130	152
NU400	–	45	120	29	102	100
NU1010	32110	50	80	16	25	27.5
NU210E	32210E	50	90	20	61.2	69.2

high quality bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. .We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers. precision bearing
