pom plastic bearing Skateboard Wheel Plastic Deep Groove Ball Bearing With Plastic Bearing POM Ring

POM plastic bearings , PP plastic bearing POM and PA materials with good mechanical strength and wear resistance , suitable for the production of more sophisticated plastic bearings, working temperature from -60 °C ~ 100 °C, high strength and smooth surface

Product Specification:

Structure Deep Groove
Type Ball
Brand Name LLH or as your request
Bore Size 12mm
Outside Diameter: 32mm
Precision Rating P0 P6 P5 P4 P2

See Price

Product Details
Description
Specification
Our factory

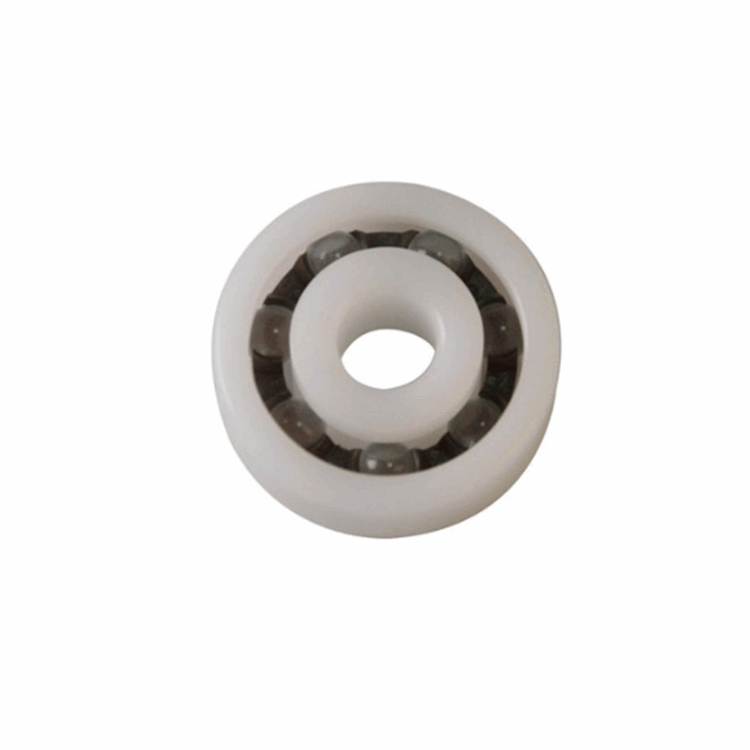

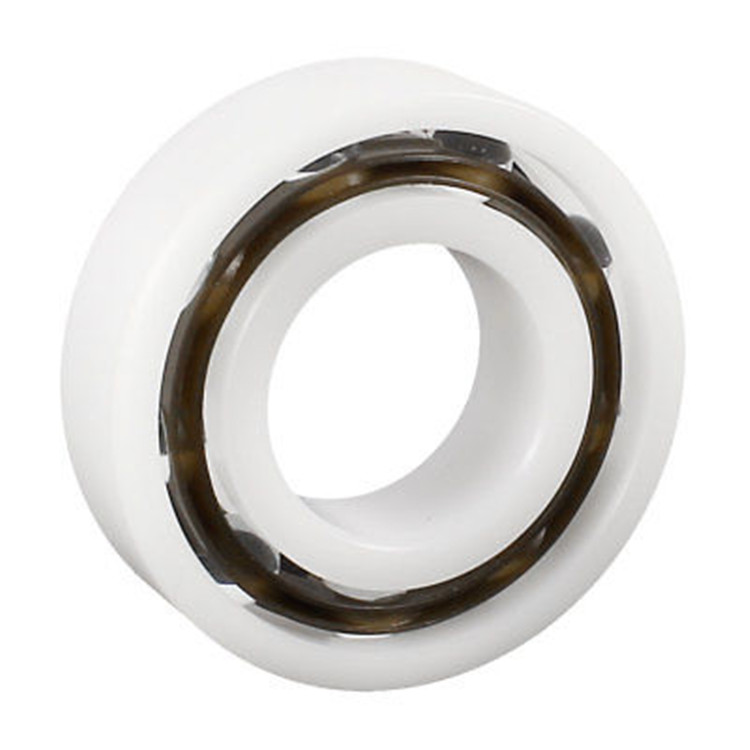

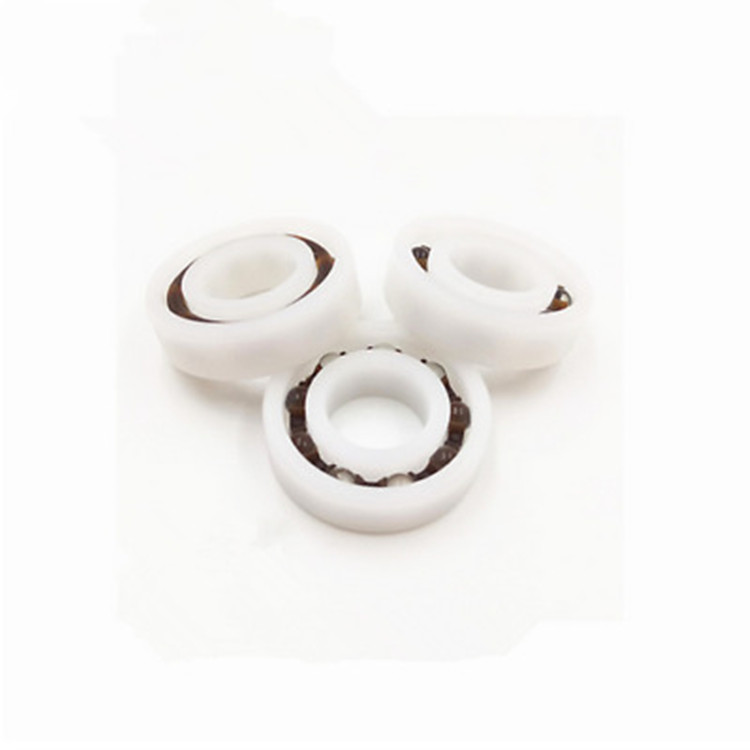

POM Plastic Bearing Skateboard Wheel Plastic Deep Groove Ball Bearing With Plastic Bearing POM Ring

pom plastic bearing 6201

POM and PP plastic bearing Materials with good mechanical strength and wear resistance , suitable for the production of more sophisticated plastic bearings, working temperature from -60 °C ~ 100 °C, high strength and smooth surface , basically does not appear tension , its good self-lubricating properties and low coefficient of friction , while maintaining the traditional advantages of plastic bearings on the basis of precise and can be used in high speed operation

. 6201 pom plastic bearing

Features of pom plastic bearing with plastic bearing pom ring :

(1) rigidity, high hardness , even at low temperatures , high impact strength
(2) good excellent elasticity , creep resistance ;
(3) high thermal stability and very good dimensional stability ;
(4)good sliding properties , wear resistance ;
(5) physiologically inert , suitable for contact with food.
(6) Even in strong acid and strong oxidizing agents, poor paint adhesion pom plastic bearing manufacturer

Main purpose of pom plastic bearing with plastic bearing pom ring :
Mechanical and electrical equipment , fitness equipment , food machinery , furniture and decorating materials

supply pom plastic bearing

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time for pom plastic bearing with plastic bearing pom ring ?

A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples for pom plastic bearing with plastic bearing pom ring ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment for pom plastic bearing with plastic bearing pom ring ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.

Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

Q: When can I get the price of pom plastic bearing?
A: after we get your inquiry, usually within 2-6 hours. Urgent will be faster.

Q:How about your quality of pom plastic bearing with plastic bearing pom ring ?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

Q: What is the MOQ of your pom plastic bearing with plastic bearing pom ring ?
A: Usually ≥1, According your demand.

Q: Will you check these products before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal, Please contact us at first time, we will immediately processing.

If you need pom plastic bearing with plastic bearing pom ring or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype: +8618668903871
Whatsapp: 008618668903871
Wechat:GraceXu1314

production name	123210mm plastic ball bearing 6201 bearing
Brand	LLH or OEM
Model Number	6201
Dimension	123210mm
Ring Material	Gcr15/ Carbon Steel/ Stainless Steel/ Si3N4/ ZrO2
Cage Material	Steel/ Brass/ Nylon/ Custom
Precision	P0, P6, P5, or as requested
Vibration	ZV1, ZV2, ZV3, or as requested
Clearance	C0,C2,C3, or as requested
Quality standard	ISO9001:2000/ SGS

plastic bearing pom ring factory

Model	Size(mm)			Model	Size(mm)			Model	Size(mm)
Model	d	D	B	Model	d	D	B	Model	d	D	B
6000	10	26	8	6200	10	30	9	6300	10	35	11
6001	12	28	8	6201	12	32	10	6301	12	37	12
6002	15	32	9	6202	15	35	11	6302	15	42	13
6003	17	35	10	6203	17	40	12	6303	17	47	14
6004	20	42	12	6204	20	47	14	6304	20	52	15
6005	25	47	12	6205	25	52	15	6305	25	62	17
6006	30	55	13	6206	30	62	16	6306	30	72	19
6007	35	62	14	6207	35	72	17	6307	35	80	21
6008	40	68	15	6208	40	80	18	6308	40	90	23
6009	45	75	16	6209	45	85	19	6309	45	100	25
6010	50	80	16	6210	50	90	20	6310	50	110	27

6011	55	90	18	6211	55	100	21	6311	55	120	29
6012	60	95	18	6212	60	110	22	6312	60	130	31
6013	65	100	18	6213	65	120	23	6313	65	140	33
6014	70	110	20	6214	70	125	24	6314	70	150	35
6015	75	115	20	6215	75	130	25	6315	75	160	37
6016	80	125	22	6216	80	140	26	6316	80	170	39
6017	85	130	22	6217	85	150	28	6317	85	180	41
6018	90	140	24	6218	90	160	30	6318	90	190	43
6019	95	145	24	6219	95	170	32	6319	95	200	45
6020	100	150	24	6220	100	180	34	6320	100	215	47

6021	105	160	26	6221	105	190	36	6321	105	225	49
6022	110	170	28	6222	110	200	38	6322	110	240	50
6024	120	180	28	6224	120	215	40	6324	120	260	55
6026	130	200	33	6226	130	230	40	6326	130	280	58
6028	140	210	33	6228	140	250	42	6328	140	300	62
6030	150	225	35	6230	150	270	45	6330	150	320	65

6201 plastic bearing pom ring supply plastic bearing pom ring high quality plastic bearing pom ring
