High quality roller pillow block bearing ucfl 210

is Pillow blocks are usually referred to the housings which have a bearing fitted into them and thus the user need not purchase the bearings separately

Product Specification:

Model UCFL210
Brand LLH or as your request
Original China

See Price

Product Details
Description
Specification
Our factory

High quality roller pillow block bearing ucfl 210

Description:

roller pillow block is usually referred to the housings which have a bearing fitted into them and thus the user need not purchase the bearings separately. Pillow blocks are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.

roller pillow block ucfl 210: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.

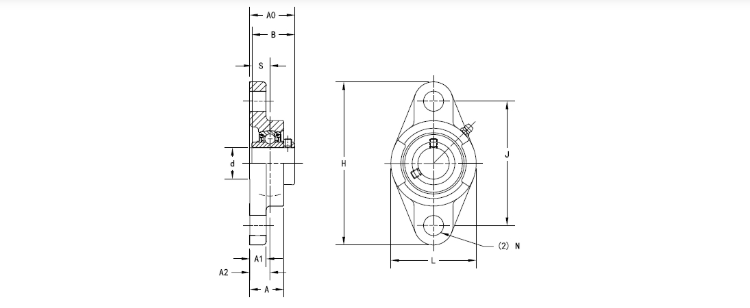

Roller pillow block bearing UCFL210 Details:


Bearing Number	UC210
Shaft Size d	50mm
Locking Style	Set Screw Locking
Housing Construction	Two-Bolt Flange
Total Length H	197.00 mm
Total Height L	115.00mm
Housing Width A	40.00mm
Bolt Hole Spacing J	157.00mm
Bolt Hole Size N	19.00mm
Flange Thickness A1	15.00mm
Center of Bearing from Housing End A2	22.00mm
Inner Ring Width B	51.00mm
Center of Bearing from Bearing End S	19mm
Bolt Size	M16
Dimension A0	2.156in

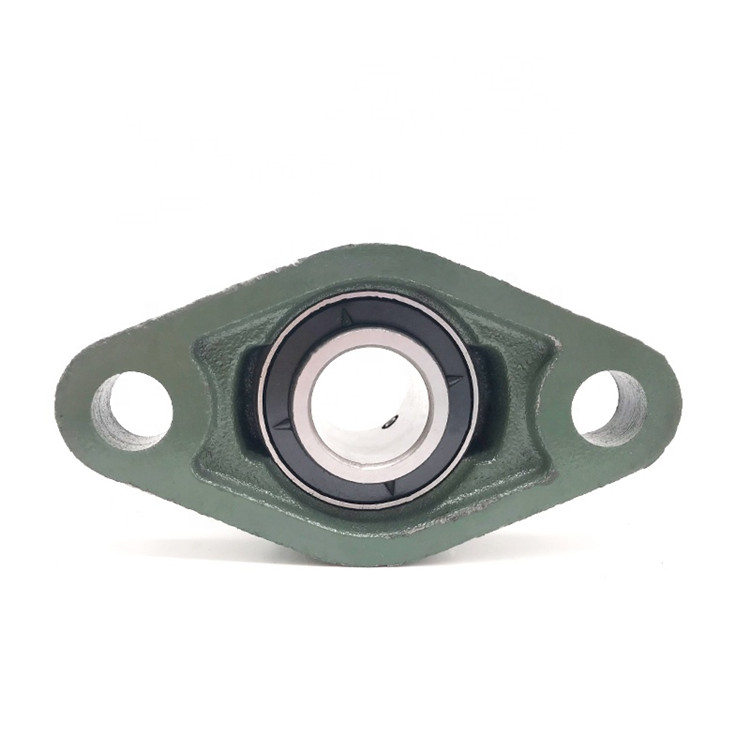

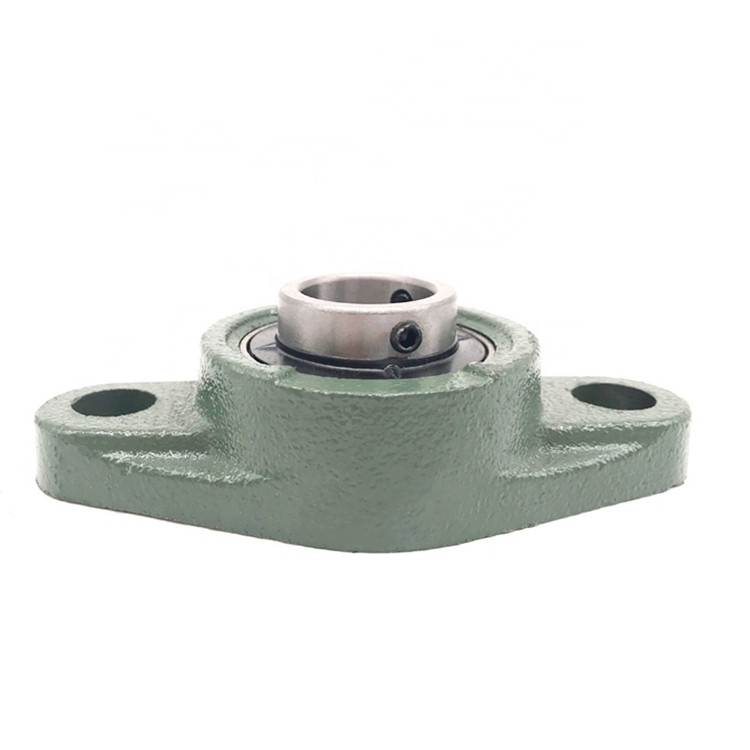

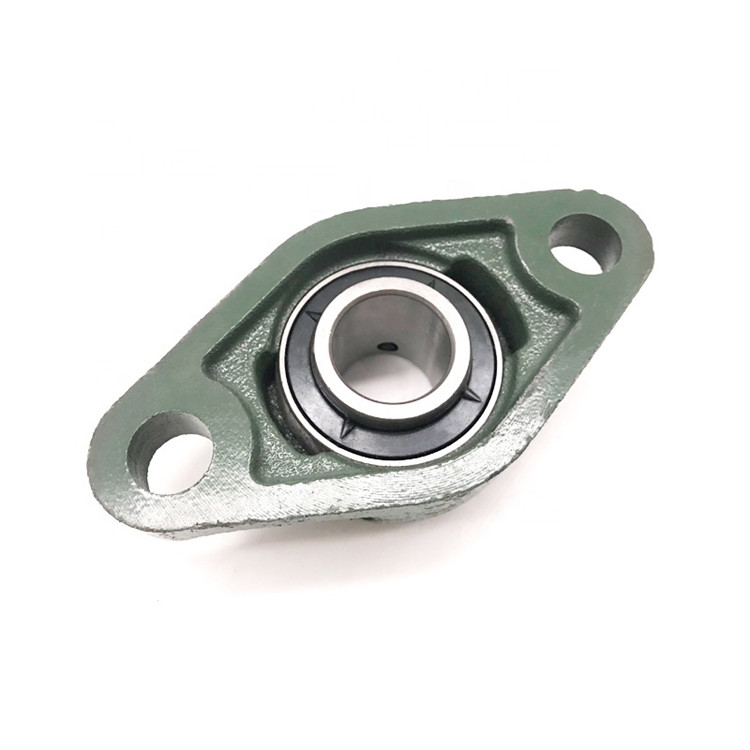

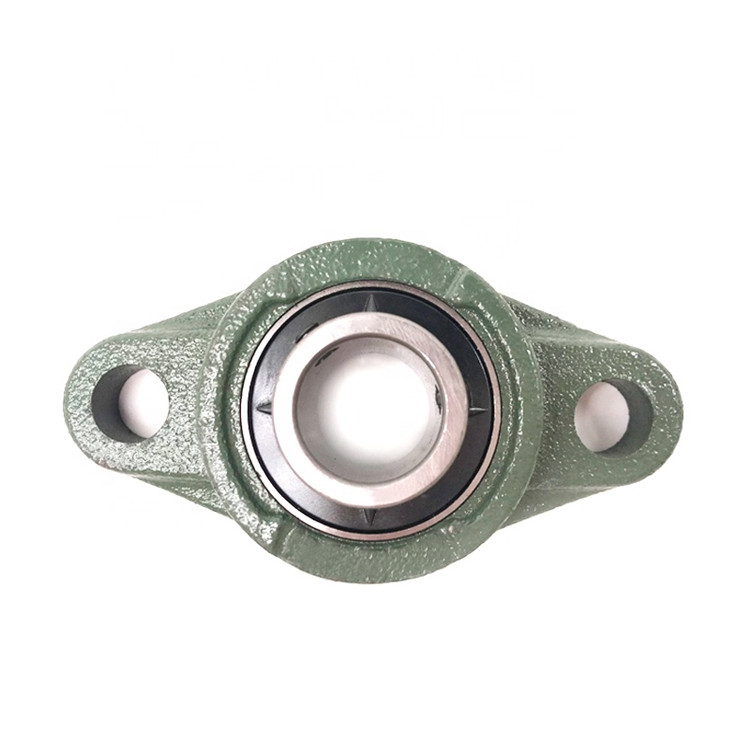

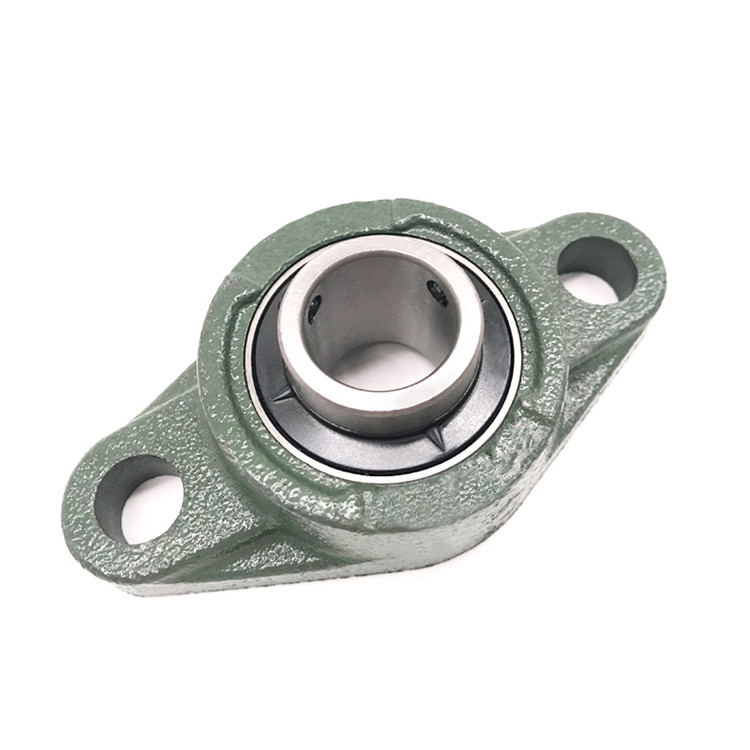

Roller pillow block bearing UCFL210 Pictures:

FAQ:

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for roller pillow block ucfl 210?

A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

3,Q: Do you provide samples for roller pillow block ucfl 210? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for roller pillow block ucfl 210?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.

5, Q:Could you accept OEM and customize for roller pillow block ucfl 210?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price for roller pillow block ucfl 210?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of pillow block ucfl 210?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ of your roller pillow block ucfl 210?
A: Usually ≥1, According your demand.

9,Q: Will you check these sprag bearing before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if If you are not satisfied with the roller pillow block ucfl 210?
A: If have any abnormal,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234

Type	Pillow Block Bearing	Model	UCFL210
Brand	LLH/OEM	d (mm)	22mm
Material	Chrome Steel GCR15	a (mm)	50mm
Seal type	Open
Precision rate	P0, P6, P5, or as requested	Payment Term	30% T/T In Advance, 70% T/T before shipment

high speed bearing

Bearing Unit	Dimensions(mm)										Shaft Dia	Weight
No.	Dimensions(mm)										d	(kg)
	mm	a	e	b	i	g	l	z	s	n	Bi
UCFL202	15	113	90	60	15	12	25.5	30.9	12	11.5	27.4	0.42
UCFL203	17	113	90	60	15	12	25.5	30.3	12	11.5	27.4	0.41
UCFL204	20	113	90	60	15	12	25.5	33.7	12	12.3	31	0.48
UCFL205	25	130	99	68	16	14	27	35.8	16	14.3	34.1	0.6
UCFL206	30	148	117	80	18	14	31	40.2	16	15.9	38.1	0.98
UCFL207	35	161	130	90	19	16	34	44.4	16	17.5	42.9	1.31
UCFL208	40	175	144	100	21	16	36	51.2	16	19	49.2	1.53
UCFL209	45	188	148	108	22	18	38	52.2	19	19	49.2	1.68
UCFL210	50	197	157	115	22	18	40	54.6	19	19	51.6	1.88
UCFL211	55	224	184	130	25	20	43	58.4	19	22.2	55.6	3.1
UCFL212	60	250	202	140	29	20	48	68.7	23	25.4	65.1	4
UCFL213	65	258	210	155	30	24	50	69.7	23	25.4	65.1	5
UCFL214	70	265	216	160	31	24	54	75.4	23	30.2	74.6	5.6
UCFL215	75	275	225	165	34	24	56	78.5	23	33.3	77.8	6.2
UCFL216	80	290	233	180	34	24	58	83.3	25	33.3	82.6	8.2
UCFL217	85	305	248	190	36	26	63	87.6	25	34.1	85.7	9.26
UCFL218	90	320	265	205	40	26	68	96.3	25	39.7	96	11.73
