4 bolt flange bearing dimensions UCF209 pillow block bearing

Pillow block bearing consisting of a ball bearing insert and a cast iron housing .directly mounted to the main body of the machine or device with a few bolts.

Product Specification:

Model UCF209
Brand LLH or as your request
Original China or as your request

See Price

Product Details
Description
Specification
Our factory

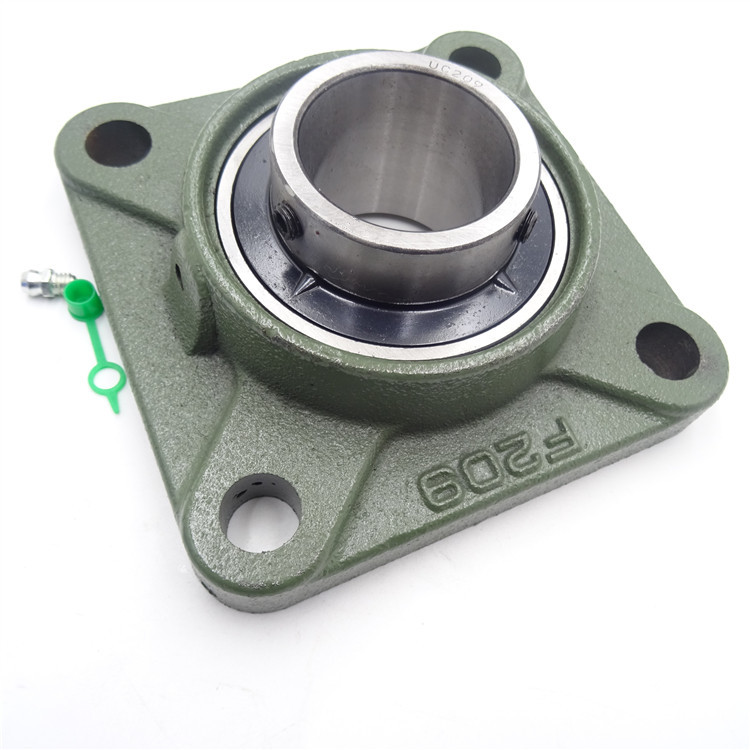

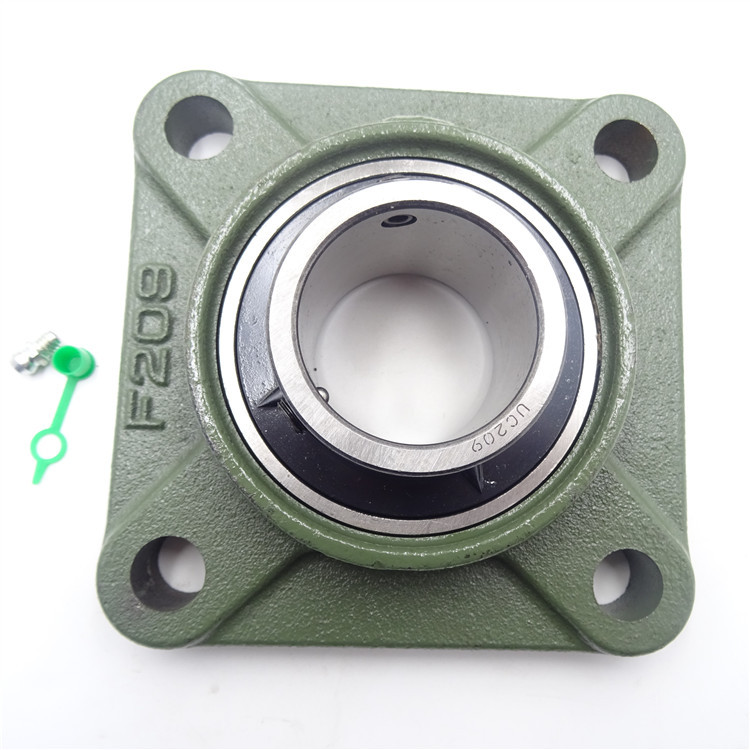

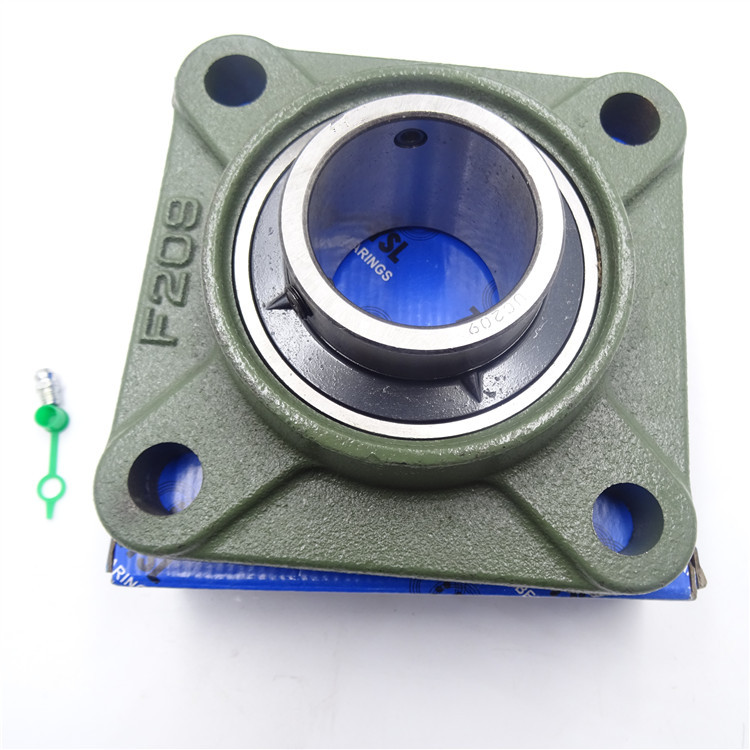

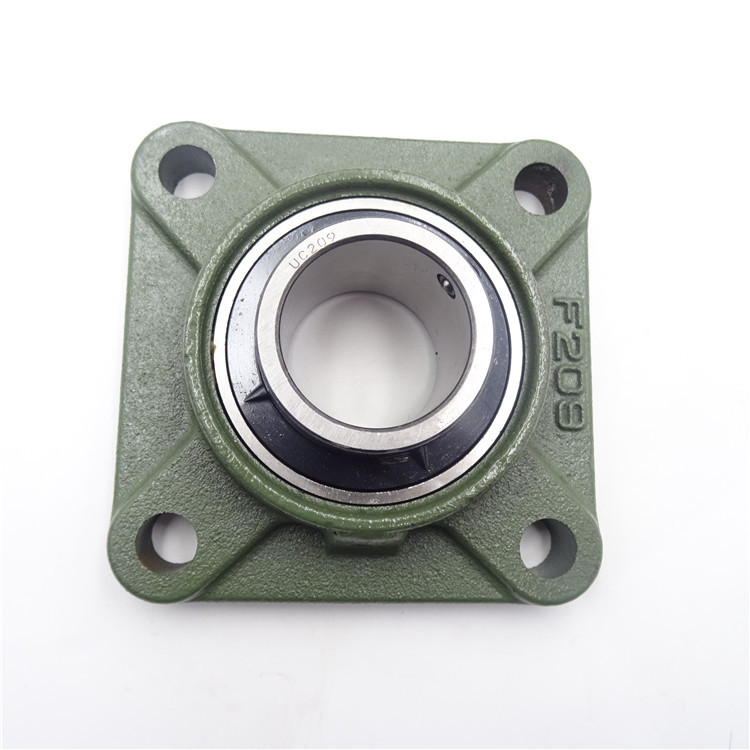

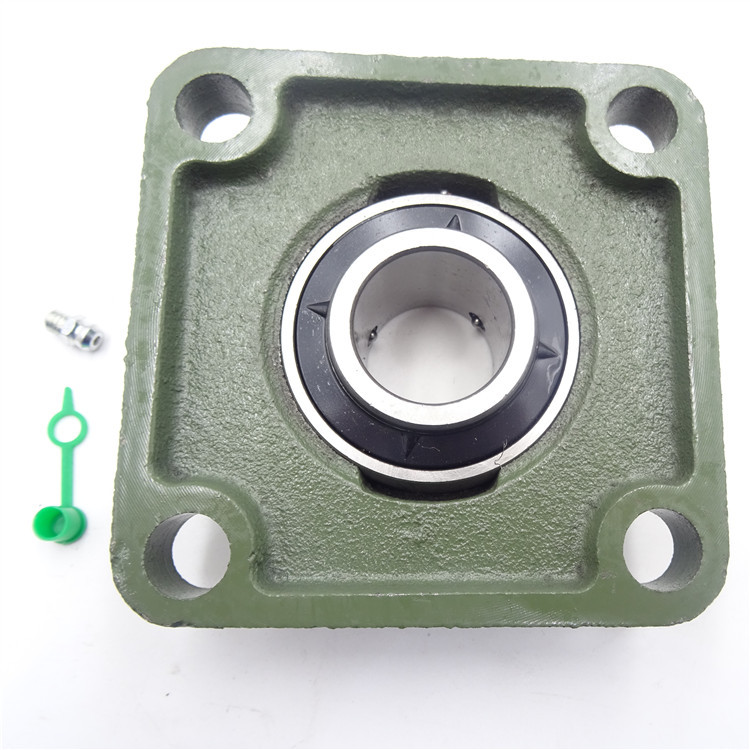

4 bolt flange bearing dimensions UCF209 pillow block bearing

4 bolt flange bearing dimensions UCF209 pillow block bearing is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. Housing material for a pillow block is typically made of cast iron or cast steel.

4 bolt flange bearing dimensions UCF209 pillow block bearing usually refers to a housing with an included anti-friction bearing. A pillow block refers to any mounted bearing wherein the mounted shaft is in a parallel plane to the mounting surface, and perpendicular to the center line of the mounting holes, as contrasted with various types of flange blocks or flange units. A pillow block may contain a bearing with one of several types of rolling elements, including ball, cylindrical roller, spherical roller, tapered roller, or metallic or synthetic bushing. The type of rolling element defines the type of pillow block. These differ from "plummer blocks" which are bearing housings supplied without any bearings and are usually meant for higher load ratings and a separately installed bearing.

radial bearing vs thrust bearings

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for 4 bolt flange bearing dimensions UCF209?

A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

3,Q: Do you provide samples for 4 bolt flange bearing dimensions UCF209? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for 4 bolt flange bearing dimensions UCF209?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.

5, Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price for bearing?

A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of 4 bolt flange bearing dimensions UCF209?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ of your 4 bolt flange bearing dimensions UCF209?
A: Usually ≥1, According your demand.

9,Q: Will you check these products before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if If you are not satisfied with 4 bolt flange bearing dimensions UCF209?
A: If have any problem,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234

d	45 mm	Bore diameter
L	137 mm	Flange width
U	52.2 mm	Total height unit

high speed bearing

Bearing unit NO.	Shaft Dia mm	Dimensions mm						Bearing NO.	Housing NO.
Bearing unit NO.	Shaft Dia mm	a	e	i	g	l	s	Bearing NO.	Housing NO.
UCF201	12	86	64	15	11	25.5	12	UC201	F201
UCF202	15	86	64	15	11	25.5	12	UC202	F202
UCF203	17	86	64	15	11	25.5	12	UC203	F203
UCF204	20	86	64	15	11	25.5	12	UC204	F204
UCF205	25	95	70	16	13	27	12	UC205	F205
UCF206	30	108	83	18	13	31	12	UC206	F206
UCF207	35	117	92	19	15	34	14	UC207	F207
UCF208	40	130	102	21	15	36	16	UC208	F208
UCF209	45	137	105	22	16	38	16	UC209	F209
UCF210	50	143	111	22	16	40	16	UC210	F210
UCF211	55	162	130	25	18	43	19	UC211	F211
UCF212	60	175	143	29	18	48	19	UC212	F212
UCF213	65	187	149	30	22	50	19	UC213	F213
UCF214	70	193	152	31	22	54	19	UC214	F214
UCF215	75	200	159	34	22	56	19	UC215	F215
UCF216	80	208	165	34	22	58	23	UC216	F216
UCF217	85	220	175	36	24	63	23	UC217	F217
UCF218	90	235	187	40	24	68	23	UC218	F218

high quality bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. .We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers. precision bearing
