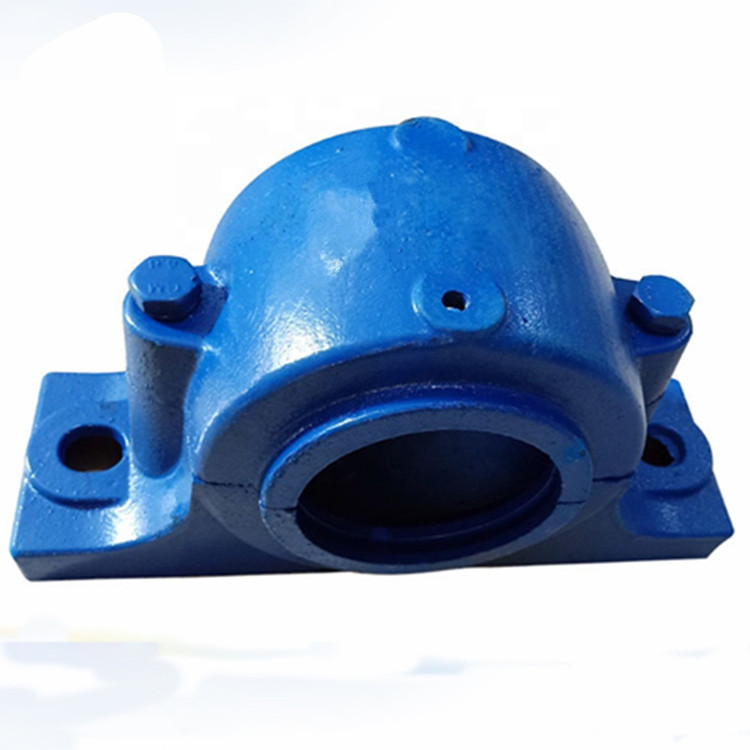

split plummer block housings sn517 plummer block bearing

The upper cover and the base of the split plummer block housings are separable and mainly bear radial load. It is mainly used in metallurgy, mining, transportation system, environmental protection equipment, etc.


Product Specification:

  • Model SN517
  • Material Cast Iron
  • Color Black/Green/Black or as your request
  • Original China
See Price

split plummer block housings sn517 plummer block bearingHigh quality bearing

split plummer block housing The main benefit of split plummer block housings is their easy installation; preassembled shafts can be mounted in them. When the housing bases are attached to the base plate, it is then only necessary to place the housing caps in position and to tighten the attachment bolts to complete the installation.

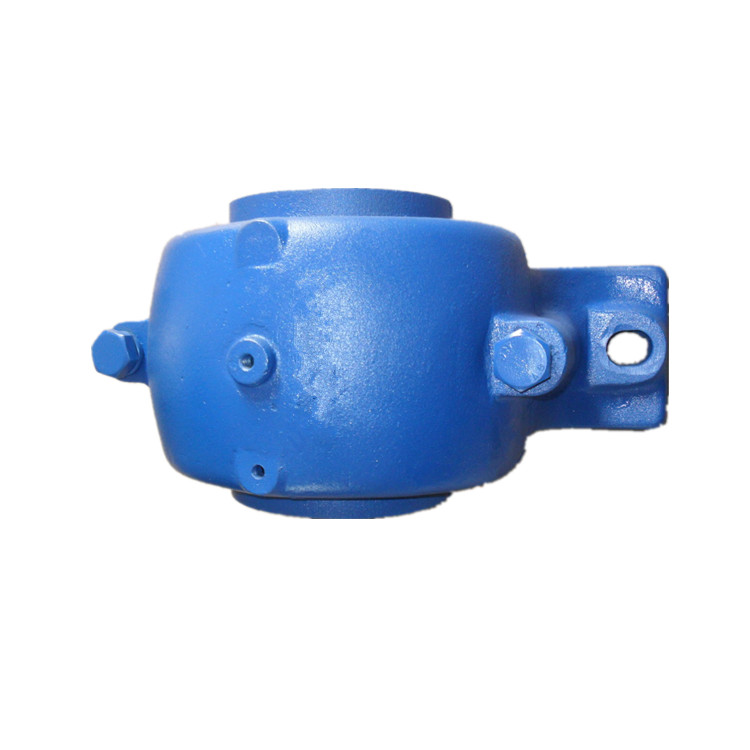

split plummer block housings enable the full service life potential of the incorporated bearings to be exploited with less need for maintenance. This supports user's efforts to further reduce maintenance costs. Among other characteristics, the housings are very stiff, making them insensitive to uncontrolled and excessive tightening of the attachment bolts. sn517 bearing housing
split plummer block housings are made of high quality, grey cast iron to provide high tensile strength. For applications where additional strength is required, housings made of spheroidal graphite cast iron are available.

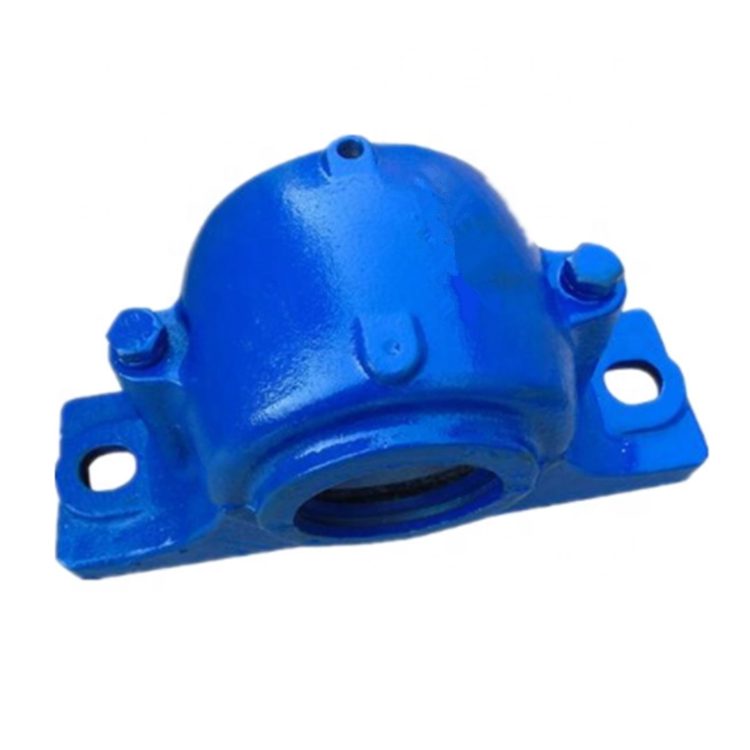

plummer block housing

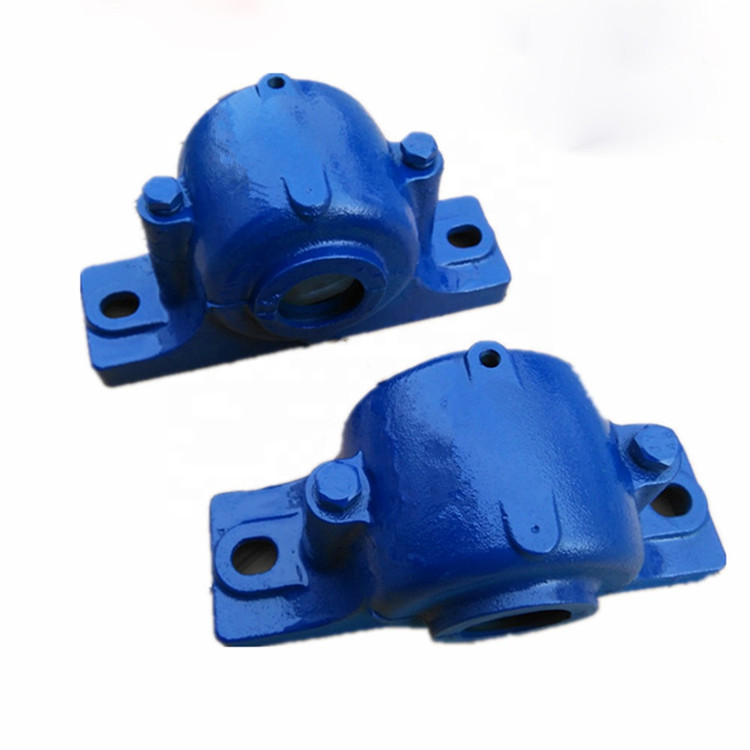

plummer block housings

high quality bearinghigh quality insert ball bearing

1,Q: Are you trading company or manufacturer ?

A: We are factory.

2,Q: How long is your delivery time for split plummer block housings sn517 plummer block bearing?

A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock,it is according to quantity.

3,Q: Do you provide samples for split plummer block housings sn517 plummer block bearing? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

4,Q: What is your terms of payment for split plummer block housings sn517 plummer block bearing?

A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.

5, Q:Could you accept OEM and customize for split plummer block housings sn517 plummer block bearing?

A:YES,we can customize for you according to sample or drawing.

6, Q: When can I get the price for split plummer block housings sn517 plummer block bearing?
A:  after we get your inquiry, usually within 2-6 hours.Urgent will be faster.

7,Q:How about your quality of split plummer block housings sn517 plummer block bearing?

A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.

8, Q: What is the MOQ of your split plummer block housings sn517 plummer block bearing?
A: Usually ≥1, According your demand.

9,Q: Will you check these split plummer block housings sn517 plummer block bearing before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.

10, Q: What will we do if If you are not satisfied with the sn517 plummer block bearing?
A: If have any abnormal,Please contact us at first time, we will immediately processing.

If you need any brand bearings or any models of bearings, please contact me!

Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234

Type
Plummer Block Unit
Model
SNL517
Brand
LLH/OEM
d
74.612mm
Material
Chrome Steel GCR15
D
320mm
Seal type
Open
B
95mm
Precision rate
P0, P6, P5, or as requested

high speed bearing

New items Specification(d*D*H) Weight
SN504 17*47*35 1.1
SN505 20*52*40 1.4
SN506 25*62*50 1.9
SN507 30*72*50 2.1
SN508 35*80*60 3.1
SN509 40*85*60 3.1
SN510 45*90*60 3.3
SN511 50*100*70 4.6
SN512 55*110*70 5.4
SN513 60*120*80 6.7
SN515 65*130*80 7.3
SN516 70*140*95 9.3
SN517 75*150*95 9.8
SN518 80*160*100 12.5
SN520 90*180*112 17
SN522 100*200*125 18.5
SN524 110*210*140 24.5
SN526 115*230*150 30
SN528 125*250*150 38
SN530 135*270*160 45.6
SN532 140*290*170 53.8

high quality bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.precision bearing
