Stainless steel spherical bearings radial spherical plain joint bearing

Stainless steel spherical bearings radial spherical plain joint bearing is a kind of special structure of sliding bearing. It is simple in structure than the rolling bearing, which is mainly composed of a spherical inner ring and a spherical outer ring, can bear larger load, according to the different types and structures, can be combined load to bear radial load, axial load and radial, axial exist at the same time.


Product Specification:

  • Model PHS22
  • Origin China
See Price

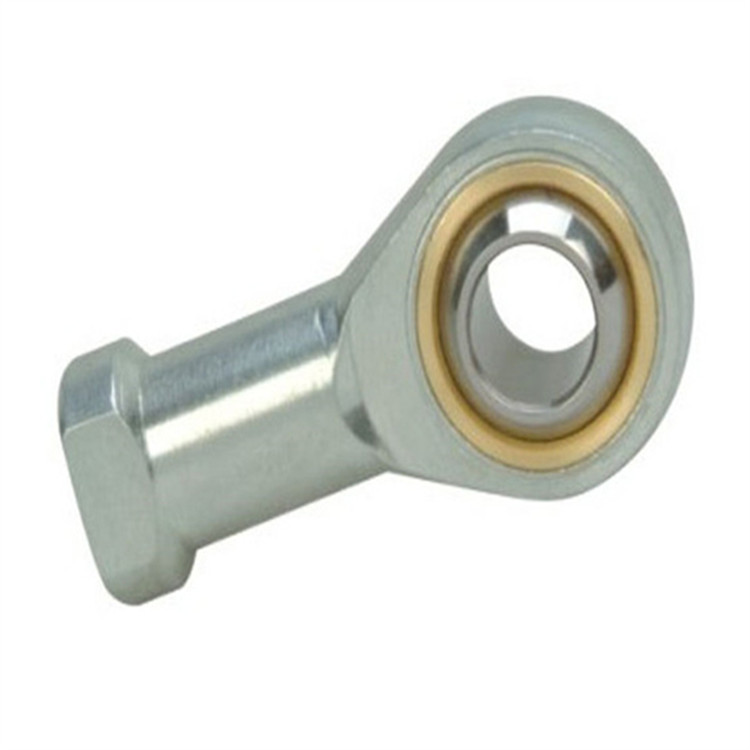

Stainless steel spherical bearings radial spherical plain joint bearing

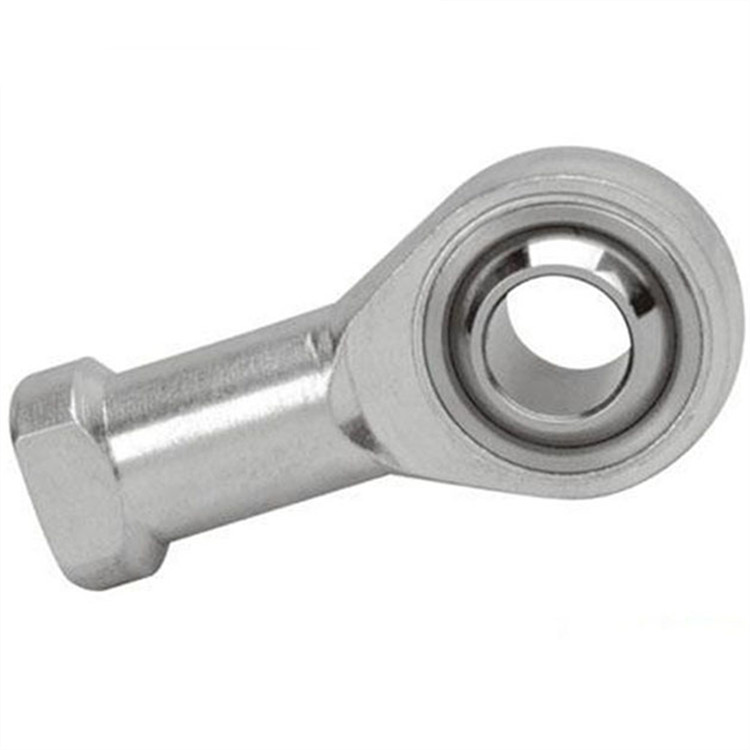

stainless steel spherical bearings phs22

precision radial spherical plain joint bearing

Features of Stainless steel spherical bearings radial spherical plain joint bearing:
1) Can bear high load. According to its different types and structures, rod end bearing can bear radial load, axial load as well as two kinds of loads together.
2) Spherical outside surface of inner ring is lined with composite, so it is self-lubricating.
3) Stainless steel spherical bearings radial spherical plain joint bearing has shock resistance, because of its spherical sliding large contact area, large dip angle and special craft processing method, such as lamenting, zincing, chroming or lining of outside sliding surface, spraying and so on.
4) Stainless steel spherical bearings radial spherical plain joint bearing has the resistance of corrosion, abrasion. It also can be self-aligning, self-lubricating, so it can work normally even though installed improperly.

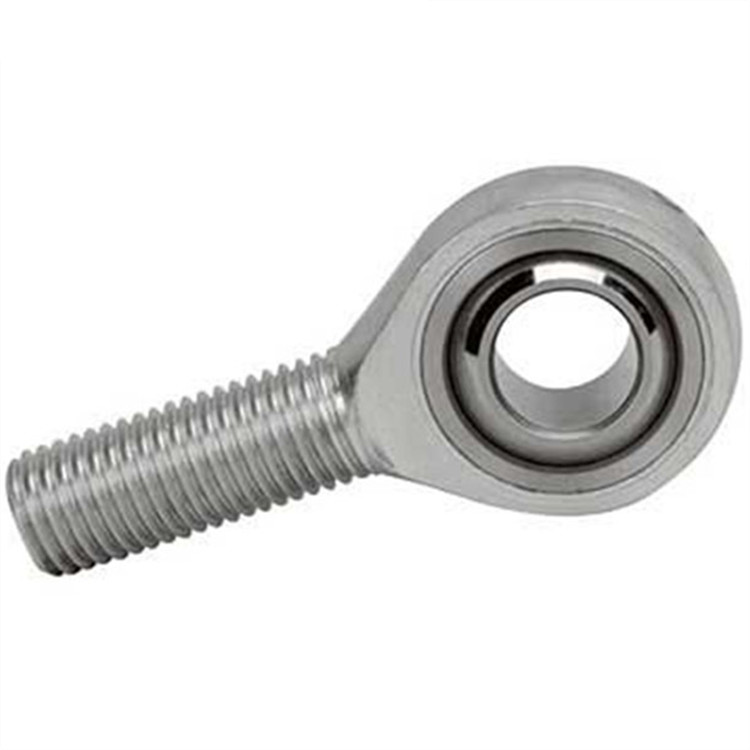

original stainless steel spherical bearings

phs22 stainless steel spherical bearings

Stainless steel spherical bearings radial spherical plain joint bearing is widely used in engineering hydraulic cylinder, forging machine tools, engineering machinery, automation equipment, automobile shock absorber, water conservancy machinery industries.

radial spherical plain joint bearingFAQ:
1,Q: Are you trading company or manufacturer?
A: We are factory.
2,Q: How long is your delivery time for Stainless steel spherical bearings radial spherical plain joint bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for Stainless steel spherical bearings radial spherical plain joint bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance. Payment>=1000USD, 30% T/T in advance ,pay the balance before shippment.
5, Q:Could you accept OEM and customize for Stainless steel spherical bearings radial spherical plain joint bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for Stainless steel spherical bearings radial spherical plain joint bearing?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with bearings?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
If you need Stainless steel spherical bearings radial spherical plain joint bearing or any models of bearings, please contact me!

Contact: Leon
Email: nsk@zyslbearing.com
Skype: lh19881023
MP/Whatsapp: +8615098916271
Wechat:leon15098916271

Product Name
Rod End Bearing
Material
Gcr15, stainless steel, Chrome steel
Brand name
LLH or OEM
Series
PHS 22
Vibration
V1,V2,V3,V4
Precision Rating
P0, P6,P5,P4,P2
Quality standard
ISO9001, ABEC-1(Z1V1)
Tolerance Grades
ABEC-1 (P0), ABEC-3 (P6),ABEC-5(P5)

Package
A: tube package+outer carton+pallets
B: single box+outer carton+pallet
C: According to your’s requirement

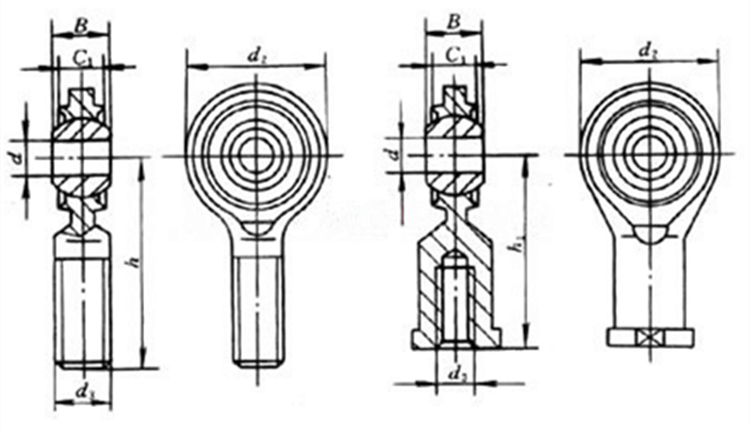

high speed radial spherical plain joint bearing

CODE Dimension(mm) Load ratings
KN
Weight
d d3 6H B C1 W L3 min d2 L4 h1 L5 d4 d5 d1 α≈ dyn. Cd stat. Cs KG
PHS4 4 M4x0.7 7 5.25 8 8 14 31 24 4 8 9.5 6.5 13 3 5 0.009
PHS5 5 M5×0.8 8 6 9 10 16 35 27 4 8.5 11 7.7 13 3.25 5.7 0.016
PHS6 6 M6×1.0 9 6.75 11 12 18 39 30 5 10 13 8.96 13 4.3 7.2 0.022
PHS8 8 M8×1.25 12 9 14 16 22 47 36 5 12.5 16 10.4 14 7.2 11.6 0.047
PHS10 10 M10×1.5 14 10.5 17 20 26 56 43 6.5 15 19 12.9 13 10 14.5 0.077
PHS12 12 M12×1.75 16 12 19 22 30 65 50 6.5 17.5 22 15.4 13 13.4 17 0.1
PHS14 14 M14×2.0 19 13.5 22 25 34 74 57 8 20 25 16.9 16 17 24 0.16
PHS16 16 M16×2.0 21 15 22 28 40 84 64 8 22 27 19.4 15 21.6 28.5 0.22
PHS18 18 M18×1.5 23 16.5 27 32 44 93 71 10 25 31 21.9 15 26 42.5 0.32
PHS20 20 M20×1.5 25 18 30 33 50 102 77 10 27.5 34 24.4 14 31.5 42.5 0.42
PHS22 22 M22×1.5 28 20 32 37 54 111 84 12 30 38 25.8 15 47.5 68 0.54
PHS25 25 M24×2.0 31 22 36 42 60 124 94 12 33.5 42 29.6 15 47.5 68 0.73
PHS28 28 M27×2.0 35 24 41 48 66 136 103 14 37 46 32.3 15 58 75.5 0.98
PHS30 30 M30×2.0 37 25 41 51 70 145 110 15 40 50 34.8 17 64 88 1.1

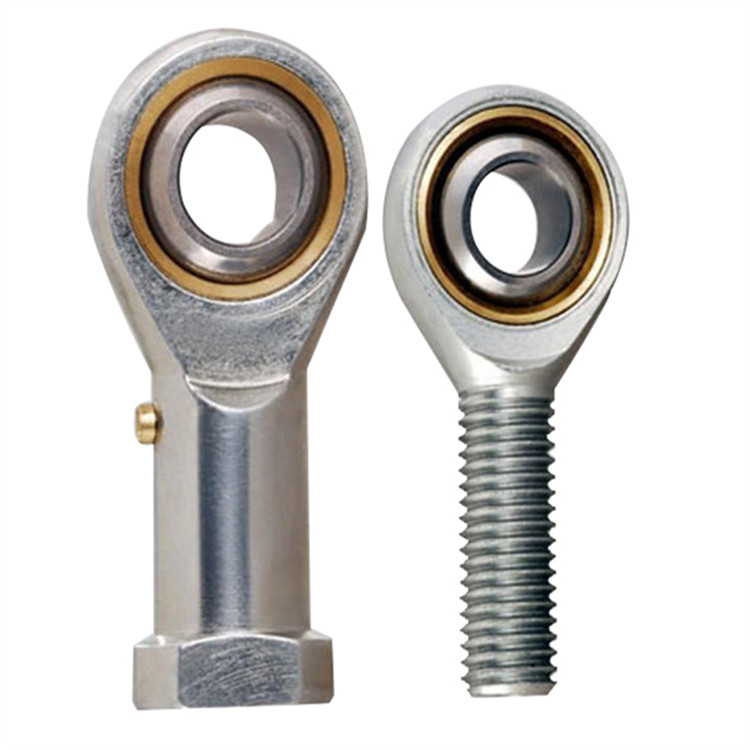

china radial spherical plain joint bearing

Jinan Maolei bearing Co.,Ltd. is located in the “Spring City” Jinan. We insist on the philosophies of “integrity” and “pragmatic & win-win business”. We also adhere to the “people-oriented” and “advancing” enterprise spirit . “Quality first and customers utmost” is honored as our enterprise concept.The core products of Jinan Maolei bearing Co,.Ltd. We have our own brand “LLH”,we sincerely welcome friends from all over the world come to visit our company and talk on business,we adhere to the concept of”survival of high quality”,and provide excellent service for customers.

high quality radial spherical plain joint bearing
