1206 K Bearing:High Performance Self-Aligning Ball Bearing

7 Published by admin Sep 09,2026

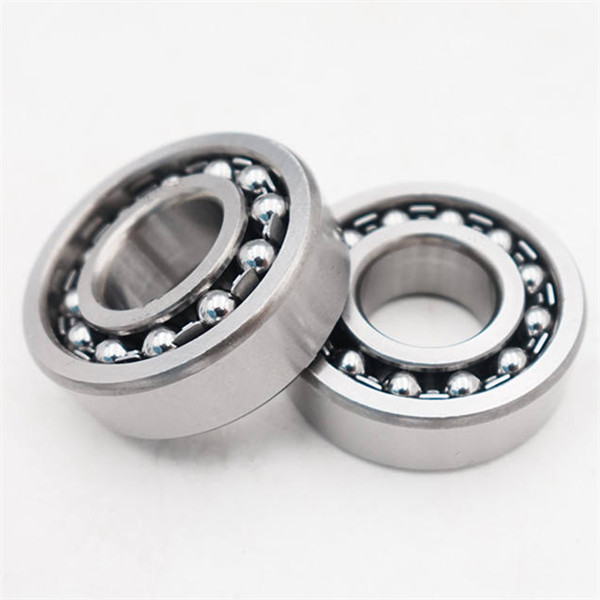

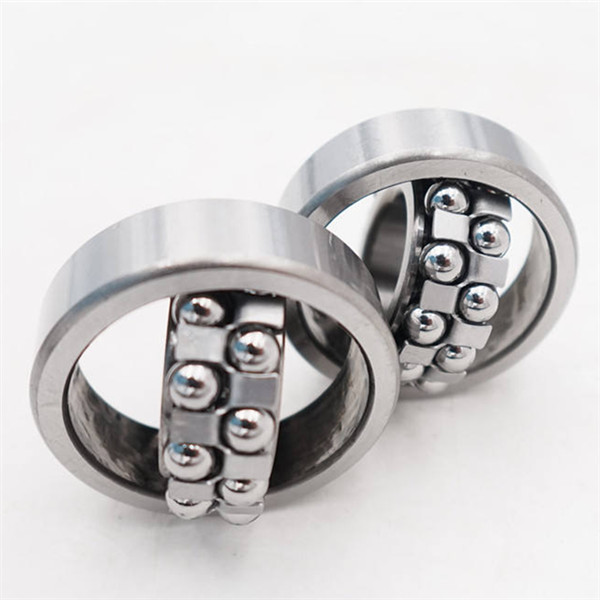

The 1206 K bearing is a widely used double-row self-aligning ball bearing favored in general industrial machinery. With standard dimensions of a 30 mm inner diameter.62 mm outer diameter.And 16 mm width.It features a classic 1:12 tapered bore.Which distinguishes it from ordinary cylindrical bore bearings and enables convenient.Firm shaft installation and positioning.The curvature center of the outer raceway surface is consistent with the center of the bearing.So it has the same centering function as the automatic centering ball bearing.Spherical ball bearings can withstand radial loads and axial loads in two directions. Large radial load capacity.Suitable for situations with heavy loads and impact loads. The retaining frame uses steel plate stamping retaining frame.Polyamide forming retaining frame.And copper alloy car made retaining frame.

Its most prominent advantage is the superior self-aligning performance. Thanks to the spherical raceway on the outer ring.The bearing can compensate for shaft angular misalignment caused by assembly errors.Shaft deflection or equipment vibration.Tolerating a deflection range of up to 3 degrees without increasing operational friction or wear. This core feature greatly reduces assembly precision requirements.And improves equipment operational stability in complex working conditions.

In terms of mechanical performance.The double-row ball structure endows the 1206 K bearing with excellent radial load capacity and stable axial load bearing capability in both directions. Made of high-strength chrome steel and equipped with a durable polymer cage.It generates low friction and minimal heat during high-speed operation. These properties ensure long service life.Low noise and nearly maintenance-free operation for long-term continuous use.

Versatile and practical, the 1206 K bearing serves diverse industries. It is extensively applied in agricultural machinery, textile equipment, electric motors. Transmission gearboxes and material handling systems. It performs exceptionally well in devices prone to minor shaft misalignment and fluctuating loads. Delivering reliable and cost-effective operation. With its balanced performance.Simple installation and strong adaptability.It remains an essential basic component in modern mechanical transmission systems.
