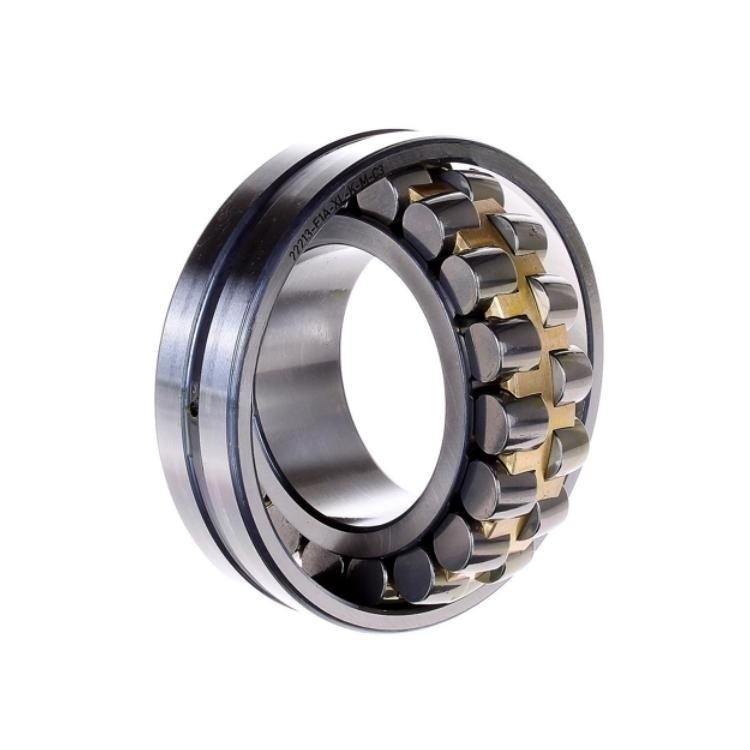

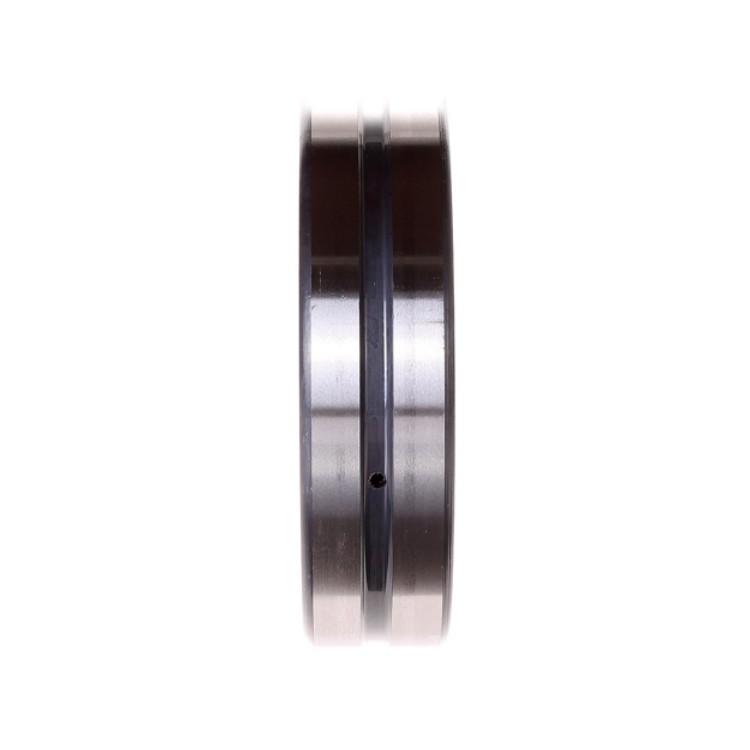

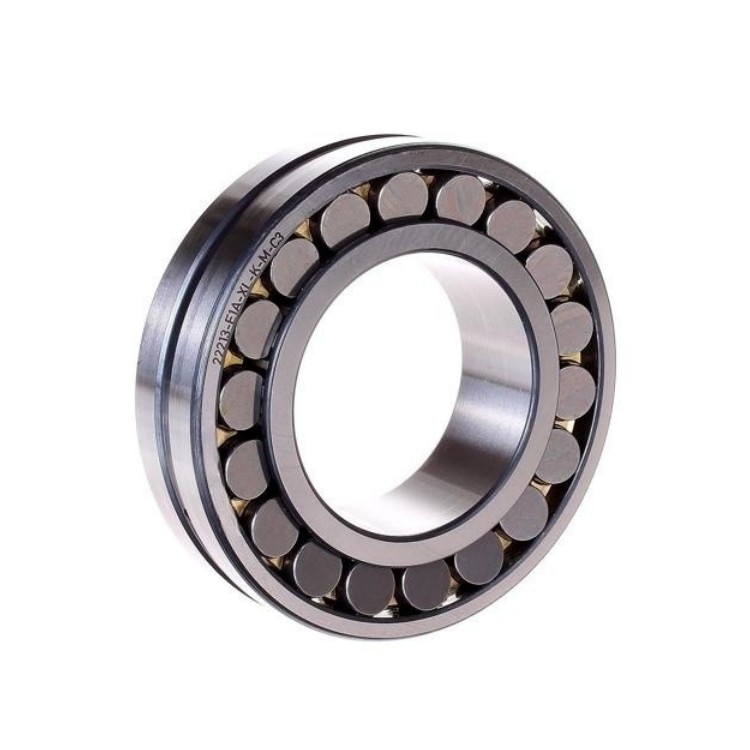

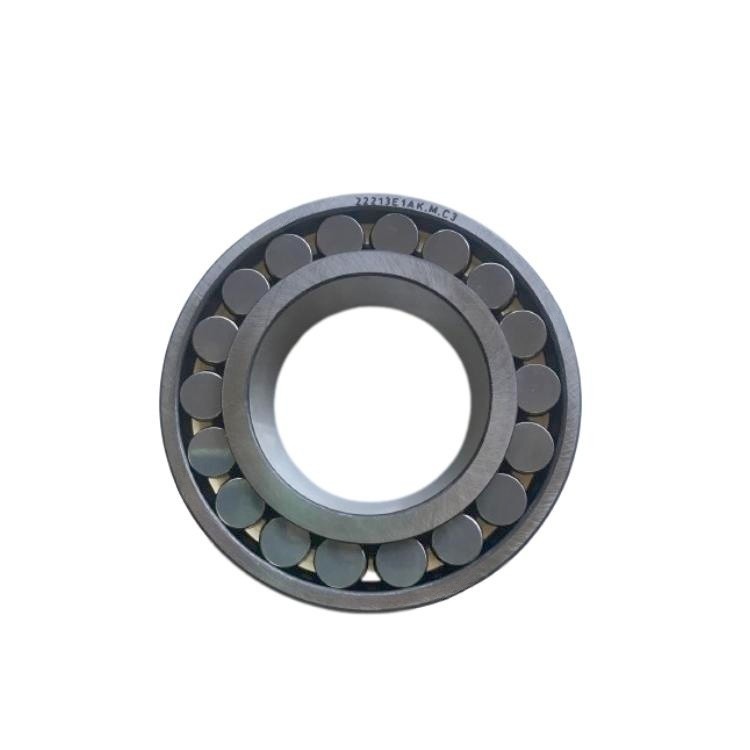

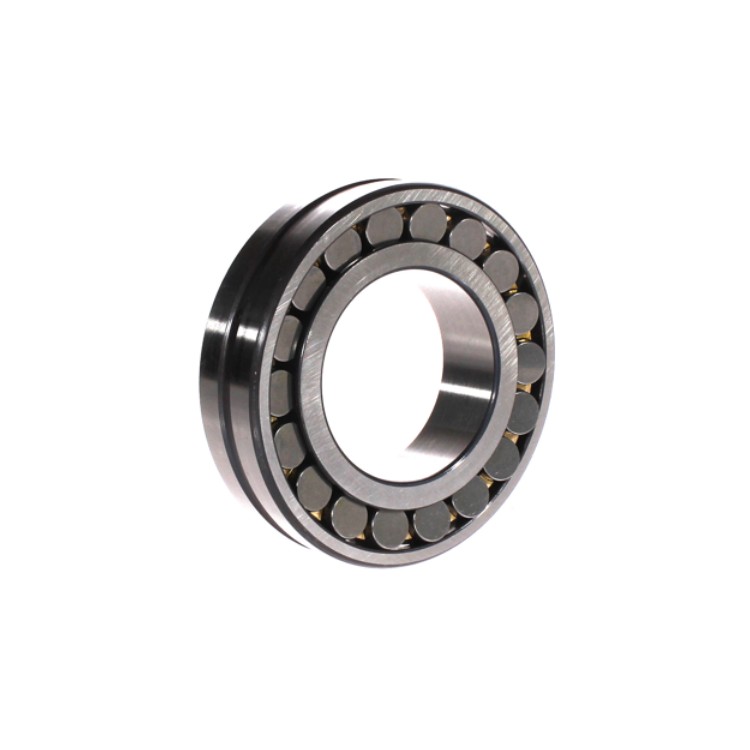

22213 E1 Spherical Roller Bearing 22213-E1A-XL-K-M 65x120x31mm
Spherical roller bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages. The inner rings have cylindrical or tapered bores.
The symmetrical barrel rollers orient themselves freely on the concave outer ring raceway. As a result, shaft flexing and misalignment of the bearing seats are compensated.
|
Cage Type
|
Features
|
|
CC
|
It consists of two pressed steel cages, flangeless inner ring and guide ring centred on the inner ring, It adopts symmetrical spherical roller,which bear the larger load , longer life compared with CA
|
|
CA
|
It consists of one piece of machined brass cage,one inner ring with double flanges and one guide ring centred on the inner ring.The limit speed is higher,and have a relatively small noise.
|
|
MB
|
It consists of two piece of machined brass cage,one inner ring with double flanges and one guide ring centred on the inner ring.its performance and characteristics are similar to CA, but load rating is lower.
|
|
E
|
It is the latest design, using symmetric spherical roller, two piece of pressed steel cages ,flangeless inner ring and guide ring centred on the cage,Guide ring around the outer can improve lubricating condition on roller face of end.It can also reduce friction,help guiding roller in the nonload region,and assist roller into the loading area,meanwhile,the length of roller is getting longer so that the load ratde has been enhanced. Usually rated load can be increased by 20% -35%.
|
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for 22213 E1?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for 22213 E1? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for 22213 E1?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for 22213 E1?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of 22213 E1?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any question,Please contact us at first time, we will immediately processing.
|
Type
|
Spherical roller bearing
|
Model
|
22213
|
|
Brand
|
LLH/OEM
|
d (mm)
|
65mm
|
|
Material
|
Chrome steel
|
D (mm)
|
120mm
|
|
Seal type
|
Open
|
B (mm)
|
31mm
|
|
Precision rate
|
P0, P6, P5, or as requested
|
Payment Term
|
30% T/T In Advance, 70% T/T before shipment
|
|
MODEL |
|||||
| 21306 | 22207 | 22222 | 22260 | 22319 | 22356 |
| 21307 | 22208 | 22224 | 22306 | 22320 | 22360 |
| 21308 | 22209 | 22226 | 22307 | 22322 | 22364 |
| 21309 | 22210 | 22228 | 22308 | 22324 | 22368 |
| 21310 | 22211 | 22230 | 22309 | 22326 | 22372 |
| 21311 | 22212 | 22232 | 22310 | 22328 | 22376 |
| 21312 | 22213 | 22234 | 22311 | 22330 | 22380 |
| 21313 | 22214 | 22236 | 22312 | 22332 | 23024 |
| 21314 | 22215 | 22238 | 22313 | 22334 | 23026 |
| 21315 | 22216 | 22240 | 22314 | 22338 | 23028 |
| 21316 | 22217 | 22244 | 22315 | 22340 | 23030 |
| 21322 | 22218 | 22248 | 22316 | 22344 | 23032 |
| 22205 | 22219 | 22252 | 22317 | 22348 | 23034 |
| 22206 | 22220 | 22256 | 22318 | 22352 | 23036 |
