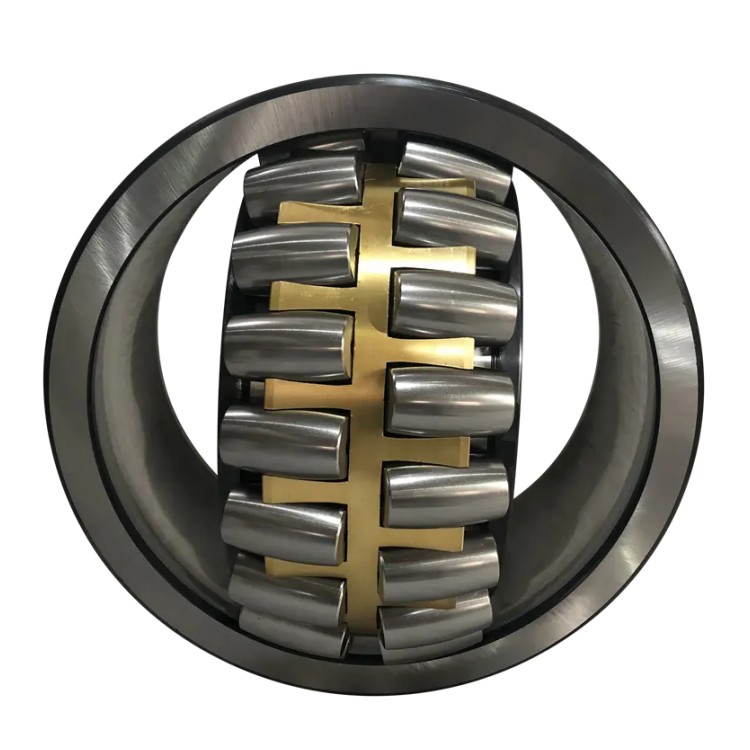

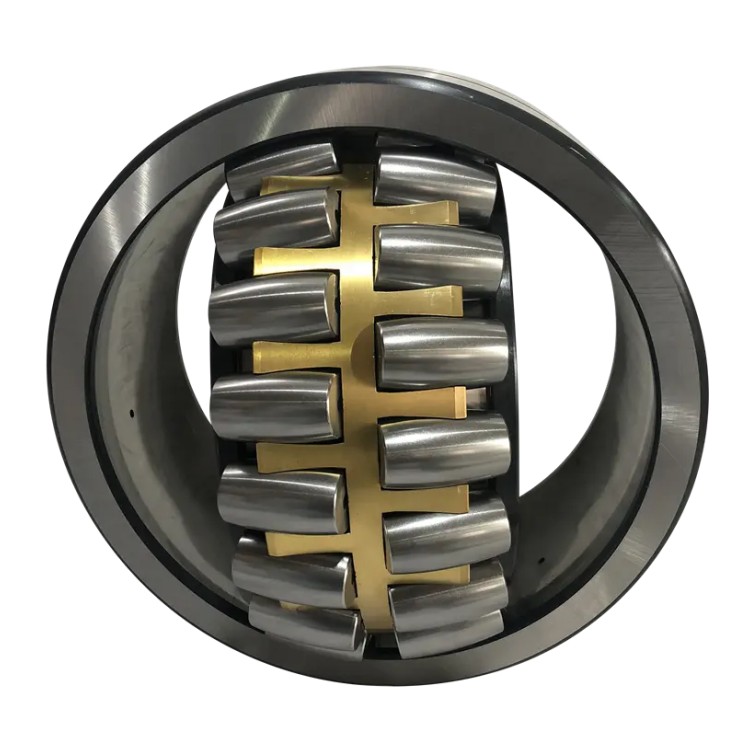

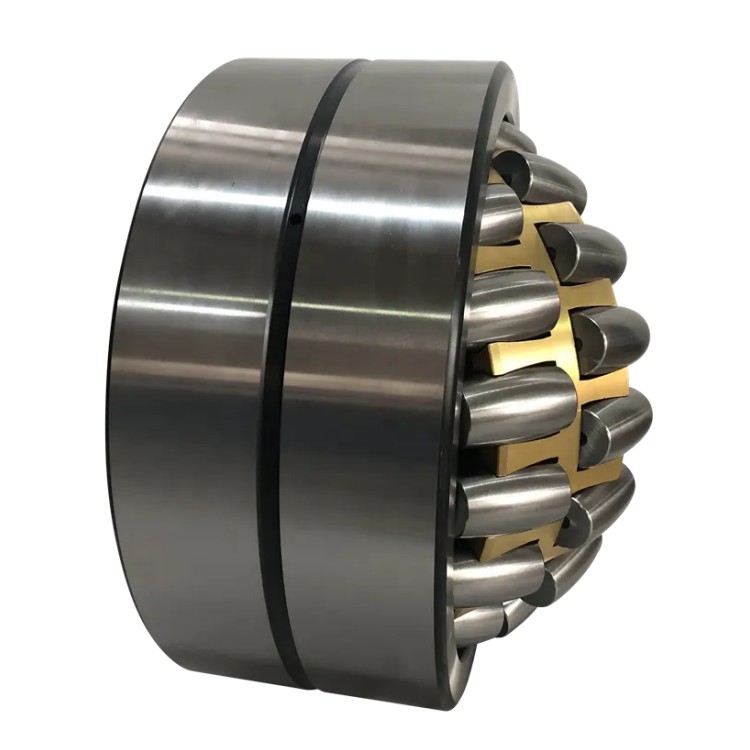

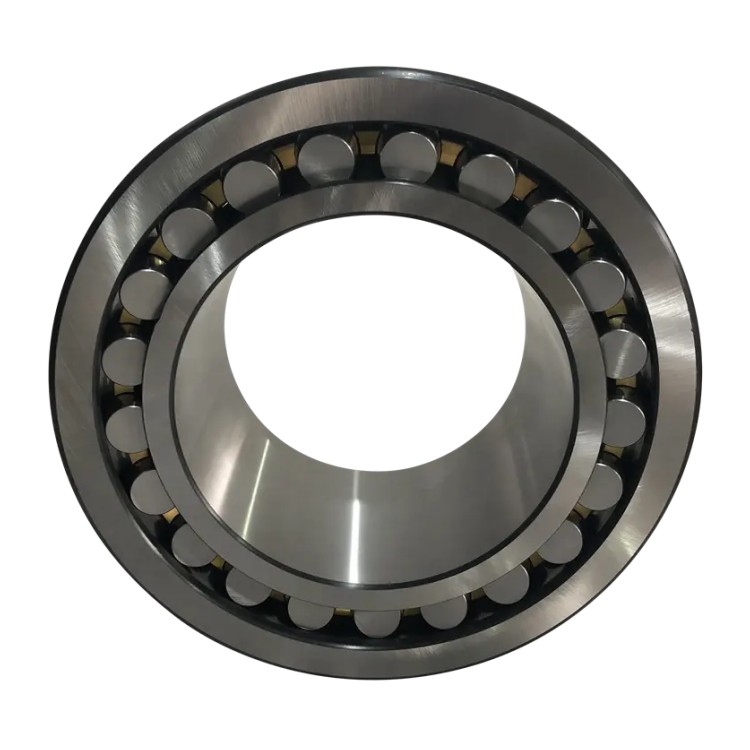

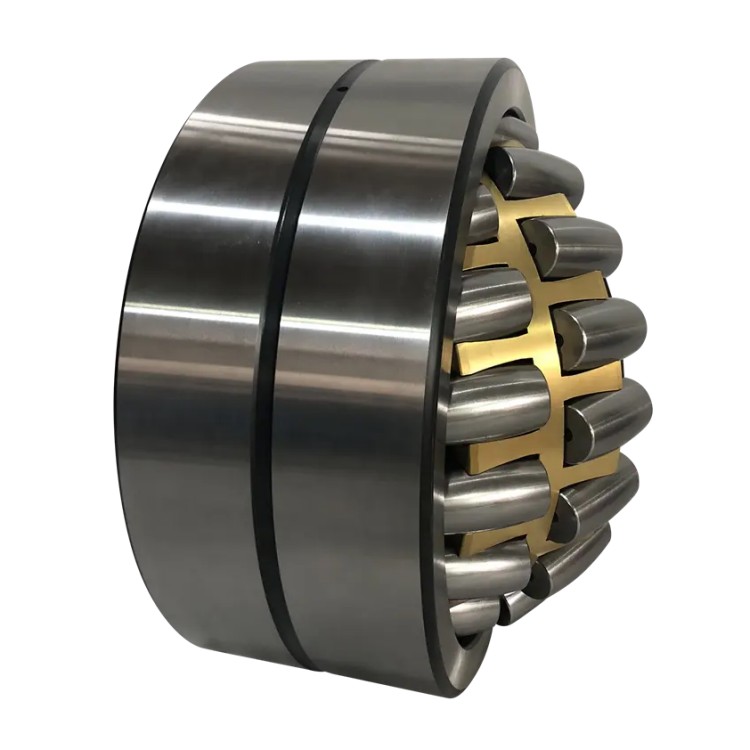

24064 bearing 320x480x160 Spherical roller bearing
Spherical roller bearings with two rollers, mainly bear radial load, but also can withstand axial load in either direction. A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway is spherical shape, so the good performance of its self-aligning, can compensate concentricity error.
There are two symmetrical spherical roller, there is a common spherical outer ring raceway, the bearing inner ring with two axis tilt
Angle of raceway, aligning with good performance, when the axis force bent or install a different heart is still bearing the normal use, transfer concentric with the bearing size range varies, generally aligning allowed 1 to 2.5 degree angle load bearing capacity of the larger type, in addition to radial loads but also under way outside the role of bearing axial load, with good impact resistance, in general, self-aligning roller bearings allowed working speed than the low.
| Material | Bearing | Chorme steel, carbon steel, Stailness Steel ,ceramic | ||
| Cage | Steel cage, carbon cage, stailness steel cage | |||
| Features | Hardness | 58-62HRC | ||
| Precision | ABEC1(P0) ABEC3(P6) ABEC5(P5) ABEC7(P4) ABEC9(P2) | |||
| Clearance | C2,C0,C3,C4,C5 | |||
| Noises Rating | Z1,Z2,Z3,Z4 | |||
| Vibration Rating | V1,V2,V3,V4 | |||
| Seal type | OPEN ZZ RS | |||
| HS Code | ||||
| Port | Shenzhenand Shanghai port | |||
| Cetificate | ISO 9001:2008, SASO ,CQC | |||
| Advantage | 1).Excellent and high quality control 2).Prompt delivery 3).Competitive price 4).Small order accepted 5).Customers' drawing or samples accepted 6).OEM service | |||
| Application | Mainly used in motorcycle rear axle wheel hub, heavy machine tools' main shafts, big power reduction gears, axletree axle boxes, roller wheels of transportation devices, and the supporting rollers and working rollers of the rolling mills. | |||
| process production | 1.Assembly 2.Windage test 3.Cleaning 4.Rotary test 5.Greasing and gland 6.Noise inspection 7.Appearance inspection 8.Rust prevention 9.Product packaging | |||
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for 24064 bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for 24064 bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for 24064 bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of 24064 bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for 24064 bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the 24064 bearing?
A: If have any abnormal, Please contact us at first time, we will immediately processing.
| d |
320 mm
|
Bore diameter |
|---|---|---|
| D |
480 mm
|
Outside diameter |
| B |
160 mm
|
Width |
| d2 |
≈354 mm
|
Shoulder diameter of inner ring |
| D1 |
≈423 mm
|
Shoulder/recess diameter of outer ring |
| b |
13.9 mm
|
Width of lubrication groove |
| K |
7.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.4 mm
|
Chamfer dimension |
| Bearings NO. | d/mm | D/mm | B/mm | C/kN | C0/kN | Weight/kg |
| 22326 CC/W33 | 130 | 280 | 93 | 1120 | 1320 | 29 |
| 22326 CCJA/W33VA405 | 130 | 280 | 93 | 1120 | 1320 | 29 |
| 22326 CCK/W33 | 130 | 280 | 93 | 1120 | 1320 | 28.5 |
| 22326 CCKJA/W33VA405 | 130 | 280 | 93 | 1120 | 1320 | 28.5 |
| 23028 CC/W33 | 140 | 210 | 53 | 465 | 680 | 6.55 |
| 23028 CCK/W33 | 140 | 210 | 53 | 465 | 680 | 6.35 |
| 24028 CC/W33 | 140 | 210 | 69 | 570 | 900 | 8.55 |
| 24028 CCK30/W33 | 140 | 210 | 69 | 570 | 900 | 8.4 |
| 24028-2CS2/VT143 | 140 | 210 | 69 | 570 | 900 | 8.55 |
| 23128 CC/W33 | 140 | 225 | 68 | 630 | 900 | 10.5 |
| 23128 CCK/W33 | 140 | 225 | 68 | 630 | 900 | 10 |
| 24128 CC/W33 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 24128 CCK30/W33 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 24128-2CS2/VT143 | 140 | 225 | 85 | 765 | 1160 | 13.5 |
| 22228 CC/W33 | 140 | 250 | 68 | 710 | 900 | 14 |
| 22228 CCK/W33 | 140 | 250 | 68 | 710 | 900 | 13.5 |
| 23228 CC/W33 | 140 | 250 | 88 | 915 | 1250 | 19 |
| 23228 CCK/W33 | 140 | 250 | 88 | 915 | 1v50 | 18.5 |
