30208 taper roller bearing size 40*80*19.75mm

Product Specification:

  • Model 30208
  • Size 40*80*19.75mm
  • Brand LLH or as your request
  • Original China or as your request
See Price

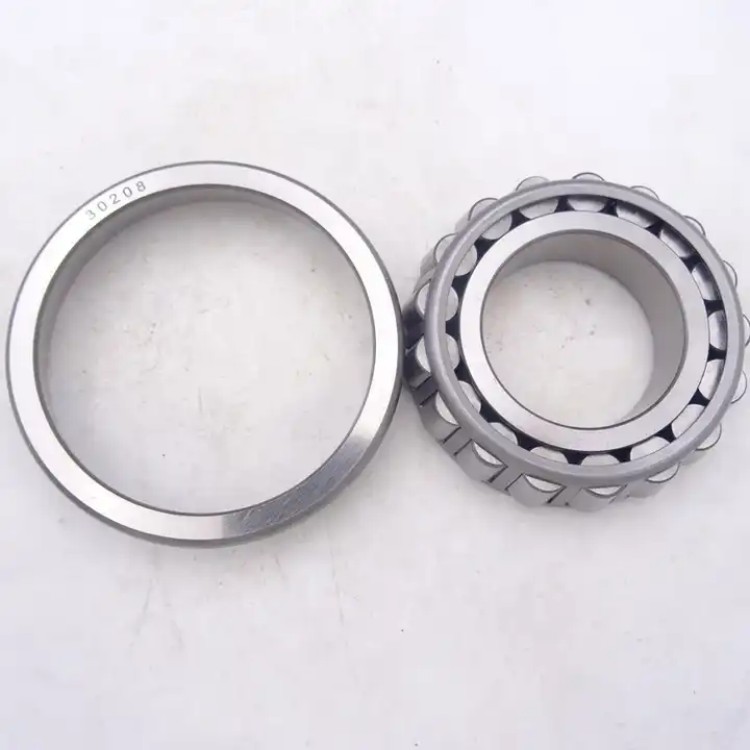

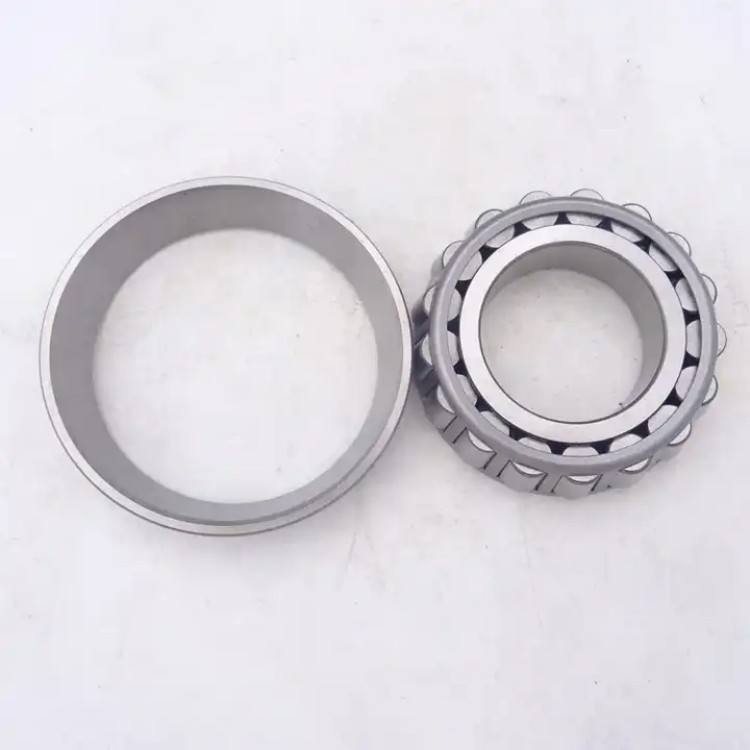

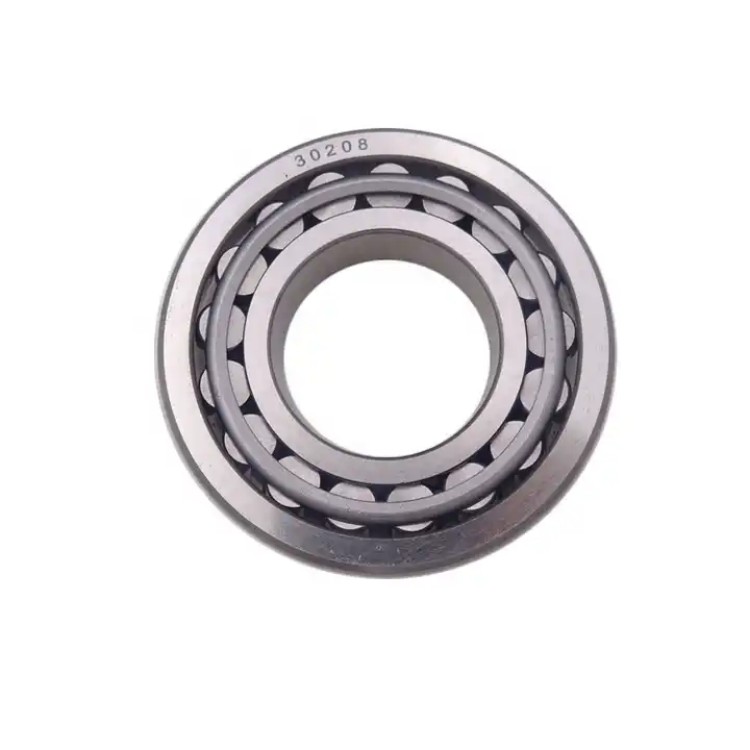

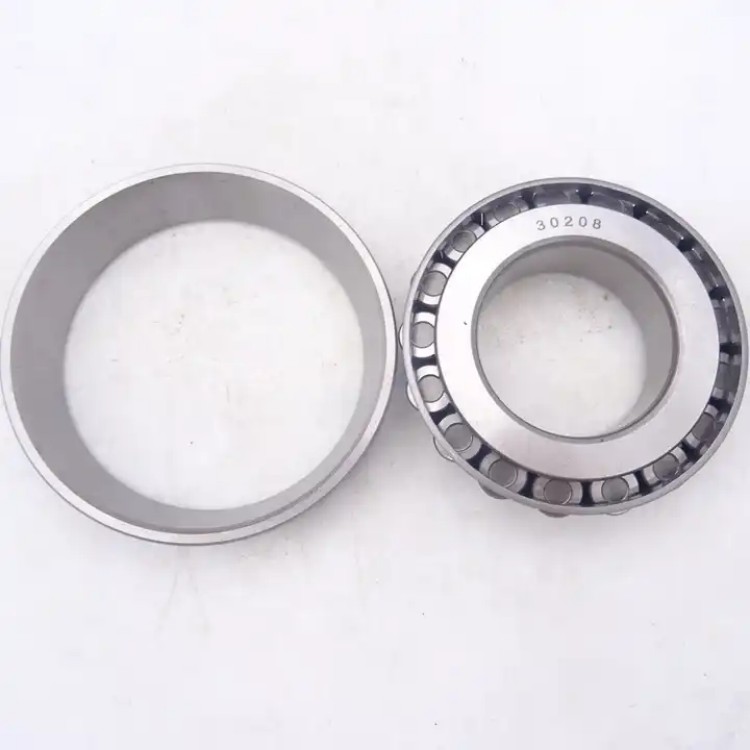

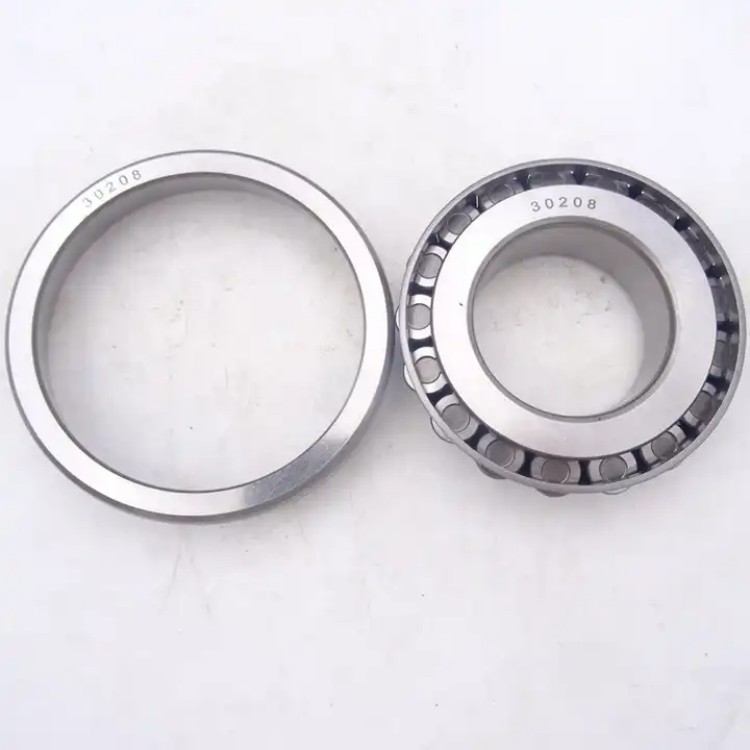

30208 taper roller bearing size 40*80*19.75mm

high speed bearing


Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.

Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.

Taper roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.

Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.

Taper roller bearings have tapered inner and outer ring raceways, The tapered roller is in the middle of the two raceways. This kind of bearings is usually separatable, namely the retainer, inner ring and outer ring can be installed apart. They can withstand immense radial direction load and certain axial load. They are designed in different sizes and styles to meet all kinds of functions.

BEARING30208 bearing 30208 roller bearing 30208 tapered roller bearing bearing 30208 30208 taper roller bearing roller bearing

1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for 30208 taper roller bearing?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for 30208 taper roller bearing? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for 30208 taper roller bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of 30208 taper roller bearing?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for 30208 taper roller bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the 30208 taper roller bearing?
A: If have any abnormal, Please contact us at first time, we will immediately processing. roller bearing

If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234bearing manufaturer
Bore diameter 40 mm
Outside diameter 80 mm
Width, total 19.75 mm
Width, inner ring 18 mm
Width, outer ring 16 mm
Contact angle 14.036 °

high speed bearing

Related Bearing Models
Principal dimensions(mm) Weight(KG)
d D B C r1min rsmin
30203 17 40 12 11 1.0  1.0 0.079
30303 17 47 14 12 1.0  1.0 0.134
32004X 20 42 15 12 0.6  0.6 0.097
30204 20 47 14 12 1.0  1.0 0.127
32204 20 47 18 15 1.0  1.0 0.16
30304 20 52 15 13 1.5  1.5 0.172
32304 20 52 21 18 1.5  1.5 0.241
32005X 25 47 15 11.5 0.6  0.6 0.116
30205 25 52 15 13 1.0  1.0 0.157
32205 25 52 18 15 1.0  1.0 0.187
33205 25 52 22 18 1.0  1.0 0.221
30305 25 62 17 15 1.5  1.5 0.27
