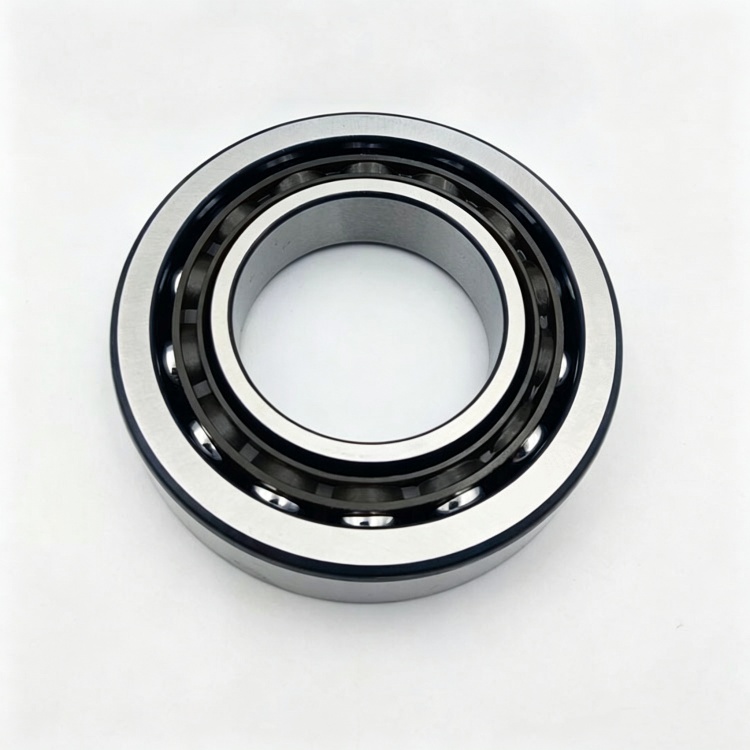

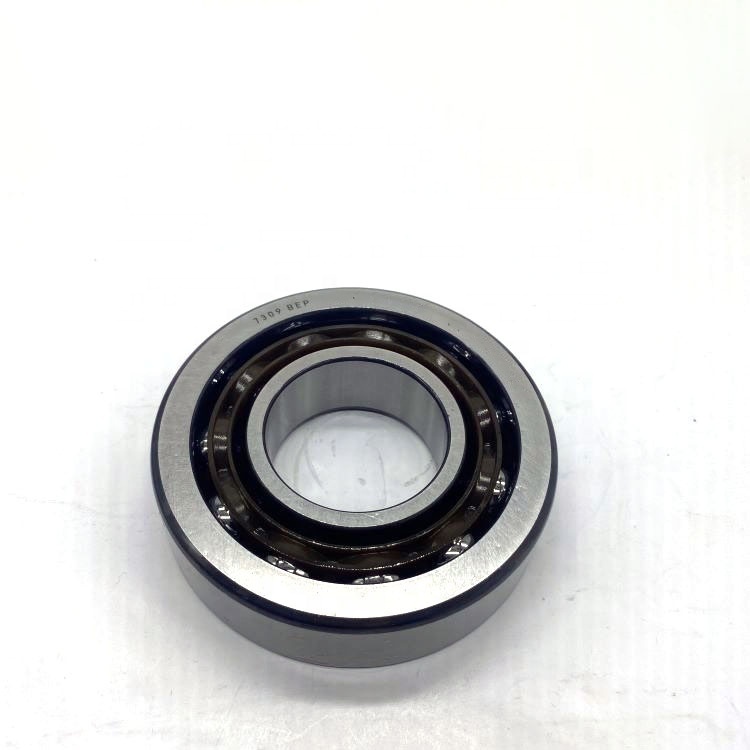

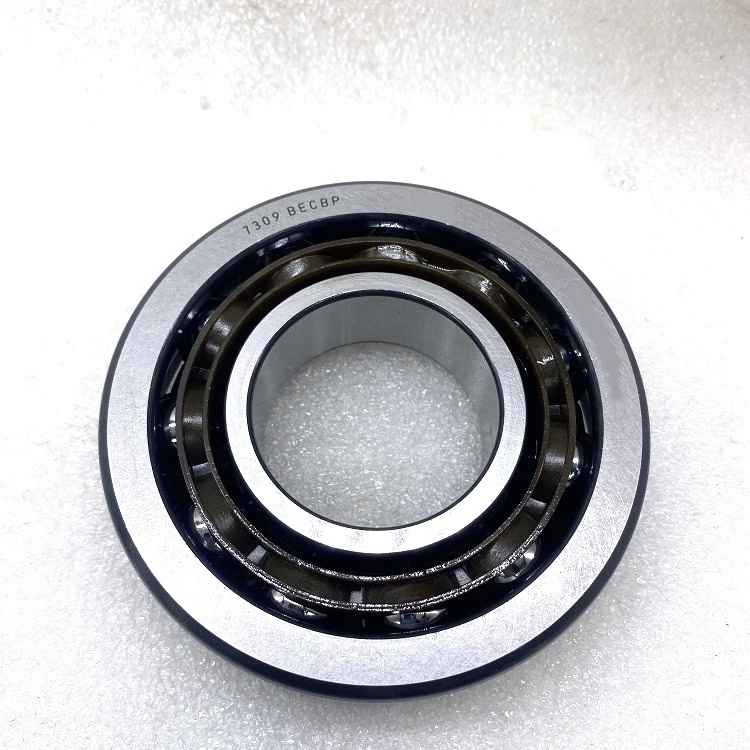

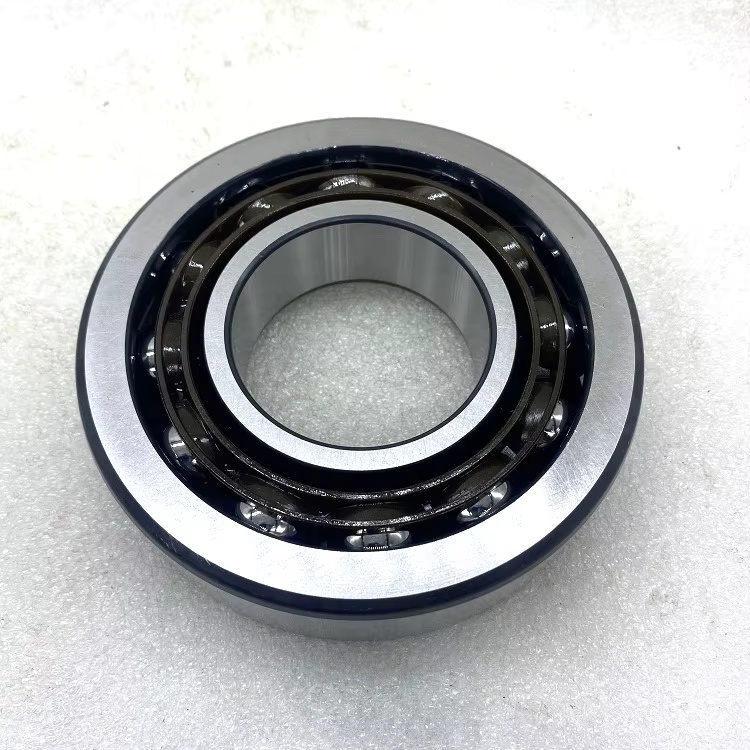

7309 BECBP 45x100x25mm Single Row Angular Contact Bearing
7309 BECBP is a single‑row angular contact ball bearing equipped with solid inner and outer rings. It gets its name from the contact angle formed by the axial offset between inner‑ring and outer‑ring raceways.
Its rings feature one high shoulder and one low shoulder. The low‑shoulder design allows for a larger ball complement inside the bearing. Single‑row angular contact ball bearings withstand high radial loads as well as unidirectional axial loads. A larger contact angle corresponds to higher axial load‑carrying capacity.

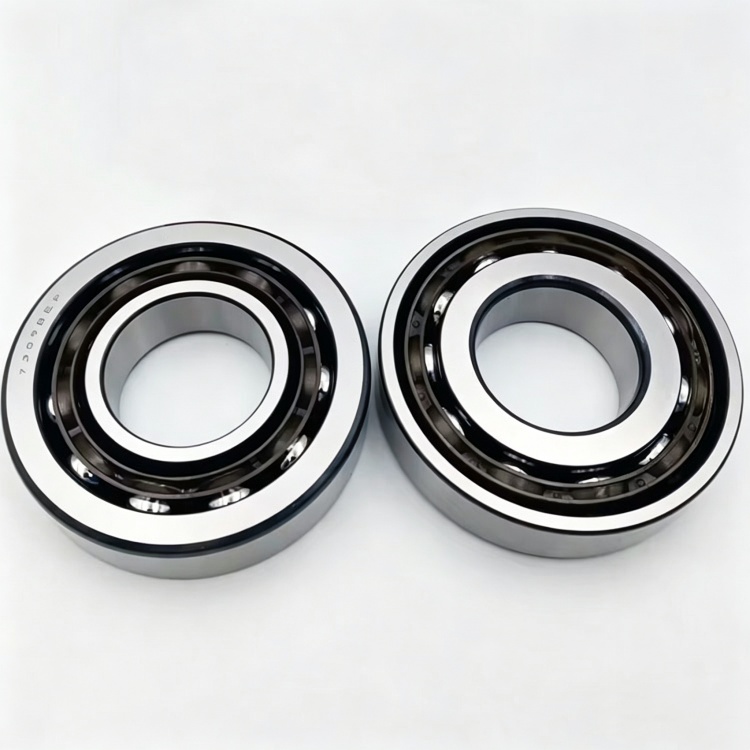

7309 BECBP is designed for universal matching. Bearings for universal matching can be directly mounted adjacent to one another in various configurations. Shims or other spacers are not needed to achieve the intended clearance, preload, or uniform load distribution.
Paired mounting is adopted when the load‑bearing capacity of a single bearing is inadequate, or under combined loads or bidirectional axial loads. For CB bearing sets fitted in X‑type or O‑type arrangements, the unmounted axial clearance is standard normal.
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time for 7309 becbp?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for 7309 becbp? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing?
A: Payment<=1000USD,100% in advance.Payment>=1000USD, 30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for 7309 becbp?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for 7309 becbp?
A: after we get your inquiry, usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearings?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ of 7309 becbp?
A: Usually ≥1,According your demand.
9,Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the product?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
 |
| If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace |
| d |
45 mm
|
Bore diameter |
|---|---|---|
| tΔdmp | -0.01 – 0 mm | Deviation limits of mid-range bore diameter |
| D |
100 mm
|
Outside diameter |
| tΔDmp | -0.013 – 0 mm | Deviation limits of mid-range outside diameter |
| B |
25 mm
|
Width |
| tΔBs | -0.12 – 0 mm | Deviation limits of ring width |
| d1 |
≈66.5 mm
|
Shoulder diameter of inner ring (large side face) |
| d2 |
≈55.25 mm
|
Shoulder diameter of inner ring (small side face) |
| D1 |
≈79.75 mm
|
Shoulder diameter of outer ring (large side face) |
| a |
43 mm
|
Distance side face to pressure point |
| r1,2 |
min.1.5 mm
|
Chamfer dimension |
| r3,4 |
min.1 mm
|
Chamfer dimension |
|
Angular contact ball bearings |
706C , B706C series |
706C 707C 708C 709C B706C B707C B708C B709C |
|
724C series |
724C 725C 726C 727C 728C 729C |
|
|
7000C series |
7000 7001 7002 7003 7004 7005 7006 7007 7008 7009 7010 7011 7012 7013 7014 7015 7016 7017 7018 7019 7020 7021 7022 7024 7026 7028 7030 7032 7034 7036 7038 7040 |
|
|
7200C series |
7200 7201 7202 7203 7204 7205 7206 7207 7208 7209 7210 7211 7212 7213 7214 7215 7216 7217 7218 7219 7220 7221 7222 7224 7226 7228 7230 7232 7234 7236 7240 7244 7248 |
|
|
7303C series |
7303 7304 7305 7306 7307 7308 7309 7310 7311 7312 7313 7314 7315 7316 7317 7318 7319 7320 7322 7324 7328 7330 7332 7336 7340 |
|
|
7406 series |
7406 7407 7408 7409 7410 7411 7412 7413 7414 7415 7416 7418 |
|
|
71900 series |
71900 71901 71902 71903 71904 71905 71906 71907 71908 71909 71910 719011 71912 71913 71914 71915 71916 71917 71918 71919 71920 71922 71924 71926 71928 71930 71932 71934 71936 71938 71940 |
|
|
3200 series |
3200 3201 3202 3203 3204 3205 3206 3207 3208 3209 3210 3211 3212 3213 3214 3216 3218 3219 |
|
|
3302 series |
3302 3303 3304 3305 3306 3307 3308 3309 3310 3311 3312 3313 3314 3315 3316 |
