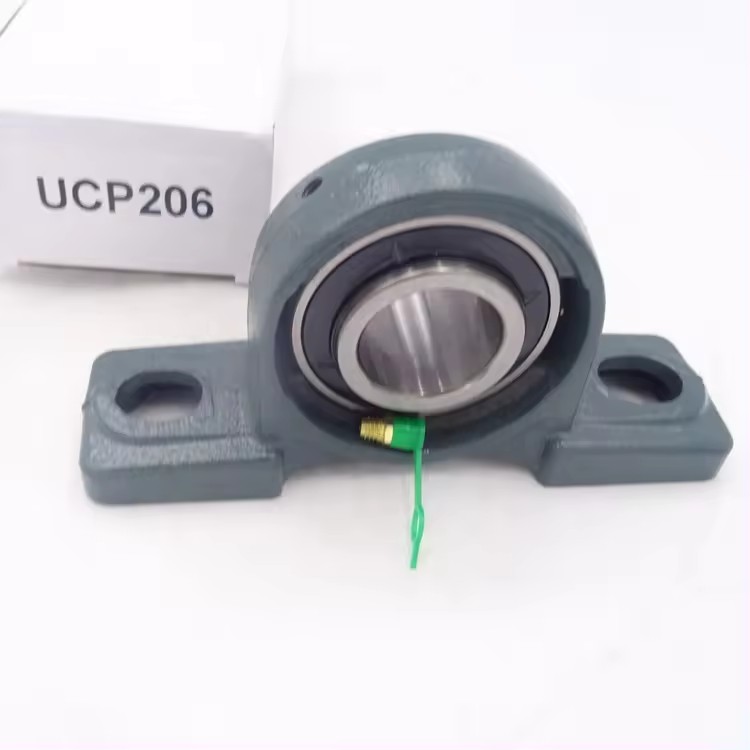

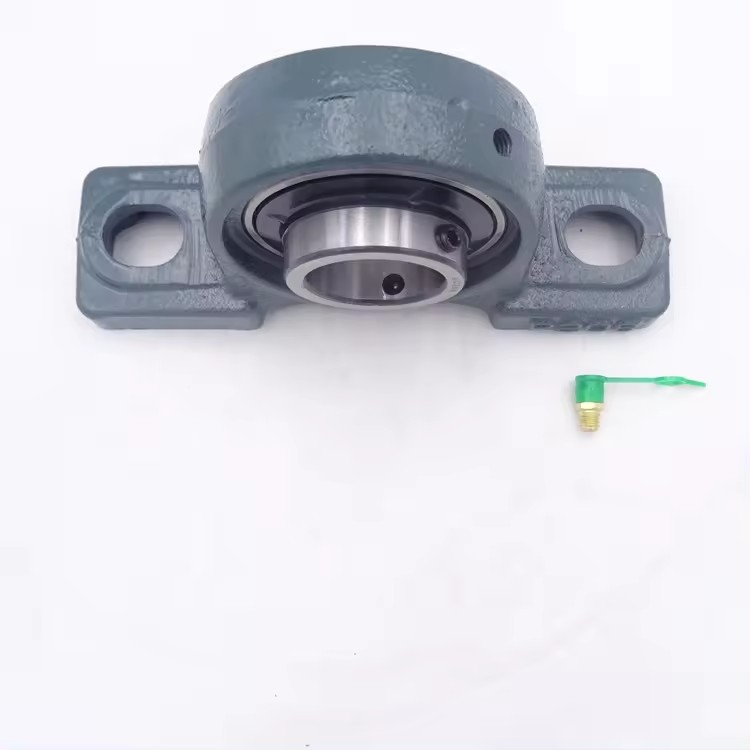

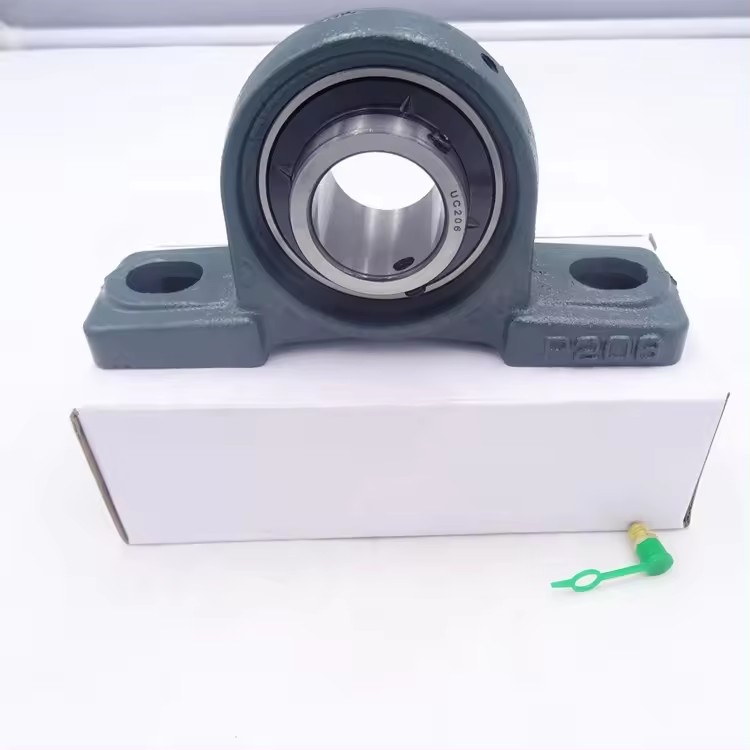

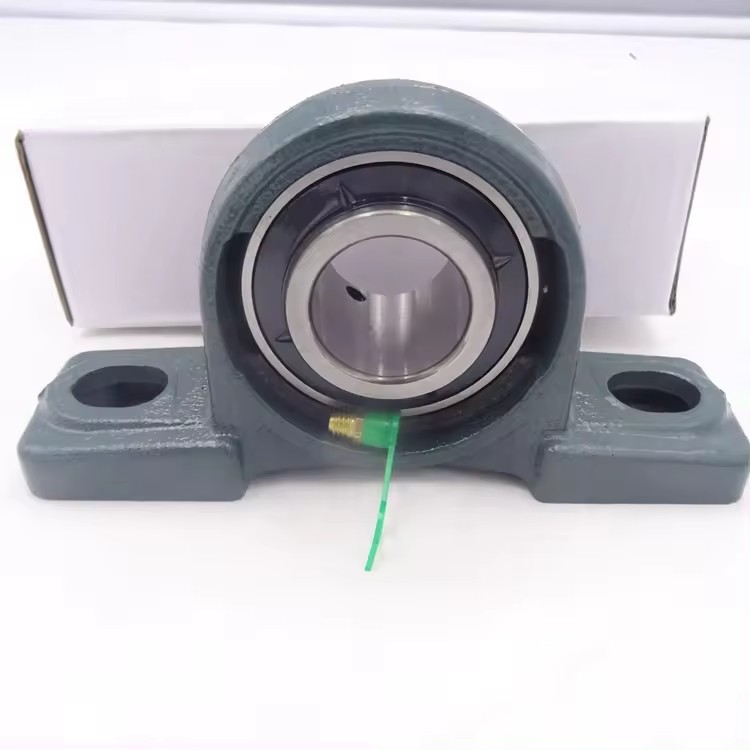

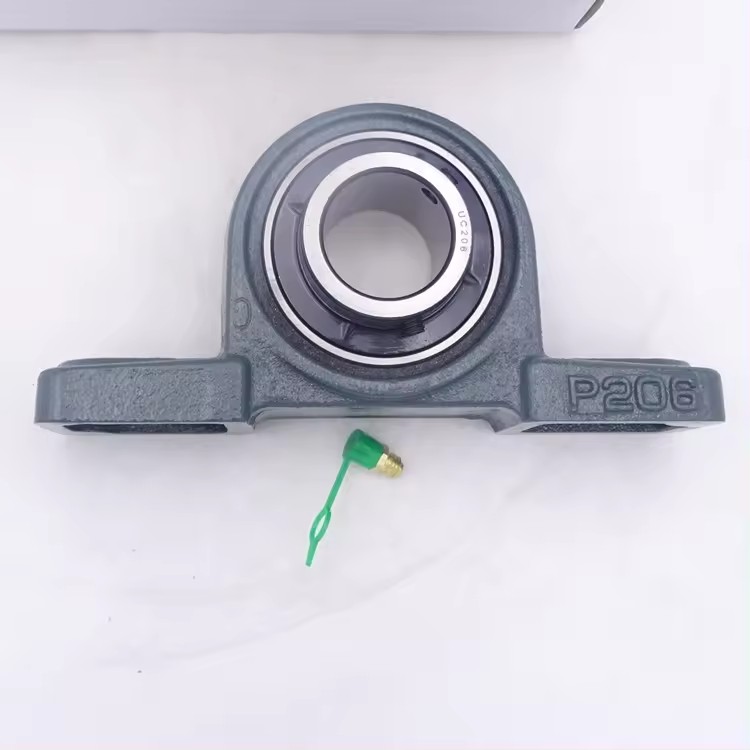

30mm UCP206 UCP series pillow block bearing ucp 206
Pillow Block Bearing consist of the insert ball bearing and house, the inster bearingis the deep groove ball bearings with wide inner rings, it insert in housing work as an unit bearings. The housing are mainly casting or pressed steel. The bearing unit are compact in design with perfect sealing devices, they can align with easy during operation and can be conveniently mounted or dismounted. When mounted in appropriate housings to form housed bearing units, they are able to compensate for initial errors of alignment.
The external sphere ball bearing with seat made from stainless or chrome steel has the fallowing features:automatic aligning,repeated lubrication,anticorrosive,dust proof and convenience for fixing and dismantle.it is widely used in all kinds of machinery,especially in food machine.spin and weave to print to dye the machine,metlallurgy chemical engineering machinery and various conveying devices etc.
The design of external sphere ball bearing with seat made from stainless or chrome steel is scientific and reasonable,its process is superior and its application is reliable.Moreover the top inner screw hole of external sphere ball bearing .The surrounding of bearing lift screw is treated by temper at high temperature.
It strengthens the tough and anti-impact capacity and also can prevent from the screw loosing and falling off during the period of work. According to customers' drawing or sample,all kinds of non-standard sphere ball bearings also can be customized in our factory .
1,Q: Are you trading company or manufacturer ?
A: We are factory.
2,Q: How long is your delivery time ?
A: Generally it is 3-5 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
3,Q: Do you provide samples for bearing ucp 206?is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4,Q: What is your terms of payment for bearing ucp 2060?
A: Payment<=1000USD, 100% in advance.Payment>=1000USD,30% T/T in advance,pay the balance before shippment.
5, Q:Could you accept OEM and customize for bearing?
A:YES,we can customize for you according to sample or drawing.
6, Q: When can I get the price for bearing ucp 206?
A: after we get your inquiry,usually within 2-6 hours.Urgent will be faster.
7,Q:How about your quality of bearing ucp 206?
A:Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
8, Q: What is the MOQ for bearing?
A: Usually ≥1, According your demand.
9,Q: Will you check bbearing ucp 206 before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
10, Q: What will we do if If you are not satisfied with the bearing ucp 206?
A: If have any abnormal,Please contact us at first time, we will immediately processing.
If you need any brand bearings or any models of bearings, please contact me!
Contact: Grace
Email: ntn@llhbearing.com
Skype:+8618668903871
MP/Whatsapp: +8618668903871
Wechat:GraceXu1234
| d |
30 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈39.8 mm
|
Shoulder diameter of inner ring |
| A |
45 mm
|
Base width |
| A1 |
27 mm
|
Top width |
| B |
38.1 mm
|
Width of inner ring |
| B4 |
5.5 mm
|
Distance from locking device side face to thread centre |
| H |
42.9 mm
|
Height of spherical seat centre |
| H1 |
16.5 mm
|
Foot height |
| H2 |
83.5 mm
|
Overall height |
| J |
121 mm
|
Distance between attachment bolts |
| J |
max.125 mm
|
Distance between attachment bolts |
| J |
min.117 mm
|
Distance between attachment bolts |
| L |
165 mm
|
Overall length |
| N |
17 mm
|
Diameter of attachment bolt hole |
| N1 |
21 mm
|
Length of attachment bolt hole |
| s1 |
22.2 mm
|
Distance from locking device side face to raceway centre |
|
Model
|
Old model
|
Size (HxdxLxJxH0xB)mm
|
Weight(KG)
|
|
UCP202
|
Z90502
|
30.2×15×127×95×62×27.4
|
0.7
|
|
UCP202/YA
|
Z90502Y
|
30.2×15×127×95×62×31
|
0.7
|
|
UCP203
|
Z90503
|
30.2×17×127×95×62×27.4
|
0.7
|
|
UCP203/YA
|
Z90503Y
|
30.2×17×127×95×62×31
|
0.7
|
|
UCP204
|
Z90504
|
33.3×20×127×95×65×31
|
0.7
|
|
UCP205
|
Z90505
|
36.5×25×140×105×71×34.1
|
0.8
|
|
UCP206
|
Z90506
|
42.9×30×165×121×83×38.1×1.3
|
1.36
|
|
UCP207
|
Z90507
|
47.6×35×167×127×93×42.9
|
1.6
|
|
UCP208
|
Z90508
|
49.2×40×184×137×100×49.2
|
1.9
|
|
UCP209
|
Z90509
|
54×45×190×146×106×49.2
|
2.2
|
|
UCP210
|
Z90510
|
57.2×50×206×159×114×51.6
|
2.6
|
|
UCP211
|
Z90511
|
63.5×55×219×171×126×55.6
|
3.3
|
|
UCP212
|
Z90512
|
69.8×60×241×184×138×65.1
|
4.6
|
|
UCP213
|
Z90513
|
76.2×65×265×203×151×65.1
|
5.9
|
|
UCP214
|
Z90514
|
79.4×70×266×210×157×74.6
|
6.6
|
|
UCP215
|
Z90515
|
82.6×75×275×217×163×77.8
|
7.4
|
|
UCP216
|
Z90516
|
88.9×80×292×232×175×82.6
|
9
|
|
UCP217
|
Z90517
|
95.2×85×310×247×187×85.7
|
11
|
|
UCP218
|
Z90518
|
101.6×90×327×262×200×96
|
13
|
