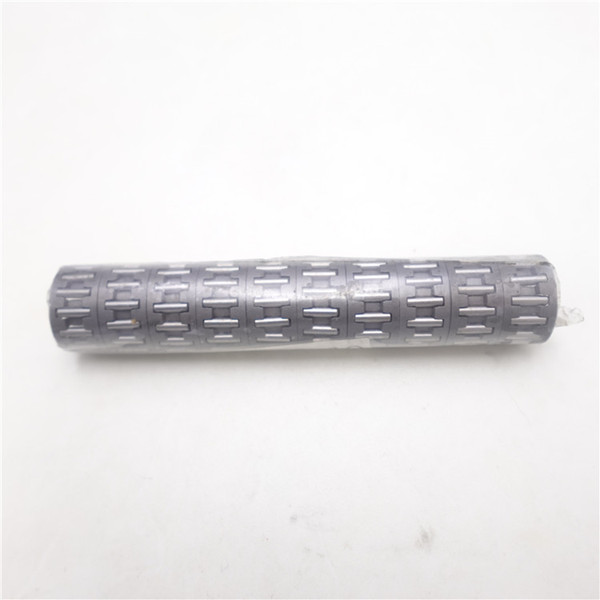

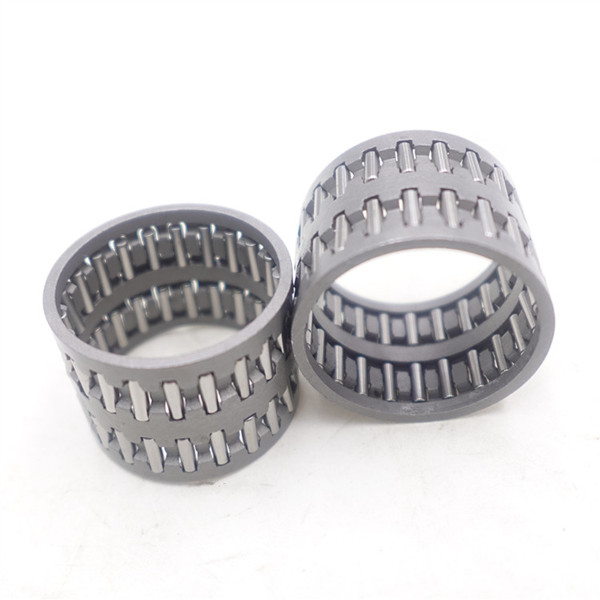

The caged needle bearings assembly is an independent rolling element, suitable for situations where the journal surface and housing hole can be directly used as a raceway. Capable of achieving high load-bearing capacity and high rigidity design with minimal structural space. The retaining frame is made of high-quality steel. The distance between the two guide surfaces is wide, which ensures the stability of needle rolling guidance and maintains the correct position of the needle rolling. This component has strict technical requirements for the surface hardness (HRC60) and roughness (Ra ≤ 0.63 μ m) of the matching journal and housing holes. Some models can be made into a split structure for installation and disassembly, with the code KS.Despite having a smaller cross-section, the bearing still has a high load-bearing capacity, resulting in a compact radial structure. Its inner diameter and load capacity are the same as other types of bearings, with the smallest outer diameter, making it particularly suitable for support structures with limited radial installation dimensions.
Caged Needle bearings have a high load-bearing capacity and are suitable for supporting structures with limited installation dimensions. The journal surface is hardened as a rolling surface.And the bearing is inserted into the seat hole by pressing fit without the need for axial positioning. Bearings should be injected with an appropriate amount of lubricating grease before installation.
Technical parameter of caged needle bearings assembly.
Matching surface hardness: The shaft neck and housing hole should reach HRC60 or above.
Surface roughness: Ra value not exceeding 0.63 μ m.
Size series: including single row (K series), double row (KK series), and split (KS series).
Application fields of caged needle bearings:
Precision machine tool transmission system.
Automobile gearbox and steering mechanism.
Industrial robot joint components. Its design compatibility allows for the direct use of the original shaft hole structure of the device as a raceway.Significantly reducing space occupation.
If you need any brand bearings or any models of bearings, please contact me!
Contact: April
Email: nsk@llhbearing.com
Skype/Wechat:April15315593063
MP/Whatsapp: +8615315593063
