Do You Know Flat Linear Bearing Types and Use?

100 Published by admin Mar 03,2026

Flat linear bearing also known as linear roller bearings, are designed to allow for smooth linear motion along a flat surface. They typically consist of an outer casing, a series of rolling elements (such as rollers or balls), and a cage that retains these elements. This design minimizes friction and enhances operational efficiency, making them ideal for various applications.

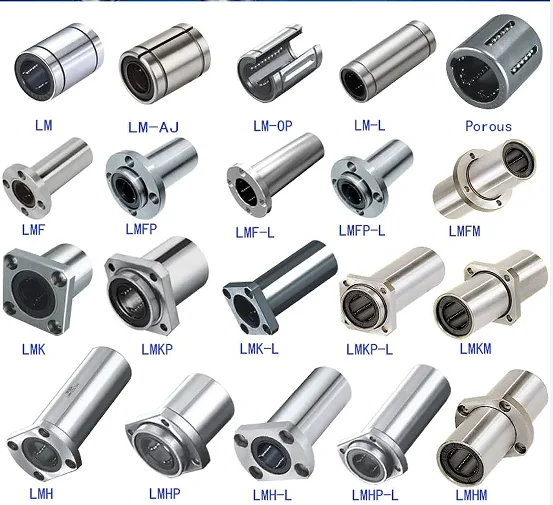

Types of Flat linear bearing

Linear Roller Bearings: These bearings use cylindrical rollers to provide linear motion. They are often used in applications requiring high load capacities and low friction.

Linear Ball Bearings: These consist of balls that roll between the inner and outer races, providing smooth motion and are commonly used in applications with lower load requirements.

Needle Roller Bearings: A specific type of roller bearing that uses long, thin rollers to achieve a compact design while maintaining high load capacity.

Advantages of Flat Linear Bearings
High Load Capacity and Rigidity：which is essential for inspection equipment and CNC machinery.
Compact Design: Their flat, compact profile allows for space-saving, robust, and low-profile installation.
Self-Lubrication/Low Maintenance.
Noise and Vibration Reduction。
Unlimited Stroke Length: Similar to ball guides, they allow for long, continuous movement depending on the rail length

Flat linear bearing Applications

Linear flat bearings are utilized in various industries, including:

Manufacturing: For guiding and supporting moving parts in machinery.
Automation: In robotic systems for precise movement control.
Medical Equipment: In devices requiring smooth and reliable motion.

Flat linear bearing are essential components in many mechanical systems, providing efficient and reliable linear motion. Their design and functionality make them suitable for a wide range of applications, from industrial machinery to precision instruments. For specific needs, Please send us the flat linear bearing drawing and your details required. We have professional bearings engineer help you solve the problem you meet.
